Sonoff ZigBee DIY BASICZBR3 Manuel utilisateur
ZigBee DIY Smart Switch
BASICZBR3
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch
2
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
✉www.alza.co.uk/kontakt
✆+44 (0)203 514 4411
Importer
Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
3
The device can be operated intelligently via working with the SONOFF ZigBee Bridge.
The device can work with other gateways supporting ZigBee 3.0 wireless protocol.
Detailed information is in accordance with the final product.
Operating Instruction
Power off
To avoid electric shocks, please consult the dealer or a qualified professional for help
when installing and repairing! Please do not touch the switch during use.
Wiring instruction
Remove the Protective cover, then connect wires before fixing the wire fastener.
To make sure a full installation, please align “ ” with “ ” when securing the
protective cover.
Ceiling lamp wiring instruction:
LED
driver
L output N
N input L
N In
L In
N Out
L Out
4

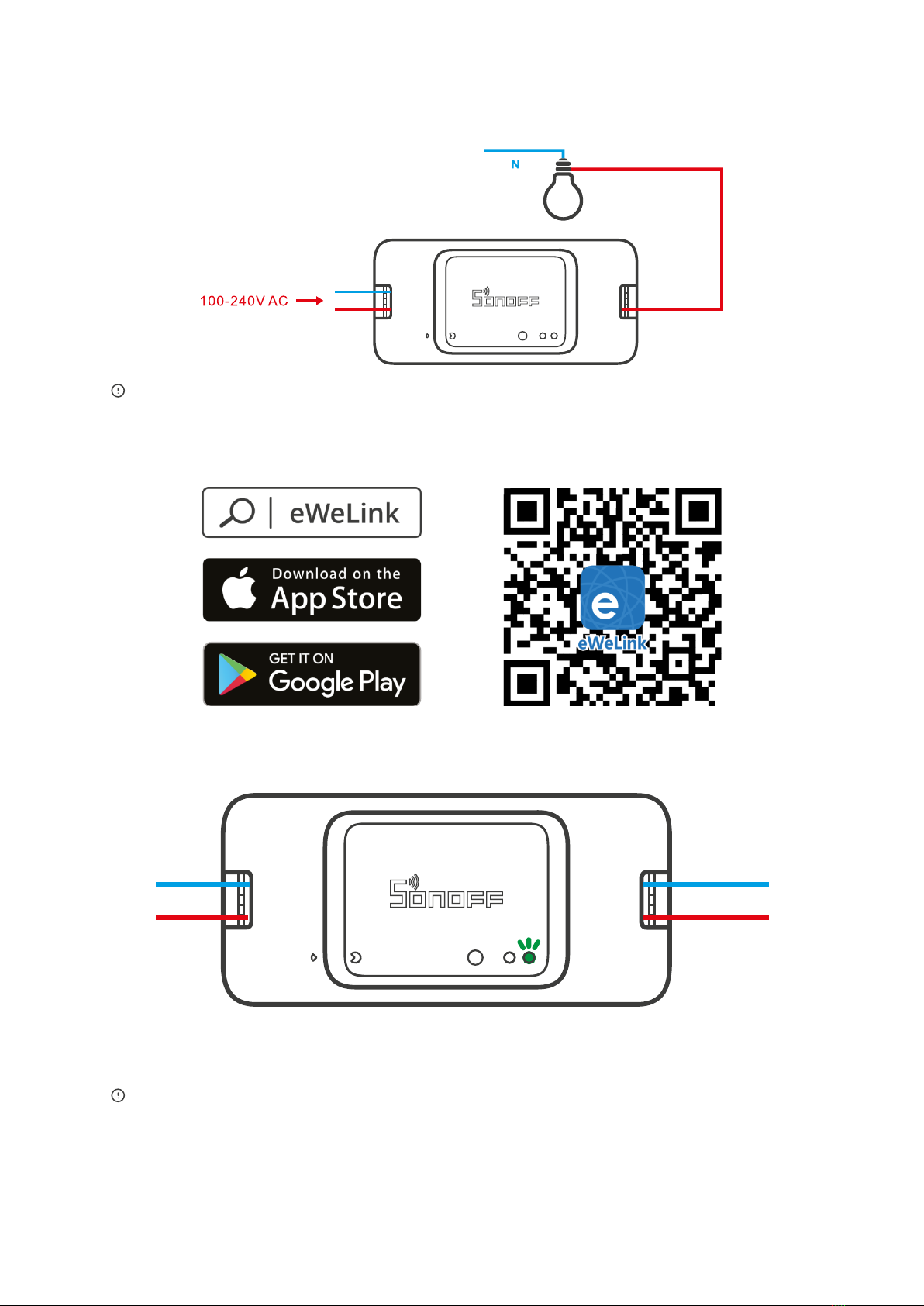

One live wire wiring instruction:
Make sure the neutral wire and live wire connection is correct
Download APP
Android™ & iOS
Power on
After powering on, the device will enter the pairing mode during the first use and the
ZigBee LED signal indicator flashes.
The device will exit the pairing mode if there is no next operation for a long time. If
enter again, please long press the pairing button for 5s until the ZigBee LED signal
indicator flashes and releases.
L Out
L output N
N input L
N In
L In
L output N
N input L
5
Add sub-devices
Connect the SONOFF ZBBridge before adding the sub-device
Access eWeLink APP, select the Bridge that you want to connect, and tap “Add” to add a
sub-device, and be patient until pairing completes.
If the addition failed, move the sub-device closer to the Bridge and try again.
SONOFF ZigBee Bridge supports connecting multiple sub-
devices at the same time.
Power the Bridge on, set the sub-device to the pairing mode. Then access the Bridge
page in the eWeLink APP to tap “Add” and be patient until the pairing completes.
More APP application platforms and gateway
recommendations
SmartThings
Amazon Alexa
6
This device supports the following gateways besides SONOFF ZigBee:
Echo Studio
Echo Plus (model: ZE39KL)
2nd Gen Echo Show (model: DW84JL)
2nd Gen Echo Plus (model: L9D29R)
Samsung SmartThings hub
Gateway adding instruction:
1. Refer to the gateway user manual to download the matched APP and get it paired.
2. Set ZBMINI to the pairing mode.
3. Add ZBMINI according to the prompt of APP. You should select eWeLink or SONOFF
when adding.
If the addition failed, move the sub-device closer to the Bridge and try again.
Specifications
Model
BASICZBR3
Input
100-240V AC 50/60Hz 10A Max
Output
100-240V AC 50/60Hz 10A Max
ZigBee
IEEE 802.15.4
Operating systems
Android & iOS
Working temperature
-10°C~40°C
Material
PC V0
Dimension
91x43x25mm

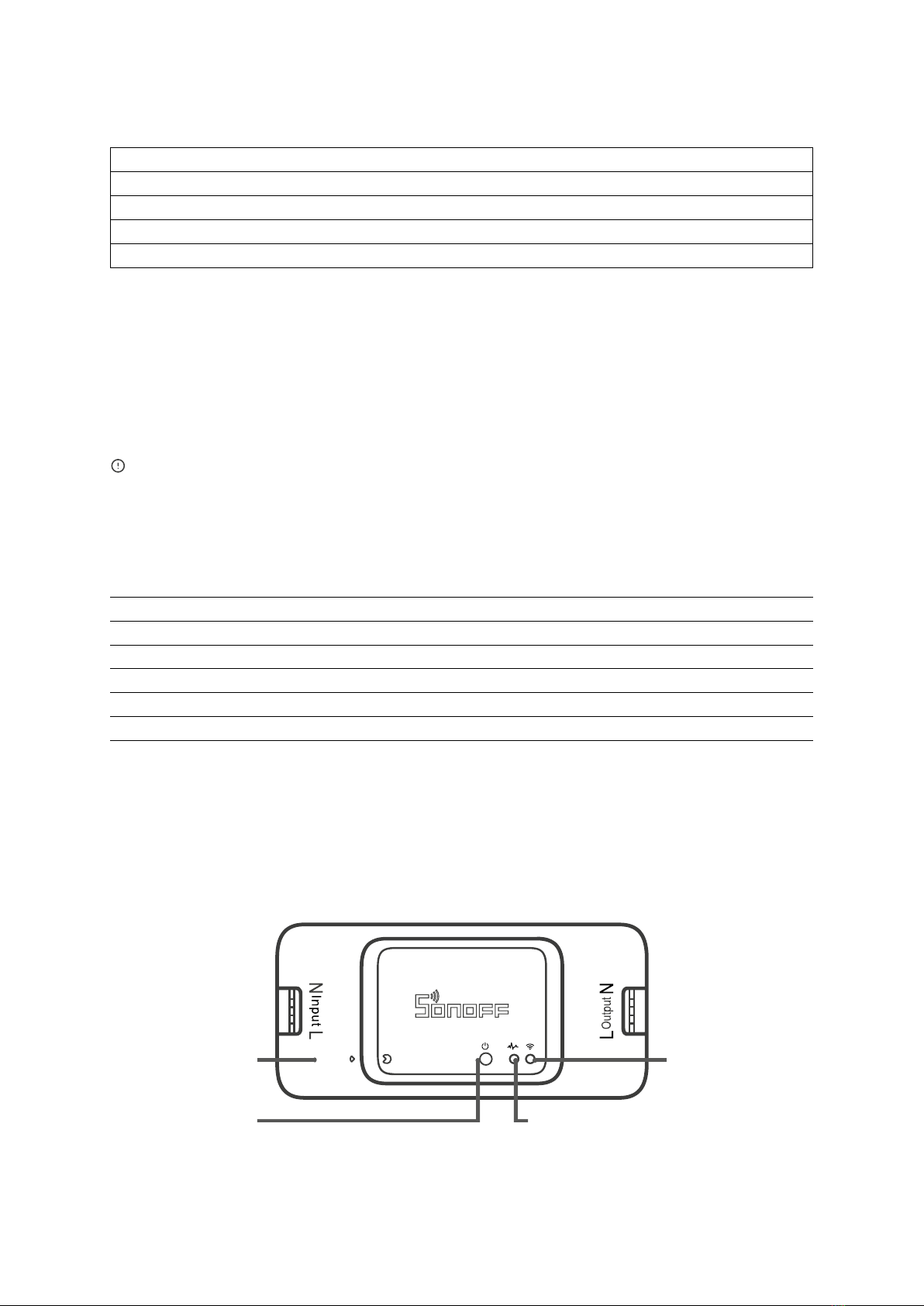

Product Introduction
Wire Fastener Cover
Pairing button
Manual switch
On/off LED indicator (Red)
ZigBee LED indicator (Green)
7
Features
SONOFF ZigBee smart devices based on ZigBee wireless communication protocol allows
you to remotely turn on/off, schedule on/off connected devices, and set smart scenes,
etc.
Remote
Control
Single/Countdown
Timing
Voice control
Share Control
Smart scene
Sync Status
Stepless dimming
Scene Mode
Camera
Feature
Group control
Above functions are determined by ZigBee Hub.
Switch Network
If you need to change the network, long press the pairing button for 5s until the ZigBee
LED signal indicator flashes and releases. Then the device enters quick pairing mode and
you can pair again.
Factory Reset
Deleting the device on the eWeLink app indicates you restore it to factory setting.
8
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for which the
claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g. during transport, cleaning
by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.
9
EU Declaration of Conformity
Identification data of the manufacturer's / importer's authorized representative:
Importer: Alza.cz a.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
IČO: 27082440
Subject of the declaration:
Title: ZigBee DIY Smart Switch
Model / Type: BASICZBR3
The above product has been tested in accordance with the standard(s) used to
demonstrate compliance with the essential requirements laid down in the Directive(s):
Directive No. (EU) 2014/53/EU
Directive No. (EU) 2011/65/EU as amended 2015/863/EU
Prague, 23.11 2020
10
WEEE
This product must not be disposed of as normal household waste in accordance with
the EU Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU).
Instead, it shall be returned to the place of purchase or handed over to a public
collection point for the recyclable waste. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product. Contact your local authority or the nearest collection point for further
details. Improper disposal of this type of waste may result in fines in accordance with
national regulations.
