Sonoff 4CH Pro Manuel utilisateur

1.1.2020

VERSION FW3

Sonoff 4CH Pro

With Apple HomeKit Support

Crypto services s.r.o.

WWW.VOLTIO.CZ

SONOFF 4CH PRO

1.1.2020

VERSION FW3

Table of Contents:

• Connect Device to your Home WIFI Network

• Connecting Accessories to the HomeKit

• Entering Setup Mode

• Change WiFi Network

• Reconnecting to WiFi Network

• Reset HomeKit ID

• Remove WiFi Settings

• Saving Changes

• Factory Reset

• Pairing of Remote Controls

• Questions and Answers?

• Speciﬁcations

WWW.VOLTIO.CZ

SONOFF 4CH PRO

Crypto services s.r.o.

1.1.2020

VERSION FW3

Connect Device to your Home WIFI Network

After connecting the switch to power, the switch can be toggling

manually using the button on the top of the cover. To be able to

operate the switch remotely, we must ﬁrst connect it to the

home wiﬁ network. The picture below shows that Sonoff

creates its own wiﬁ network.

1. Go to your wiﬁ network settings on your mobile device

(iPhone, iPad or MacBook).

2. Select the device with SSID VOLTIO-XXXXXX (where

XXXXXX are the last six characters of its MAC address).

3. Select login to the wiﬁ network in which HomeKit will be

used and enter the appropriate password.

Note: If you have multiple routers in your home, you only

need to leave one on for the entire time that the device is

logged on to the network and HomeKit.

WWW.VOLTIO.CZ

SONOFF 4CH PRO

Crypto services s.r.o.

1.1.2020

VERSION FW3

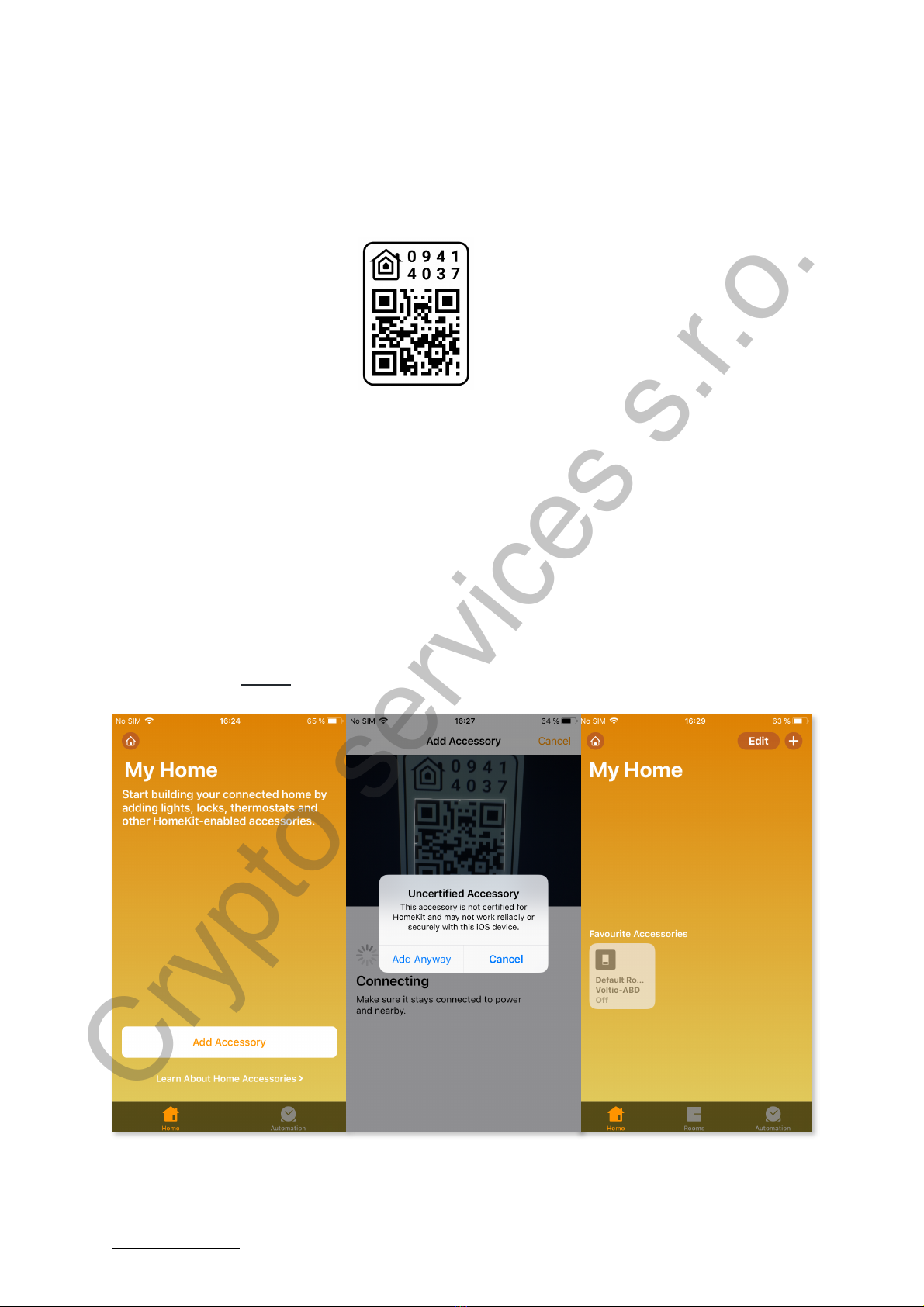

Connecting Accessories to the HomeKit

1. Open the Home app and select the Add Accessories button

2. Scan the code:

3. If you cannot scan the password, select “I cannot scan” next

“Enter Code” and enter the password: 094-14-037

4. Select accessories VOLTIO-XXXXXX

5. After a while (approx. 30 seconds), a switch will appear in

the HomeKit.

6. If you cannot add your device to HomeKit because you don’t

see it in available devices, unplug it and plug it in after a

while. If this does not help, reset the switch to the factory

settings here.

WWW.VOLTIO.CZ

SONOFF 4CH PRO

Crypto services s.r.o.

1.1.2020

VERSION FW3

Entering Setup Mode

To put the switch to setup mode, you have to choose one of

two following options.

1. In the Home App, you quickly toggle the switch status 10

times in a row.

2. You physically press the switch button 10 times in quick

succession.

Then the LED on the switch blinks three times to indicate that

you have entered the setup mode.

It will not be possible to enter the setup mode if the device sees

the original WiFi network to which it was connected, so it is

necessary to turn off the original WiFi network to enter the

setup mode.If the device is in the setup mode and connected to

WiFi, it is possible to connect to it via an Internet browser

through its IP address.

Emergency Setup Mode:!If a device has its power cut off or

freezes within 3 seconds of booting, next time it boots it will go

directly to setup mode.

Change WiFi Network

The setup mode page displays a list of WiFi networks within

the range of the device. The list can be refreshed by clicking on

the!⟲WiFi Networks!button. If you want to change the network

you must enter the Setup Mode, then select one of the

available networks and enter the network password when

requested.

If your SSID is hidden then you can enter its details manually

by clicking on the!Enter SSID manually!button. You will then be

prompted to enter an SSID and a password. Make sure you

enter both correctly.

WWW.VOLTIO.CZ

SONOFF 4CH PRO

Crypto services s.r.o.

1.1.2020

VERSION FW3

Reconnecting to WiFi Network

If the WiFi network becomes unreachable, the device will

continually retry its connection until it becomes available again.

Reset HomeKit ID

If you remove the device from the Home app, you must check

the Reset HomeKit ID box in Setup mode.

Setting this option resets the HomeKit ID used by the device

when you press it, and then press the Save button.

When making changes to a device that requires the HomeKit ID

to be reset follow this procedure:

1. Remove your device from the Home App

2. Turn Off Your WiFi Network

3. Enter Setup Mode on the device

4. Select!Reset HomeKit ID

5. Turn On Your WiFi Network

6. Select!Connect

7. Pair the device with your Home App again.

WWW.VOLTIO.CZ

SONOFF 4CH PRO

Crypto services s.r.o.

1.1.2020

VERSION FW3

Remove WiFi Settings

You can remove any currently saved WiFi settings by enabling

the!Remove WiFi Settings!option and then clicking!Save. The

device will remove any previously stored SSID and password

and then reboot. As no WiFi settings will be available on reboot

the device will immediately enter!Setup mode.

When making changes to a device that requires Remove WiFi

Settings follow this procedure:

1. Remove your device from the Home App

2. Turn Off Your WiFi Network

3. Enter Setup Mode on the device

4. Select!Reset HomeKit ID

5. Select!Remove WiFi Settings

6. Connect to a new WiFi network

7. Select!Connect

8. Pair the device with your Home App again.

Saving Changes

Clicking!Save!will save any changes you have made while in

setup mode, apply them and reboot the device to use them.

WWW.VOLTIO.CZ

SONOFF 4CH PRO

Crypto services s.r.o.

1.1.2020

VERSION FW3

Factory Reset

To reset the device to the factory settings

follow these steps:

1. Turn Off WiFi Network

2. Enter setup mode

3. Reset HomeKit ID

4. Remove WiFi Settings

5. Save Changes

Pairing of Remote Controls

To pair remote controls with the Sonoff 4CH Pro switch, you

must press and hold the button on the top of the cover before

the LED indicator ﬂashes red once. Then press the appropriate

button on the remote control with which you want to operate the

switch.

Note: Sonoff 4CH Pro communicates with 433 MHz remote

controllers.

Sonoff T433 RF wireless switch

Sonoff wireless remote control 433 MHz

Sonoff 433MHZ remote control - keychain

WWW.VOLTIO.CZ

SONOFF 4CH PRO

Crypto services s.r.o.

1.1.2020

VERSION FW3

Questions and Answers?

• What to do when I have a device connected and can't see

its WiFi network?

If you have properly connected the device to the power

supply and you do not see its WiFi network, reset the device to

the factory settings.

• I've connected my device to Wiﬁ and can't see it on

devices that I can add in the Home app?

Make sure you have connected the device to the same

WiFi network on which you want to run HomeKit. If the device is

not connected to the same WiFi network, it will not appear on

devices that you can add to the Home app.

Recommendation: If you are running multiple routers in your

home, leave only one device turned on and turn off the others.

Even though the device appears to be a single WiFi network, it

can cause you a problem connecting the device.

• How do I make sure my device is properly connected to

the WiFi network?

If you are sure that you selected the correct network and

entered the correct password when WiFi is logged in, the

device will no longer appear as an AP access point and you

should not see its SST VOLTIO_XXXXXX in the available WiFi

networks.

• Does the 5 GHz WiFi switch work?

Unfortunately it does not work. When pairing devices to

WiFi, it is necessary to have 5 GHz WiFi switched off on the

router to which you are connecting for trouble-free pairing.

WWW.VOLTIO.CZ

SONOFF 4CH PRO

Crypto services s.r.o.

1.1.2020

VERSION FW3

Speciﬁcations

Voltage range: 90-250 V AC(50/60 Hz)

Max Current: 10 A/ Gang

Max Wattage: 2200 W/ Gang

Dimensions: 140 x 90 x 40 mm (L x W x H)

Enclosure Material: Fire-retardant ABS V0

Humidity: 5%-90% RH, Non-condensing

Wireless Standard: 802.11 b/g/n

Security Mechanism: WPA-PSK/WPA2-PSK

RF: 433.92 MHz

Operating Temperature: 0ºC-40ºC (32°F-104°F)

Color: White

Gang: 4

Contact

If you have any questions contact us on e-mail:

[email protected]

For a faster response to queries, use our messenger:

m.me/voltio.cz
