Sonoff DIY MINIR2 Manuel utilisateur

Wi-Fi Smart Switch with DIY Mode

User manual V1.0

MINIR2

· 中文 ------------1 - 4 ·English ------- 5-8

· Español -----14-18

· Français -------- 19-23

· Deutsch --------- 9-13

· Italiano------24-28

· Русский язык-- 29-33 · Português---34-38

·FCC Warning------- 39

N In L Out S2

L In S1

N In

N In L Out S2

L In S1

N In

Shenzhen Sonoff Technologies Co.,Ltd. 中文

使用说明

设备安装、故障维修请由专业资质电工操作，以免发生触电危险！设备在正常使用的情

况下不可触碰到。

1. 断电

ON O FF

L In

N In

100-240V

SPDT

2. 接线

确保零火线接入无误。

S1/S2接或不接机械开关两端（不支持自动回弹的机械开关），设备都可以正常使用。

为确保安全，请勿接入零火线等强电。

eWeLink

3. 下载“易微联”APP

N In L Out S2

L In S 1

N In

L In

N In

4. 上电

通电后，设备首次使用，默认进入快速配网模式(Touch)。Wi-Fi指示灯呈“两短一长闪烁”。

三分钟内没有进行配网，设备将退出快速模式。如需再次进入，长按配对按钮5秒直到

Wi-Fi指示灯呈两短一长闪烁即可。

5. 添加设备

快速添加

添加设备

WIF I 类设备，可使用该模式添加(请确

认)设备处于配网状态）

扫码添加

GSM 类设备和附带二维码的设备，

可使用该模式添加

声波添加

支持声波配对设备，可使用该模式添加

点击“+”，选择“快速添加”，再根据app提示进行操作。

如使用快速添加模式配网失败，请使用“兼容模式(AP)”进行配对。

兼容模式(AP)

1长按配对按钮5秒直到Wi-Fi指示灯呈“两短一长闪烁”状态，松开。再次长按配对按钮

5秒直到Wi-Fi指示灯呈“快闪”状态，此时设备进入兼容模式。

2在app界面，点击“+”，选择“兼容模式”。

Android设备:

只需输入Wi-Fi密码，点击“下一步”等待配对完成。

iO S设备:

先把移动设备连接上Wi-Fi账号为：ITEAD-******，密码为：12345678，然后回到

“易微联”app，点击“下一步”，等待配对完成。

Shenzhen Sonoff Technologies Co.,Ltd. 中文

N In L Out S 2

L In S1

N In

产品介绍

Wi-Fi信号指示灯(蓝色)

电源指示灯(红色)

配对按钮/手动开关

Shenzhen Sonoff Technologies Co.,Ltd. 中文

设备重量＜1Kg，建议安装高度＜2米。

Wi-Fi信号指示灯状态说明

快速闪烁

快速配网模式

两短一长闪烁

常亮

兼容模式(AP)

设备已连接

快闪一下找不到路由

快闪二下连接上路由，但没连上外网

快闪三下升级中

状态描述

指示灯状态

产品参数

型号

最大输入

最大输出

支持平台

Wi-Fi

材料

产品规格

MINIR2

100-240V AC 50/60Hz 10A

IEEE 802.11 b/g/n 2.4GHz

PC V0

42.6x42.6x20mm

Android & iOS

恢复出厂设置

长按配对按钮5秒直到Wi-Fi指示灯呈两短一长闪烁再松开，

此时设备重置成功，默认进入快速配网模式(Touch)。

N In L Out S2

L In S1

N In

更换新的网络环境使用时，需要恢复出厂设置，再重

新进行网络连接。

Shenzhen Sonoff Technologies Co.,Ltd. 中文

常见问题

2. 蓝灯1秒快闪两下：说明设备已连接到了Wi-Fi 但没有连上外网。

请确认您的Wi-Fi当前连接外网是否稳定、正常。如时好时坏，频繁出现这种双闪情况，说明您

的网络不稳定，并非产品原因。

问：设备添加成功后，显示离线，无法控制？

答：设备刚添加成功后，需要1-2分钟时间连接您的路由器并连网。如果长时间还是显示不

在线，请根据Wi-Fi指示灯的状态来判断：

1. 蓝灯1秒快闪一下：说明设备没有连上您的Wi-Fi。

① 可能是Wi-Fi密码输入不正确.

② 可能是设备离您的路由器太远，信号太弱，或环境有干扰。请先将设备靠近路由器，如无改

善，重新添加一遍.

③ 设备不能识别5G的Wi-Fi，请选择2.4G的Wi-Fi重新添加.

④ 检查您的路由器后台是否开启MAC地址过滤，如有，请关闭。

如果以上均尝试不能解决，请用一部手机开启个人热点，尝试重新添加。

产品特点

用您的智能手机在任何地方打开或关闭家里的设备，设置定时开/关、分享给您的家人控制

等等。

远程控制智能定时/延时语音控制分享功能

无需交换机局域网功能

同步状态

智能场景

添加摄像头上电状态设置

1.Power oﬀ

ON O FF

N In L Out S2

L In S1

N In

L In

N In

100-240V

SPDT

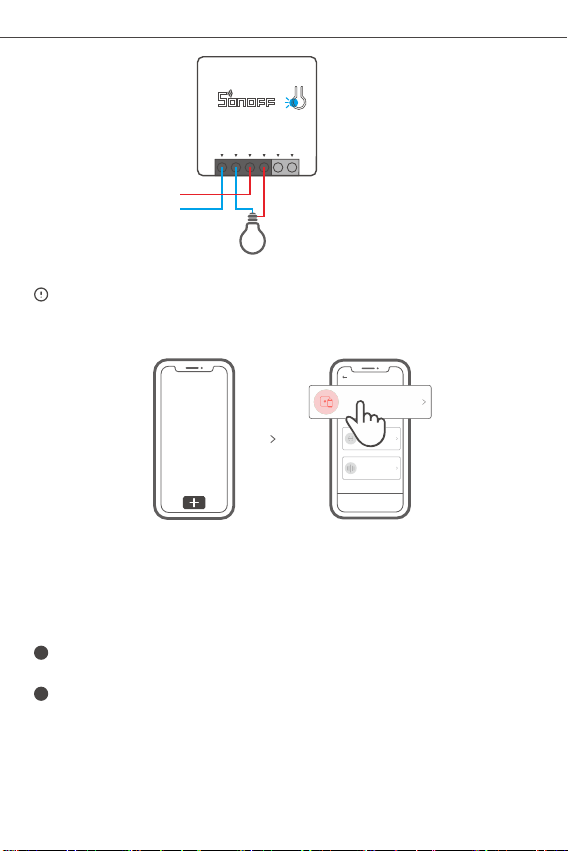

2.Wiring instruction

3. Download APP

Shenzhen Sonoff Technologies Co.,Ltd. English

Operating Instruction

To avoid electric shocks, please consult the dealer or a qualiﬁed professional for help

when installing and repairing! Please do not touch the switch during use.

Make sure the neutral wire and live wire connection is correct.

S1/S2 can connect with the rocker light switch (the self-return rocker light switch is

not supported) or doesn't connect. To ensure safety, do not connect the neutral wire

and live wire to it.

eWeLink

N In L Out S2

L In S1

N In

L In

N In

4.Power on

5.Add the device

After powering on, the device will enter the quick pairing mode (Touch) during the ﬁrst

use. The Wi-Fi LED indicator changes in a cycle of two short and one long ﬂash and

release.

The device will exit the quick pairing mode (Touch) if not paired within 3mins. If you

want to enter this mode, please long press the manual button for about 5s until the

Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.

Sou nd Pai ring

Add dev ice in th is mode i f your

devic e s uppor t this fe atur e.

Sca n QR cod e

GSM dev ices an d devic es with Q R co

de can be a dded in t his mod e.

Quick Pairing

WIF I devic es can be a dded in t his mo

de( make su re the de vice is i n pairi ng

mod e).

Add D evice

Tap “+” and select “Quick Pairing”, then operate following the prompt on the APP.

Compatible Pairing Mode

If you fail to enter Quick Pairing Mode (Touch), please try “Compatible Pairing Mode ”

to pair.

Long press Pairing button for 5s until the Wi-Fi LED indicator changes in a cycle of

two short ﬂashes and one long ﬂash and release. Long press Pairing button for 5s

again until the Wi-Fi LED indicator ﬂashes quickly. Then, the device enters

Compatible Pairing Mode.

2Tap “+” and select “ Compatible Pairing Mode ” on APP.

For Android system:

Enter Wi-Fi password and tap “Next”. Be patient until pairing completes.

For iOS system:

Select Wi-Fi SSID with ITEAD-****** and enter the password 12345678, and then go

back to eWeLink APP and tap “Next”. Be patient until pairing completes.

Shenzhen Sonoff Technologies Co.,Ltd. English

N In L Out S 2

L In S1

N In

MINIR2

100-240V AC 50/60Hz 10A Max

IEEE 802.11 b/g/n 2.4GHz

PC V0

42.6x42.6x20mm

Android & iOS

Wi-Fi

Model

Input

Output

Operating systems

Dimension

Material

Wi-Fi LED indicator(Blue)

Pairing button

Manual switch

On/oﬀ LED indicator(Red)

The device weight is less than 1 kg. The installation height of less than 2 m is recommended.

Specifications

Product Introduction

Wi-Fi LED indicator status instruction

Status instruction

Wi-Fi LED indicator status

Quick Pairing ModeFlashes (one long and two short)

Device is connected successfully

Keeps on

Flashes quickly Compatible Pairing Mode

Unable to discover the router

Upgrading

Connect to the router but fail to connect to Wi-Fi

Flashes quickly once

Flashes quickly three times

Flashes quickly twice

Shenzhen Sonoff Technologies Co.,Ltd. English

N In L Out S2

L In S1

N In

Camera Feature

Common Problems

Q: Why my device stays “Oﬄine”?

A: The newly added device needs 1 – 2mins to connect Wi-Fi and network. If it stays

oﬄine for a long time, please judge these problems by the blue Wi-Fi indicator status:

1. The blue Wi-Fi indicator quickly ﬂashes once per second, which means that the switch

failed to connect your Wi-Fi:

① Maybe you have entered a wrong Wi-Fi password.

② Maybe there's too much distance between the switch your router or the environment

causes interference, consider getting close to the router. If failed, please add it again.

③ The 5G Wi-Fi network is not supported and only supports the 2.4GHz wireless network.

④ Maybe the MAC address ﬁltering is open. Please turn it oﬀ.

If none of the above methods solved the problem, you can open the mobile

datanetwork on your phone to create a Wi-Fi hotspot, then add the device again.

2. Blue indicator quickly ﬂashes twice per second, which means your device has connected

to Wi-Fi but failed to connect to the server.

Ensure steady enough network. If double ﬂash occurs frequently, which means you access

an unsteady network, not a product problem. If thenetwork is normal, try to turn oﬀ the

power to restart the switch.

Please reset the switch to factory defaults if you

want to use other Wi-Fi networks, then reconnect

the network.

Long press the pairing button for about 5s until the

Wi-Fi LED indicator changes in a cycle of two short

and one long ﬂash and release, then the reset is

successful. The device enters quick pairing mode

(Touch).

Remote Control Single/Countdown

Timing

Share Control

Voice Control Smart Scene

Sync Status No Hub Required LAN Control

Features

Factory Reset

Shenzhen Sonoff Technologies Co.,Ltd. English

Power-on State

Turn on/oﬀ the device from anywhere, schedule power on/oﬀ and share APP with your

family to control.

Deutsch

Shenzhen Sonoff Technologies Co.,Ltd.

1.Ausschalten

ON O FF

N In L Out S2

L In S1

N In

L In

N In

100-240V

SPDT

2.Verkabelungsanleitung

3. APP herunterladen

eWeLink

Betriebsanweisung

Wenden Sie sich bitte an den Händler oder einen qualiﬁzierten Fachmann, um Hilfe

bei der Installation und Reparatur zu erhalten und um Stromschläge zu vermeiden!

Bitte berühren Sie den Schalter nicht während des Betriebs nicht.

Vergewissern Sie sich, dass der Anschluss von Neutralleiter und stromführender

Phase korrekt sind.

S1/S2 kann mit dem Wippenlichtschalter verbunden werden (der sich selbst

zurücksetzende Wippenlichtschalter wird nicht unterstützt), muss aber nicht damit

verbunden werden. Schließen Sie aus Sicherheitsgründen keine stromführende

Phase und keinen Neutralleiter daran an.
