Sonoff DUALR3 Manuel utilisateur
2-Gang Wi-Fi Smart Switch
DUALR3
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch
2
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
✉www.alza.co.uk/kontakt
✆+44 (0)203 514 4411
Importer
Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
3
Operation Instruction
1. Power off
To avoid electric shocks, please consult the dealer or a qualified professional for help
when installing and repairing! Please do not touch the switch during use.
2. Wiring instruction

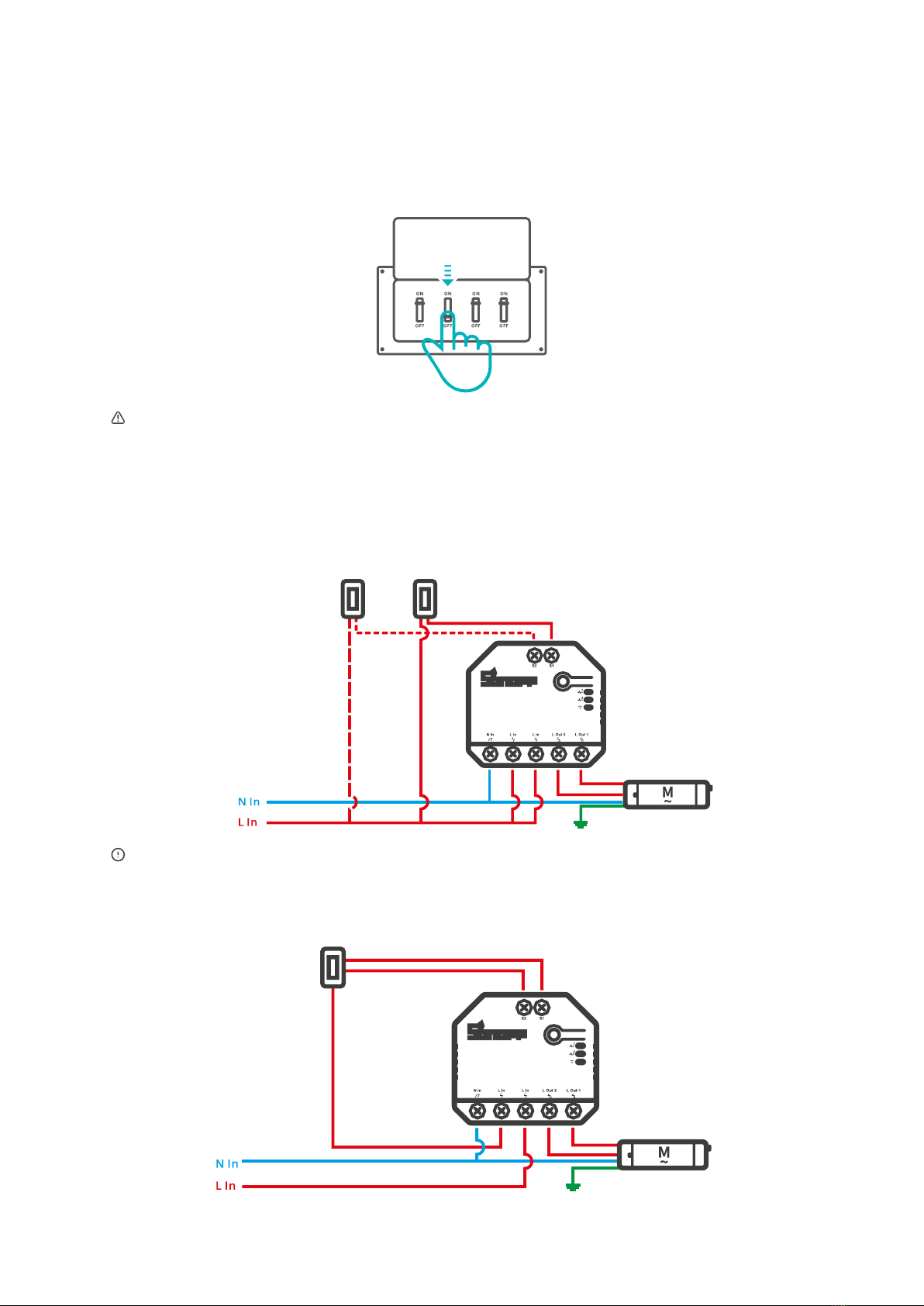

Motor mode:
1. Momentary switch:
Connect to S1 or S2 for smart control of connected devices; connect to S1 and S2 for
two-way smart control.
2. Dual relay momentary switch/3-gang rocker switch:
Switch
Switch
Forward
Reverse
Switch
Reverse
Forward
4
Light fixture wiring instruction:
1. To enable dual relay control, S1 and S2 are required to connect the push button
switch in the pulse mode or the rocker light switch in the edge mode:
2. Connect SPDT switches in the edge mode to reach double two-way control:
3. Connect dry contact sensors in the following mode:
Switch
L out 1
L out 2
External power
supply
External power
supply
Dry contact
sensor
Dry contact
sensor
5
Make sure the neutral wire and live wire connection is correct.
The device still works normally if no physical light switch is connected to S1/S2.
If S1/S2 is connected to a physical light switch, the corresponding working mode is
required in eWeLink APP to select for normal use.
3. Download the eWeLink APP
4. Power on
After powering on, the device will enter the bluetooth pairing mode during the first use.
The Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.
The device will exit the bluetooth pairing mode if not paired within 3 mins. If you want
to enter this mode, please long press the manual button for about 5s until the Wi-Fi LED
indicator changes in a cycle of two short and one long flash and release.
5. Add the device
6
Specification
Model
DUALR3
Input
100-240V AC50/60Hz 15A Max
Output
100-240V AC50/60Hz
Resistive Load
2200W/10A/Gang 3300W/15A/Total
Motor Load
10-240W/1A
Wi-Fi
IEEE 802.11 b/g/n 2.4GHz
Operating systems
Android & iOS
Number of gangs
2-Gang
Working temperature
-10°C~40°C
Material
PC V0
Dimension
54x49x24mm
Product Introduction
The device weight is less than 1 kg. The installation height of less than 2m is
recommended.
Wi-Fi LED indicator status instruction
LED indicator status
Status instruction
Flashes (one long and two short)
Bluetooth Pairing Mode
Keeps on
Device is not connected successfully
Flashes quickly
Compatible Pairing Mode
Flashes quickly once
Unable to discover the router
Flashes quickly twice
Connect to the router but failed to connect to server
Flashes quickly three times
Upgrading
Tap “+“ and select “bluetooth pairing, then operate the following prompt on the APP.
Pairing button
S1 on/off LED indicator (Red)
S2 on/off LED indicator (Red)
Wi-Fi LED indicator (Blue)
7
Working Mode
After pairing, select the corresponding mode from switch, motor and meter modes
according to the connected device. Please check the detailed instruction for working
modes on eWeLink app.
Features
This device is a Wi-Fi smart switch with power monitoring that allows you to remotely
turn on/off the device, schedule it on/off or share it with your family to control together.
Remote
Control
Single/Countdown
Timing
Voice control
Smart scene
Share Control
Power
Monitoring
Over-load
Protection
Inching Mode
Power-on
State
LAN Control
Switch Network
If you need to change the network, long press the pairing button for 5s until the Wi-Fi
LED indicator changes in a cycle of two short and one long flash and release, then the
device enters Bluetooth pairing mode and you can pair again.
Factory Reset
Deleting the device on the eWeLink app indicates you restore it to factory setting.
8
Common Problems
Q: Why does my device stay “Offline”?
A: The newly added device needs 1-2 mins to connect Wi-Fi and network. If it stays
offline for a long time, please judge these problems by the blue Wi-Fi indicator status:
1. The blue Wi-Fi indicator quickly flashes once per 2 seconds, which means that the
switch failed to connect your Wi-Fi:
•Maybe you have entered a wrong Wi-Fi password.
•Maybe there’s too much distance between the switch, your router or the
environment causes interference, consider getting close to the router. If failed,
please add it again.
•The 5G Wi-Fi network is not supported and only supports the 2.4GHz wireless
network.
•Maybe the MAC address filtering is open. Please turn it off.
If none of the above methods solved the problem, you can open the mobile data
network on your phone to create a Wi-Fi hotspot, then add the device again.
2. Blue indicator quickly flashes twice per 2 seconds, which means your device has
connected to Wi-Fi but failed to connect to the server.
Ensure steady enough network. If double flash occurs frequently, it means you accessed
an unsteady network, not a product problem. If the network is normal, try to turn off the
power to restart the switch.
9
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for which the
claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g. during transport, cleaning
by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.
10
EU Declaration of Conformity
Identification data of the manufacturer's / importer's authorized representative:
Importer: Alza.cz a.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
IČO: 27082440
Subject of the declaration:
Title: 2-Gang Wi-Fi Smart Switch
Model / Type: DUALR3
The above product has been tested in accordance with the standard(s) used to
demonstrate compliance with the essential requirements laid down in the Directive(s):
Directive No. (EU) 2014/53/EU
Directive No. (EU) 2011/65/EU as amended 2015/863/EU
Prague, 23.11 2020
