SMART UF45-680 Manuel utilisateur

Service Parts

Diagrams

UF45-680

For Model:

UF45-660

SMART Technologies

3636 Research Road NW

Calgary, AB T2L 1Y1

CANADA

Support +1.403.228.5940 or Toll Free 1.866.518.6791 (Canada/U.S.)

Support Fax +1.403.806.1256

[email protected]om www.smarttech.com

SMART Technologies ULC in the U.S. and/or other countries. All other third-party product and company names are for identification purposes only and

may be trademarks of their respective owners. Contents are subject to change without notice. 4/2009.

Service Parts Diagrams Revision History

Revision 1 - Feb, 2008

• New document

Revision 2 - July, 2008

• Change 20-00925-20 to 20-00925-22

• Change 20-00907-20 to 20-00907-21

• Add 93-00633-20

• Add reference to model UF45-660

• Change 20-00908-20 to 20-00908-21

• Change 51-00662-20 to 51-00662-21

• Change 51-00661-20 to 51-00661-21

• Add 20-00995-20

Revision 3 - April, 2009

• Add 20-00906-20

• Add 52-00482-20

Standard Warranty Terms

The projector and extended control panel have a three-year limited equipment warranty. The Unifi 45 projector lamp has a

500 hour/90 day warranty.

First Customer Ship: February, 2008

Service Parts Diagrams for the UF45-680 and UF45-660 i

Service Parts Diagrams for the UF45-680 and UF45-660

Identifying Your Product Using the Serial Number ...................................................................1

Ordering Parts ..............................................................................................................................1

Unifi 45 Mount and Documentation ............................................................................................2

Unifi 45 Mirror Assembly (Part No. 20-00906-20) .......................................................................3

Unifi 45 Connection Cables, Hardware and Projector Accessories ........................................4

ii Service Parts Diagrams for the UF45-680 and UF45-660

Service Parts Diagrams for the UF45-680 and UF45-660 1

Identifying Your Product Using the Serial Number

To make sure thatyou have the correctservice parts diagrams, you must verifythe serial number of your Unifi 45 Projector.

An example of the serial number format is shown below.

Ordering Parts

Customers

To order any of the parts in these service parts diagrams, contact your local reseller.

To find a reseller near you, visit www.smarttech.com\where.

Dealers and Distributors

For specific technical and pricing enquiries in regards to these diagrams please contact our service parts department.

Pricing is also available on-line via the SOURCE website (source.smarttech.com).

E-mail: serviceparts@smarttech.com

Phone: 1.888.42.SMART

International: +1.403.245.0333

37639379

Unique Serial Number

Serial Number Location

2Service Parts Diagrams for the UF45-680 and UF45-660

Unifi 45 Mount and Documentation

Item Part No. Qty Description

1 52-00472-20 1 Cover, top, wall plate

2 20-00934-20 1 Assembly, wall plate

3 52-00473-20 1 Cover, bottom, wall plate

4 20-00908-21 1 Assembly, extended connection panel (ECP)

5 52-00478-20 1 Cover, boom interface

6 51-00661-21 1 Plate, projector

7 20-00925-22 1 Kit, documentation, for models UF45-680 and UF45-660

NOTE: Includes mounting templates, installation guide and user guide.

8 20-00995-20 1 Kit, projector lock

9 52-00482-20 1 Access door, head, Unifi 45

Service Parts Diagrams for the UF45-680 and UF45-660 3

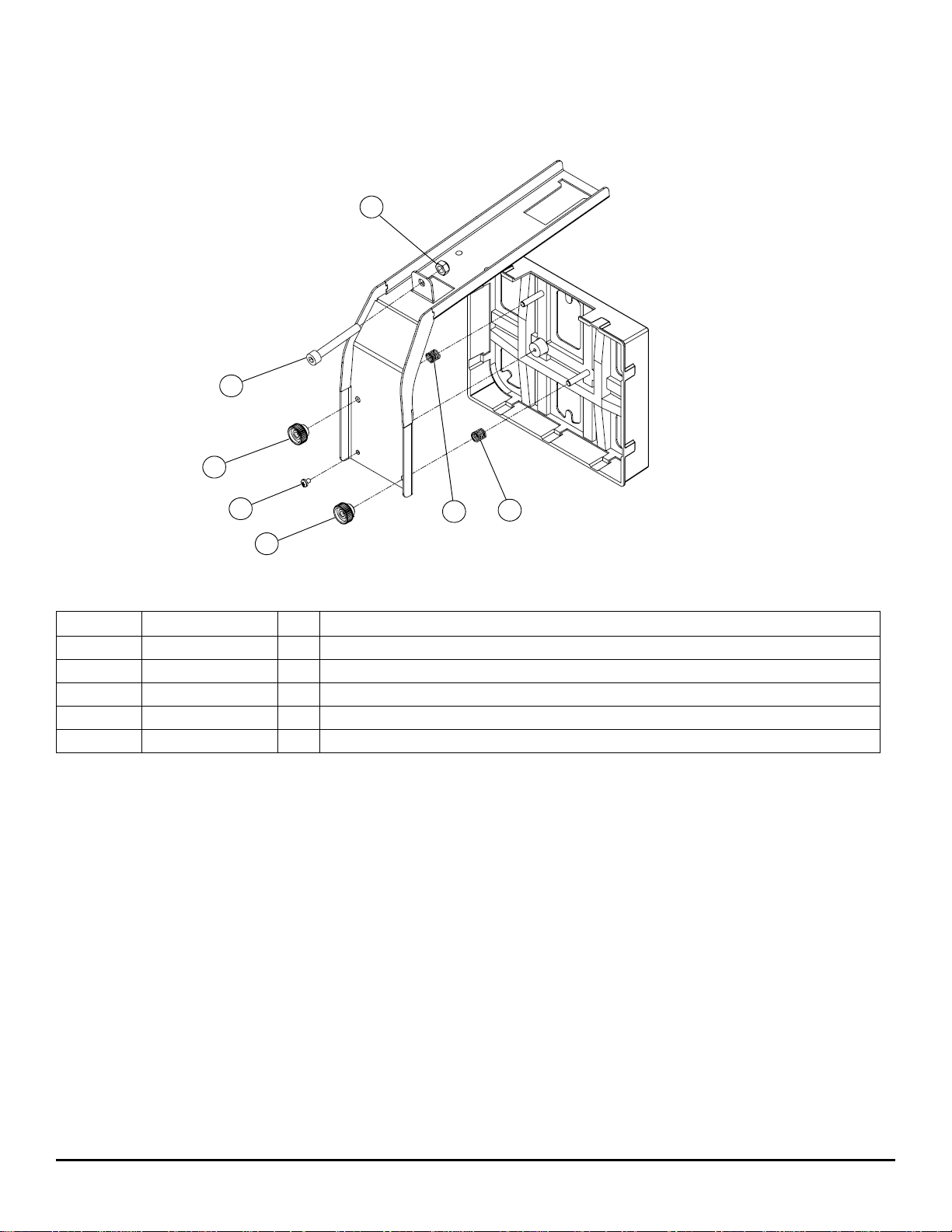

Unifi 45 Mirror Assembly (Part No. 20-00906-20)

Item Part No. Qty Description

1 30-01117-20 1 Nut, M8, locking, nylon

2 30-01126-20 1 Screw, M8 × 60 mm, hex, socket head

3 30-01130-20 2 Knob, M6

4 30-00946-20 1 Screw, M4 × 6 mm, Phillips, pan head

5 30-01131-20 2 Spring

4Service Parts Diagrams for the UF45-680 and UF45-660

Unifi 45 Connection Cables, Hardware and Projector Accessories

Item Part No. Qty Description

1 93-00628-20 1 Cable, harness, extended connection panel (ECP), 10' (3.1 m)

2 93-00635-20 1 Cable, mixer, 3.5 mm male to dual 3.5 mm female, 7" (17 cm)

3 93-00630-20 1 Cable, power, North America, 14' 9" (4.5 m)

3 93-00632-20 1 Cable, power, United Kingdom, 14' 9" (4.5 m)

3 93-00631-20 1 Cable, power, Europe, 14' 9" (4.5 m)

3 93-00629-20 1 Cable, power, Australia, 14' 9" (4.5 m)

3 93-00633-20 1 Cable, power, China, 14' 9" (4.5 m)

4 01-064 2 Battery, AA

5 20-00904-20 1 Kit, assembly hardware

6 20-00907-21 1 Kit, mounting hardware

7 03-00122-20 1 Remote control

8 51-00662-21 1 Limit strap

NOTE: Contact Technical Support to discuss replacement.

Not shown 01-00247 1 Replacement Lamp for Unifi 45 Projector
