SL-07IP 7” video door phone

User manual

Thank you for

choosing our equipment

{ Design. Uniqueness. Innovations}DESIGN

DIRECT

SERIES

1Rev. 3.0 2

Attention!

As a result of continuous upgrades and functionality improvements, technical

characteristics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from the –10 ˚C to +55 ˚C, always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Don’t overpower outlets. It can cause re or electric shock.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

Table of contents

1. Package ............................................................................................................................................................................................3

2. Specication...................................................................................................................................................................................3

3. Description......................................................................................................................................................................................4

4. Installation.......................................................................................................................................................................................5

4.1 Cable requirements.......................................................................................................................................................5

4.2 Schematic diagrams......................................................................................................................................................6

4.3 Unit mount .......................................................................................................................................................................8

5. Operation.........................................................................................................................................................................................9

5.1 Incoming call ...................................................................................................................................................................9

5.2 Door panel and camera image monitoring....................................................................................................... 10

5.3 Incoming call redirection ......................................................................................................................................... 11

5.4 Intercom ......................................................................................................................................................................... 12

6. Monitor settings......................................................................................................................................................................... 12

6.1 Main menu..................................................................................................................................................................... 12

6.2 Display and conversation volume settings........................................................................................................13

7. Network connection diagrams.............................................................................................................................................14

8. Software........................................................................................................................................................................................15

8.1 Creating new account ...............................................................................................................................................15

8.2 Wired network connection steps...........................................................................................................................15

8.3 Wireless Wi-Fi network connection steps...........................................................................................................17

8.4 Operation....................................................................................................................................................................... 19

8.5 Notication messages...............................................................................................................................................20

9. Limited Warranty........................................................................................................................................................................21

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

3 4

Screen

Resolution

Video system

Audio type

Call time

Internal memory

Memory extension slot

Standby mode power consumption

Working mode power consumption

Power supply

Mounting type

Size

Working temperature

7”, color TFT

800×480 pixels

PAL/NTSC

Half duplex

120 seconds

microSD, up to 32 Gb

4 W

8 W

Built-in power supply, ~100–240 V

Surface mount

230×165×22 mm (9.25×6.50×0.87")

−10...+55 ˚C (+14...+131 ˚F)

Power LED. Active when power is on.

First door panel LED. Active when the rst door panel is on.

Second door panel LED. Active when the second door panel is on.

Display

«Up» button – increase talking volume, system settings menu cursor movement,

parameter increase inside settings menu

«Down» button – decrease talking volume, system settings menu cursor movement,

parameter decrease inside settings menu

Speaker (on the back side of the monitor)

«Settings» button:

• push this button in standby mode to enter system settings menu;

• push this button on chosen parameter inside system settings menu to change its

value. Then push it again to confirm the changes;

• push this button in monitoring or talking mode to enter brightnes, contrast and

color settings menu;

«Record» button – start/stop manual video recording from the door panel or camera in

monitoring or talking mode

«Monitor» button – door panel or camera image monitoring

«Answer» button – incoming call answer and start talking with the visitor

«Unlock» button – door unlocking

MicroSD memory card slot (on the side of the monitor)

«Hang Up» – stop conversation with the visitor / current system settings menu exit

Microphone

1. Package

SL-07IP door monitor − 1 pc.

Wall mounting bracket − 1 pc.

Connection wires − 5 pcs.

Mounting screws and nuts − 1 pkg.

User manual − 1 pc.

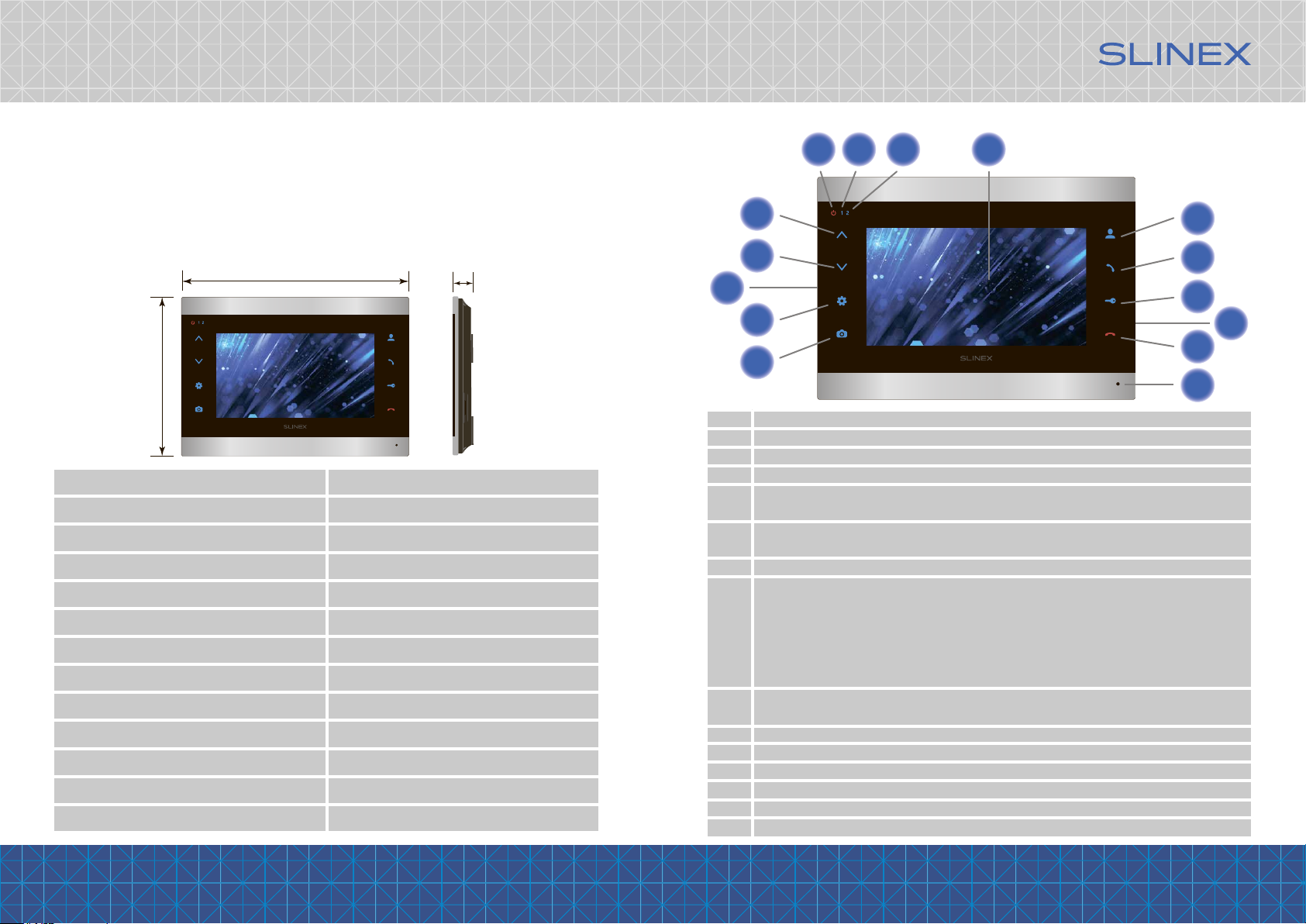

2. Specication

1 2 3 4

3. Description

165 mm (6.50")

230 mm (9.25") (0.87")

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

5 6

4.2 Schematic diagrams

Diagram 1. SL-07IP door panels, cameras and locks connection.

Lock

Door panel 1

Door panel 2

Lock power

supply

Lock Lock power

supply

Camera

power

suppply

Camera

power

suppply

CCTV 1

CCTV 2

4. Installation

4.1 Cable requirements

Disconnect all power cables before device installation.

This device can be connected with such cable types depends on the distance between door monitor and

door panel:

) Use 4-wire cable with such parameters:

• distance up to 25 meters (82 ft.) use a cable with 0,22 mm square of one wire (AWG 24);

• distance 25 to 50 (82-164 ft.) meters use a cable with 0,41 mm square of one wire (AWG 21);

• distance 50 to 100 meters (164-328 ft.) use a cable with 0,75 mm square of one wire (AWG 18).

b) If the distance between door monitor and door panel is between 80 and 100 meters (262-328 ft.) then use

a 3-wire cable with 0,75 mm(AWG 18) square of one wire and RG-59 or RG-6 coaxial cable for the video

signal.

c) Shielded or non-shielded twisted pair (not recommended):

• distance up to 25 meters (82 ft.) non-shielded twisted pair can be used;

• distance 25 to 50 (82-164 ft.) meters shielded twisted pair should be used.

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

0 - 50 m

Shield

50 - 80 m

80 - 100 m

RG-59 or RG-6

Video

GND

+12 V

Video

GND

+12 V

Power

Audio

GND

Video

Power

Audio

GND

Video

0 - 25 m

25 - 50 m

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Shield Shield

Door 2

Output

CCTV 1/2

Power

Door 1

Video 2

Ground

Video 1

SL-07IP

Power

Ground

+13,5 V

164 - 262 ft.

0 - 164 ft.

262 - 328 ft.

0 - 82 ft.

82 - 164 ft.

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

PowerTV out

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

7 8

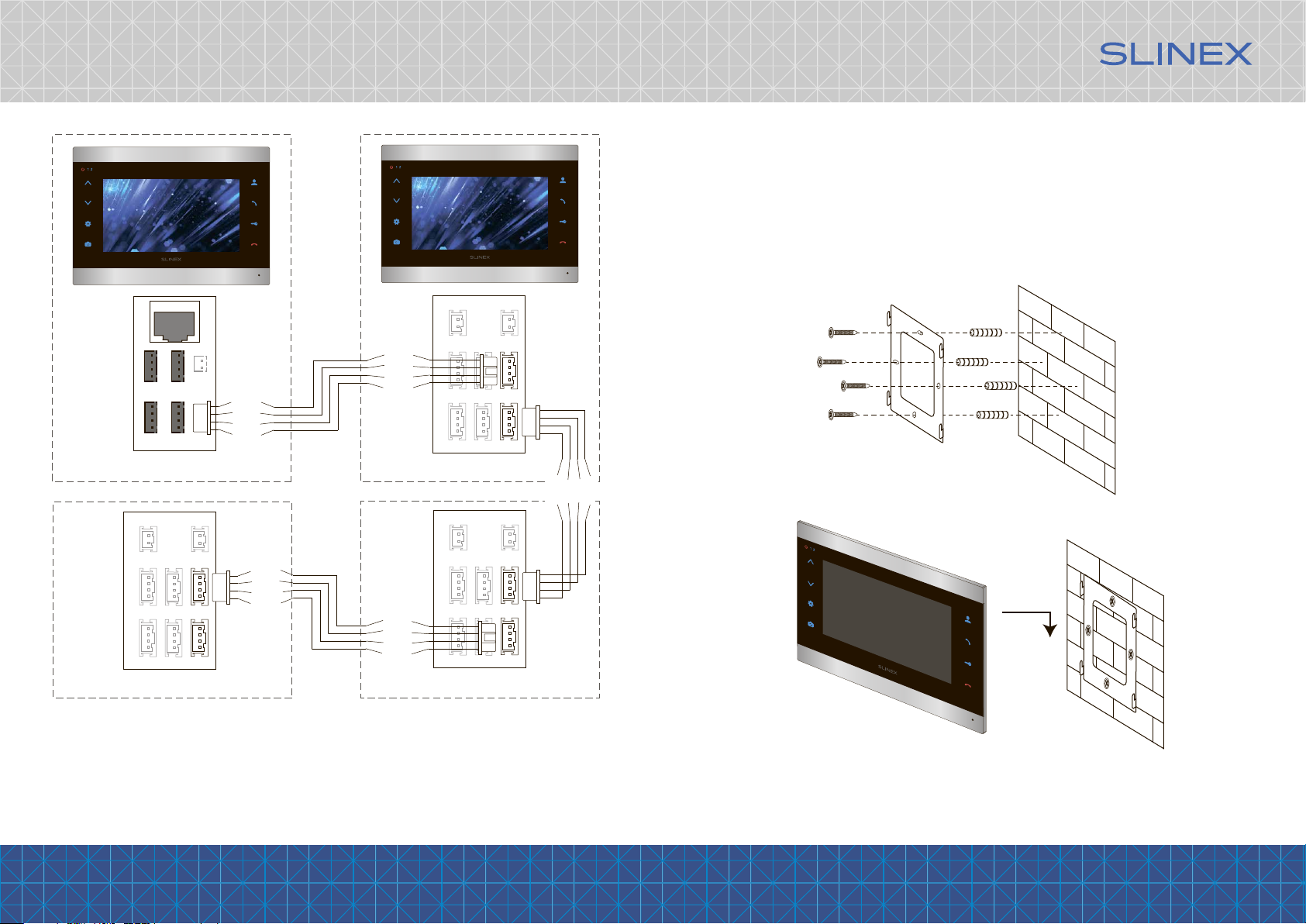

Diagram 2. SL-07IP system connection.

SL-07M (Slave)

Notes:

* Use «Power»plug on the monitor to connect external power supply +13,5 V. While use external power

supply please keep main power cord ~100-240 V disconnected from the outlet, otherwise it can damage

monitor circuits.

** Door panels, cameras, power supplys and locks, described on the schemes are optional devices and are

not included into monitors kit.

*** SL-07IP can only be used as a «Master» in the door phones system.

Audio

GND

Data

Video

Audio

GND

Data

Video

Audio

GND

Data

Video

Audio

GND

Data

Video

Audio

GND

Data

Video

SL-07M (Slave) SL-07M (Slave)

4.3 Unit mount

1) Take the surface mount bracket from the kit and place it 150-160 cm from the oor line.

2) Mark and drill four halls in the wall.

3) Take four wall anchors from the kit and hammer them into the drilled halls.

4) Fix surface mount bracket on the wall by four screws from the kit.

5) Connect all communication wires and x the monitor on the surface mount bracket.

SL-07IP (Master)

Door 2

Output

CCTV 1/2

Power

Door 1

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

9 10

5.2 Door panel and camera image view

Standby mode

Monitor will display

the image from the

rst door panel

(monitoring time – 60 seconds)

Monitor will display

the image from the

second door panel

(monitoring time – 60 seconds)

Press «Monitor»

button on the

monitor

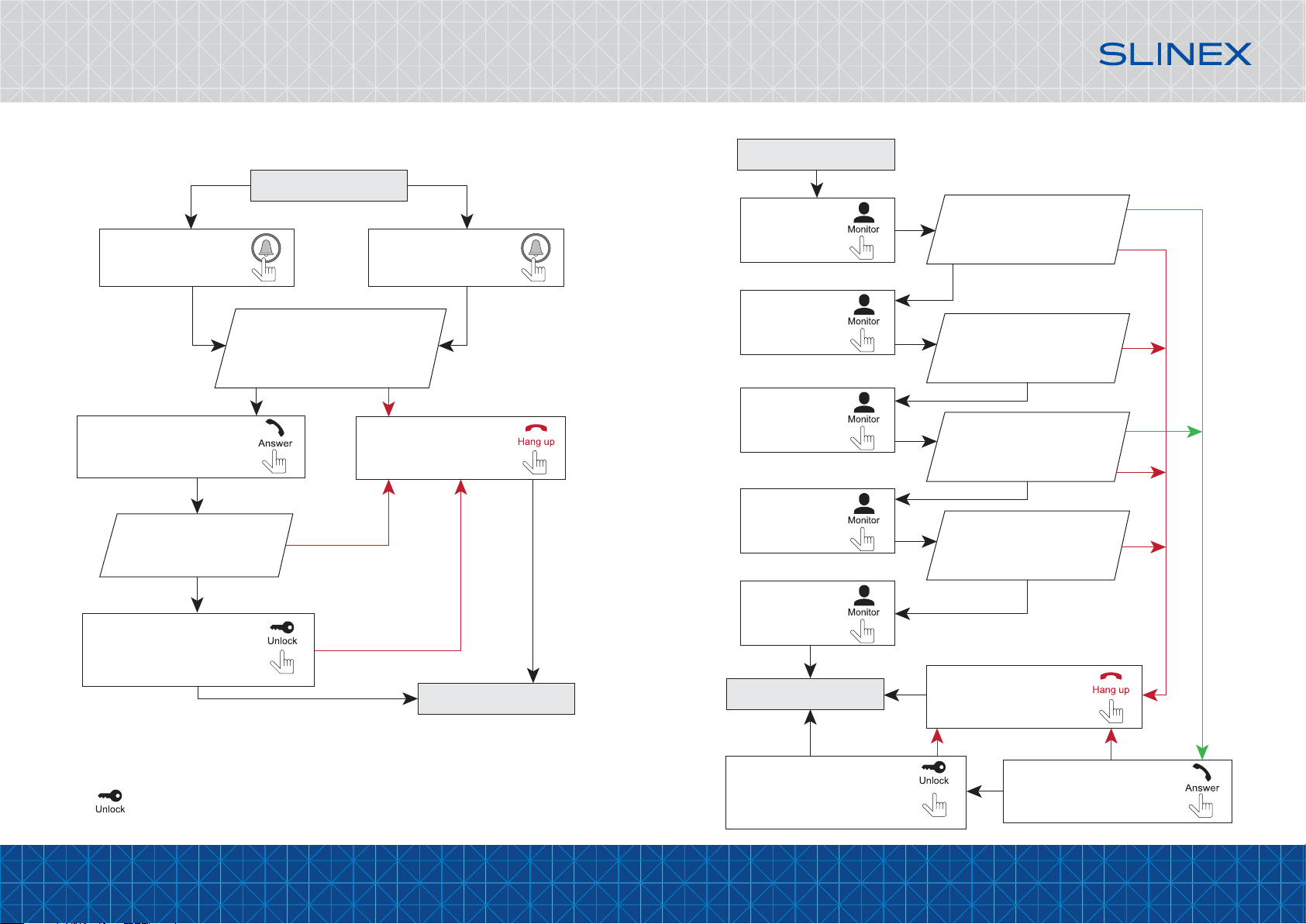

5. Operation

5.1 Incoming call

Standby mode

Melody is ringing on the

monitor and door panel,

image from the door panel

appears on the monitor screen

Visitor presses call button

on the rst door panel

Visitor presses call button

on the second door panel

Press «Answer» button to start

conversation with the visitor

Melody stops ringing and

conversation starts,

talking time is 120 seconds

Press «Hang up» button to

stop conversation or

incoming call

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Notes:

1) Monitor will be automatically switched into standby mode if the user doesn’t answer incoming call

during 60 seconds;

2) Image and sound from the door panel will be active during 20 seconds after the moment user presses

button. It let the user know if the visitor passed through the door.

20 seconds

Standby mode

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Monitor will display

the image from the

rst CCTV camera

(monitoring time is unlimited)

Monitor will display

the image from the

second CCTV camera

(monitoring time is unlimited)

Press «Hang up» button to

stop monitoring or

conversation

Press «Answer» button to start

conversation with the visitor

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

11 12

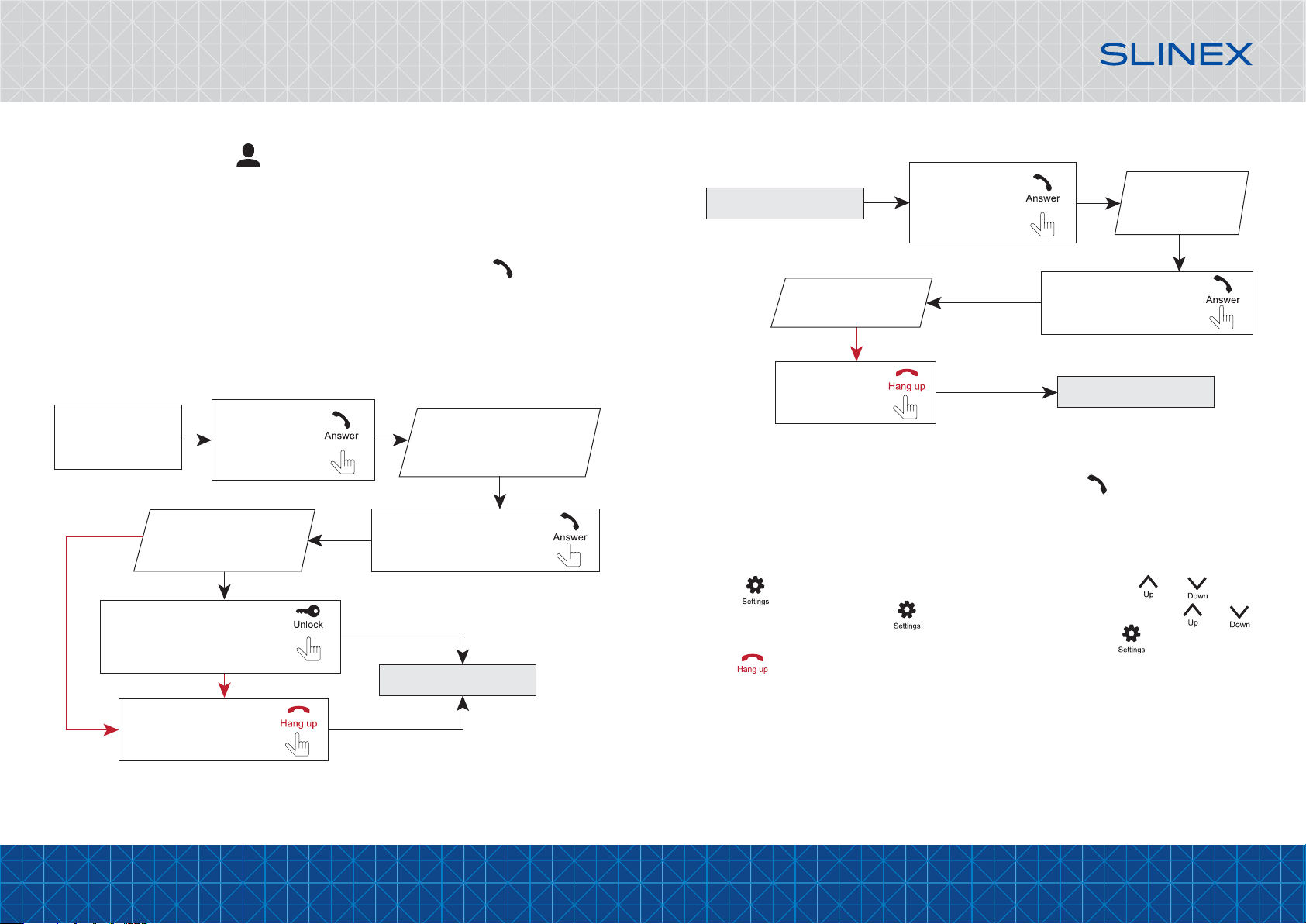

5.4 Intercom

Two monitors connected into one system are used.

Melody starts

ringing on the

other monitor

Standby mode

5.3 Incoming call redirection

Two monitors connected into one system are used.

Notes:

1) If only two door panels connected to the monitor (no CCTV cameras) then you can escape monitoring

mode by pressing «Monitor» button one more time. (all other sources of video signal should be

disabled in the monitor settings).

2) If several monitors connected into one system, the user can view the image from door panels on any

monitor inside this system. The image will be transferred from the «Master» monitor door panels to the

«Slave» monitors.

3) If someone press call button on the door panel while monitoring is active then the image from this door

panel appears on the monitor screen and call melody starts. Press «Answer» button to start

conversation.

Note:

If incoming call was successfully redirected to the other monitor and other user answered the call then

current monitor will enter standby mode.

Melody starts ringing on

the other monitor inside

the system and visitor image

appears on the monitor screen

Conversation with the

visitor on the other

monitor begins

Incoming call from the

door panel and the

user starts conversation

Press and hold

«Answer» button

for 3 sec. to start

call redirection

20 seconds

Note:

If someone press call button on the door panel while intercom is active then the image from this door panel

appears on the monitor screen and call melody starts. Press «Answer» button to start conversation

with the visitor.

6. Monitor settings

6.1 Main menu

Press button in standby mode to enter main menu monitor settings. Use or buttons

to move through the settings. Press button again to enter current setting. Then press or

button to change current parameter value and approve the setting by pressing button.

Press button on the keyboard to exit from the current menu.

Main menu has following settings:

English – choose menu language;

Ringtone – choose one of 16 melodies;

Ringtone volume – incoming call volume level, from 01 to 08;

Duration of the ringtone – call melody duration time, from 05 to 30 seconds;

Unlock time – relay unlock time, from 01 to 10 seconds;

CCTV 1 and CCTV2 – include (Enable) or exclude (Disable) CCTV camera from the monitoring list.

Press «Answer» button on the

other monitor to start

conversation with the visitor

Standby mode

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Press «Hang up» button to

stop conversation or

incoming call

Standby mode

Press «Answer»

button to start

intercom

conversation

Conversation with the

other monitor starts

Press «Answer» button on

the other monitor to start

conversation

Press «Hang up»

button to stop

conversation

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

13 14

English

Ringtone

Ringtone volume

Duration of the ringtone

Unlock time

CCTV 1

CCTV 2

Exit

Enable

Disable

Панель 1

Android / iOS

Internet

3G / Wi-Fi

Router

WAN 1 2 3 4

SL-07IP

7. Network connection diagrams.

Diagram 1. SL-07IP wired network connection.

Diagram 2. SL-07IP wireless Wi-Fi network connection.

Android / iOS

Internet

3G / Wi-Fi

Wi-Fi (LAN)

«Access point»

mode

Router

WAN 1 2 3 4

Android / iOS

SL-07IP

6.2 Display and conversation volume settings

Press button in monitoring or talking mode to enter brightnes, color, contrast and volume settings

menu. Brightness setting bar will appear on the screen. Press or buttons to increase or decrease

brightness, then press button to go to the next parameter setting in the next order:

color/contrast/volume. Every parameter value can be changed by or buttons. After volume

setting press button again to exit settings menu.

{ Design. Uniqueness. Innovations}DESIGN

DIRECT

SERIES

15 16

8. Software

Enter «Google Play»(for Android) or «Apple App Store»(for iOS) and search for «Cloud Call»application,

then install this applicationи on your mobile device.

Below you can nd basic steps how to add new device to «Cloud Call» application.

Full manual on «Cloud Call» application you can nd on www.slinex.com

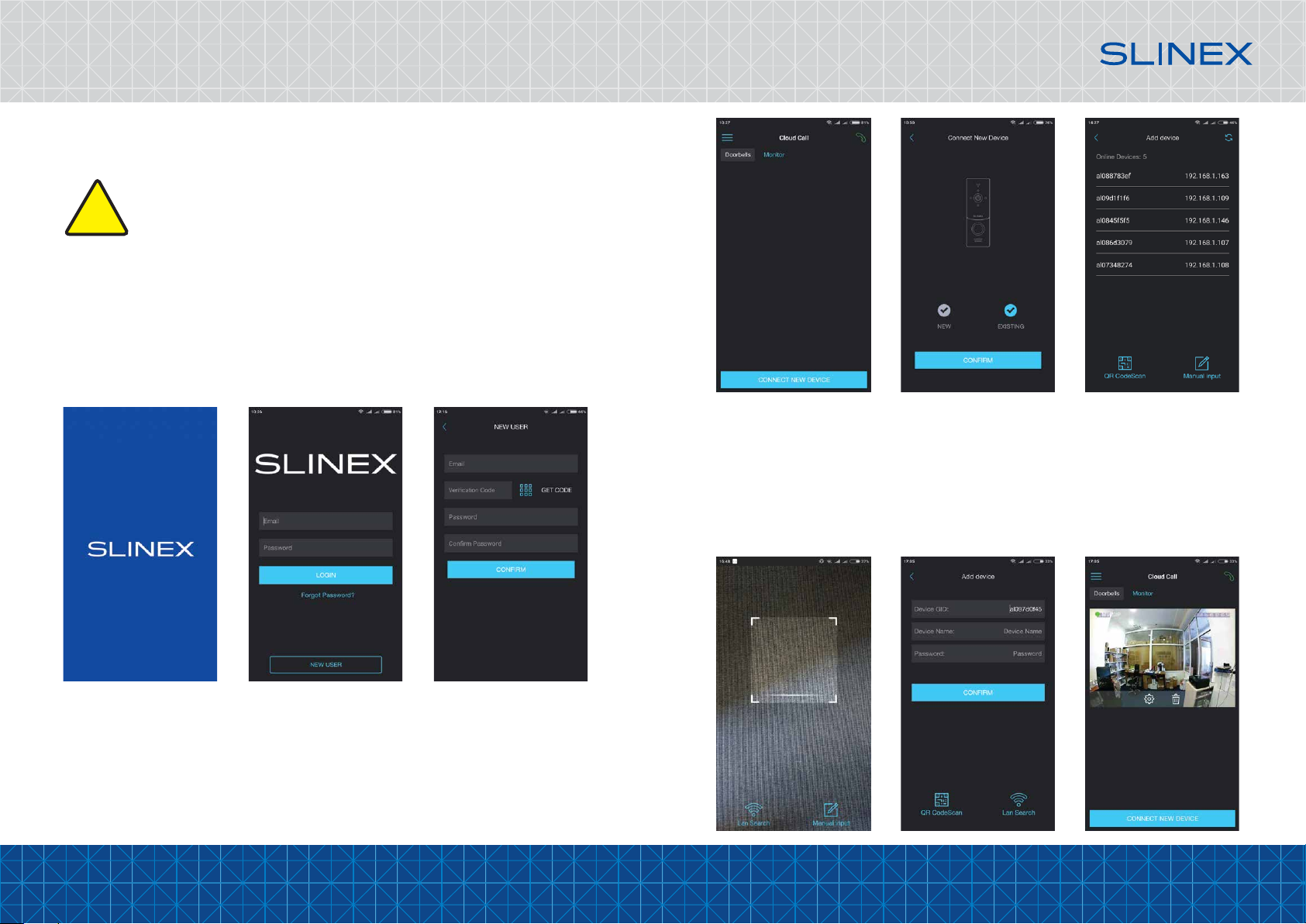

8.1 Creating new account

1) Start «Cloud Call» application on your mobile device and press «NEW USER» button to create an account;

2) Fill in «Email» box and press «GET CODE» button;

3) Check for a new message with activation code on your Email account and enter it into «Verication

Code» box;

4) Fill in «Password» and «Conrm Password» boxes and press «CONFIRM» button to create new account.

That password will be used to login into created account.

8.2 Wired network connection steps

1) Use twisted pair CAT5 or CAT6 cable to connect device to the router;

2) Connect mobile device into the same local network;

3) Press «CONNECT NEW DEVICE» button, then choose «EXISTING» check box and press «CONFIRM»

button;

4) New devices search will be applied and you will see the list of the devices, connected to the local

network;

5) Tap on UID in the left column, corresponding to the device sticker or press «QR CodeScan» button and

then scan QR code on your device sticker if device UID isn’t in the list;

6) Fill in device information:

Device UID: unique identication number of the device (already lled);

Device Name: any name you like;

Password: 888888 (by default);

then press «CONFIRM» button and you will see added device on the main bar.

{ Design. Uniqueness. Innovations } DESIGN

DIRECT

SERIES

17 18

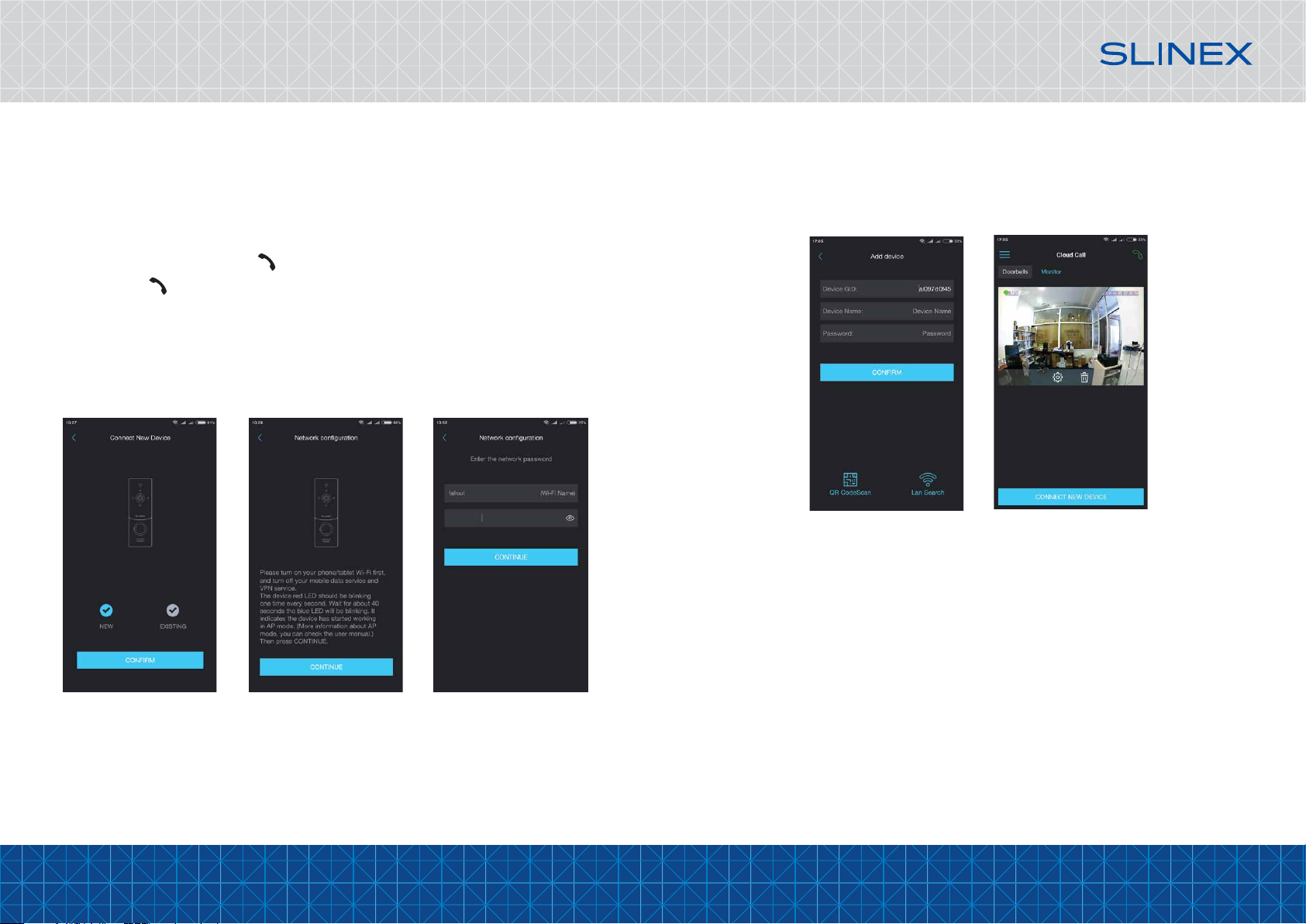

8.3 Wireless Wi-Fi network connection steps

1) Connect mobile device into the Wi-Fi network you want to connect the monitor;

2) Disable 3G/4G internet connection on your mobile device;

3) Press «CONNECT NEW DEVICE» button, then choose «NEW» check box and press «CONFIRM» button;

4) Enter into «Access point» mode if the monitor doesn’t enter it automatically. In «Access point» mode

monitor buttons backlight is constantly blinking. You can enter into «Access point» mode manually by

following next steps: press&hold button on the monitor until you will hear a «beep» sound,

then release button and wait for another «beep» sound after a minute. It means the monitor

restarted and entered into «Access point» mode.

5) Press «CONTINUE» button on the mobile device screen to go to the next step. In case if you add current

monitor for the second time then before pressing «CONTINUE» button forget (delete) monitor’s network

(network name begins from cctv2...) in your mobile phone or tablet Wi-Fi settings;

6) Enter password of the Wi-Fi network which you want to connect to and press «CONTINUE» button;

7) Fill in device information:

Device UID: unique identication number of the device (already lled);

Device Name: any name you like;

Password: 888888 (by default);

then press «CONFIRM» button and you will see added device on the main bar.

Notes:

1) If there is no LAN cable connected to the monitor or outdoor panel on the rst boot then it will automatically

go into «Access point» mode and you can skip 4th step of section 5.3.

2) If device is already added to some account, you can’t add it to another one, only can share it with other

account.

Autres manuels pour Design Direct Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Slinex Système d'interphone

Slinex

Slinex UNIQUE DIRECT Series Manuel utilisateur

Slinex

Slinex SL-07MHD Manuel utilisateur

Slinex

Slinex DESIGN DIRECT ML-16 Manuel utilisateur

Slinex

Slinex SL-10IP Manuel utilisateur

Slinex

Slinex SM-07N Cloud Manuel utilisateur

Slinex

Slinex SL-10IPT HD Manuel utilisateur

Slinex

Slinex ML-16HD Manuel utilisateur

Slinex

Slinex SM-07 Manuel utilisateur

Slinex

Slinex Design Direct SL-07IP Manuel utilisateur

Slinex

Slinex MA-02 Manuel utilisateur

Slinex

Slinex Unique Direct Series Manuel utilisateur

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Slinex

Slinex ML-20TLHD Manuel utilisateur

Slinex

Slinex ML-20HR Manuel utilisateur

Slinex

Slinex Imani Manuel utilisateur

Slinex

Slinex UNIQUE DIRECT IP Series Manuel

Slinex

Slinex SONIK 7 Cloud Manuel utilisateur

Slinex

Slinex MS-04 Manuel utilisateur

Slinex

Slinex SL-10M Manuel utilisateur

Slinex

Slinex SQ-07MT HD Manuel utilisateur

Slinex

Slinex IP DIRECT Series Manuel utilisateur

Slinex

Slinex ML-20CRHD Manuel utilisateur

Slinex

Slinex VR-16 Manuel utilisateur

Slinex

Slinex Sonik 7 Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
