MS-04 4” video door phone

Thank you for the

choice of our equipment

User manual

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

1 2

Rev. 1.0

Attention!

As a result of continuous upgrades and functionality improvements, technical

characteristics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from the –10 ˚C to +55 ˚C, always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Don’t overpower outlets. It can cause re or electric shock.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

Table of contents

1. Package ............................................................................................................................................................................................3

2. Specication...................................................................................................................................................................................3

3. Description......................................................................................................................................................................................4

4. Installation.......................................................................................................................................................................................5

4.1 Cable requirements.......................................................................................................................................................5

4.2 Schematic diagrams......................................................................................................................................................6

4.3 Unit mount .......................................................................................................................................................................7

5. Operation.........................................................................................................................................................................................8

5.1 Incoming call ...................................................................................................................................................................8

5.2 Door panel image monitoring ..................................................................................................................................9

5.3 Camera image monitoring.......................................................................................................................................10

5.4 Incoming call redirection .........................................................................................................................................10

5.5 Intercom .........................................................................................................................................................................11

6. Limited Warranty........................................................................................................................................................................12

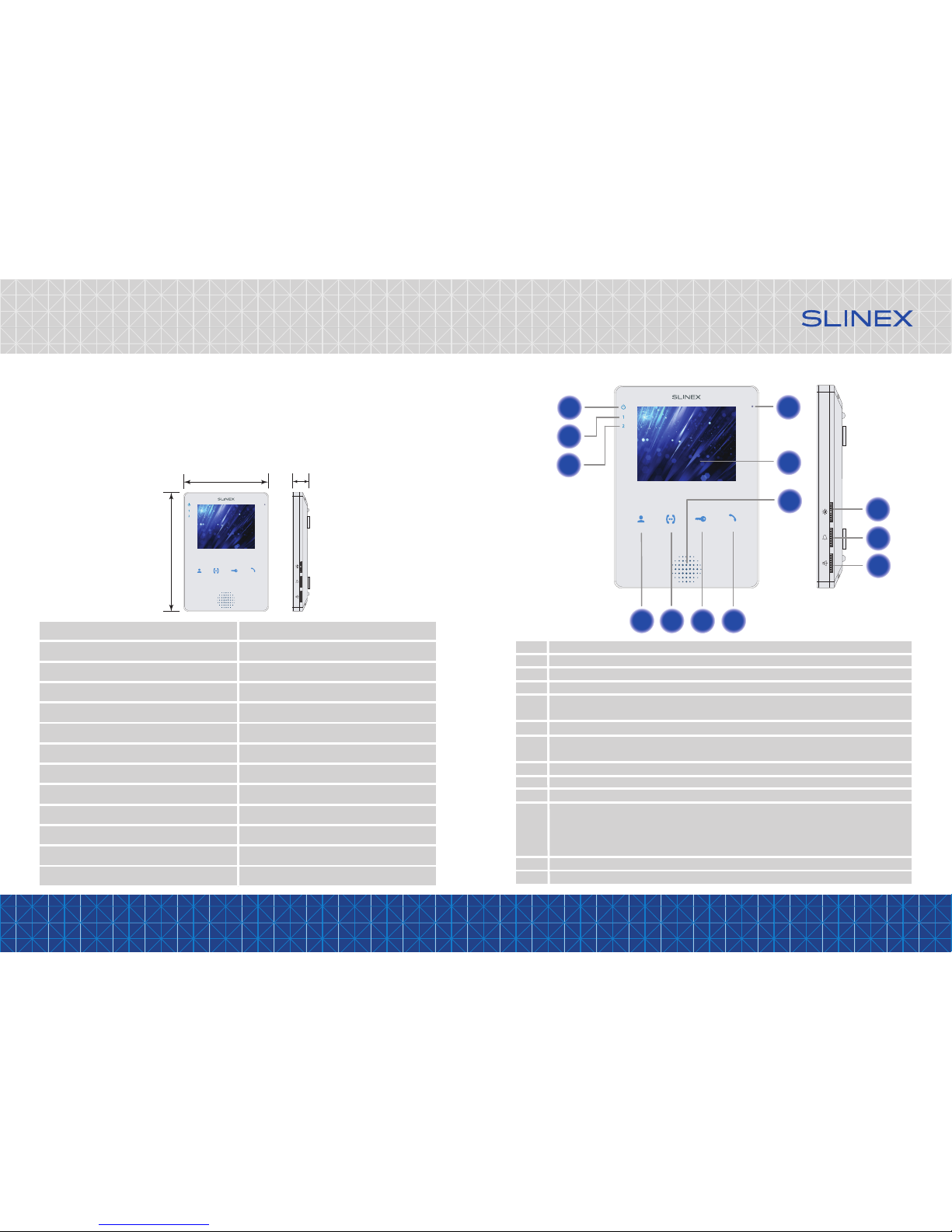

3. Description

74 6

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

3 4

Power LED. Active when the power is on.

First door panel LED. Active when the rst door panel is on.

Second door panel LED. Active when the second door panel is on.

«Monitor» button – door panel image monitoring.

«Call redirection» button – incoming call redirection to other monitor / сamera image

monitoring (in stadby mode)

«Unlock» button – door unlocking

«Answer/Hang Up» button – start/stop conversation with the visitor / start intercom call

with other monitor in the system (in stadby mode)

Speaker

Display

Microphone

Image settings joystick:

• push the joystick to enter brightness/contrst/color tuning menu;

• move joystick up or down to change current parameter setting;

• push the joystick again to go to the next parameter or exit image settings.

Incoming call ringing volume potentiometer.

Talking volume potentiometer.

168 mm

119 mm 25

Screen

Resolution

Video system

Audio type

Call time

Internal memory

Memory extension slot

Standby mode power consumption

Working mode power consumption

Power supply

Mounting type

Size

Working temperature

4”, color TFT (4:3)

320×240 pixels

PAL/NTSC

Half duplex

120 seconds

1 W

6 W

Built-in power supply, ~100–240 V

Surface mount

119×168×25 mm

−10...+55 ˚C

1. Package

MS-04 door monitor − 1 pc.

Wall mounting bracket − 1 pc.

Connection wires − 5 pcs.

Mounting screws and nuts − 1 pkg.

User manual − 1 pc.

2. Specication

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

5 6

MS-04 (Master) – Master/Slave jumper

installed

GND

+13,5 V

MS-04 (Slave) – Master/Slave jumper

removed

CCTV

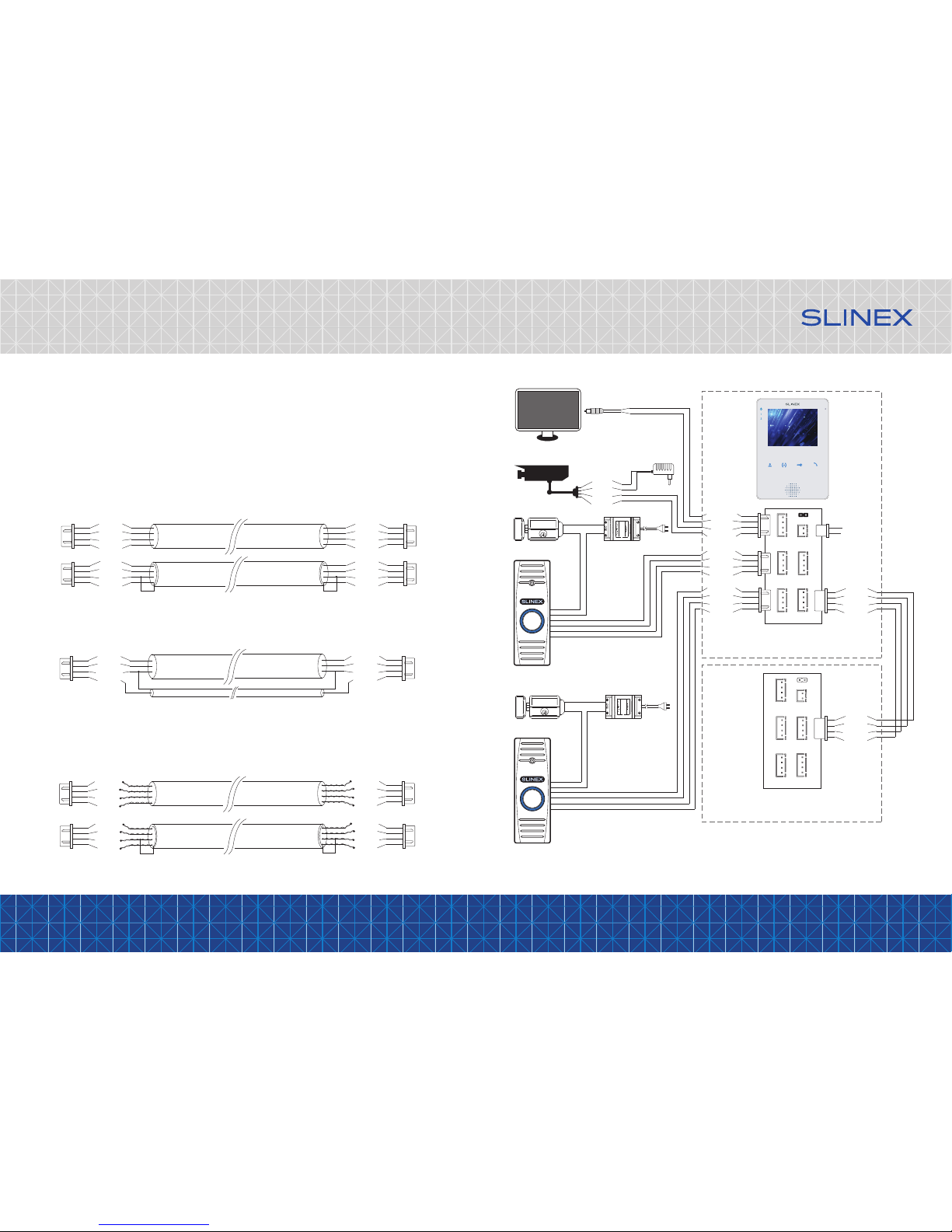

4.2 Schematic diagrams

MS-04 door panels, cameras, locks and TV connection.

4. Installation

4.1 Cable requirements

Disconnect all power cables before device installation.

This device can be connected with such cable types depends on the distance between door monitor and

door panel:

) Use 4-wire cable with such parameters:

• distance up to 25 meters use a cable with 0,22 mm square of one wire;

• distance 25 to 50 meters use a cable with 0,41 mm square of one wire;

• distance 50 to 100 meters use a cable with 0,75 mm square of one wire.

b) If the distance between door monitor and door panel is between 80 and 100 meters then use a 3-wire

cable with 0,75 mm square of one wire and RG-59 or RG-6 coaxial cable for the video signal.

c) Shielded or non-shielded twisted pair (not recommended):

• distance up to 25 meters non-shielded twisted pair can be used;

• distance 25 to 50 meters shielded twisted pair should be used.

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

0 - 50 m

Shield

50 - 80 m

80-100 m

RG-59 or RG-6

0 - 25 m

25 - 50 m

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Shield Shield

Lock

Door

panel 1

Lock power

supply

Lock

Door

panel 2

Lock power

supply

+12 V

GND

Video

Video Out

GND

Video In

Power

Audio

GND

Video

Power

Audio

GND

Video

Audio

GND

Data

Video

Audio

GND

Data

Video

Notes:

* Use «Power»plug on the monitor to connect external power supply +13,5 V. While use

external power supply please keep main power cord ~100-240 V disconnected from the outlet,

otherwise it can damage monitor circuits.

** Door panels, cameras, power supplys, locks and TV set, described on the diagram, are

optional devices and are not included into monitor kit.

Door 1

Door 2

Input

Output

Power

Master/Slave

Camera/TV

Door 1

Door 2

Input

Output

Power

Master/Slave

Camera/TV

TV set

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

7 8

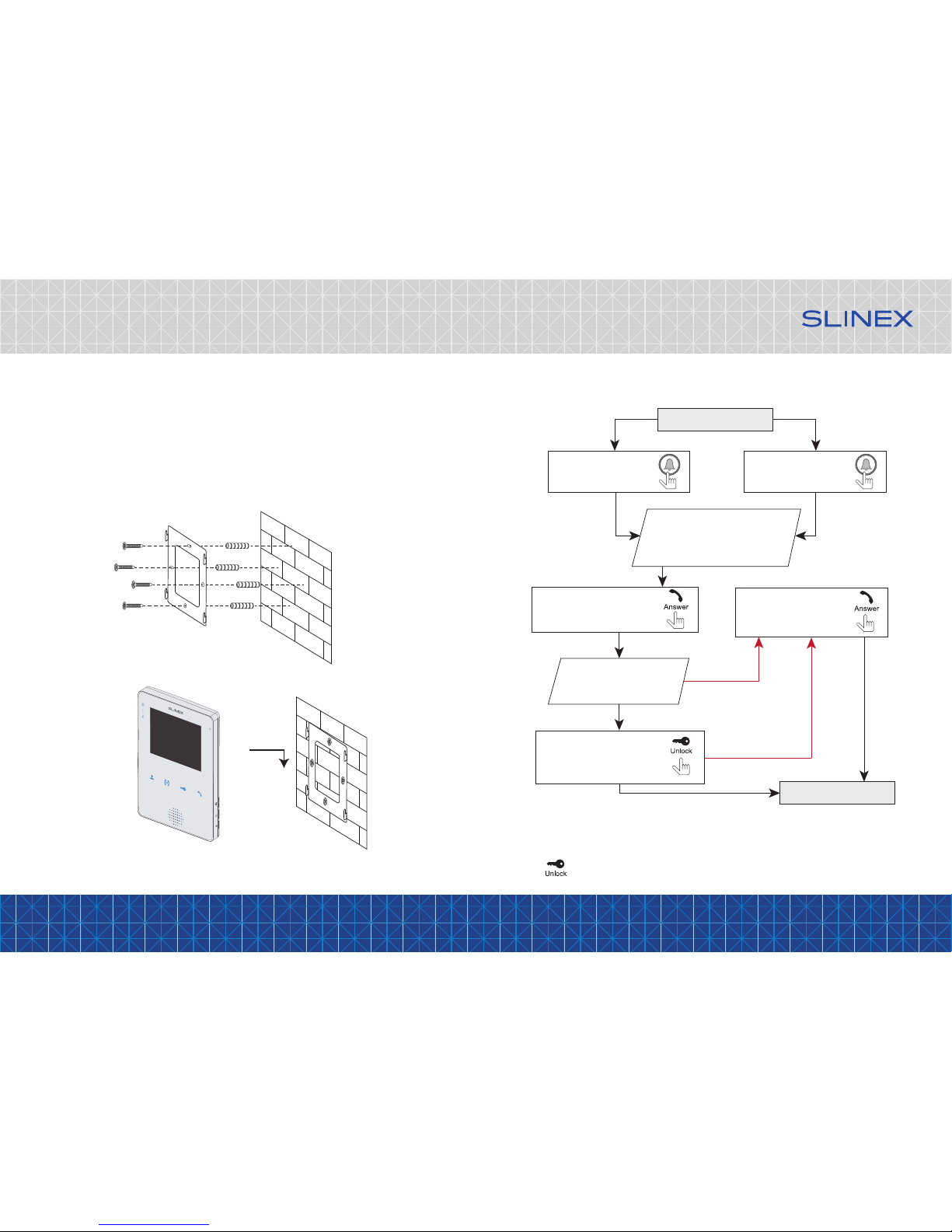

4.3 Unit mount

1) Take the surface mount bracket from the kit and situate it 150-160 cm from the oor line.

2) Mark and drill four halls in the wall.

3) Take four nuts from the kit and hammer them into the drilled halls.

4) Fix surface mount bracket on the wall by four screws from the kit.

5) Connect all communication wires and x the monitor on the surface mount bracket.

5. Operation

5.1 Incoming call

Standby mode

Melody is ringing on the

monitor and door panel,

image from the door panel

appears on the monitor screen

Visitor presses call button

on the rst door panel

Visitor presses call button

on the second door panel

Press «Answer» button to start

conversation with the visitor

Melody stops ringing and

conversation starts,

talking time is 120 seconds

Press «Answer» button

again to stop conversation

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Notes:

1) Monitor will be automatically switched into standby mode if the user doesn’t answer incoming call

during 60 seconds;

2) Image and sound from the door panel will be active during 20 seconds after the moment user presses

button. It let the user know if the visitor passed through the door.

20 seconds

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

9 10

5.2 Door panel image monitoring

Standby mode

Monitor will display

the image from the

rst door panel

(monitoring time – 60 seconds)

Monitor will display

the image from the

second door panel

(monitoring time – 60 seconds)

Press «Monitor»

button on the

monitor

20 seconds

Standby mode

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Press «Answer» button to start

conversation with the visitor

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

5.4 Incoming call redirection

Two monitors connected into one system are used.

5.3 Camera image monitoring

Notes:

1) If several monitors connected into one system, the user can view the image from door panels and

cameras on any monitor inside this system. The image will be transferred from the «Master» monitor door

panels and cameras to the «Slave» monitors.

2) If somebody presses call button on the door panel while monitoring is active then the image from this

door panel appears on the monitor screen and call melody starts. Press «Answer» button to start

conversation.

Note:

If incoming call was successfully redirected to the other monitor then current monitor will enter standby

mode.

Melody starts ringing on

the other monitor inside

the system and visitor image

appears on the monitor screen

Conversation with the

visitor on the other

monitor begins

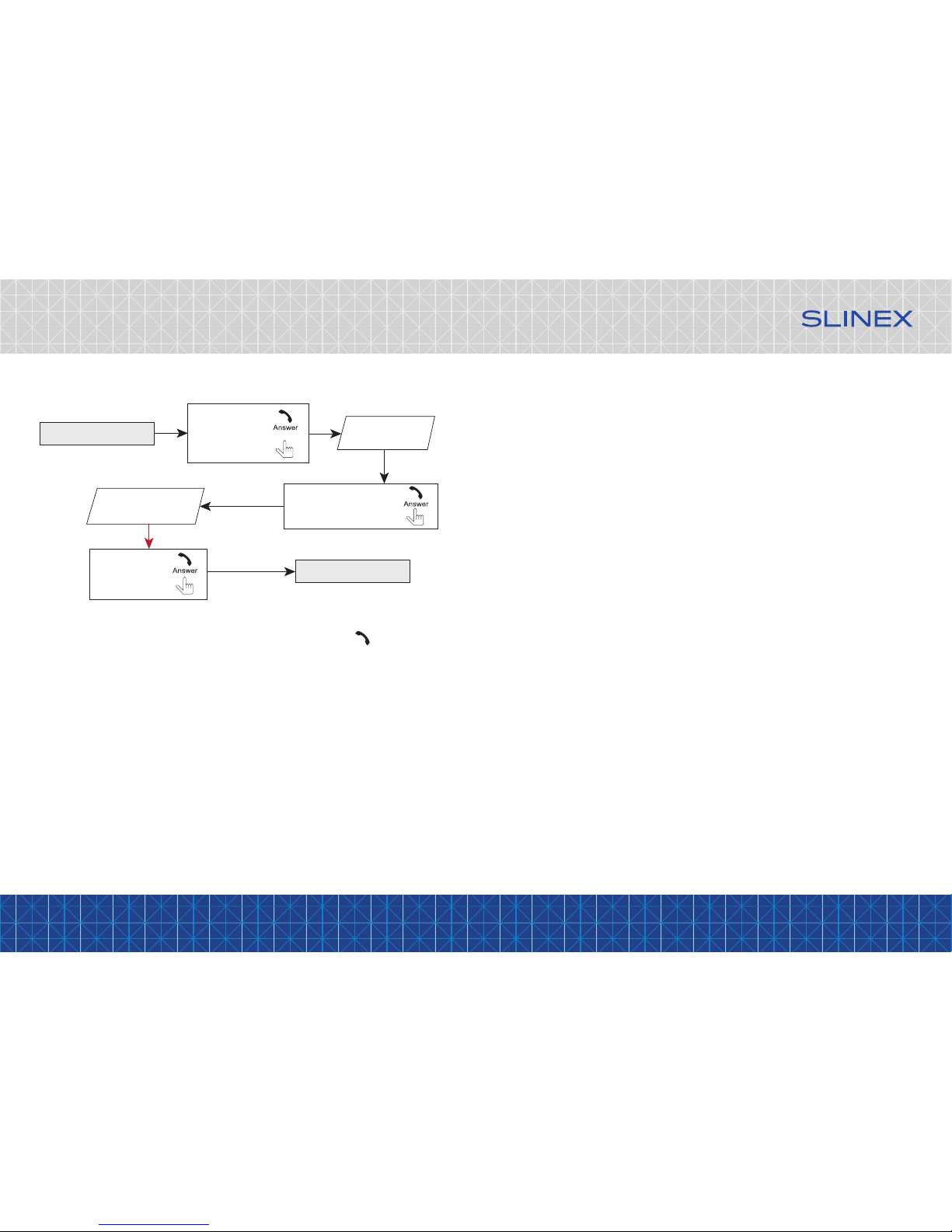

Incoming call from the

door panel and the

user starts conversation

Press «Call

redirection»

button to start

call redirection

20 seconds

Press «Answer» button on the

other monitor to start

conversation with the visitor

Standby mode

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Press «Answer» button

again to stop conversation

Press «Answer» button

again to stop conversation

Standby mode

Monitor will display

the image from the

camera

Press

«Call redirection»

button on the monitor

Call redirection

Press

«Call redirection»

button on the monitor

Call redirection

{ Design. Uniqueness. Innovation } UNIQUE

DIRECT

SERIES

11 12

Note:

If somebody presses call button on the door panel while intercom is active then the image from this door

panel appears on the monitor screen and call melody starts. Press «Answer» button to start

conversation with the visitor.

5.5 Intercom

Two monitors connected into one system are used.

Melody starts

ringing

Standby mode

Press «Answer»

button to start

intercom

conversation

Conversation with the

other monitor starts

Press «Answer» button on

the other monitor to start

conversation

Press «Answer»

button again to

stop conversation

6. Limited warranty

Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety

instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing (warranty period could be

extended up to 24 months or more, depending on the local regulations).

Warranty period allows user to make guarantee repair in cases when normal functioning of the product was

violated by the fault of manufacturer and the user haven’t oend transporting, installation and working

conditions.

This limited warranty does not cover any damage to the product that results from improper installation,

accident, abuse, misuse, natural disaster, insucient or excessive electrical supply, abnormal mechanical or

environmental conditions, or any unauthorized disassembly, repair or modication.

Warranty void in such cases:

• the product was damaged by the fault of the customer;

• the product wasn’t properly installed according reccomendations from the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for defective products, as provided

above. Manufacturer is not liable for, and does not cover under warranty, any damages or losses of any kind

whatsoever resulting from loss of, damage to, or corruption of, content or data or any costs associated with

determining the source of system problems or removing, servicing or installing products. This warranty

excludes third party software, connected equipment or stored data. Manufacturer is therefore not liable for

any losses or damage attributable to third party software, connected equipment or stored data.

In the event a product has been discontinued, manufacturer shall either repair the product, oer to replace

it with a comparable product or provide a refund at the lesser of the purchase price or the product’s current

value.

Repaired or replacement products will continue to be covered by this limited warranty for the remainder of

the original warranty term.

Table des matières

Autres manuels Slinex Système d'interphone

Slinex

Slinex SL-07MHD Manuel utilisateur

Slinex

Slinex SL-07N Cloud Manuel utilisateur

Slinex

Slinex Design Direct SL-07IP Manuel utilisateur

Slinex

Slinex ML-20HD Manuel utilisateur

Slinex

Slinex SL-10N Cloud Manuel utilisateur

Slinex

Slinex SM-04M Manuel utilisateur

Slinex

Slinex DESIGN DIRECT ML-16 Manuel utilisateur

Slinex

Slinex ML-16HD Manuel utilisateur

Slinex

Slinex SONIK 7 Cloud Manuel utilisateur

Slinex

Slinex Unique Direct Series Manuel utilisateur

Slinex

Slinex SL-10IPT HD Manuel utilisateur

Slinex

Slinex Sonik 7 Manuel utilisateur

Slinex

Slinex SM-07M Manuel utilisateur

Slinex

Slinex ML-20TLHD Manuel utilisateur

Slinex

Slinex XR-30IP Manuel utilisateur

Slinex

Slinex UNIQUE DIRECT IP Series Manuel

Slinex

Slinex SL-10M Manuel utilisateur

Slinex

Slinex ML-20CRHD Manuel utilisateur

Slinex

Slinex Innovation Direct Series Manuel utilisateur

Slinex

Slinex ML-16HR Manuel utilisateur

Slinex

Slinex MA-02 Manuel utilisateur

Slinex

Slinex UNIQUE DIRECT Series Manuel utilisateur

Slinex

Slinex SL-07M Manuel utilisateur

Slinex

Slinex SM-07N Cloud Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
