Installation Instructions

Model FCM2041-U3

INTRODUCTION The Model FCM2041-U3 from Siemens Industry, Inc., is the user interface for the

Cerberus PRO Modular system. From the FCM2041-U3 the operator can acknowledge

events, control the system notification appliance circuits and reset the system. De-

tailed information about the nature and location of events can also be displayed.

The FCM2041-U3 is used as the primary user interface in CAB1, CAB2

or CAB3 enclosures.The FCM2041-U3 can also be used as a primary

user interface in a remote REMBOX2 or REMBOX4 enclosure.

The FCM2041-U3 contains the site specific program as developed in

Zeus. All system logic and supervision is provided by the controller in

the FCM2041-U3.

The FCM2041-U3 contains a full VGA LCD,Touch Screen and LEDs for

displaying system status. An audible sounds when there are unac-

knowledged events on the FCM2041-U3.The display is surrounded by

keys that are used to control the displayed information and to navigate

through these screens. Keys are also provided to obtain help and to

enter into the menu features of the FCM2041-U3. (Refer to Figure 1.)

On the back of the FCM2041-U3 there are additional diagnostic displays

to aid in system troubleshooting. This is also where the FCM2041-U3

address is set and where the connection is made to Zeus for program-

ming. (Refer to Figure 2.)

For systems configured to provide Smoke Control (UUKL), refer to the Cerberus PRO

Modular Manual, Document ID A6V11231627.

PRE-INSTALLATION Additional labels are available for applications that require French (Canadian), Spanish,

or Portuguese (Brazilian) languages. These labels need to be ordered separately.

Refer to the table below for ordering information.

To apply labels, remove the backing from the labels and apply them to the FCM2041-

U3. (Refer to Figure 3.)

For systems configured for Security, an LED must be configured (on an LCM-8) to

indicate Security.This LED must be present on each node in the system. Refer to the

Cerberus PRO Modular Manual, Document ID A6V11231627, and the Zeus Quick-Start

Manual, P/N 315-033875, for LCM-8 installation and configuration.

Siemens Industry, Inc.

Building Technologies Division

A6V11231630_en--_b2

Figure 2

FCM2041-U3 Diagnostics

PCC PORT

HNET

TO LVM TO CC-5

UPLOAD

OPTIONS

STATUS

LINK

100

ACT

XNET ID

TSP-40A

RESET

LAN

SD #1 SD #2

EARTH

GND

1234

J11

J18 J19

USB A J16

S2 S3 S4

J13

J15

USB B

SCITSONGAID3U-1402MCFFONOITPIRCSED

001tenrehtespbM001afiydaetsswolgDEL .detcetedsinoitcennoc

TCAtenrehtefosemitgnirudydaetsswolgDEL .ytivitca

krowten

TENHrofCPpotpalaotnoitcennocTENH .scitsongaidkrowten

NALknilataddeepshgihrofdesutroptenrehtE .)sdao

lpuerawmrifUPCniamgnidulcni(

KNILsinoitcennoctenrehtenafiydaetsswolG .detceted

SNOITPO

noitpircseDniP

:edomnoitarbilaCneercshcuoT-1 edoMdaolpUerawmriFUPCniaM-2 )DBT(-3 )DBT(-4

TROPCCPoterawmrifwenrefsnartotde

sutropBSU .CCPeht

TESER 1

.IMPehtezilaitini-erotsserP .teserdrahrofsdnoces5dloH.2

1#DSIMPGerotsotdesutropdracDS .noitamrofnipukcabd

naesabatad

2#DSIMPGwollaotdesutropdracDS .ytilibapac

SUTATSlamronetacidniotthgilstnemgesgniklaW nafideyalps

idsiedocrorrE.noitarepo .detcetedsiDIrorrelanretni

5-CCOT.5-CCotelbacnobbirnip-06stcennoC

MVLOT.suboiduago

lanA

A04-PST.retnirppirtsA04-PSTrofrotcennoC

DAOLPU )"B"BSU( gnirrefsnartroflootsueZotnoitcennoC eludomdnaa

tadnoitarugifnocmetsys .rotcennocBepytBSUsesU.erawmrif

BSU

"A"

noitamrofnidnasgoltcellocotdesutroP .rotcennocAepytBSUsesU.metsysmorf

DITENX;edomlacolni10otteS:sserddaT

ENX .TENXrofsserddaetairporppaottes

CPU FAIL

PARTIAL

SYSTEM

DISABLED

SILENCED

AUDIBLES

TROUBLE

SUPERVISORY

ALARM

POWER

Info

ESC

ALTERNATE

LANGUAGES,

APPLY

APPROPRIATE

LABEL HERE

OR ALTERNATE

LANGUAGES,

APPLY

APPROPRIATE

LABEL HERE

Figure 3

Applying FCM2041-U3 Labels for Alternate Languages

Part number S54430-C16-

A1 contains alternate

language labels

Siemens Industry, Inc.

Building Technologies Division

A6V11231630_en--_b3

INSTALLATION

Remove ELECTRICALPOWER prior to installing the FCM2041-U3in the enclosure.

Set the Network Address Remove the FCM2041-U3 from its anti-static bag. Set the two-digit address using

the 10-position rotary switches (S2, S3) located on the back of the FCM2041-U3. For

a standalone HNET panel, set the address of the FCM2041-U3 to 01. Be sure to set

leading zeros. In the Zeus Physical View, make sure that the FCM2041-U3 is config-

ured at address 253.

When the FCM2041-U3 is used for networking with other panels, set the two-digit

network address to the XNET node address that has been assigned in Zeus. Be sure to

set leading zeros. For example, Node 2 is set at 02. In the Zeus Physical View, the

HNET address of the PMI is automatically set to 253 when operating in an XNET panel.

The table below details the differences between the network address settings in a

FCM2041-U3 and a PMI.

SEHCTIWSSSERDDAKROWTENEHTGNITTES

3U-1402MCF

yratoRforebmuN sehctiwSsserddA owT )3S,2S(

)enoladnatS(TENH )IMPnognitteS( .10otsserddateS

.)hctiwssnoitpO(4

SnognittesoN

)sueZnignitteS( taderugifnocsi3U-1402MCFehterusekaM .weivlacisyhpsueZehtni352sserdda

)krowte

N(TENX )IMPnognitteS( .)hctiwssnoitpO(4SnognittesoN

tigid-owtehtotsserddaedonTENXehtteS .sueZnitirofdengi

ssasserdda

)sueZnignitteS(morf(sserddaedontigid-owtTENXehtteS oteruseB.eertlacisyhpsueZehtni)46-10 .sorez

gnidaeltes

Mount the FCM2041-U3 The FCM2041-U3 mounts to the rear of the inner door in the CAB-1, CAB-2, CAB-3,

REMBOX2 or REMBOX4 enclosures. Select the location of the

FCM2041-U3. It can be mounted either in the center or on the left

side of the inner door, when viewed from the outside of the

enclosure. Place the FCM2041-U3 onto the inner door from the rear,

over the four mounting studs in the desired location. Secure the

FCM2041-U3 to the inner door with the four nuts provided. (Refer to

Figure 4.)

A 40 inch long 60 wire cable, P/N 555-133743, connects the

FCM2041-U3 to the CC-5. The CC-5 is located in the back of the

enclosure on the left hand side. Connect one end of the cable to J2

on the FCM2041-U3. J2 is marked with “CC-5” on the FCM2041-U3

printed circuit board. Connect the other end of the cable to P1 on the

CC-5. (Refer to Figure 5.)

Connect the FCM2041-U3 to the RNI in a REMBOX2/4. The RNI is

located in the back of the enclosure on the top left hand side.

Connect one end of the cable to J2 on the FCM2041-U3. J2 is

marked with “CC-5” on the printed circuit board. Connect the other

end of the cable to JP1 on the RNI. (Refer to Figure 6.)

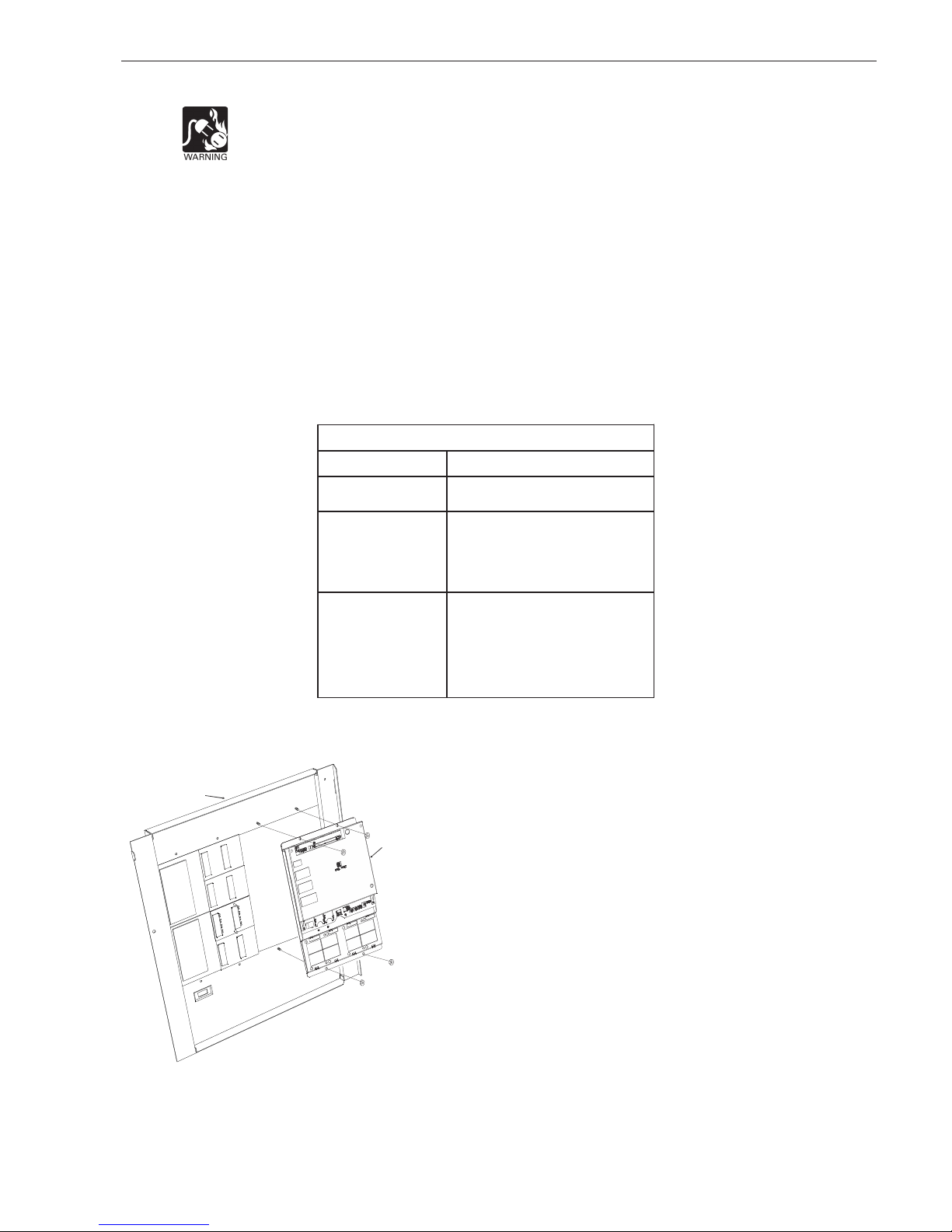

Figure 4

Mounting the FCM2041-U3 to

the Rear of the Inner Door

INNER DOOR

FCM2041-U3

Siemens Industry, Inc.

Building Technologies Division

A6V11231630_en--_b4

Figure 5

Connecting the FCM2041-U3 to the CC-5

Figure 6

Connecting the FCM2041-U3 to the RNI

Make sure that all cables snap fully into their connectors and close the locking levers

over the top of each cable connector. Secure the cable in the back box using cable

ties and the tie down points in the enclosure.The cable must have sufficient slack to

allow the inner door to open fully without putting stress on the cable.

OPERATION In the normal standby condition the FCM2041-U3 displays the site specific custom

message, the time and date, and a synopsis of the system status.

When an event occurs in the system, the display enters the Alert mode. The event is

displayed, the local audible sounds and the tab on the display for the corresponding

event queue flashes. If the event type is Alarm,Trouble, or Supervisory, the appropriate

LED blinks. If the event caused notification appliances to sound the Audibles On

indicator lights. At the bottom of the screen an acknowledge button is displayed.

Pressing this button acknowledges the event and silences the local audible. Once all

events are acknowledged a reset button becomes available in the lower right side of

the display. If notification appliances were active, two additional buttons appear at the

bottom of the screen. These allow the operator to silence or unsilence the notification

appliances. When the notification appliances are silenced the Audibles Silenced LED

lights.The system can only be reset with the notification appliances silenced.

If more events are present in the system than can be displayed on a single screen a

scroll bar appears to the right of the event list. Pressing the up and down navigation

buttons to the right of the LCD allows the operator to move through the list.The

selected event is highlighted in the display. Pressing the More Info button will display

a screen showing details relating to the selected event. Other buttons also appear at

the bottom of this screen. There is an expanded text message available and a

selection to show all of the devices associated with the event that are active.The

operator can return to the previous screen by pressing the ESC button. (For more

detail on FCM2041-U3 operation, refer to the Cerberus PRO Modular Manual,

Document ID A6V11231627.)

If the LED under one of the buttons above the LCD is lit, pressing the

button moves the highlight to the next queue. Use the buttons to shift to

the first or last queue.

Siemens Industry, Inc.

Building Technologies Division

A6V11231630_en--_b5

TO UPGRADE FROM Follow the procedure below to upgrade an Cerberus PRO Modular panel from a

PMI TO FCM2041-U3 PMI to a FCM2041-U3.

1. Please ensure you are using Zeus-C, 1.0 or greater.

2. Create a new project in Zeus (File>New) to avoid overwriting a current

project. The new project’s filename is not important.

3. Download the current configuration from the PMI.

a) Connect the Laptop via the Upload cable and select

Build>Transfer>Configuration From Panel.

b) An .hrc configuration file from the PMI control panel downloads to the

Zeus host PC. Initially, the Zeus Transfer dialog will open, with settings for

serial port and transfer protocol. Once these are set, the Transfer Con-

figuration dialog will display information the PMI’s current configuration,

software and firmware versions. You can select the panel from which to

download (if there are multiple compiled configurations in the host PC),

and also choose to download the PMI’s current history file into the

project directory. Once you have begun the transfer, the Transfer

Progress dialog displays transfer progress and status messages, and

allows you to cancel the transfer.

4. Once the panel configuration is downloaded, close the new project, use

Tools > Decompile to open the downloaded .hrc configuration file as a

project in Zeus.

5. In the Zeus tool replace the PMI with the new FCM2041-U3.

Please make sure you are converting the correct PMI with a FCM2041-U3 by match-

ing the address of the switches on the back of the PMI.

a) In the configuration which you have just removed from the original PMI,

click on the PMI module in the physical tree. Select the Edit menu and

click on “Find/Replace Tree Node”. A dialog box will open and allow you

to replace the PMI with the FCM2041-U3.

b) Once this is completed, save and then compile the configuration.

Remove ELECTRICAL POWER prior to removing the original PMI and installing the

new FCM2041-U3 in the enclosure.

c) Physically remove the original PMI and install the new FCM2041-U3 on

the inner door of the enclosure. (For more detail see the INSTALLATION

section and Figure 4 of this document.)

d) Re-attach the 60-pin cable to the connector at the top of the FCM2041-

U3 (see Figures 5 and 6) as well as any other original connections to the

PMI.

e) Apply power and allow the unit to initialize.

6. Transfer the configuration to the Panel.

a) Connect the USB programming cable to the FCM2041-U3 USB type B

connector labeled “UPLOAD” at the bottom of the unit. (Refer to Figure

2.)

b) In the Zeus configuration, select the module in the Physical Tree. Then

select Build>Transfer>Configuration to Panel. An .hrc configuration file

uploads from the Zeus host PC to the FCM2041-U3 control panel,

overwriting the existing configuration in the panel.

i) Initially, the Zeus Transfer dialog will open, with settings for serial port

and transfer protocol. Once these settings are made, the Transfer

Siemens Industry, Inc.

Building Technologies Division

A6V11231630_en--_b6

Configuration dialog will display information on the PMI firmware and

system configuration currently stored in the panel. You can select the

configuration to upload (if there are multiple compiled configurations

in the host PC), and also choose to download the PMI’s current

history file into the project directory.

ii) Once you have begun the transfer, the Transfer Progress dialog

displays transfer progress and status messages, and allows you to

cancel the transfer. When you click OK at the transfer complete

message, the control panel will reset itself with the new configuration.

ELECTRICAL RATINGS

rewoPtupnIrewoPtuptuO

tnerruCenalPkcaBV42Am591 dnaTENX/TENHhcaE riaPkrowteNNAC

.xamkaepotkaepV8

tnerruCV42la

nimreTwercS0 .gsmgnirud(.xamAm57 )noissimsnart

tnerruCenalPkcaBV2.60

tnerruCybdnatSV42Am521

Siemens Industry, Inc.

Building Technologies Division

A6V11231630_en--_b7

Cyber security disclaimer

Siemens products and solutions provide security functions to ensure the secure operation of

building comfort, fire safety, security management and physical security systems. The security

functions on these products and solutions are important components of a comprehensive security

concept.

It is, however, necessary to implement and maintain a comprehensive, state-of-the-art security

concept that is customized to individual security needs. Such a security concept may result in

additional site-specific preventive action to ensure that the building comfort, fire safety, security

management or physical security system for your site are operated in a secure manner. These

measures may include, but are not limited to, separating networks, physically protecting system

components, user awareness programs, defense in depth, etc.

For additional information on building technology security and our offerings, contact your Siemens

sales or project department. We strongly recommend customers to follow our security advisories,

which provide information on the latest security threats, patches and other mitigation measures.

http://www.siemens.com/cert/en/cert-security-advisories.htm

Siemens Industry, Inc.

Building Technologies Division

Florham Park, NJ

Siemens Canada, Ltd.

1577 North Service Road East

Oakville, Ontario

L6H 0H6 Canada

Document ID A6V11231630_en--_b

This page has been left intentionally blank.

P/N A5Q00075185

Autres manuels pour FCM2041-U3

Table des matières

Autres manuels Siemens Unité de contrôle

Siemens

Siemens VVF Series Manuel utilisateur

Siemens

Siemens SINAMICS Startdrive Manuel utilisateur

Siemens

Siemens 3NP1 Series Manuel utilisateur

Siemens

Siemens SIMOCODE pro Manuel de la liste des pièces

Siemens

Siemens QUADLOG Guide rapide

Siemens

Siemens Add 7 AddFEM Manuel utilisateur

Siemens

Siemens TRI-S Manuel utilisateur

Siemens

Siemens AZL2 Series Manuel utilisateur

Siemens

Siemens VVG44.15-0.4S Manuel du propriétaire

Siemens

Siemens Siwarex U Manuel utilisateur

Siemens

Siemens SIMOTION Manuel de la liste des pièces

Siemens

Siemens AS-Interface 3RK2402-2 00 Series Manuel utilisateur

Siemens

Siemens VAI60.15-15 Manuel utilisateur

Siemens

Siemens XC10 Series Mode d’emploi

Siemens

Siemens SIRIUS 3RU Series Manuel utilisateur

Siemens

Siemens RCC-2/R Manuel utilisateur

Siemens

Siemens LMV36.520A1 Manuel de l'opérateur

Siemens

Siemens SIMATIC EP200SP Manuel utilisateur

Siemens

Siemens PM-E F pm DC24V PROFIsafe Manuel utilisateur

Siemens

Siemens SIPLUS CMS4000 IFN VIB-A Manuel utilisateur

Siemens

Siemens SINUMERIK 840D Simodrive 611 digital Guide de l'utilisateur

Siemens

Siemens SIRIUS 3RV2.2 Manuel utilisateur

Siemens

Siemens SINAMICS S120 Guide de démarrage rapide

Siemens

Siemens SIMOTION D4 Series Document technique

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
