Installation Instructions

Document No. 565-709

December 1, 2006

Andover InﬁnetDriver

These installation instructions only cover the

connection of the Andover Inﬁnet Driver to the

Andover system. For hardware installation of the

Modular Equipment Controller, see document number

565-570. For hardware installation of the Power

Open Processor, see document number 565-571.

Product Description

The Andover Inﬁnet Driver enables communication

between the APOGEE®Automation System and the

Andover network.

Product Numbers

986-88301A Andover Inﬁnet Driver, Open

Processor with RS-485 ALN

986-88301B Andover Inﬁnet Driver, Open

Processor with Ethernet ALN

986-88301C Andover Inﬁnet Driver, MEC

with RS-485 ALN, 8DI, 8DO,

8AI, 8AO, point expansion

support, HOA-ready

986-88301D Andover Inﬁnet Driver, MEC

with RS-485 ALN, 8DI, 8DO,

8AI, 8AO, point expansion

support, with HOA

986-88301E Andover Inﬁnet Driver, MEC

with RS-485 ALN, 8DI, 8DO,

8AI, 8AO, point expansion

support, modem, HOA-ready

986-88301F Andover Inﬁnet Driver, MEC

with RS-485 ALN, 8DI, 8DO,

8AI, 8AO, point expansion

support, modem, with HOA

986-88301G Andover Inﬁnet Driver, MEC

with Ethernet ALN, 8DI, 8DO,

8AI, 8AO, point expansion

support, HOA-ready

986-88301H AndoverInﬁnet Driver, MEC

with Ethernet ALN, 8DI, 8DO,

8AI, 8AO, point expansion

support, with HOA

Warning/Caution Notations

WARNING:

Personal injury/loss of life may occur if you

do not follow the procedures as speciﬁed.

CAUTION:

Equipment damage or loss of data may

occur if you do not follow the procedures

as speciﬁed.

Expected Installation Times

30 minutes.

Required Tools and Materials

• Flat-blade screwdriver (1/8-inch blade width).

• Wire strippers.

• Cabling and connectors. See the Connecting

the Andover Inﬁnet Driver to the Andover

Network section.

CAUTION:

Always wear an electro-static discharge

wrist strap and discharge accumulated

static before touching ﬁeld panel

components.

Prerequisites

• Driver hardware is installed according to its

respective installation instructions.

•FLNTerm

ination blocks installed, if any.

Depending on the type of installation, other

prerequisites may have to be completed.

Item Number: 565-709, Rev. AA Page 1 of 2

Document No. 565-709

Installation Instructions

December 1, 2006

Connecting the Andover Inﬁnet

Driver to the Andover Network

Follow these steps to connect the Andover Inﬁnet

Driver to the Andover network:

1. Make cables per diagram in Figure 1.

2. Connect cables per diagram in Figure 1.

DRIVER

SHLD

+-S

Infinet/Infinet II Device

(6xx, 8xx, 9xx)

To Other

Infinet/Infinet II

Devices

GW1400R1

FLN 1

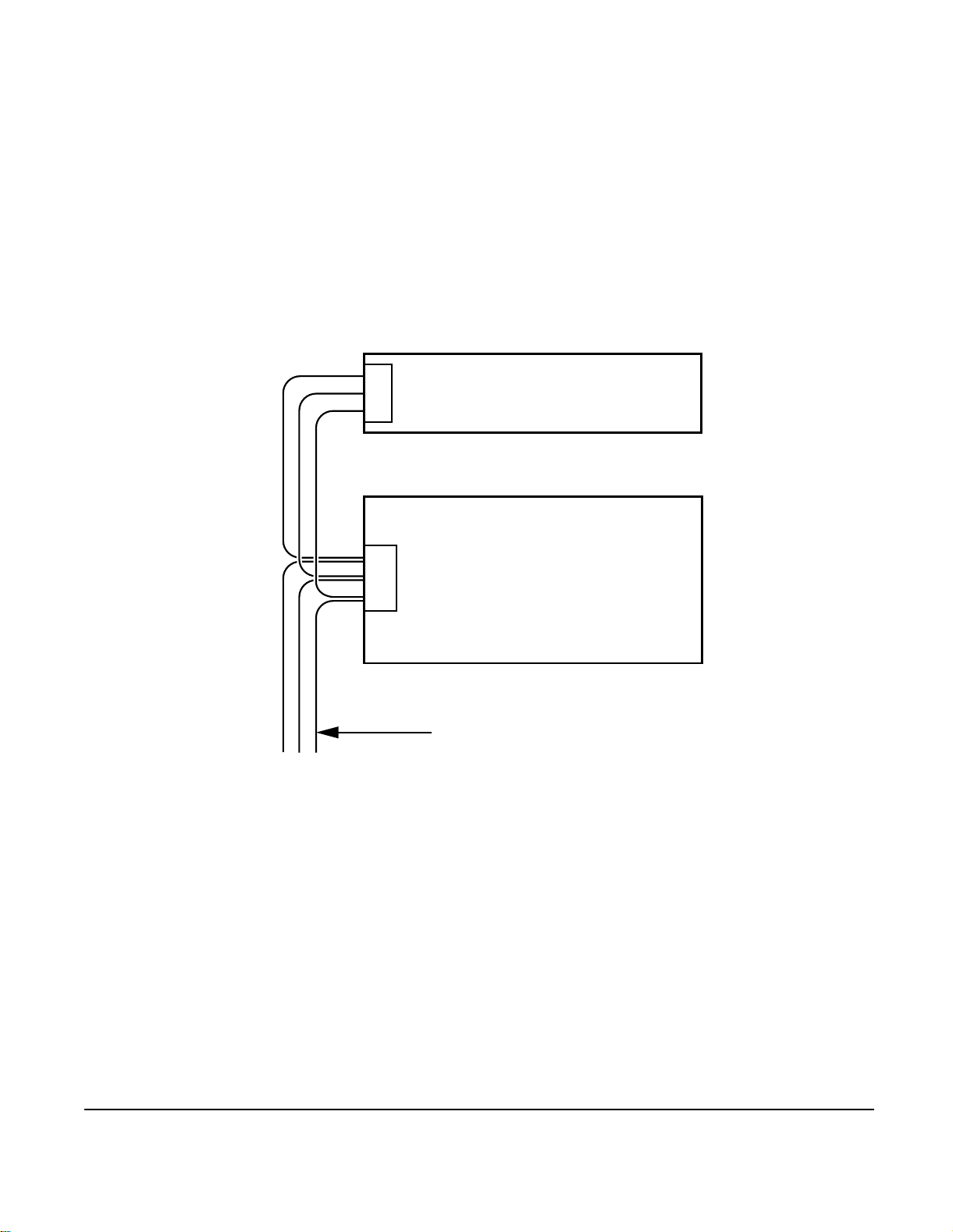

Figure 1. Connecting the Andover Inﬁnet Driver to the Andover Network.

Information in this document is based on speciﬁcations believed correct at the time of publication. The right is reserved to make changes as

design improvements are introduced. Product or company names mentioned herein may be the trademarks of their respective owners.

Siemens Building Technologies, Inc. Your feedback is important to us. If you have Document No. 565-709

1000 Deerﬁeld Parkway comments about this document, please send Country of Origin: US

Buffalo Grove, IL 60089-4513 them to SBT_[email protected]. Page 2 of 2

U.S.A.
