Show Tec Sky Spot 4000 Manuel utilisateur

Sky Spot 4000

ORDERCODE 40955

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Sky Spot 4000 brings excitement to any venue. Whether you want simple plug-&-play action

or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Sky Spot 4000™Product Guide

Warning..…...................................................................................…………………………………………..

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features and Overview ………………………………...….……………….………….………………….….

Installation...............................................................................…...…………………………………….…..

Installing the Lamp ........................................................………………………………………..…………

Lamp Adjustment.….......................................................………………………………………..…………

Maintenance...................................................................................………..………….…….………………

Changing the Lamp........................................................................…………………….…………………

Replacing the Fuse........................................................................…………………….…………………

Troubleshooting............................................................................………………….………………….…..

No Light............................................…………………………………………………….…………………..

No Response to DMX ....................................................................………………….…………………...

Product Specifications.................................................................……………….…….…………………...

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never run the device without lamp!

•Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may

expose and emit a high ultraviolet radiation, which may cause burns.

•Never look directly into the light source.

•Never leave any cables lying around.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

•If the lamp has been turned OFF, let the lamp cool down for 15 minutes, before turning the lamp ON

again.

•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

•Do not shake the device. Avoid brute force when installing or operating the device.

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

•Only operate the device after having familiarized with its functions.

CAUTION!

Keep this device away from rain and moisture!

mains lead before o

enin

the housin

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•Avoid flames and do not put close to flammable liquids or gases.

•Always replace the lamp, when it is damaged or deformed due to the heat.

•Always keep case closed while operating.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to

cracks or deep scratches.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. Sky Spot must be installed out of the reach of children. Never leave the unit

running unattended.

•For replacement use lamps and fuses of same type and rating only.

•Allow time to cool down, before replacing lamp.

•The user is responsible for correct positioning and operating of the Sky Spot. The manufacturer will

not accept liability for damages caused by the misuse or incorrect installation of this device.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 2 meters.

The maximum ambient temperature ta= 40°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(

meant es

eciall

for e

ile

tics

)

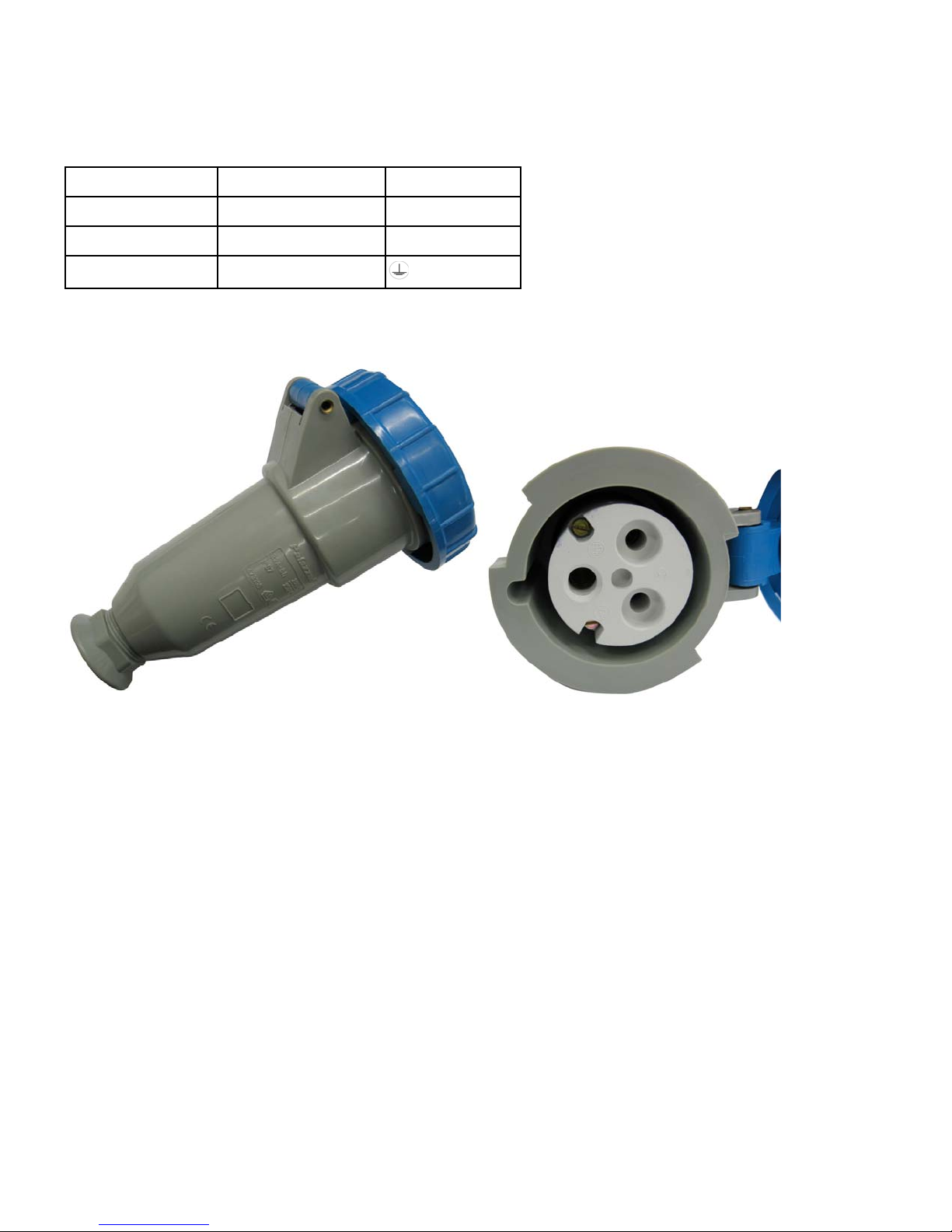

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

Cable Pin International

BROWN FASE L

BLUE NUL N

YELLOW/GREEN EARTH

Make sure that the device is always connected properly to the earth!

Always use a 32A 3-pin plug to connect the Sky Spot

Description of the device

Features

The Showtec Sky Spot 4000 is an immensely powerful Skyspot.

• IP-23 Protection degree

• Lamp Osram XOB 4000W Xenon included (155000 Lumen)

• Move the Sky Spot, horizontally120º (Pan) and vertically (Tilt) 40º.

Note: If the lamp has been turned OFF, let the lamp cool down for 15 minutes, before turning the lamp ON

again.

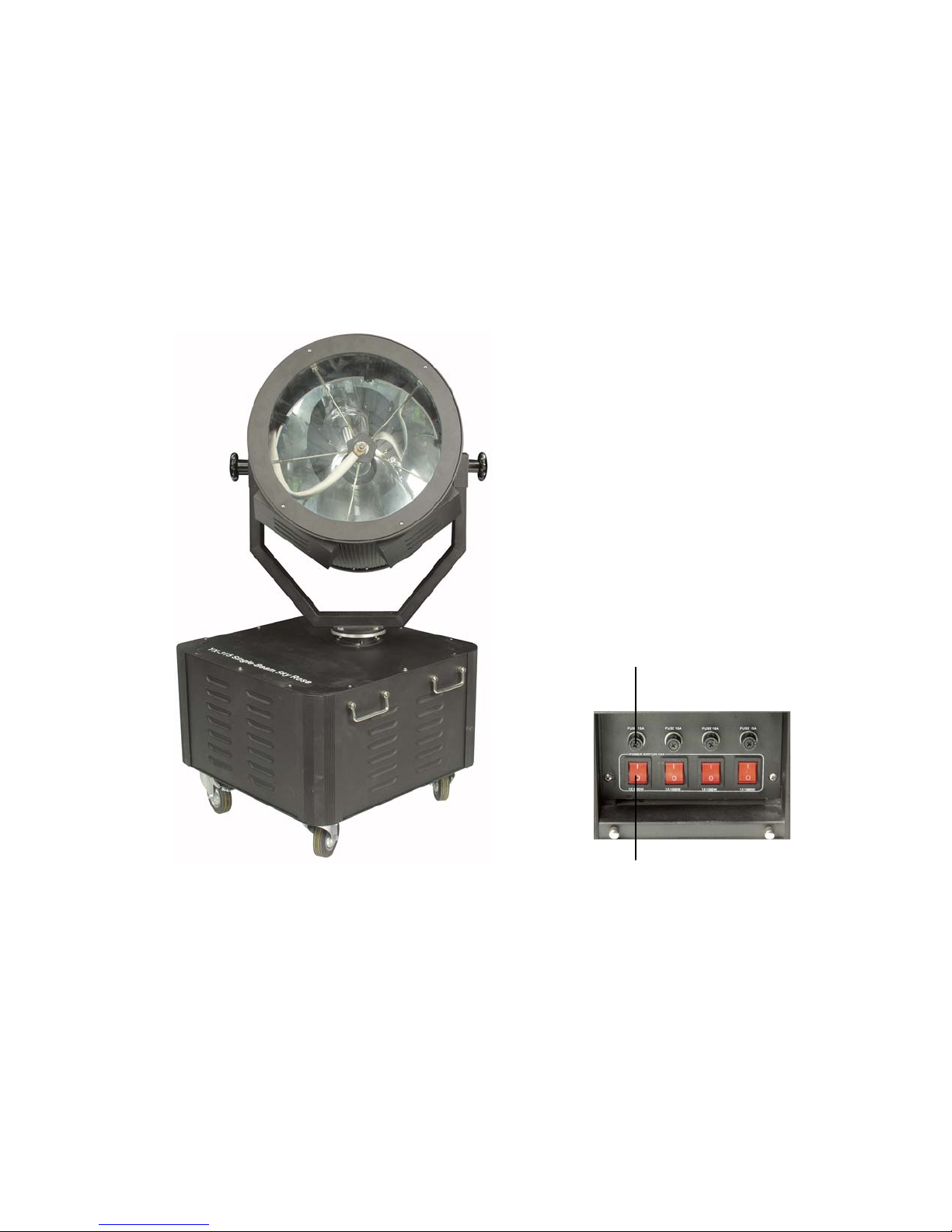

Overview

Fig. 1

1) Fuse

2) Powerswitch ON / OFF

Each powerswitch is 1000W. When all the switches are On, the Sky Spot works at full power.

You must start the Sky Spot at 3000W, so 3 switches set to On.

After you have started the Sky Spot, you can set the Sky Spot to 1000W, 2000W, 3000W or 4000W.

Installation

Installing the Lamp

The Showtec Sky Spot 4000 uses the XOB 4000W Xenon (ordercode 80918) bulb as manufactured by all

popular manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

XBO lamps are at high internal pressure when cold (up to 35 bar or approximately 525 psi) and at operating

temperature (up to 80 bar or approximately 1200 psi at bulb wall temperatures of 600°C to 800°C).

Therefore, XBO lamps may unexpectedly rupture resulting in the discharge of hot fragments of quartz

and/or glass and metal. In the event of such a rupture, there is a risk of personal injury, burns and fire. Only

handle lamps with their protective covers in place.

OSRAM XBO: These lamps use standard quartz glass and will also emit UV radiation that produces ozone.

These lamps, like the W/4 types, must always be externally ventilated. With these types of lamps, health

risks must always be minimized by suitably extracting the air from the lamp housing and externally venting

it.

Procedure :

• Always read the safety instructions that are included with the lamp.

• Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a clean,

lint-free towel and rubbing alcohol.).

• Always read all the safety warnings at the beginning of this manual, before replacing the lamp !!!

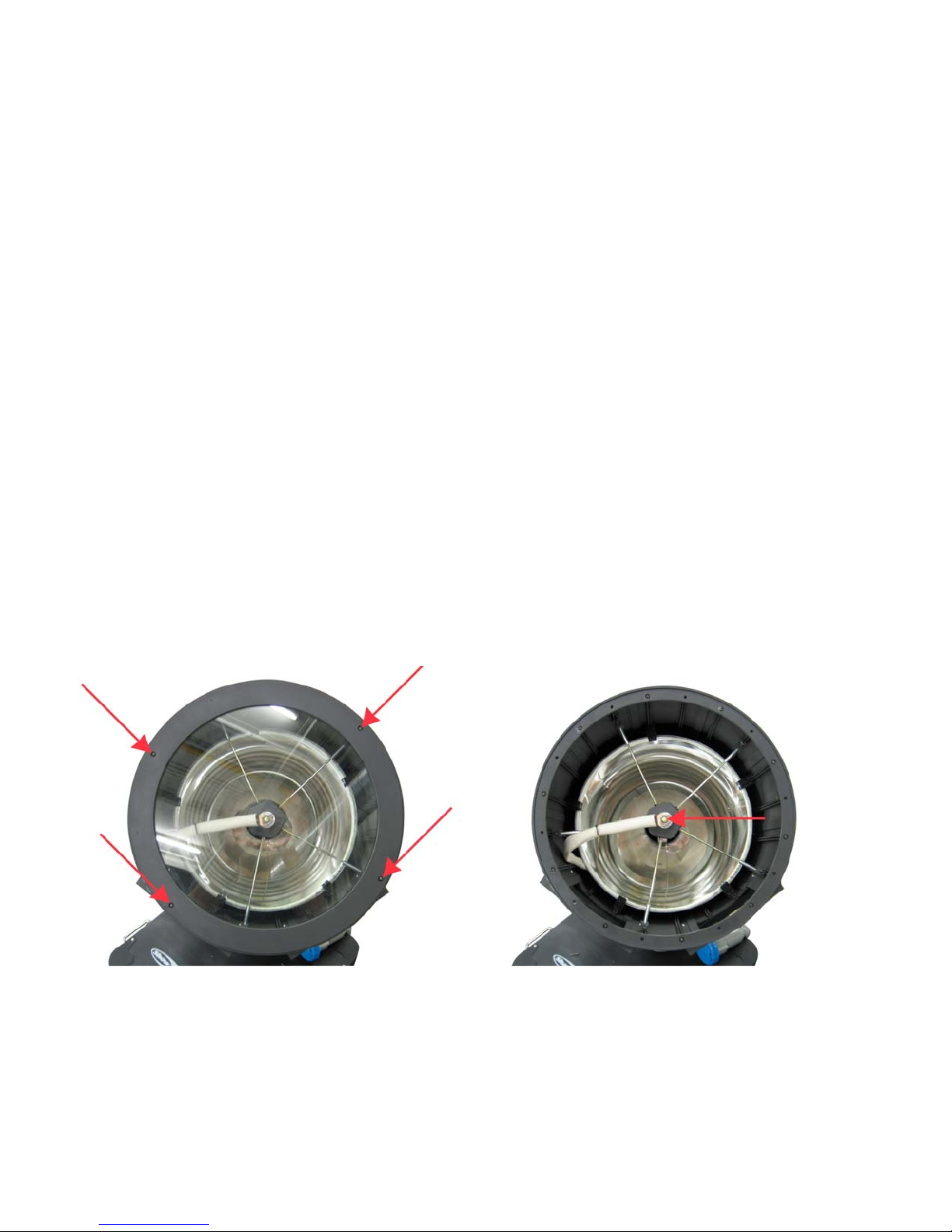

1. Remove the 4 screws 2. Remove the screw

3. Be careful removing this screw 4. Remove all 5 lamp brackets

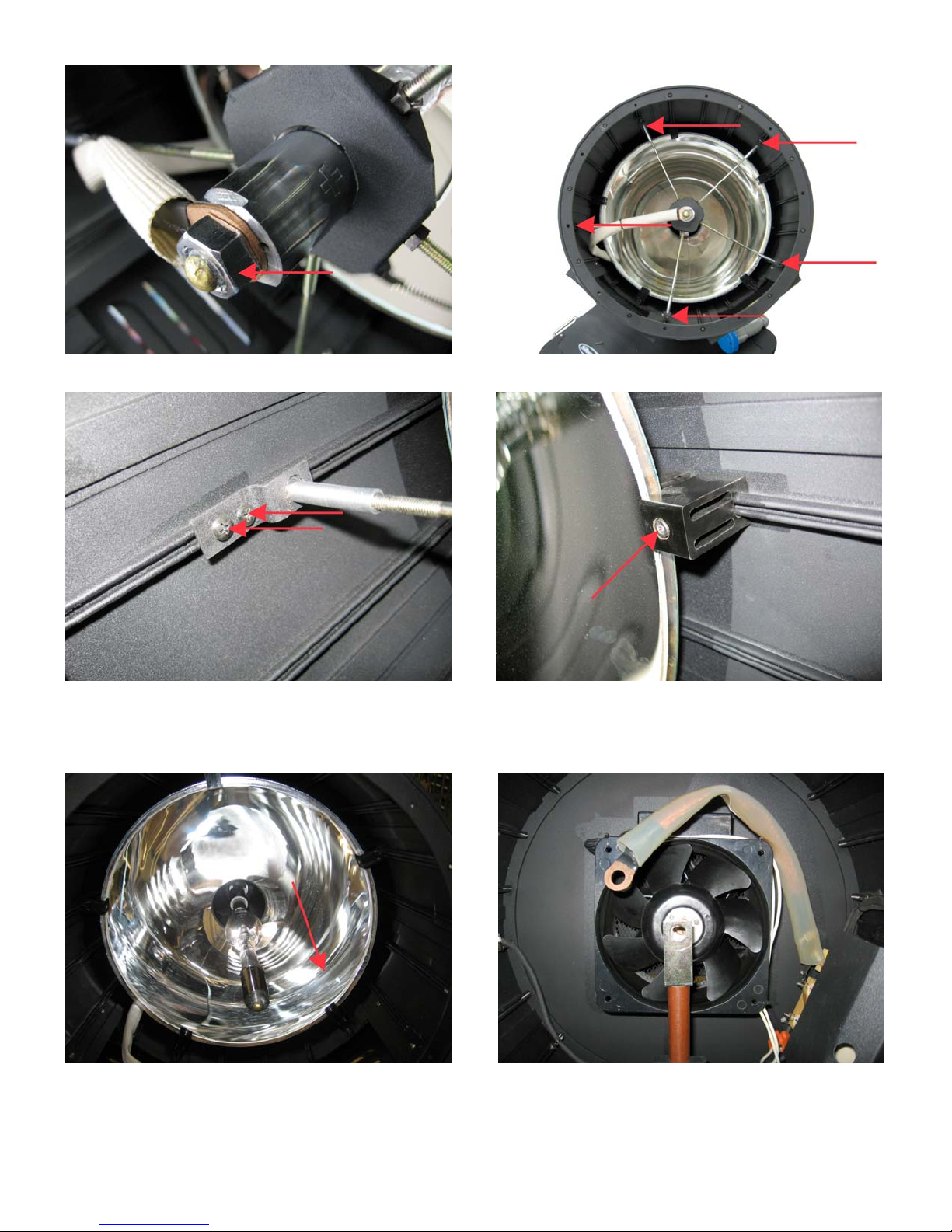

5. To remove the brackets, unscrew the 2 screws. 6. To remove the glass reflector unscrew this

screw. Be very careful and try not to touch the

glass. Do not bend or use force on the lamp,

in this case the lamp can explode.

7. Very gently remove the glass reflector 8. The screw on the backside of the lamp can

now be removed and you can take out the

lamp.

The broken lamp must be placed in a safe spot, so it cannot fall or break, because of danger

of explosion. The lamp is chemical waste and may not be thrown away. Bring this lamp to a

designated collect point for chemical waste.

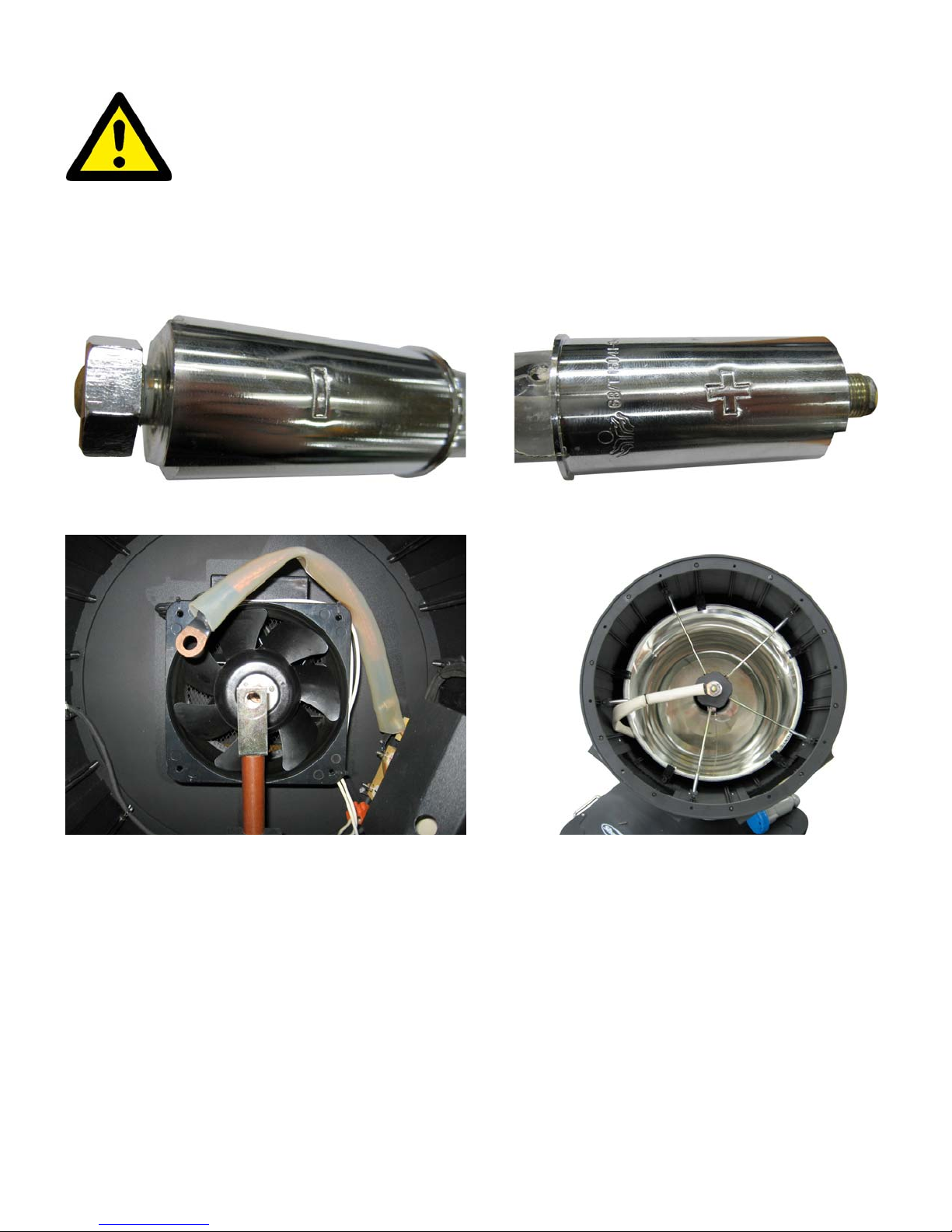

When installing the new lamp, pay attention to the polarity of the lamp. The lamp has a positive and a

negative side. This is written on the lamp: -or +.

- Side + Side

Bottom of the lamp base is - side Top of the lamp base is + side

Lamp Adjustment

You can adjust the lamp’s position by turning the screw on the backside of the Sky Spot.

The lamp position is set in the factory. As the lamps, which can be used, differ from manufacturer to

manufacturer, it can be necessary to readjust the position. The lamp must be readjusted e.g., if the light

does not seem to be evenly distributed within the ray of light.

Ignite the lamp and focus the ray of light on an even surface (wall). If the Hot Spot appears too bright, you

can weaken its intensity, by moving the lamp closer to the reflector. If the light at the outside edge of the ray

of light appears brighter as in the center, the lamp is too close to the reflector. In this case move the lamp

away from the reflector, until the light is evenly distributed and the ray of light appears bright enough.

Table des matières

Autres manuels Show Tec Équipement d'éclairage

Show Tec

Show Tec Explorer 250 Pro Manuel utilisateur

Show Tec

Show Tec Star Force Manuel utilisateur

Show Tec

Show Tec Compact Par 18 MKII Tour V1 Manuel utilisateur

Show Tec

Show Tec Scorpion Scan 260 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 15CW Manuel utilisateur

Show Tec

Show Tec Compact Blinder 2 Manuel utilisateur

Show Tec

Show Tec 51327 Manuel utilisateur

Show Tec

Show Tec White Star Sky II DMX Manuel utilisateur

Show Tec

Show Tec Galactic FX RGB-1000 Manuel utilisateur

Show Tec

Show Tec Galactic Bluestar MKII DMX Manuel utilisateur

Show Tec

Show Tec LED Light Bar RGB Manuel utilisateur

Show Tec

Show Tec Cameleon Spot 18 Q6 V1 Manuel utilisateur

Show Tec

Show Tec Helix 4000 Q4 15 V1 Manuel utilisateur

Show Tec

Show Tec Pixelstrip 40 V1 Manuel utilisateur

Show Tec

Show Tec Perfomer Profile 600 LED MKIII V1 Manuel utilisateur

Show Tec

Show Tec Booster 4 Manuel utilisateur

Show Tec

Show Tec LED PowerBank 48 Manuel utilisateur

Show Tec

Show Tec Star LED Manuel utilisateur

Show Tec

Show Tec SharkSpot Two V1 Manuel utilisateur

Show Tec

Show Tec Large Police Light 100W Manuel utilisateur

Show Tec

Show Tec LED Pixel Track V2 Manuel utilisateur

Show Tec

Show Tec Phantom 75 LED Spot V4 Manuel utilisateur

Show Tec

Show Tec 42422 Manuel utilisateur

Show Tec

Show Tec Studiobeam MSR-575 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
