Show Tec LED Light Bar RGB Manuel utilisateur

LED Light Bar RGB

ORDERCODE 42202

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED Light Bar RGB brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec LED Light Bar RGB™Product Guide

Warning.................................................................................…...……………..…………………………….………..….

Safety-instructions…………………………………………………………………………………………………………

Operating Determinations.……………………………………………………………………………………………..

Rigging.……………………………………………………………………………………………………………………..

Return Procedure……………………………………………………………………………......................................

Claims…………………………………………………………………………….........................................................

Description...............................................................................…...………………………………………….………..…

Features and Overview ………………………………...….……………….………….……………………….………

Backside…………………………………………………………………………………………………………………….

Installation...............................................................................…...…………………………………….…………………

Set Up and Operation.....................................................................……..…………………………………….………..

One LED Light Bar RGB .........................................................………………………………………………..……..

Multiple LED Light Bar RGB’s................................................................……………………………………..……..

DMX-Protocol…...................................................……………………………………………………………………..….

Control Panel….............……....................................…………………………………………………………………

Control Mode........................................………………………………………………………………………………

DMX addressing...................................……………………………………………………………………………….

Function Modes..............................................................................……..…………………………….….............

- Built-in Programs Mode…..……….................................……………………………..….............................

- Auto Run Mode……………………….....................................................………........................................

- DMX Operation.....................................................……….........................................................................

- Master Slave addressing.................................………..............................................................................

- Sound-controlled Mode..........................………......................................................................................

Channel settings.............……....................................…………………………………………………………………

Maintenance...................................................................................………..………….…….……………………….....

Changing the Fuse........................................................................………………………………..………….……..

Troubleshooting............................................................................………………….………………….……………......

No Response to DMX............................................………………….………………………………………………..…

Product Specifications.................................................................……………….…….………………………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never leave any cables lying around.

Never look directly into the light source.

Never cover the air vents, otherwise the device will get to hot.

Never use the device during thunderstorms, unplug the device immediately.

Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within

children’s reach, as they are potential sources of danger.

Do not insert objects into air vents.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not shake the device. Avoid brute force when installing or operating the device.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Only use device indoor, avoid contact with water or other liquids.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

Make sure that no side forces can impact on the truss system.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

The cable insert or the female part in the device must never be strained. There must always be

sufficient cable to the device. Otherwise, the cable may be damaged which may lead to deadly

electrical shocks.

If the external cable is damaged, it has to be replaced by a qualified technician.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

The user is responsible for correct positioning and operating of the City Painter. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the LED Light Bar RGB is lowered from the ceiling or high joists, professional trussing systems have

to be used.

Use a clamp to mount the LED Light Bar RGB, with the mounting-bracket, to the trussing system.

The LED Light Bar RGB must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the LED Light Bar RGB, always make sure, that the area

below the installation place is blocked and staying in the area is forbidden.

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property !

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The LED Light Bar RGB is a LED system from Showtec.

• Power consumption: 50W (full output)

• LEDS: 252 RGB high intensity 10mm LEDs (Red 108, Green 72, Blue 72)

• Beam angle: 40 º

• 3 pin female XLR socket and 3 pin male XLR socket

• 3 pin XLR Power in and power out

• Linkable via 3-pin XLR cable

• Built-in microphone

• Black aluminium material

• LED Digital display

•Selectable built-in programs mode, Auto running mode, DMX mode, slave mode, sound-activated mode.

• DMX controlled

• Selectable 3, 9 and 3 (P3CH:Built-in programs) DMX channel operation

NOTE: Knowledge of DMX is required to fully utilize this unit.

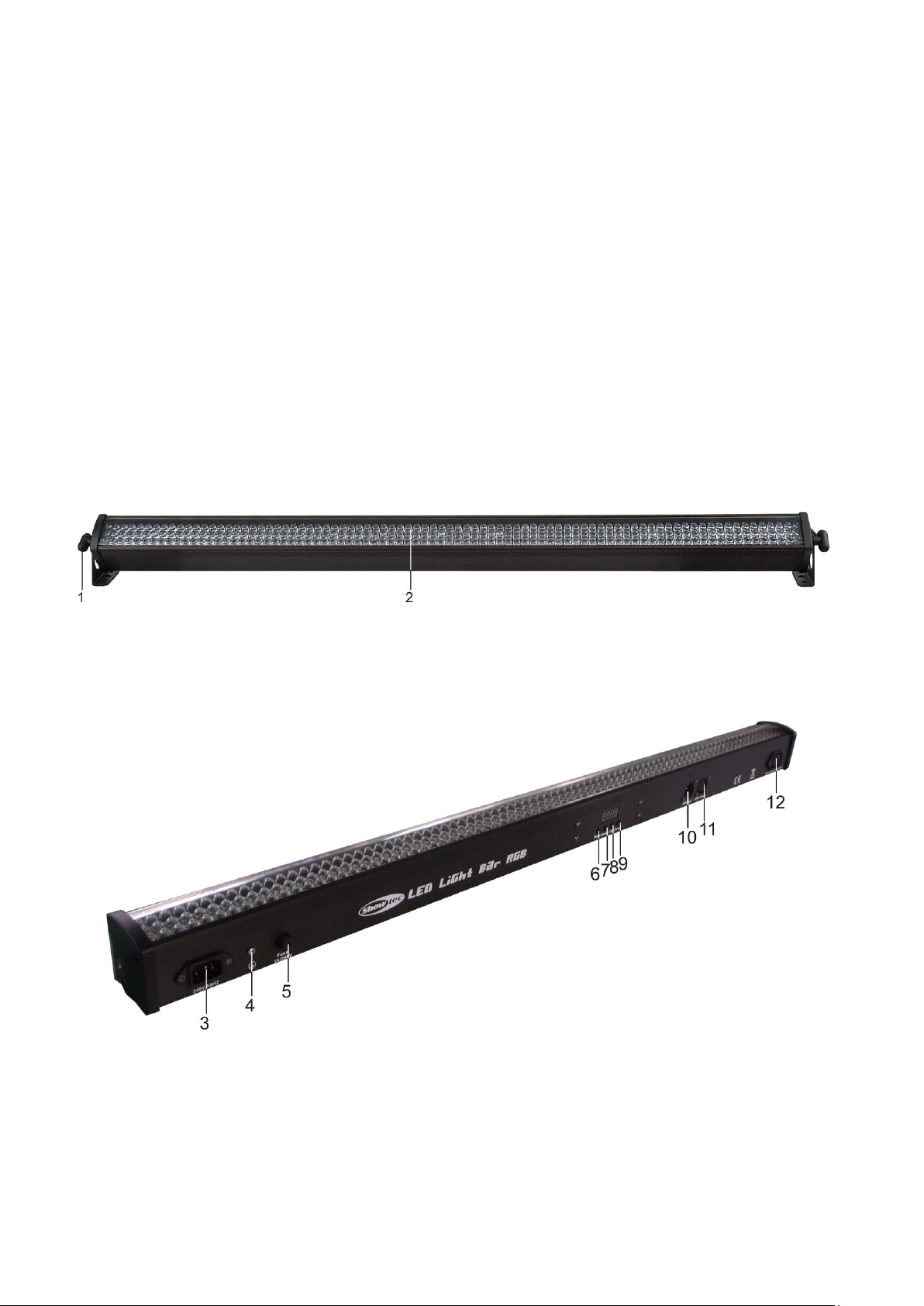

Overview

Fig. 1

1) Adjustment Screw + Mountingbracket for Truss mounting

2) Total LED Light Bar RGB 252 LEDS

Backside

Fig. 2

3) Power In

4) Ground

5) Fuse 250V / 1A

6) Mode button

7) Setup button

8) Up button

9) Down button

10) DMX signal connector (IN) 3-pin

11) DMX signal connector (OUT) 3-pin

12) Power Out

Installation

Remove all packing materials from the LED Light Bar RGB. Check that all foam and plastic padding is

removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

One LED Light Bar RGB

1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.

2. Plug the end of the electric mains power cord into a proper electric power supply socket.

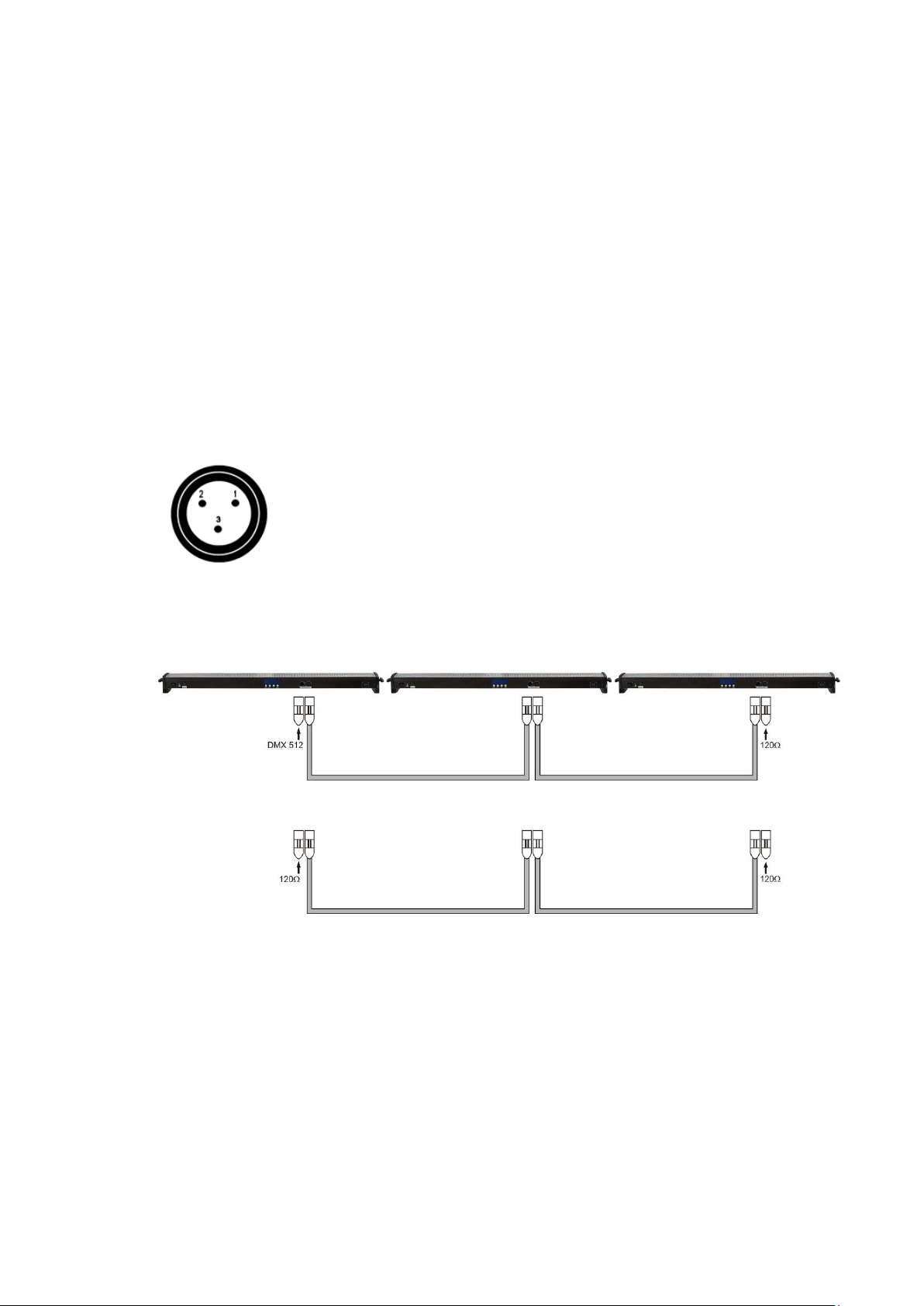

Multiple LED Light Bar RGB’s

1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.

2. Use a 3-p XLR cable to connect the LED Light Bar RGB and other devices.

The pins:

1. Earth

2. Signal -

3. Signal +

3. Link the units as shown In (figure 3), Connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

4. Supply electric power: Do not supply power before the whole system is set up and connected

properly.

DMX

Master/Slave

Fig. 3

DMX Protocol

Control Panel

When the indicator light is on, means the LED Bar is working

Fig. 4

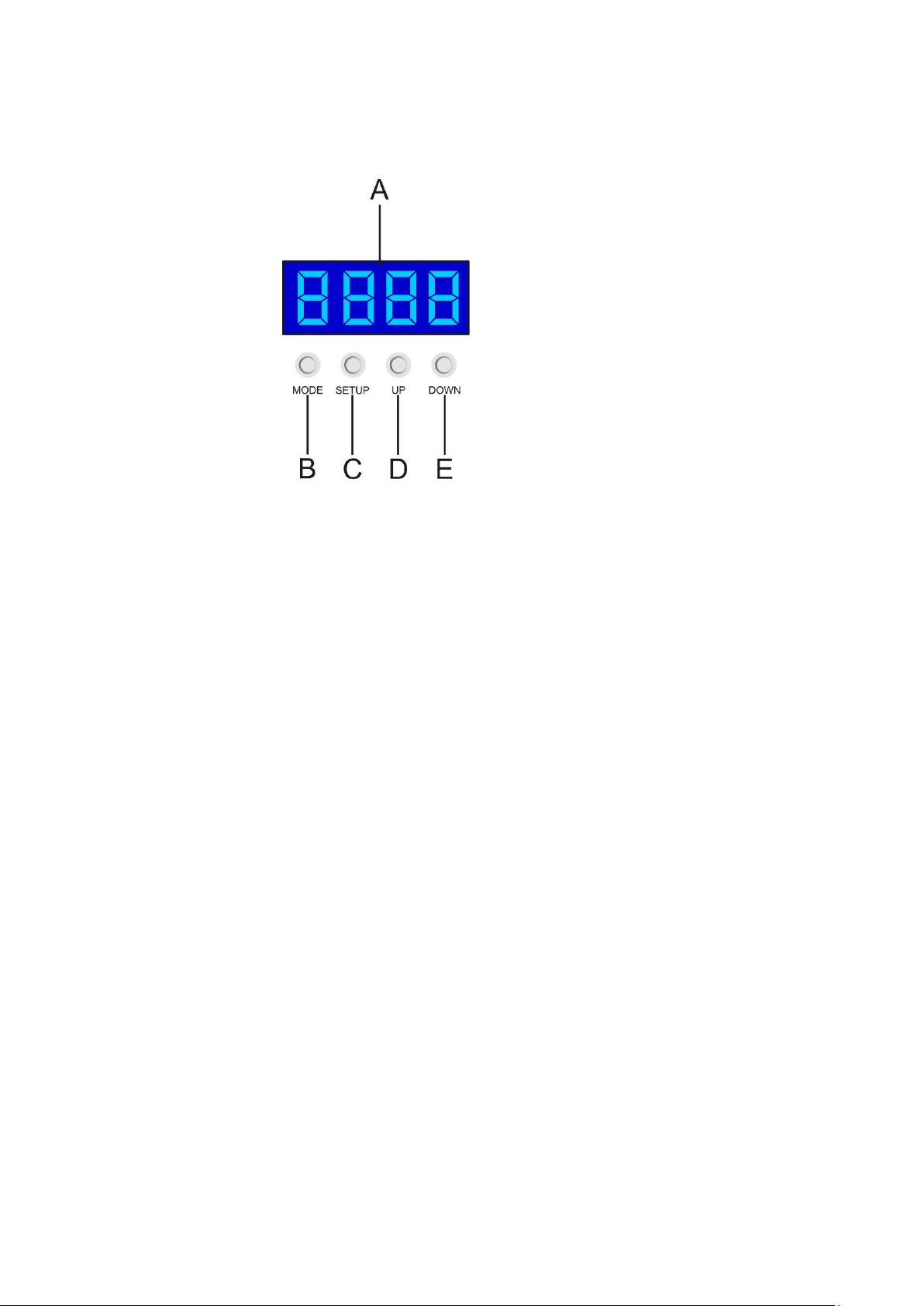

A. LED Display D. Up Button

B. MODE Button E. Down Button

C. SETUP Button

Control Mode

The fixtures are individually addressed on a data-link and connected to the controller.

The fixtures respond to the DMX signal from the controller.

DMX Addressing

The control panel on the front side of the base allows you to assign the DMX fixture address, which is the

first channel from which the LED Bar will respond to the controller.

Please note when you use the controller, the unit has max. 9channels.

When using multiple LED Bars, make sure you set the DMX addresses right.

Therefore, the DMX address of the first LED Bar should be 1(A001); the DMX address of the second LED Bar

should be 1+9=10 (A010); the DMX address of the third LED Bar should be 10+9=19 (A019), etc.

Please, be sure that you don’t have any overlapping channels in order to control each LED Bar correctly.

If two or more LED Bars are addressed similarly, they will work similarly.

For address settings, please refer to the instructions under ”Addressing’ (menu d001)

Controlling:

After having addressed all LED Bars, you may now start operating these via your lighting controller.

Note: After switching on, the LED Bar will automatically detect whether DMX 512 data is received or not.

If there is no data received at the DMX-input, the “LED “ on the control panel will not flash.

The problem may be:

- The XLR cable from the controller is not connected with the input of the LED Bar.

- The controller is switched off or defective, the cable or connector is detective, or the signal wires are

swapped in the input connector.

Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure

proper transmission on the DMX data link.

Function Modes

Built-in Programs Mode

You can select 13 different Programs when using the LED Light Bar RGB.

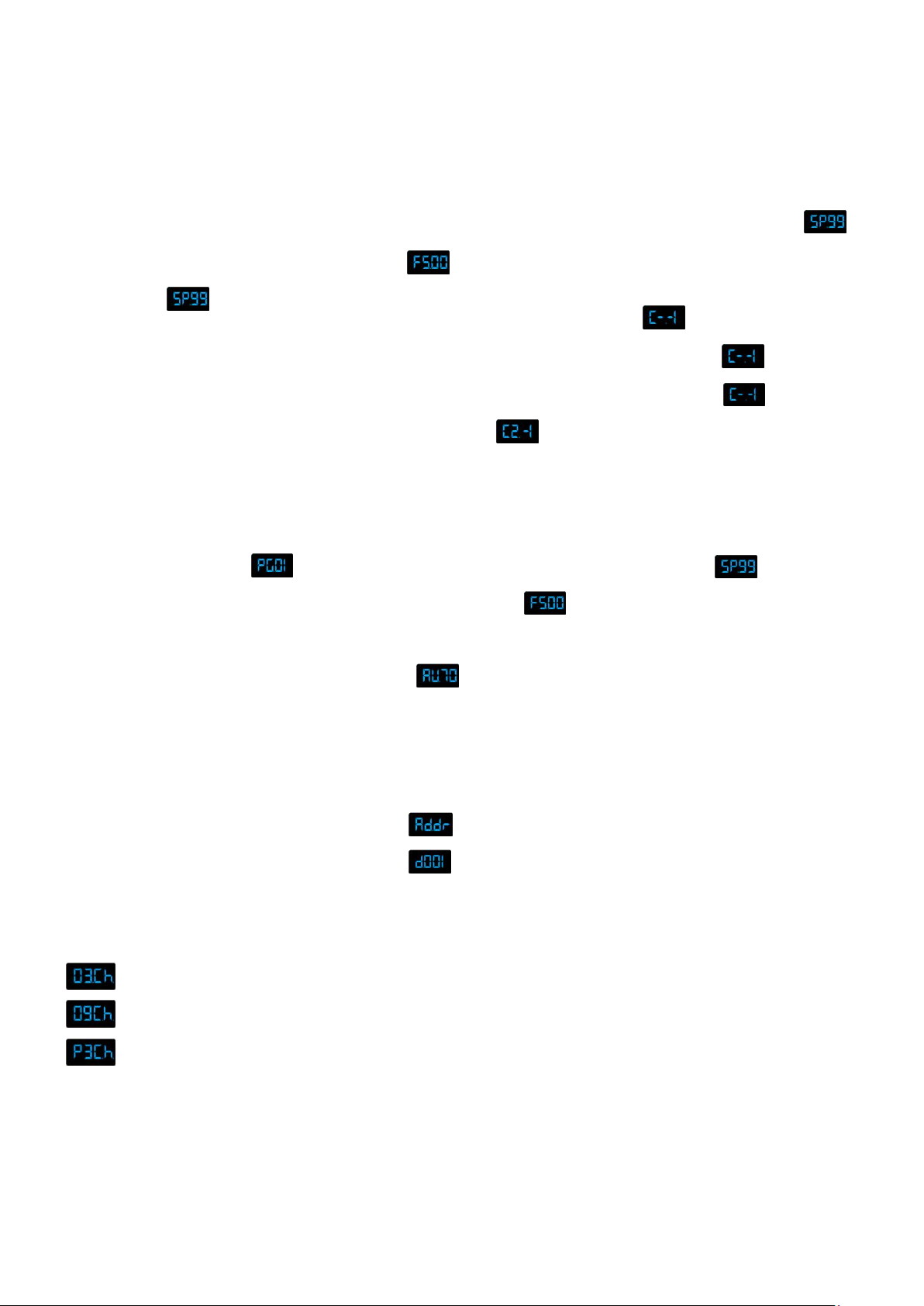

1) Press SETUP and then press the UP / DOWN buttons to select the programs (from PG00 to PG12) and

select the desired program value.

2) When the display shows: PG- -(except PG00), press the SETUP button once, the display will show:

You can set running speed by using the UP/DOWN buttons.

3) Press SETUP twice and the display will show . You can set the flash frequency by using the

UP/DOWN buttons.

There is no menu function.

4) When the display shows PG00, press SETUP once and the display will show: . Now you can

select the static colors by using the UP / DOWN buttons.

5) When the display shows PG05, press SETUP for the third time and the display will show , now you

can select the jump color by using the UP / DOWN buttons.

6) When the display shows PG06, press SETUP for the third time and the display will show , then

you can select the background color,

7) When you press SETUP four times, the display will show , then you can select jump color by

using the UP / DOWN buttons.

Note: Both values can be set from 00 –99

SP (Speed)and FS (Flash Frequency)

Example

When the display shows , press the SETUP button once and the display will show , you can

set the running speed for this program.

Press “SETUP”button for the second time, the displaywill show , you can set the flash frequency.

Auto Run Mode

Press the MODE button until the display shows:

Now the device will play its built-in programs automatically.

DMX Operation

The LED Light Bar RGB’s built-in controller will automatically detect the presence of a DMX signal.

In order to receive a DMX signal, the built-in controller must be attached to a DMX controller by a 3-pin

DMX cable and the DMX controller must be turned on.

Press the MODE button until the display shows .

Press the SETUP button until the display shows:

The device now has DMX address 001. You can change the value by using the UP / DOWN buttons.

When you press the SETUP button again , you can choose 3 different DMX Modes:

3 Channels

9 Channels

3 Channels (Built-in Programs)

You can switch modes by using the UP / DOWN buttons.

Autres manuels pour LED Light Bar RGB

Table des matières

Autres manuels Show Tec Équipement d'éclairage

Show Tec

Show Tec Spectral PC 1200Z IP V1 Manuel utilisateur

Show Tec

Show Tec Giant Manuel utilisateur

Show Tec

Show Tec LED Par 64 Short DMX Manuel utilisateur

Show Tec

Show Tec 604083 Manuel utilisateur

Show Tec

Show Tec phantom 75 LED Manuel utilisateur

Show Tec

Show Tec Performer 60 LED V2 Manuel utilisateur

Show Tec

Show Tec Phantom Wash HTI-150 v2 Manuel utilisateur

Show Tec

Show Tec Club Barrel Manuel utilisateur

Show Tec

Show Tec Performer Profile 600 LED MKII V1 Manuel utilisateur

Show Tec

Show Tec Small Mushroom LED Q6 V1 Manuel utilisateur

Show Tec

Show Tec Bat 1 Digital Manuel utilisateur

Show Tec

Show Tec Galactic TXT V3 Manuel utilisateur

Show Tec

Show Tec Helix 4000 Q4 45 V1 Manuel utilisateur

Show Tec

Show Tec Stage Blinder 2 Black DMX Bulb Manuel utilisateur

Show Tec

Show Tec White Star Sky II DMX Manuel utilisateur

Show Tec

Show Tec Aquatic 30838 Manuel utilisateur

Show Tec

Show Tec Phantom 25 LED Wash Manuel utilisateur

Show Tec

Show Tec PAR 16 Warm-On-Dim V1 Manuel utilisateur

Show Tec

Show Tec EventLITE 4/8 Mini Q4 V1 Manuel utilisateur

Show Tec

Show Tec Spectral M800 MKII Manuel utilisateur

Show Tec

Show Tec Parcan 30 V1 Manuel utilisateur

Show Tec

Show Tec Bat 3 Digital Manuel utilisateur

Show Tec

Show Tec Showdesigner 1024 Manuel utilisateur

Show Tec

Show Tec 51327 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
