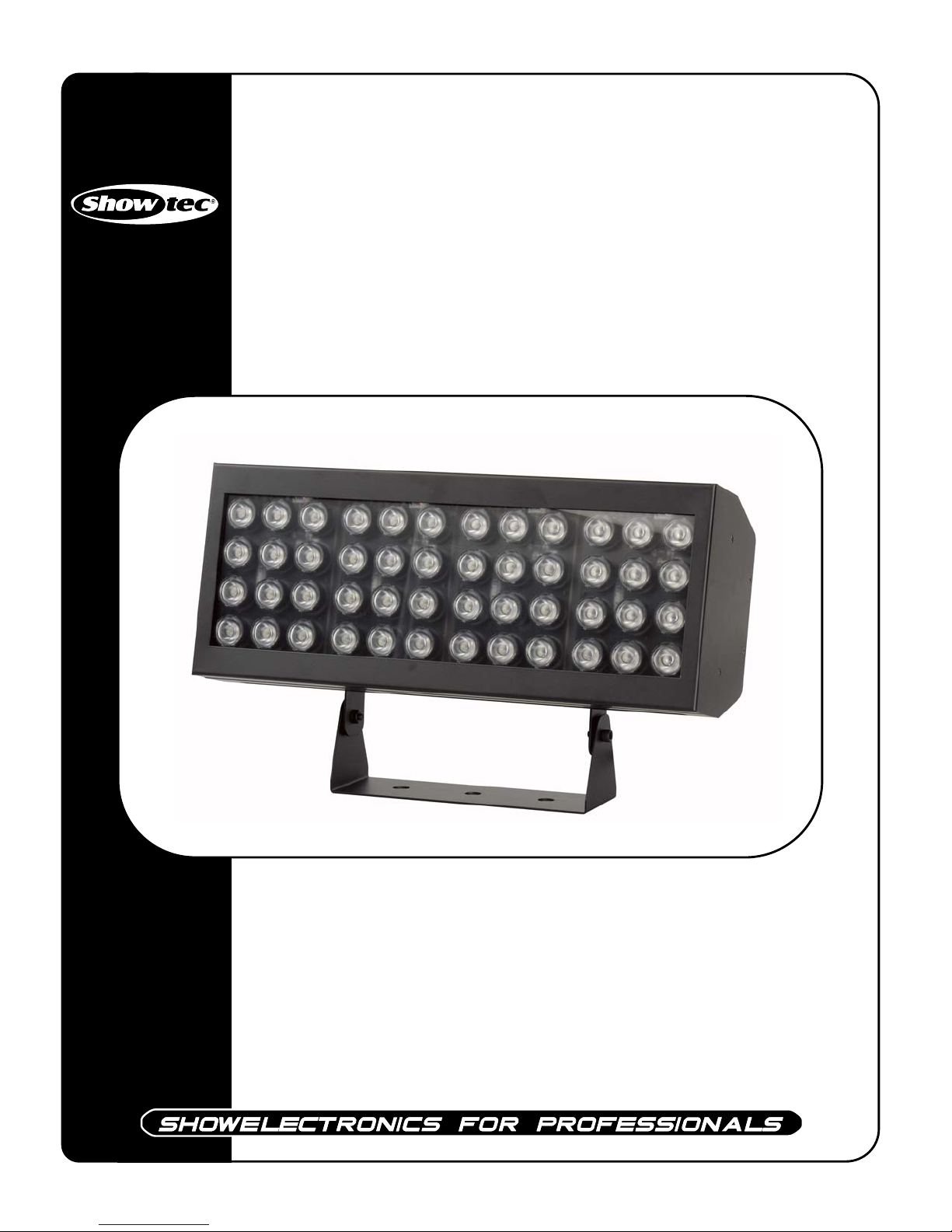

LED PowerBank 48

ORDERCODE 41310

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED PowerBank 48 brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec LED PowerBank 48™Product Guide

Warning..…...................................................................................………………………………………….

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features and Overview ………………………………...….……………….………….………………….….

Backside…………………………………………………...…...….……………….…………………...….….

Installation...............................................................................…...…………………………………….…..

Set Up and Operation.....................................................................……..…………………………….……

Stand-alone with DMX connected …….……………………………………………………….…….………

Stand-alone without DMX connected….……………………………………………………….……………

DMX Operation…………..…………..…………………………………………………………….……...……

Maintenance...................................................................................………..………….…….………………

Changing the Fuse........................................................................…………………….………….………

Troubleshooting............................................................................………………….………………….…..

Product Specifications.................................................................……………….…….…………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never leave any cables lying around.

•Do not insert objects into air vents.

•Do not open the device and do not modify the device.

•Do not connect this device to a dimmerpack.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Do not switch the device on and off in short intervals, as this would reduce the system’s life.

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always keep case closed while operating.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

•For replacement use fuses of same type and rating only.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Description of the device

Features

The LED PowerBank 48 is a LED system from Showtec.

• Ultra bright LED

• First grade aluminum body construction, sturdy yet light

• Unlimited colors

• Low power consumption

• Long life, over 100,000 hours

• Low heat design, great for long time operation.

• No Ultra Violet

• Adjustable hanging brackets included

• Maximum ambient temperature +50 degrees

• Lifetime: 100.000 hours

• Dimensions LED fixture: 400x120x165mm

• Weight: 5,3kg

• Data connector: 3 pin and 5 pin XLR

• Beam angle: 25 degrees

NOTE: Knowledge of DMX is required to fully utilize this unit.

Overview

Fig. 1

Backside

Fig. 2

1) Power LED

2) DMX Signal LED

3) Speed

4) Dip Switches Address Setting

5) Dip-switches for Stand-alone/DMX

6) 5-pin DMX signal connector (OUT)

7) 5-pin DMX signal connector (IN)

8) 3-pin DMX signal connector (OUT)

9) 3-pin DMX signal connector (IN)

10) Safety eye

11) ON/ OFF

12) IEC Connector + Fuse

Installation

Remove all packing materials from the LED PowerBank 48. Check that all foam and plastic padding is

removed. Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Note : Link all cables before connecting electric power.

FUNCTIONS:

There are 3 options for using the LED Powerbank: Stand-alone with DMX connected

Stand-alone without DMX

DMX Mode

Stand-alone with DMX connected

In Stand-alone mode, select . You can control the speed, via the DMX controller.

There are 25 effects in stand-alone mode, including 10 fixed colors and 15 chase/ fade modes.

The stand-alone mode has 3 channels.

Channel 1: Effect mode.

Channel 2: Speed/Strobe

Channel 3: Illumination (only for fixed color)

Stand-alone without DMX connected

In Stand-alone mode, select . You can control the speed, by using the speed-button on the back of the

device.



EFFECT DMX

Value

Dip Switches

"ON"

Colors

11 – 4% #1 100% Red

25 – 8% #2 100% Green

39 – 12% #1, #2 100% Blue

4 13 – 16% #3 Yellow

5 17 – 20% #1, #3 Purple

6 21 – 24% #2, #3 Sky Blue

7 25 – 28% #1, #2, #3 Amber

8 29 – 32% #4 Lavender

9 33 – 36% #1, #4 Pink

10 37 – 40% #2, #4 White

11 41 – 44% #1, #2, #4 Red, Blue, Yellow color cycle

12 45 – 48% #3, #4 Lavender, Sky Blue, Green, Purple color cycle

13 49 – 52% #1, #3, #4 All fixed color cycle

14 53 – 56% #2, #3, #4 Pink, Red, Blue, Sky Blue, Green, Amber, Pink color chasing

15 57 – 60% #1, #2, #3, #4 Amber, Lavender, Green, Purple, Blue, Sky Blue, Red, Yellow wave fade

16 61 – 64% #5 All fixed color chasing separately.

17 65 – 68% #1, #5 All fixed color chasing

18 69 – 72% #2, #5 Blue, Lavender, Yellow, Sky blue cross-fade

19 73 – 76% #1, #2, #5 Pink, Green, Blue, Amber cross-fade

20 77 – 80% #3, #5 All fixed colors cross-fade

21 81 – 84% #1, #3, #5 White, Pink, Sky blue, Yellow cover-fade

22 85 – 88% #2, #3, #5 Green, Purple, Blue, Red cover-fade

23 89 – 92% #1, #2, #3, #5 All fixed color cover-fade

24 93 – 96% #4, #5 All fixed color cover-fade

25 97 – 100% #1, #4, #5 Red, Green, Blue, Yellow wave-fade

You can change the speed by turning the speed button (3).

faster

slower.

DMX Operation

The PowerBank will automatically detect the presence of a DMX signal.

If a DMX signal is present, the DMX LED (2) will blink.

In order to receive a DMX signal, the controller must be attached to a DMX controller by a 3-pin DMX cable

and the DMX controller must be turned on.

The LED PowerBank 48 system can operate as a 12-, 6-, or 3-channel DMX fixture. Select DMX Mode 1, 2,

or 3 as described on the facing page.

DMX MODE:

on 3 channel mode (R:0-100%, G:0-100%, B:0-100%)

on 6 channel mode (R:0-100%, G:0-100%, B:0-100%)

on 12 channel mode (R:0-100%, G:0-100%, B:0-100%)

Stand-alone mode- 3 channels (25 built-in effects, speed/strobe, illumination)

Users can test Stand-alone Mode by setting the dip-switches to Stand-alone Mode, without using a DMX

controller. Users have to disconnect the DMX cables before testing Stand-alone Mode.

In DMX mode, you can adjust the audio input level, using the sensitivity control on the back panel of the

Controller.

Maintenance

The LED PowerBank 48 requires almost no maintenance. However, you should keep the unit clean.

Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.

Keep connections clean. Disconnect electric power, and then wipe the connections with a damp cloth. Make

sure connections are thoroughly dry before linking equipment or supplying electric power.

Replacing a Fuse

Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the fuse

burns out, the product will not function whatsoever. If this happens, follow the directions below to do so.

1. Unplug the unit from electric power source.

2. Insert a flat-head screwdriver into a slot in the fuse cover. Gently pry up the fuse cover. The fuse will

come out.

3. Remove the broken fuse. If brown or unclear, it is burned out.

4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover.

Be sure to use a fuse of the same type and specification. See the product specification label for details.

Troubleshooting

Showtec LED PowerBank 48

This troubleshooting guide is meant to help solve simple problems.

If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates

properly, do not carry out following steps.

If the amplifier does not operate properly, refer servicing to a technician.

1. If the device does not operate properly, unplug the device.

2. Check the fuse, power from the wall, all cables etc.

3. If all of the above appears to be O.K., plug the unit in again.

4. If you are unable to determine the cause of the problem, do not open the LED PowerBank 48, as this may

damage the unit and the warranty will become void.

5. Return the device to your Showtec dealer.

Table des matières

Autres manuels Show Tec Équipement d'éclairage

Show Tec

Show Tec Spectral PC 1200Z IP V1 Manuel utilisateur

Show Tec

Show Tec LED Par 64 cw/ww Manuel utilisateur

Show Tec

Show Tec Galactic RBP-180 Manuel utilisateur

Show Tec

Show Tec Galactic TXT V2 Manuel utilisateur

Show Tec

Show Tec Compact Par 18 MKII Tour V1 Manuel utilisateur

Show Tec

Show Tec Phantom 1220 Zoombar Manuel utilisateur

Show Tec

Show Tec Club Color Wash 575 MKII Manuel utilisateur

Show Tec

Show Tec 30227 Manuel utilisateur

Show Tec

Show Tec Parcan 30 V1 Manuel utilisateur

Show Tec

Show Tec Large Police Light 100W Manuel utilisateur

Show Tec

Show Tec Galactic GVC-190 Manuel utilisateur

Show Tec

Show Tec Perfomer Profile 600 LED MKIII V1 Manuel utilisateur

Show Tec

Show Tec Genesis Barrel EHJ-250 Manuel utilisateur

Show Tec

Show Tec LED Wash Ultra Bright RGB Manuel utilisateur

Show Tec

Show Tec 41370 Micro Spot Manuel utilisateur

Show Tec

Show Tec PowerBlinder 8 Manuel utilisateur

Show Tec

Show Tec LED Par 38 Manuel utilisateur

Show Tec

Show Tec Booster 4 Manuel utilisateur

Show Tec

Show Tec Astro 360 XL Manuel utilisateur

Show Tec

Show Tec 604081 Manuel utilisateur

Show Tec

Show Tec Colour Star Sky II DMX V4 Manuel utilisateur

Show Tec

Show Tec 50426 Manuel utilisateur

Show Tec

Show Tec ACT Fresnel 50 WW V2 Manuel utilisateur

Show Tec

Show Tec Lampy 20 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
