Show Tec Explorer 250 Pro Manuel utilisateur
Explorer 250 Pro
ORDERCODE 40177
Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec Explorer Pro brings excitement to any venue. Whether you want simple plug-&-play action or a
sophisticated DMX show, this product provides the effect you need.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!
1
2
2
3
4
6
6
7
8
8
9
10
11
11
11
12
12
15
15
15
16
17
18
18
19
19
19
20
20
21
21
21
23
Showtec
Showtec Explorer Pro™Product Guide
Warning..…...................................................................................…………………………………………..
Safety-instructions………………………………………………………………………………………….….
Operating Determinations…………………………………………………………………………………….
Rigging………………………………………………………………………………………………………….
Description..…..............................................................................……….…………………………………
Features and Overview ………………………………...….……………….………….………………….….
Backside…………………………………………………...…...….……………….…………………...….….
Installation...............................................................................…...…………………………………….…..
Installing the Lamp ........................................................………………………………………..…………
Lamp Adjustment.….......................................................………………………………………..…………
Beam Angle...............................................................................…...………………………………………..
Set Up and Operation.....................................................................……..……………………………….…
One Explorer ............................................................................……………………………………………
Multiple Explorers..............................................................................……………………………………..
Master/Slave mode...................................…………………………………………………………………..
DMX-Protocol…...................................................…………………………………………………………….
Control Panel….............……....................................……………………………………………………….
Control Mode........................................………………………………………………………………………
DMX addressing...................................………………………………………………………………………
Control panel functions...................................………………………………………………………………
Stand – alone mode...................................………………………………………………………………….
Channel settings………………………………………………………………………………………………..
Maintenance...................................................................................………..………….…….………………
Changing the Lamp........................................................................…………………….…………………
Replacing the Fuse........................................................................…………………….…………………
Gobo Orientation...............................................................…………………….………………………….
Replacing a Gobo from the Rotating Gobo-wheel …..............................…….……….…………………
Replacing a Gobo from the Static Gobo-wheel…..............................…….………………………...……
Troubleshooting............................................................................………………….………………….…..
No Light, No Movement - All Products............................................………………….…………………..
No Response to DMX ....................................................................………………….…………………..
Product Specifications.................................................................……………….…….…………………..
2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow
the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
•Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
•Never remove warning or informative labels from the unit.
•Never use anything to cover the ground contact.
•Never run the device without lamp!
•Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may
expose and emit a high ultraviolet radiation, which may cause burns.
•Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always
hold the fixture at the transport handles.
•Never place any material over the lens.
•Never look directly into the light source.
•Never leave any cables lying around.
•Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.
•Do not insert objects into air vents.
•Do not connect this device to a dimmerpack.
•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.
•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
•Do not shake the device. Avoid brute force when installing or operating the device.
•Only use device indoor, avoid contact with water or other liquids.
CAUTION!
Keep this device away from rain and moisture!
Un
p
lu
g
mains lead before o
p
enin
g
the housin
g
!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dan
g
erous electric shock when touchin
g
the wires!
3
•Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
•Only operate the device after having familiarized with its functions.
•Avoid flames and do not put close to flammable liquids or gases.
•Always replace the lamp, when it is damaged or deformed due to the heat.
•Always keep case closed while operating.
•Always allow free air space of at least 50 cm around the unit for ventilation.
•Always disconnect power from the mains, when device is not used, before cleaning or when
replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the
power-cord.
•To ensure the longest and most efficient use of the lamp always wait 15 minutes before re-applying
power after a shutdown. Failure to do so could result in premature aging of the lamp and failure to
the electronics that drive it.
•Make sure that the device is not exposed to extreme heat, moisture or dust.
•Make sure that the available voltage is not higher than stated on the rear panel.
•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord
from time to time.
•If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to
cracks or deep scratches.
•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
•For adult use only. Movinghead must be installed out of the reach of children. Never leave the unit
running unattended.
•Never attempt to bypass the thermostatic switch or fuses.
•For replacement use lamps and fuses of same type and rating only.
•Replace the lamp if it becomes defective or worn out, or before usage exceeds the maximum service
life.
•Allow the fixture to cool down for 15 minutes, before opening the fixture and replacing lamp. Protect
your hands and eyes with gloves and safety glasses.
•This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
•During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
•Repairs, servicing and electric connection must be carried out by a qualified technician.
•WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
This device is not designed for permanent operation. Consistent operation breaks will ensure that the device
will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 1 meter.
The maximum ambient temperature tamust never be exceeded.
CAUTION ! EYEDAMAGES !.
Avoid looking directly into the light source.
(
meant es
p
eciall
y
for e
p
ile
p
tics
)
!
4
If this device is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
•If the projector is lowered from the ceiling or high joists, professional trussing systems have to be
used.
•Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.
•The projector must never be fixed swinging freely in the room.
•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
•When rigging, derigging or servicing the projector, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
The Explorer can be placed on a flat stage floor or mounted to any kind of truss by a clamp.
Mounting a clamp to the underside of the Explorer moving head
1) Omega Holder
2) Eye bolt
3) Mounting plate
4) Clamp
5) Safety-cable
Improper installation can cause serious damage to people and property !
5
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
Wire Color Pin International
Brown Fase / Live L
Blue Nul / Neutral N
Yellow / Green Earth / Ground
Make sure that the device is always connected properly to the earth!
6
Description of the device
Features
The Showtec Explorer Pro is a moving head with high output and great effects.
• 1 Color-wheel with 7 colored gobos, and open
• 1 Gobo-wheel with 2 metal and 3 glass interchangeable rotating gobos plus open
• 1 Static Gobo-wheel with 2 static gobos, 1 glass gobo and 3 color gobos
• DMX-control via standard DMX-controller
• 16 DMX-control channels required
• Mechanical Dimmer/Shutter/Strobe
• Strobe-effect with adjustable speed (1 - 10 flashes/sec.)
• Linear electric focus
• Pan 0º -- 530º
• Tilt 0º -- 280º
• Pan/Tilt speed & reset control channel
• Automatic Pan/Tilt correction
• LED display menu with invert
• Pan/Tilt Invert option
• Micro-stepping motors
• Thermal switch
• Lamp MSD 250
• Fuse T10A / 250V
Overview 1
Fig. 1
2
1) Lens
2) Display + menu buttons
7
Backside
3 4 5 6 Fig. 2
3) DMX signal connector (OUT)
4) DMX signal connector (IN)
5) IEC power connector
6) Fuse
8
Installation
Installing the Lamp
The Showtec Explorer Pro uses the MSD 250 (ordercode 80920P / 80920O / 80933O / 82603 / 80935)
reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit.
Note that, product versions that use other lamps, may be offered in the future. Check your product
specification label for information.
Always disconnect from electric mains power supply before changing lamps.
The lamp has to be replaced when it is damaged or deformed due to the heat.
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the
device was not designed for.
Damages caused by non-observance are not subject to warranty.
Procedure :

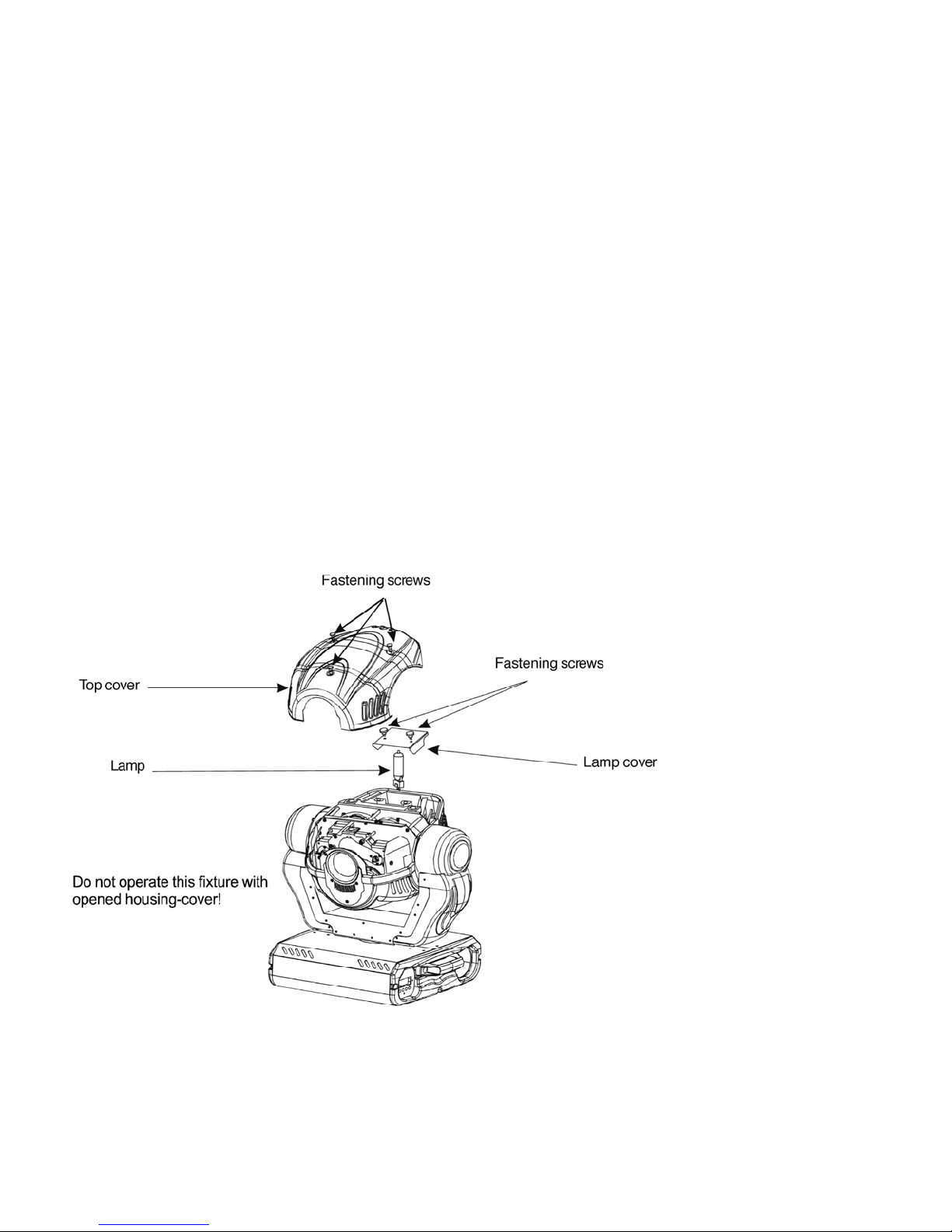

1. Loosen the 3 screws on the top cover and gently remove the small plastic housing.
2. Loosen the 2 screws on the small lamp cover and gently remove the lamp cover.
3. Read lamp instructions. Do not touch the lamp bulb glass.
Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free
towel and rubbing alcohol.).
4. Insert the lamp pins into the small holes in the lamp socket. You can adjust the distance between the
lamp and the lens on the back of the cover.
5. Put the lamp cover back and fasten the screws snugly. Then put the plastic housing back and fasten the
screws snugly
Fig. 3
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Show Tec Équipement d'éclairage
Show Tec
Show Tec Phantom 75 MKII Led Spot v1 Manuel utilisateur
Show Tec
Show Tec Helix 4000 Q4 15 V1 Manuel utilisateur
Show Tec
Show Tec DDP-1220 Manuel utilisateur
Show Tec
Show Tec Lampy 20 Manuel utilisateur
Show Tec
Show Tec Halfmirrorball 50cm incl. Motor V1 Manuel utilisateur
Show Tec
Show Tec 43570 Manuel utilisateur
Show Tec
Show Tec Scat Moon Manuel utilisateur
Show Tec
Show Tec Expression 33000 Zoom RGBWA V3 Manuel utilisateur
Show Tec
Show Tec StageBeam 650/1000W PC Manuel utilisateur
Show Tec
Show Tec Compact Par 7 Tri Manuel utilisateur
Show Tec
Show Tec Accent Spot SW Manuel utilisateur
Show Tec
Show Tec Phantom 250 Spot Manuel utilisateur
Show Tec
Show Tec LED Music Tube Controller Manuel utilisateur
Show Tec
Show Tec Phantom HTI-150 MKII Manuel utilisateur
Show Tec
Show Tec 42422 Manuel utilisateur
Show Tec
Show Tec Galactic RGB-6-750 Manuel utilisateur
Show Tec
Show Tec Stage Blinder 4 Black DMX Bulb Manuel utilisateur
Show Tec
Show Tec Datamoon LED Manuel utilisateur
Show Tec
Show Tec Phantom EHJ-150 MKII Manuel utilisateur
Show Tec
Show Tec Pixelstrip 40 V1 Manuel utilisateur
Manuels Équipement d'éclairage populaires d'autres marques
Qazqa
Qazqa Suplux SL 3 Black 103062 Manuel utilisateur
Commercial Electric
Commercial Electric 54568141 Manuel utilisateur
CREE LIGHTING
CREE LIGHTING 304 Series Manuel utilisateur
Goobay
Goobay 49867 Manuel utilisateur
ECOMAN ITALIA
ECOMAN ITALIA LED T8 Manuel utilisateur
Alkalite
Alkalite Krypton KT-81 Manuel utilisateur
