Show Tec LED Pixel Track V2 Manuel utilisateur

LED Pixel Track V2

ORDERCODE 42200

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED Pixel Track brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec LED Pixel Track™Product Guide

Warning.................................................................................…...……………..…………………………….…………

Safety-instructions………………………………………………………………………………………………………

Operating Determinations.…………………………………………………………………………………………...

Rigging.…………………………………………………………………………………………………………………..

Return Procedure…………………………………………………………………………….....................................

Claims……………………………………………………………………………........................................................

Description...............................................................................…...………………………………………….………..

Features and Overview ………………………………...….……………….………….……….……….……………

Backside…………………………………………………………………………………………………………………..

Installation...............................................................................…...…………………………………………………..…

Set Up and Operation............................................................................................................................................

Panel Functions……..……………………………………………………………………………….………………...…

- Mode…...............................................………….........................……………………....………………..…..

- F / S…..............................................................................….....………….........…………….………………..

Stand-Alone…………………………..…………………………………………………………….………………...…..

Sound-Active……..…………………..…………………………………………………………….………………...…..

DMX Operation…………..…………..…………………………………………………………….………………...…..

- DMX Modes..…...............................………….........................……………………....……………………….

Maintenance...................................................................................………..………….…….……………………..…

Replacing the Fuse........................................................................…………………….………………………….

Troubleshooting............................................................................………………….………………….………………

No Light……………………………………............................................………………….………………………….

Product Specifications.................................................................……………….…….………………………………

WARNING

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• Showtec LED Pixel Track with IEC powercable 1,5m

• User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. It is estimated that a viable lifespan of 40,000 to 50,000 hours will be achieved

under normal operational conditions. If improving on this lifespan expectancy is of a higher priority, place

care in providing for lower operational temperatures. This may include climatic-environmental and the

reduction of overall projection intensity.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never leave any cables lying around.

Never cover the air vents, otherwise the device will get to hot.

Do not insert objects into air vents.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not shake the device. Avoid brute force when installing or operating the device.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Only use device indoor, avoid contact with water or other liquids.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0,5 meters.

The maximum ambient temperature ta= 45°C must never be exceeded.

The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the LED Pixel Track is lowered from the ceiling or high joists, professional trussing systems have to

be used.

Use a clamp to mount the LED Pixel Track, with the mounting-bracket, to the trussing system.

The LED Pixel Track must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the LED Pixel Track, always make sure, that the area below

the installation place is blocked and staying in the area is forbidden.

The LED Pixel Track can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The LED Pixel Track is a LED system from Showtec.

• Sound-controlled via built-in microphone

• 3 Modes: Stand-alone, DMX-controlled or Sound-controlled

NOTE: Knowledge of DMX is required to fully utilize this unit.

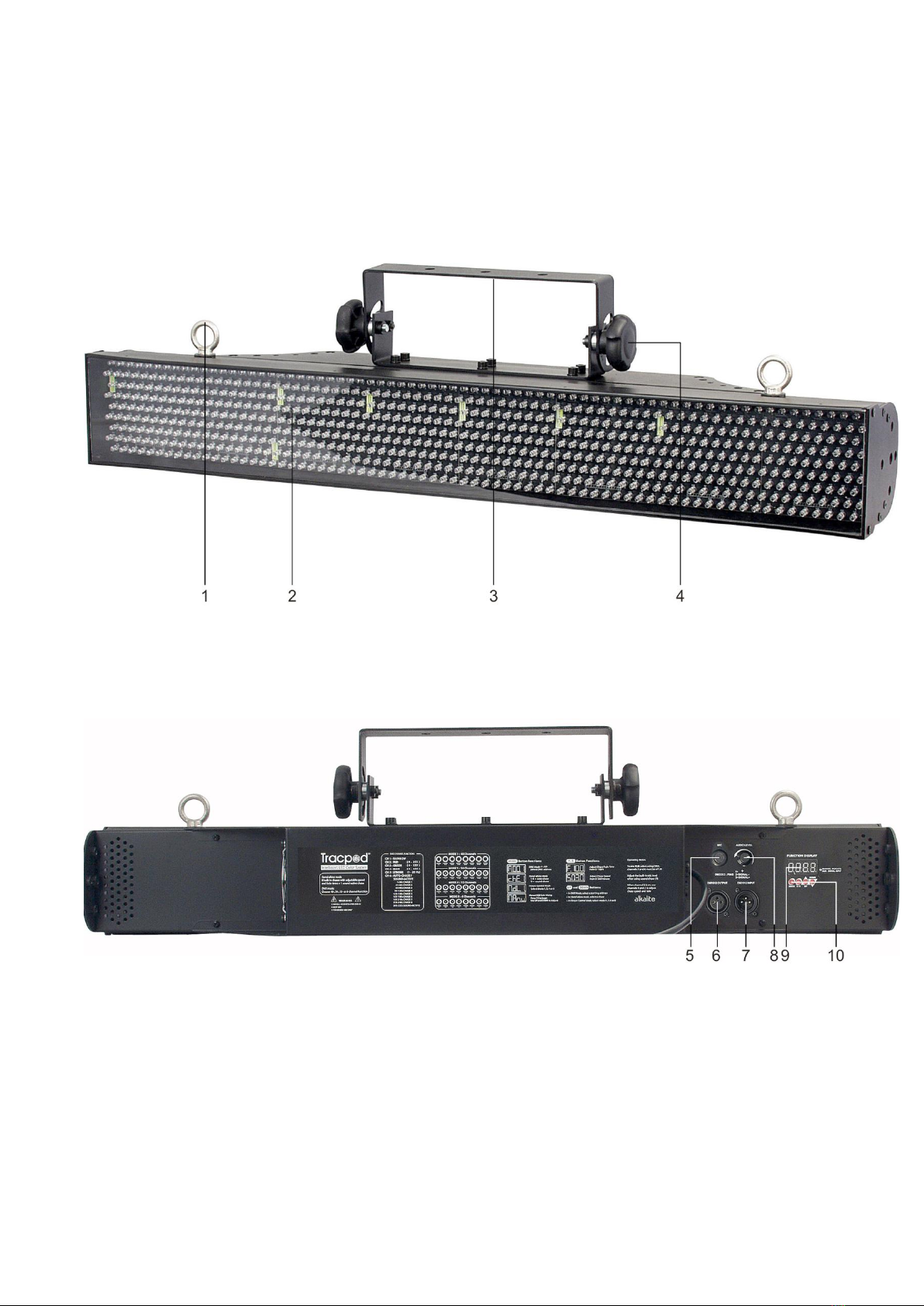

Overview

Fig. 1

1) Safety Eye for Truss mounting

2) Total LED Pixel Track 648 LEDS

3) Mountingbracket for Truss mounting

4) Adjustment Screw

Backside

Fig. 2

5) Audio Level (sensitivity)

6) Mic

7) DMX signal connector (IN)

8) DMX signal connector (OUT)

9) Power On / Off

10) AC powercord

Installation

Remove all packing materials from the LED Pixel Track. Check that all foam and plastic padding is

removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

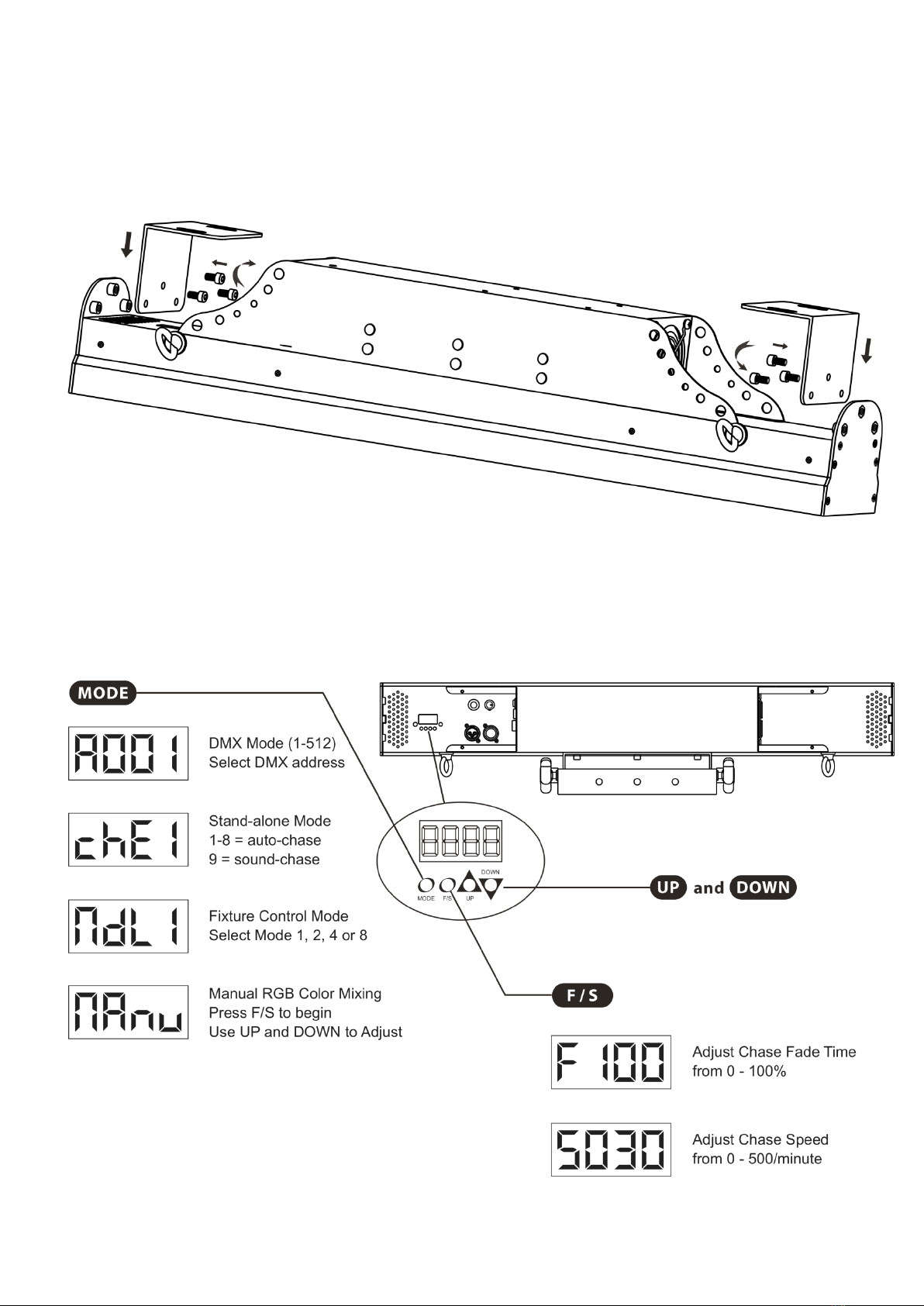

Panel Functions

Stand-alone Operation

Refer to the four buttons on the front panel of the LED Pixel Track: Mode

F / S

Down

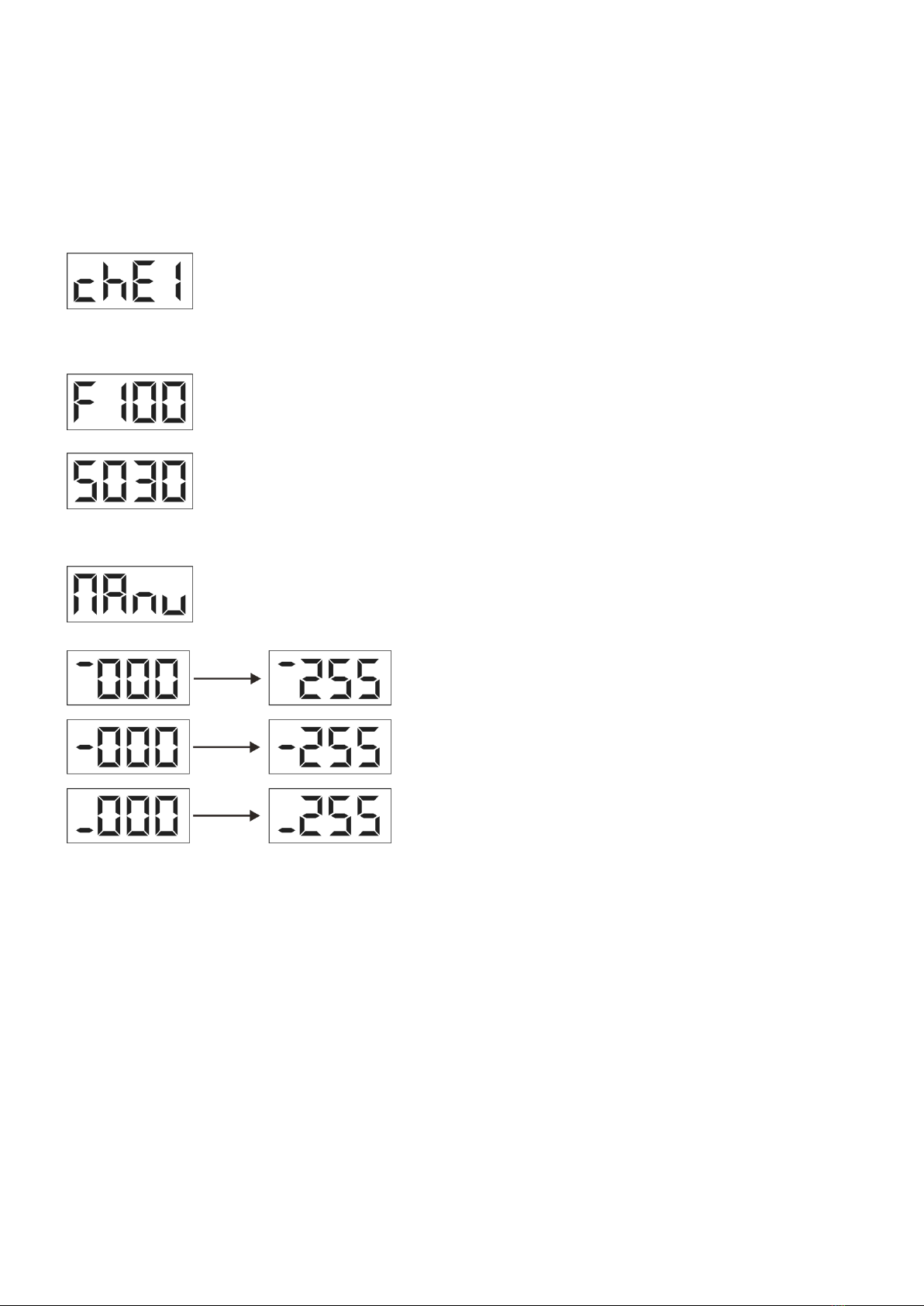

Press the MODE button to view the Chase menu:

Select Chases 1-9 using the UP and DOWN buttons.

Chases 1-8 run according to the Fade and Speed values.

Chase 9 is sound-active.

Press the F/S button to set the Fade and Speed values:

Adjust Chase Fade Time from 0-100%.

Adjust Chase Speed from 1-500 steps per minute.

Press the MODE button to view the Manual Color Mixing menu:

Press F/S to select the color you want to adjust.

Use UP and DOWN to mix the RGB colors and change their values.

Indicates Red with value from Dark (0) to Bright (255).

Indicates Green with value from Dark (0) to Bright (255).

Indicates Blue with value from Dark (0) to Bright (255).

Sound-active Operation

In Stand-alone mode, select Chase 9 and adjust the audio input level using the sensitivity control dial on

the side panel of the LED Pixel Track.

In DMX mode, use Channel 6 to select Sound-active operation and to adjust the audio sensitivity.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Équipement d'éclairage

Show Tec

Show Tec LED SPI-2 Manuel utilisateur

Show Tec

Show Tec Compact Par 18 MKII Manuel utilisateur

Show Tec

Show Tec Lampy 20 Manuel utilisateur

Show Tec

Show Tec Stage Blinder 4 LED Manuel utilisateur

Show Tec

Show Tec Light Desk Pro 136 Manuel utilisateur

Show Tec

Show Tec ACT Fresnel 20 WW Manuel utilisateur

Show Tec

Show Tec Colour Star Sky II DMX V4 Manuel utilisateur

Show Tec

Show Tec Phantom 75 LED Spot V4 Manuel utilisateur

Show Tec

Show Tec Galactic TXT Instructions de montage

Show Tec

Show Tec Firestorm Miniscan Manuel utilisateur

Show Tec

Show Tec Galactic RGB-6-751 V1 Manuel utilisateur

Show Tec

Show Tec StageBeam 650/1000W PC Manuel utilisateur

Show Tec

Show Tec Pixelstrip 40 V1 Manuel utilisateur

Show Tec

Show Tec Galactic RGB-6-750 Manuel utilisateur

Show Tec

Show Tec Phantom 300 Spot Manuel utilisateur

Show Tec

Show Tec Expression 33000 ZoomRGBWA V2 Manuel utilisateur

Show Tec

Show Tec Performer Profile 60 LED MKIII V2 Manuel utilisateur

Show Tec

Show Tec Compact Par 108/10 Value Line Manuel utilisateur

Show Tec

Show Tec LED Par 64 Short DMX Manuel utilisateur

Show Tec

Show Tec Compact Power Lightset V@ Manuel utilisateur

Show Tec

Show Tec Galactic TXT V3 Manuel utilisateur

Show Tec

Show Tec LED Par 56 Short DMX Manuel utilisateur

Show Tec

Show Tec Giant Manuel utilisateur

Show Tec

Show Tec Explorer 250 Wash Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
