Thank you for choosing Sennheiser!
We have designed this product to give you reliable operation
over many years. Over half a century of accumulated expertise
in the design and manufacture of high-quality electro-acoustic
equipment have made Sennheiser a world-leading company in
this field.
Please take a few moments to read these instructions carefully,
as we want you to enjoy your new Sennheiser product quickly
and to the fullest.
35
Contents
Safety instructions ........................................................... 36
Delivery includes ............................................................... 36
The SKP 3000 plug-on transmitter ............................... 37
HiDyn
plus
noise reduction ............................................. 38
Operating controls ............................................................ 40
Indications and displays .................................................. 41
Putting the SKP 3000 into operation ........................... 43
The operating menu ......................................................... 46
Working with the operating menu ............................... 48
Operating menu of the plug-on transmitter ............... 50
Adjustment tips for the operating menu .................... 52
Troubleshooting ................................................................ 56
Care and maintenance ..................................................... 58
Specifications .................................................................... 59
Accessories ......................................................................... 61
36
Safety instructions
Never open an electronic unit! If units are opened by customers
in breach of this instruction, the warranty becomes null and
void.
Use the SKP 3000 plug-on transmitter in dry rooms only.
Delivery includes
!1 SKP 3000 plug-on transmitter
!2 AA size batteries, 1.5 V
!Instructions for use
37
The SKP 3000 plug-on transmitter
The SKP 3000 transmitter permits wireless transmission with
studio-quality sound. The use of further optimised PLL and
microprocessor technology and the HiDyn
plus
noise reduction
system ensure interference-free transmission.
The transmitter can be supplied in nine frequency ranges within
the UHF band and with a frequency grid of 5 kHz. Please note:
Frequency usage is different for each country. Your Sennheiser
agent will have all the necessary details on the available legal
frequencies for your area.
The plug-on transmitter has two channel banks with up to 20
switchable channels each.
The channels of the channel bank “FIX” (Fixed Bank) are factory-
preset to customer specific transmission frequencies. These
transmission frequencies cannot be changed but have been
preset so that e.g. country-specific regulations on frequency
usage are taken into account.
The channel bank “VAR” (Variable Bank) allows you to store
your selection of transmission frequencies that are freely
selectable within the preset frequency range. Please note,
Range Frequency range Range Frequency range
A 518 to 554 MHz F 556 to 592 MHz
B 626 to 662 MHz G 576 to 612 MHz
C 740 to 776 MHz H 670 to 706 MHz
D 786 to 822 MHz I 696 to 732 MHz
E 830 to 866 MHz
38
however, that the channel bank “VAR” is factory-preset to the
same frequencies as the channel bank “FIX”.
The transmitter can be combined with the rack-mount and
bodypack receivers of the 3000 and 5000 series (e.g. EM 3252,
EM 3032, EM 3031, EK 3041, EM 1046).
The balanced XLR input allows the connection of
!dynamic microphones,
!condenser microphones with internal power supply and
!condenser microphones that require 48 V phantom powering.
HiDyn plus noise reduction
This transmitter is equipped with HiDyn
plus
the Sennheiser
noise reduction system that reduces RF interference. It increases
the signal-to-noise radio in wireless audio transmission to more
than 114 dB.
39
HiDyn
plus

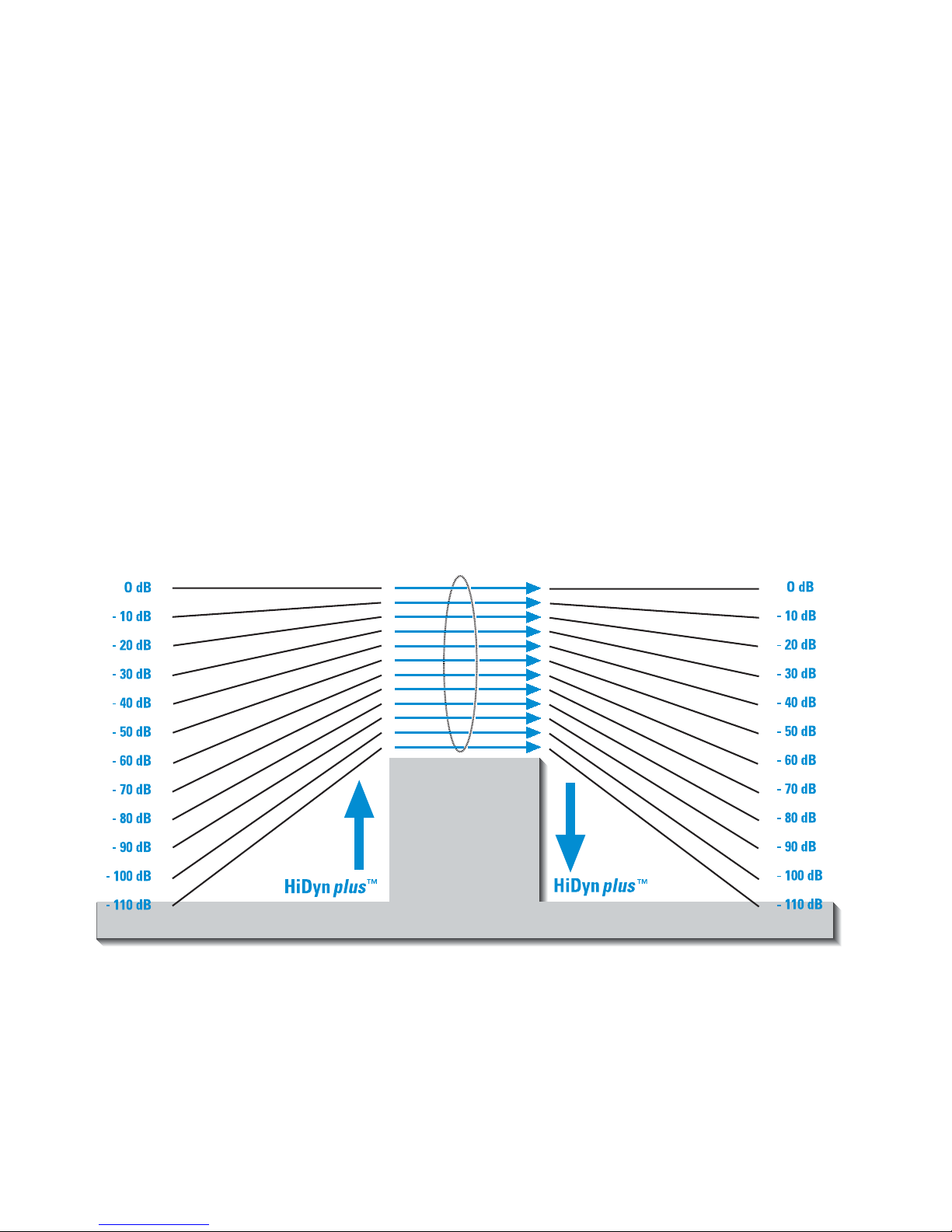

is a wideband compander system which compresses
the audio signal in the transmitter in a ratio of 2:1 (related to
dB). In the receiver the signal is expanded in an identical and
opposite way in a 1:2 ratio to restore the original signal.
HiDyn
plus
has been specially developed for high quality
radiomicrophone systems.
Note:
Only transmitters and receivers that are equipped with
HiDyn
plus
can work correctly with each other. If non
HiDyn
plus
equipment was mixed with HiDyn
plus
, the
dynamic range would be drastically reduced and the
transmission would sound blunt and flat. HiDyn
plus
is
permanently active and cannot be switched off.
40
Operating controls
Microphone input, XLR-3F socket (balanced)
Mechanical locking ring of XLR-3 socket
LC display
SET button
button (DOWN)
button (UP)
Red LED for operation and battery status indication
(ON/LOW BAT)
ON/OFF button
(serves as the ESC (cancel) key in the operating menu)
Battery compartment cover
MUTE switch
41
Indications and displays
LC display panel
Alphanumeric display
“B.CH” – appears when the channel bank and
the channel number are displayed
“MHz” – appears when the frequency is displayed
Battery status display
Lock mode icon
(lock mode is activated)
“MUTE” display
(audio input is muted)
7-step level display for audio signal “AF”
with “Peak-Hold” function
42
Operation and battery status indication
The red LED (LOW BAT/ON) provides information on the
current operating state of the plug-on transmitter:
Red LED lit up: The plug-on transmitter is switched on.
The capacity of the batteries/BA 2015
accupack is sufficient.
Red LED flashing: The batteries are/the BA 2015 accupack
is going flat (LOW BAT)!
In addition, the 4-step battery status display on the display
panel provides information on the remaining battery/BA 2015
accupack capacity:
3 segments: capacity approx. 100 %
2 segments: capacity approx. 70 %
1 segment: capacity approx. 30 %
Battery icon flashing: LOW BAT
Display backlighting
After pressing a button, the display remains backlit for approx.
15 seconds.
