Seiko IP-4500 MKII Manuel utilisateur

User's Guide

(Basic Operations)

Color Inkjet Printer

IP-4500

IP-4500 MK

IP-4010

IP-4010 MK

Seiko I Infotech Inc.

Read this User's Guide to use the printer safely and

properly. Keep this manual in a place where you

can quickly access it at any time.

IP-4500/4010 Color Inkjet Printer User's Guide

Documents Number U00043777154

First Edition, December 2000

Second Edition, April 2001

Third Edition, September 2001

Fourth Edition, January 2002

Seiko I Infotech Inc. reserves the right to make changes without notice to the

specifications and materials contained herein and shall not be responsible for

any damages (including consequential) caused by reliance on the materials

presented, including but not limited to typographical, arithmetic, or listing errors.

Please address any questions, comments, and suggestions to:

Seiko I Infotech Inc.

31-1, kameido 6-chome

koto-ku, Tokyo 136-0071, Japan

This manual acknowledges the following trademarks:

SII is a trademark of Seiko I Infotech Inc.

All other trademarks are the properties of their respective companies.

Durch die Kennzeichnung dieses Produktes mit dem CE-Zeichen erklärt Seiko den folgenden

Direktiven der Europäischen Union zu entsprechen (mit Wirkung vom siehe Datum):

Januar 1996:- EG-Direktive 73/23/EEC ergänzt durch EG-Direktive 93/68/EEC, Angleichung

der Gesetze der einzelnen Mitgliedsstaaten bezüglich Geräten mit niedriger

Betriebsspannung.

Januar 1996:- EG-Direktive 89/336/EEC, Angleichung der Gesetze der einzelnen

Mitgliedsstaaten bezüglich elektromagnetischer Kompatibilität.

Den vollständigen Text dieser Erklärung einschließlich der Definition der entsprechenden

Direktiven sowie der jeweiligen Standards erhalten Sie von Ihrem Seiko Colorgrafx Systems

Kundendienst oder Ihrem Seiko Engineering Systems Kundendienst.

Thank you very much for purchasing the IP-4500/IP-4500MKII,

IP-4010/IP-4010MKII Color Inkjet Printer (simply called the printer

below).

The following four types of printer are available from media (pa-

per) sizes supported and print speed.

- IP-4500: 54" printer

- IP-4500MKII: High speed print 54" printer

- IP-4010: 36" printer

- IP-4010MKII: High speed print 36" printer

Also, one of the following controllers can be installed in the printer:

- SCSI controller

IP-4500-00 (IP-4500)

IP-4010-00 (IP-4010)

IP-4500-02 (IP-4500MKII)

IP-4010-02 (IP-4010MKII)

- Network controller

IP-4500-01 (IP-4500)

IP-4010-01 (IP-4010)

IP-4500-03 (IP-4500MKII)

IP-4010-03 (IP-4010MKII)

The printer with a SCSI controller is supplied with theIP-4500/

IP-4500MKII, IP-4010/IP-4010MKII User's Guide (Basic Op-

erations) (this manual).

The printer with a network controller is supplied with two manu-

als:

- IP-4500/IP-4500MKII, IP-4010/IP-4010MKII User's Guide

(Basic Operations)

- IP-4500/IP-4500MKII, IP-4010/IP-4010MKII User's Guide

(Function Settings)

Introduction

This manual, the IP-4500/IP-4500MKII, IP-4010/IP-4010MKII

User's Guide (Basic Operations), describes the features of the

printer, names of components, information to be known before use,

and basic operations, such as how to turn the power on and off and

set paper and ink.

TheIP-4500/IP-4500MKII,IP-4010/IP-4010MKII User's Guide

(Function Settings) explains how to set functions of the printer.

For details on the printer function settings, seethe separate User's

Guide (Function Settings).

The SCSI controller has some different functions and operation

panel menus from those of the network controller. If they are dif-

ferent, the functions and menus of both the controllers are described.

Read the appropriate description for your printer.

The following items should be read before reading Section 1.

- Deliverables

- Safety precautions

- Handling precautions

- Manual legend (notation rules)

Read these items to use the printer safely and properly. Keep this

manual in a place where you can quickly access it at any time.

Deliverables

The printer components, including options, are installed on the main

unit on delivery. Make sure that the following items are present.

If any parts are missing or damaged, contact the shop where you

purchased the product or the nearest service dealer.

Printer main unit <1>

• IP-4500-00 (54" printer, SCSI controller incorporated (raster data interface))

• IP-4500-01 (54" printer, network controller incorporated (HPGL interface))

• IP-4500-02 (High speed print 54" printer, SCSI controller incorporated (raster data interface))

• IP-4500-03 (High speed print 54" printer, network controller incorporated (HPGL interface))

• IP-4010-00 (36" printer, SCSI controller incorporated (raster data interface))

• IP-4010-01 (36" printer, network controller incorporated (HPGL interface))

• IP-4010-02 (High speed print 36" printer, SCSI controller incorporated (raster data interface))

• IP-4010-03 (High speed print 36" printer, network controller incorporated (HPGL interface))

One of the controllers must be selected on shipment.

Basic components

Power cable <1>

Roll paper

<IP-4500: 54",1>

<IP-4010: 36",1>

User's Guide

(Basic Operations)

<1 copy>

User's Guide

(Function Settings)

(Supplied with network controller)

<1 copy>

Quick Reference Guide

<1 copy>

Scroller

<IP-4500: 54",1>

<IP-4010: 36",1>

Software set

(Supplied with network controller)

<1>

Ink kit 6 colors IP-838

(Y, M, C, Bk, Lc, Lm)

<1>

SCSI cable

<1>

(Supplied with SCSI controller)

Accessories

iii

Waste ink bottle IP-841

<1>

Ink cartridges IP-XXX

(Y, M, C, Bk, Lc, Lm)

See page 1-8 for the item

number.

Paper IP-XXX

(Various types)

See page 1-7 for the

item number.

* : Options and consumables can be ordered separately.

Scroller

<IP-4500: IP-842, 1>

<IP-4010: IP-843, 1>

Replaceable cutter blade

IP-844

<1>

Cleaning Kit CH-98

(For printer cleaning,

recommended)

<1 set>

Winder

<IP-4500: IP-240, 1 set>

<IP-4010: IP-241, 1 set>

- Winder unit

- Scroller

- Paper tube

- Document pocket

- Roll cover

Paper bucket

<IP-4500: IP-230, 1 set>

<IP-4010: IP-231, 1 set>

- Roll cover

- Document pocket

- Paper bucket

Options

Consumables

Wipe stick

(For cleaning bottom of the carriage)

<100 pieces>

Example of symbols:

This symbol ( ) denotes items that require special care

while executing a certain procedure or operation.

This symbol ( ) denotes items that are forbidden.

This symbol ( ) denotes items you should follow to

prevent accidents or injury.

Safety Precautions

The following symbols are used in this manual to ensure the proper

use of the plotter and to prevent the plotter from being damaged.

Follow the instructions marked with the symbol.

Minor personal injury or product and/or

peripheral damage failure to follow the

guidelines marked with this symbol could

result in minor personal injury or product and/

or peripheral damage.

Severe personal injury or death

Failure to follow the guidelines marked with

this symbol could result in severe personal

injury or death.

WARNING

CAUTION

Symbolbeispiele:

Dieses Symbol ( ) kennzeichnet Vorschriften, deren

besondere Beachtung während der Ausführung von

bestimmten Vorgängen und Operationen nötig ist.

Dieses Symbol ( ) kennzeichnet Gegenstände, die ver-

boten sind.

Dieses Symbol ( ) kennzeichnet Vorschriften, die

Unfälle oder Verletzungen verhindern sollen.

Sicherheitsvorkehrungen

Die folgenden Symbole erscheinen in diesem Handbuch, um den

ordnungsgemäßen Gebrauch des Plotters sicherzustellen und den

Plotter vor Beschädigung zu schützen.

Bitte beachten Sie die mit dem Symbol gekennzeichneten

Anweisungen.

Leichte Körperverletzung oder Beschädigung

des Produkts und/oder der Peripherie

Nichtbeachtung der mit diesem Symbol

gekennzeichneten Vorschriften kann zu leichter

Körperverletzung oder Beschädigung des

Produkts und/oder der Peripherie führen.

Schwere Körperverletzung oder Lebensgefahr

Nichtbeachtung der mit diesem Symbol

gekennzeichneten Vorschriften kann zu

schwerer Körperverletzung und Lebensgefahr

führen.

Warnung

Vorsicht

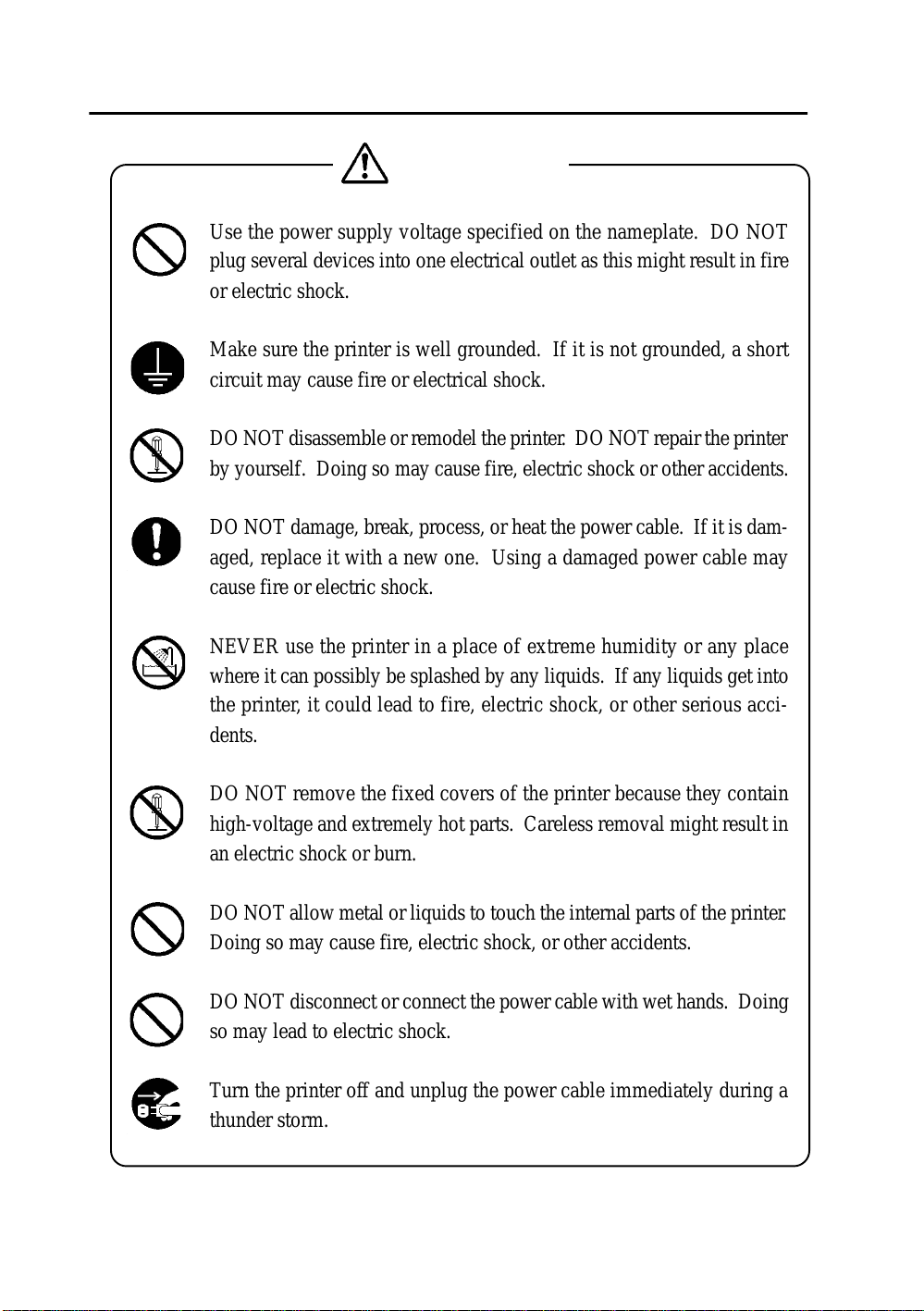

Use the power supply voltage specified on the nameplate. DO NOT

plug several devices into one electrical outlet as this might result in fire

or electric shock.

Make sure the printer is well grounded. If it is not grounded, a short

circuit may cause fire or electrical shock.

DO NOT disassemble or remodel the printer. DO NOTrepair the printer

by yourself. Doing so may cause fire, electric shock or other accidents.

DO NOT damage, break, process, or heat the power cable. If it is dam-

aged, replace it with a new one. Using a damaged power cable may

cause fire or electric shock.

NEVER use the printer in a place of extreme humidity or any place

where it can possibly be splashed by any liquids. If any liquids get into

the printer, it could lead to fire, electric shock, or other serious acci-

dents.

DO NOT remove the fixed covers of the printer because they contain

high-voltage and extremely hot parts. Careless removal might result in

an electric shock or burn.

DO NOT allow metal or liquids to touch the internal parts of the printer.

Doing so may cause fire, electric shock, or other accidents.

DO NOT disconnect or connect the power cable with wet hands. Doing

so may lead to electric shock.

Turn the printer off and unplug the power cable immediately during a

thunder storm.
