VMCA10

Thank you for choosing the VMCA10 extension column. The VMCA10 extension column is designed to suspend your A/V

equipment mount from a ceiling attachment.The VMCA10 accommodates an NPT 1-1/2 in. threaded pipe and supports a

maximum weight of 226.8 kg (500 lb).

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

6901-002184 00

5/16 x 5/8 in. 5/16 in.

(7.9mm)

5/16 in. 5/16 x 1/4 in. 5/16 x 1/4 in. 3/16 in.

(7.9mm x 15mm) (7.9mm) (7.9mm x 6.4mm) (7.9mm x 6.4mm) (4.8mm)

5/32 in.

(4.0mm)

[01] x 1 [02] x 1

[03] x 1 [04] x 1 [05] x 1 [06] x 2

[07] x 2

[08] x 1 [09] x 1

Supplied Parts and Hardware

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item

to your dealer; contact Customer Service. Never use damaged parts!

This product contains small items that could be a choking hazard if swallowed. Keep these items away

from young children!

WARNING

Do not use this product for any purpose not explicitly specied by Sanus. Improper assembly may cause property

damage or personal injury. If you do not understand these directions, or have doubts about the safety of the

assembly, contact Customer Service or call a qualied contractor. Sanus is not responsible for damage or injury

caused by incorrect assembly or use.

CAUTION

Improper installation may result in serious injury! The ceiling structure and mounting hardware (not included)

must be capable of supporting up to ve times the weight of the A/V equipment and mount combined. If you

have any doubts about the ability of the ceiling to support the installation, contact Sanus Customer Service, or a

qualied contractor.

CAUTION

6901-002184 00 3

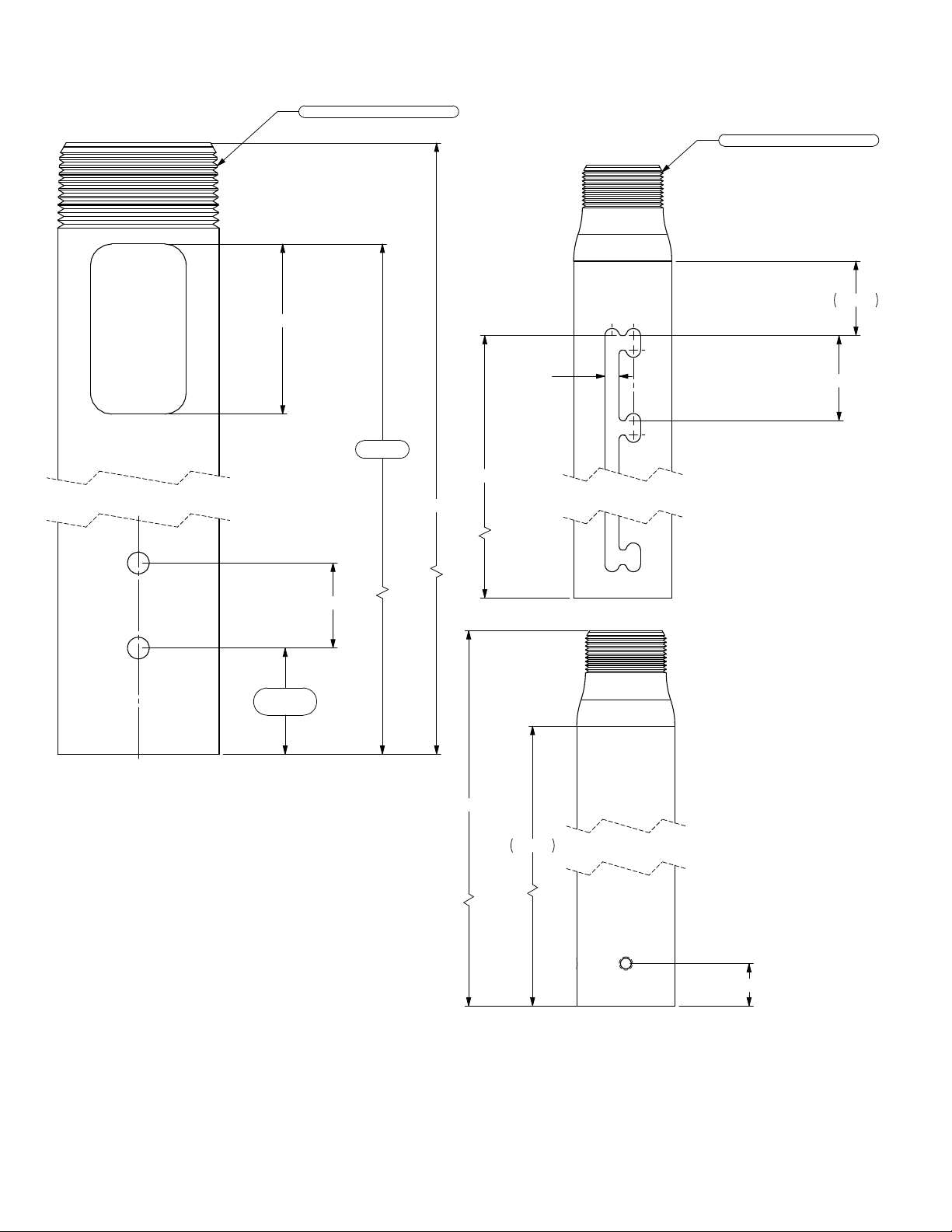

Dimensions

1.000

2.0

24.0

22.81

1.250

1.200

1-1/2" 11-1/2 NPT THREADS

1.750

2.00

6X .340

13.125

1-1/2" 11-1/2 NPT THREADS

17.13

14.88

2X 1.00

6901-002184 00

[02] [01]

[01] [02]

Step 2: Tighten Set Screw

Avoid potential injuries and / or property damage!

Always use a minimum of seven turns to thread the

extension pipe [01], [02] into a mating surface.

CAUTION

The allen key and set screw

are provided with the ceiling

attachment (not included).

Step 1: Install Extension Columns

The ceiling attachment shown in this manual is generic; it is

intended to illustrate a procedure only. (Ceiling attachment not

included.)

NOTE

6901-002184 00 5

[02]

[01]

3: Install and Tighten Screw and Washers

4: Adjust Column Length

[03] [04]

[09]

[05]

6901-002184 00
