THANK YOU FOR CHOOSING SANUS

THE #1 TV MOUNT BRAND IN THE US.

Scan for easy

install video

VSF415

Instruction Manual

WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter deﬁbrillator (ICD) is in use, magnetic ﬁelds may aect the operation of

those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical

professional prior to using this product.

SANUS

MAGNETIC STUD FINDER

Designed to ﬁnd your studs and make life easier – included in hardware kit.

TWO SIMPLE STEPS

TO FINDING YOUR STUDS:

Holding it vertically, lightly move the SANUS

Magnetic Stud Finder up and down while

sliding across your wall. The magnet within

will be attracted to the screws in the stud.

Once the magnet has landed on a screw,

place a pencil mark on the wall

directly below the magnet.

You can verify this is a stud by moving the

Magnetic Stud Finder up or down to ﬁnd

a second or third screw within the wall.

Pull apart the SANUS Magnetic Stud Finder to

expose the probing pin within. Starting about

1/2inch away from the ﬁrst pencil mark insert

the probing pin into the wall every 1/8inch until

it inserts completely into the wall. Once that

happens, you know you've found one edge of

your stud. Repeat this process till you have

found the stud edges and center of the stud.

Step 1 Step 2

magnet

locates screws in drywall

to show exactly where

your studs are

probing pin

helps ﬁnd the edges of

your stud within the wall

level

attaches to your wall plate

for hands free leveling

VSF415

Lo haremos sin estrés

Si tiene preguntas mientras realiza la instalación, llámenos.

1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520 (UK: 0800-056-2853) We’re ready to help!

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let’s make sure this mount is perfect for you!

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call

1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use

of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

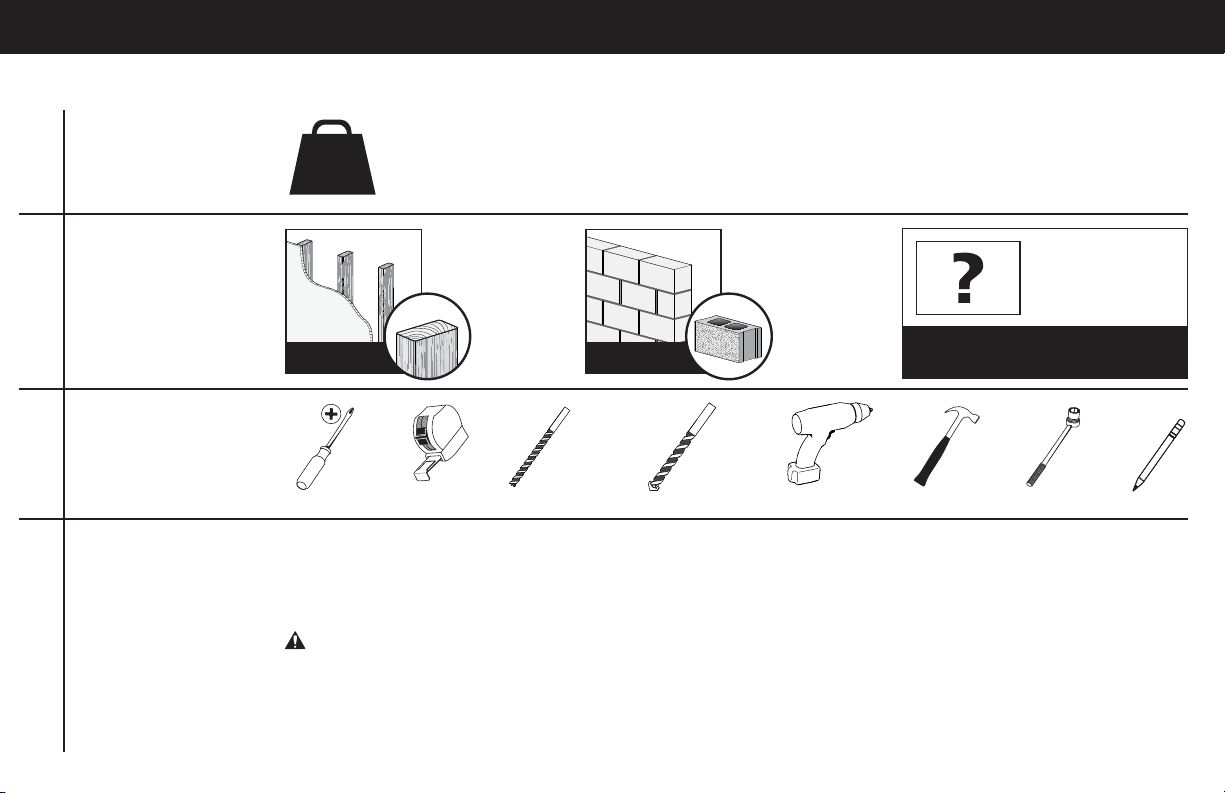

Do you have

all the tools

needed?

What is your

wall made of? Unsure?

Drywall with

wood studs?

Solid concrete or

concrete block?

50 lb

(22.7 kg)

CAUTION: Avoid potential personal injuries and property damage!

●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –

DO NOT install into drywall alone.

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined.

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

Call Customer Service:

1-800-359-5520 (UK: 0800-056-2853)

Perfect! Perfect!

Ready to

begin?

Does your TV weigh

more than 50 lb

(22.7 kg) including

accessories?

1/2 in.

(13 mm)

7/32 in.

(5.5 mm)

Wood

Screwdriver Tape Measure Drill Bit Drill Bit Electric Drill Hammer Socket Wrench

3/8 in.

(10 mm)

Concrete

Pencil

STEP 1 Attach Bracket to TV

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged

item to your dealer; contact Customer Service. Never use damaged parts!

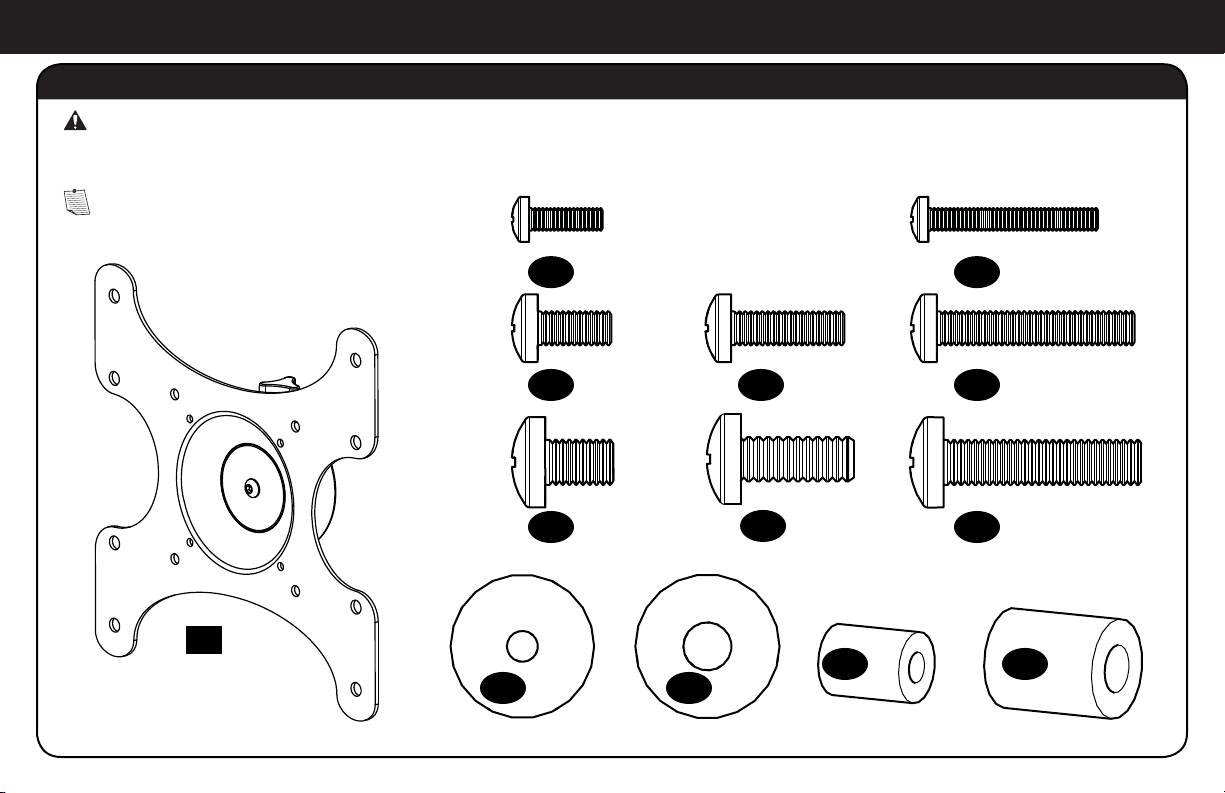

Parts and Hardware for STEP 1

M4 M6/M8

M4 x 12mm

M6 x 12mm

M8 x 12mm

M4 x 30mm

M6 x 20mm M6 x 35mm

M8 x 35mm

M8 x 20mm

M4 M6/M8

TV Bracket 02 x4

04 x4

07 x4 09 x4

08 x4

10 x8 11 x4 12 x4 13 x4

05 x4 06 x4

03 x4

01 x1

NOTE: Not all hardware included will be used. TV Screws

TV Washers TV Spacers

1-1 Select TV Screws 1-2 Spacers

Hand thread screws into the threaded inserts on the back of your TV

to determine which screw diameter (M4, M6, or M8) to use.

CAUTION: Verify adequate thread engagement of the screw/

spacer combination on your TV.

Too short will not hold the TV and too long will damage the TV.

M4 M6 M8

Too Short Correct Too Long

TV Bracket

Round Back CablesInset HolesFlat Back

Standard conﬁgurations are shown. For special applications, or if you are

uncertain about your hardware selection, contact Customer Service at

1-800-359-5520

TV Bracket

Your TV type will help you determine which hardware

conﬁguration to use. Match your type of TV to the suggested

hardware conﬁguration on the next page.

A. Installation option without spacers (TVs with ﬂat backs).

B. Installation option using spacers (TVs with obstructed backs

or inset mounting holes).

1-3 Attach TV Bracket

Position the TV bracket 01 over your TV hole pattern and install using the screw, washer, and spacer (if needed) combination you selected for

your TV.

M6/M8 spacer, screw, and washer

05 07

0310

12 10

M4/M6/M8 screw and washer

M4 spacer, screw, and washers

06 09

STEP 2 Attach Wall Plate to Wall

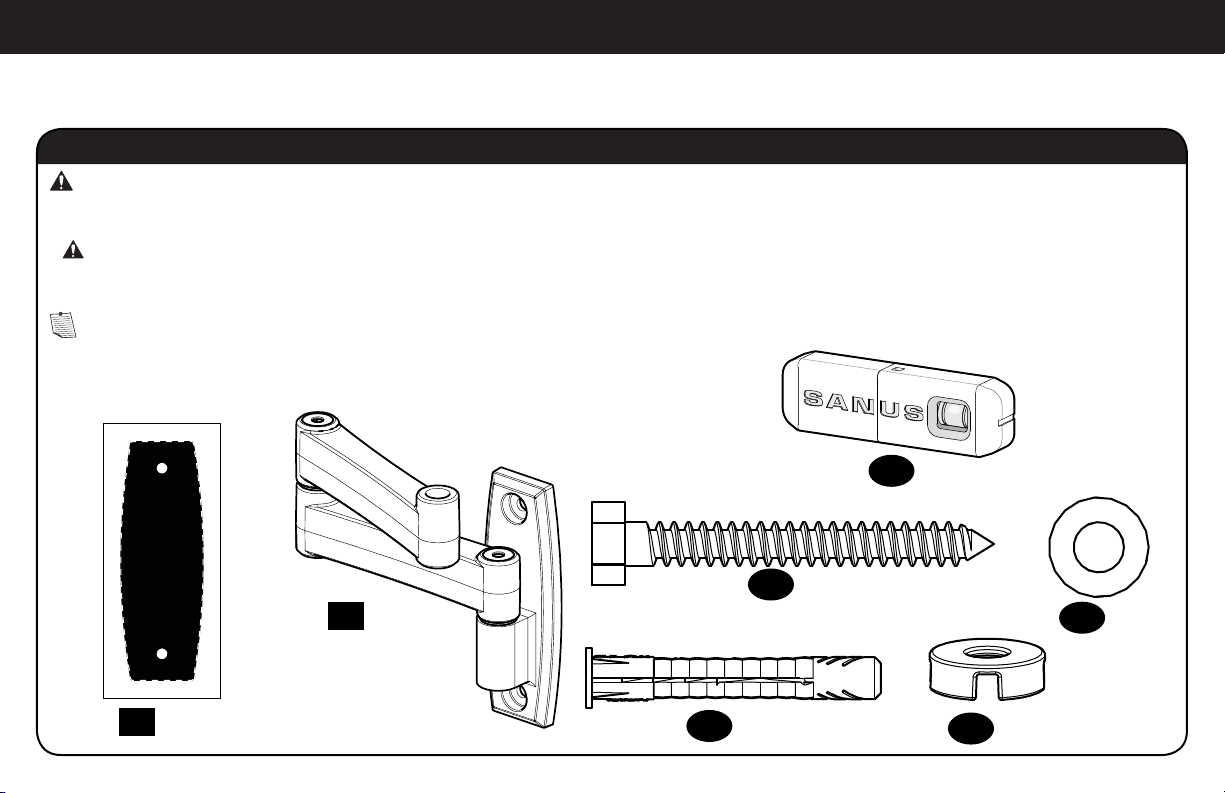

Parts and Hardware for STEP 2

For wood stud installations, follow STEP 2A on PAGE 9

For concrete installations, follow STEP 2B on PAGE 11

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are

included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never

use damaged parts!

14 x1

15 x1

Arm Assembly/Wall Plate

Wall Plate

Template

*WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter deﬁbrillator (ICD) is in use,

magnetic ﬁelds may aect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5 in.)

between your device and the magnet. Please consult with your physician or medical professional prior to using this product.

5/16 x 2 ¾ in.

NOTE: Not all hardware included will be used.

17 x2

18 x2

Sanus Magnetic Stud Finder*

16 x1

19 x2

Lag Bolts Lag Bolt Washers

Concrete Anchors Covers

20 x2

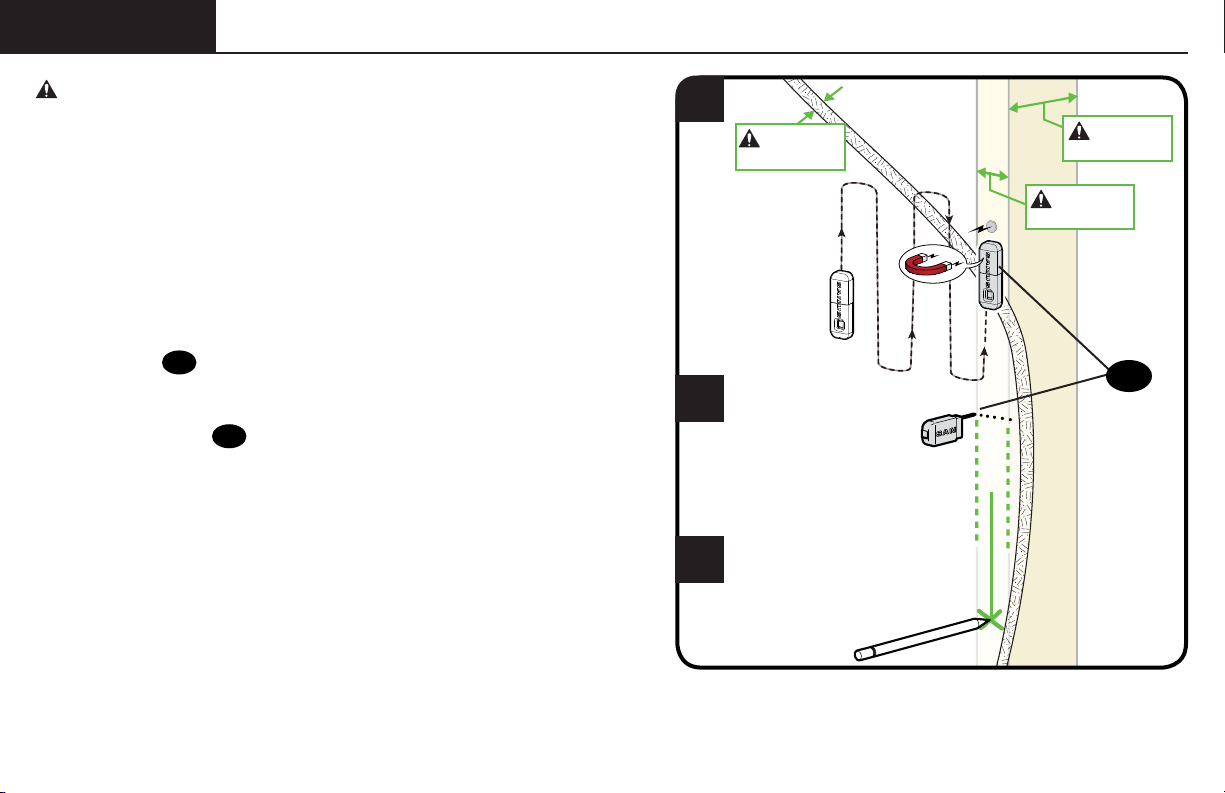

STEP 2A Wood Stud Option

CAUTION: Avoid potential personal injuries and

property damage!

●Drywall covering the wall must not exceed

16 mm (5/8 in.)

●Minimum wood stud size: common 51 x 102 mm (2 x 4 in.)

nominal 38 x 89 mm (1½x 3½in.)

●Stud center must be verified

1. Locate a nail/screw in the stud using the Sanus magnetic

stud ﬁnder 16 provided.

2. Find the edges of the stud using the probe

of the stud ﬁnder 16 .

3. Mark the center of the stud with pencil.

Max. 16 mm

(5/8 in.)

Min. 89 mm

(3 1/2 in.)

Min. 38 mm

(1 1/2 in.)

4 5 6

75 mm

(3 in.)

5.5 mm

(7/32 in.)

4. Place the wall plate template 14 at your desired height and position the slotted holes over your stud center line. Level the wall plate

template 14 and tape in place.

NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.

IMPORTANT: Be sure you mark and drill into the center of the stud.

5. Drill the two pilot holes using a 5.5 mm (7/32 in.) diameter drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.).

6. Remove the wall plate template 14 . Tighten lag bolts 17 only until the washers 18 are pulled ﬁrmly against the wall plate 15 .

CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage Do not over-

tighten the lag bolts 17 .

Fit lag bolt covers 20 over lag bolts 17 .

17 18
