MLF13 Instruction Manual

Does your TV weigh more than 130 lb (58.9 kg) including accessories?

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let’s make sure this mount is perfect for you!

130 lb

(58.9 kg)

Ready to begin?

Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV

owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

What is your wall made of?

Perfect! Unsure?

Drywall with

wood studs?

Call 1-800-359-5520

(UK: 0800-056-2853)

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed for use in wood stud walls - DO NOT install into drywall alone

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Do you have all of the tools needed?

7/32 in.

(5.5 mm)

Wood

1/2 in.

(13 mm)

Does your TV weigh more than 130 lb (58.9 kg) including accessories?

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

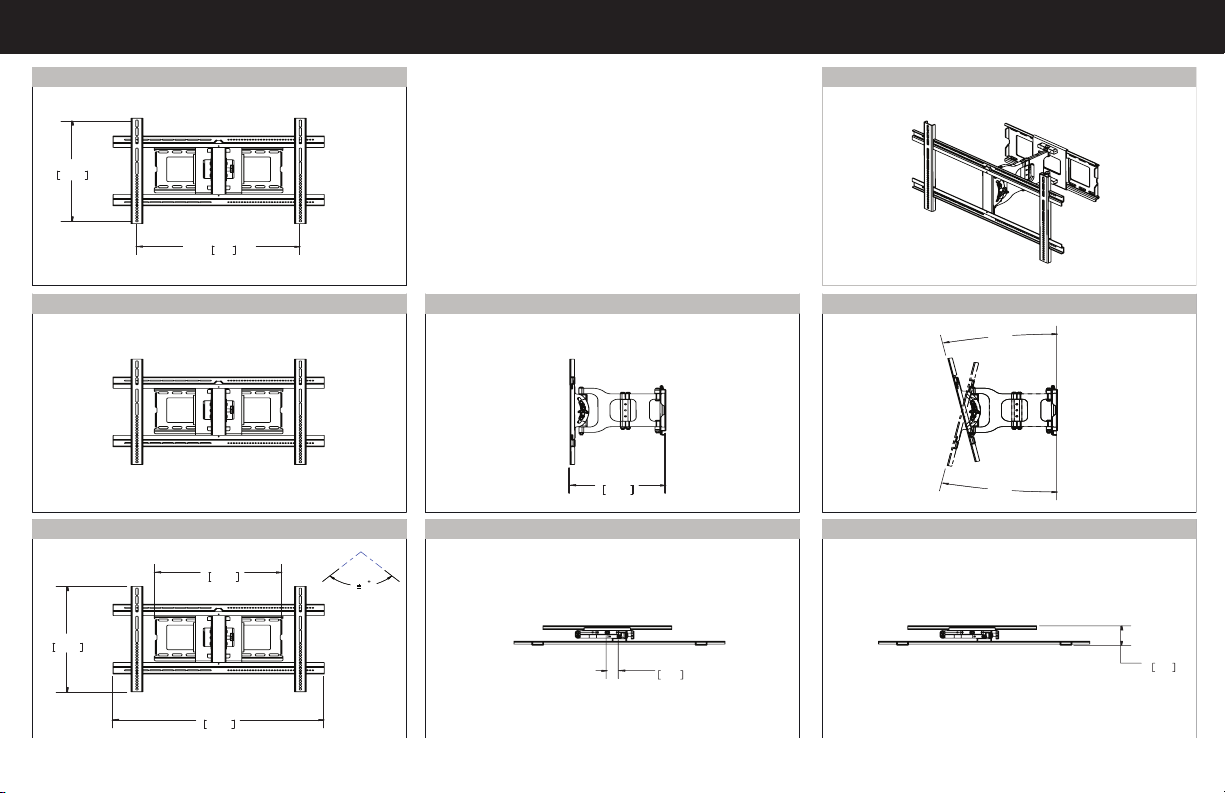

Dimensions in. [mm]

19.69

500.0

30.51

775.0

18.33

465.6

18.70

475.0

UP TO

23.62

710

13.88

352.4

12°

11°

1.75

44.5

OFFSET

3.66

93.1

TV INTERFACE

WALL PLATE

FULLY ASSEMBLED MOUNT

TOP VIEW - EXTENDED

TOP VIEW - RETRACTED

SIDE VIEW - EXTENDED

SIDE VIEW - RETRACTED

3-D

L/R TV Interface Brackets

01 x1 02 x1

Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

Parts and Hardware for STEP 1

NOTE: Not all hardware included will be used.

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M4/M5 M6/M8

M4 x 12mm

M8 x 16mm

M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

TV Screws

Washers

M4/M5 WASHER

Qty 4

M6/M8 WASHER

Qty 4

SPACER

Qty 4

M4 x 12mm SCREW

Qty 4

M8 x 20mm SCREW

Qty 4

M4 x 35mm SCREW

Qty 4

M5 x 12mm SCREW

Qty 4

M5 x 35mm SCREW

Qty 4

M8 x 35mm SCREW

Qty 4

M6 x 12mm SCREW

Qty 4 M6 x 35mm SCREW

Qty 4

M4/M5 M6/M8

M4 x 12mm

M8 x 16mm

M4 x 35mm

M8 x 35mm

M6 x 20mm

M6 x 12mm

M6 x 35mm

1/4 x 2 ½ in.

M4/M5 WASHER

Qty 4

M6/M8 WASHER

Qty 4

SPACER

Qty 4

M4 x 12mm SCREW

Qty 4

M8 x 20mm SCREW

Qty 4

M4 x 35mm SCREW

Qty 4

M5 x 12mm SCREW

Qty 4

M5 x 35mm SCREW

Qty 4

M8 x 35mm SCREW

Qty 4

M6 x 12mm SCREW

Qty 4 M6 x 35mm SCREW

Qty 4

M4/M5

M6/M8

M4 x 12mm

M8 x 16mm

M4 x 35mm

M8 x 35mm

M6 x 20mm

M6 x 12mm

M6 x 35mm

1/4 x 2 ½ in.

11 12

x4 x4

Spacers

M4/M5 WASHER

Qty 4

M6/M8 WASHER

Qty 4

SPACER

Qty 4

M4 x 12mm SCREW

Qty 4

M8 x 20mm SCREW

Qty 4

M4 x 35mm SCREW

Qty 4

M5 x 12mm SCREW

Qty 4

M5 x 35mm SCREW

Qty 4

M8 x 35mm SCREW

Qty 4

M6 x 12mm SCREW

Qty 4 M6 x 35mm SCREW

Qty 4

M4 M6/M8

M4 x 12mm

M8 x 16mm

M4 x 35mm

M8 x 35mm

M6 x 20mm

M6 x 12mm

M6 x 35mm

1/4 x 2 ½ in.

13 x4

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

M4/M5 M6/M8

M4 x 12mm M8 x 16mm

M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

M6 x 20mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

7/32 in.

8-32 in.

3/16 in.

8-32 x ⁄ in 8-32 x ⁄ in

5/16 -18 x 1 in.

Horizontal TV Interface Brackets

14 15

x1 x1

Parts and Hardware for STEP 2

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄

in.

Wall Plate Lag Bolts

Washers

19 x4

M4/M5 M6/M8

M4 x 12mm M8 x 16mm M8 x 20mm

M4 x 35mm

M8 x 35mm

M6 x 12mm

M6 x 35mm

⁄ x2 ⁄ in.

M5 x 12mm

M5 x 35mm

⁄ in.

18 x4

Horizontal Bracket Interface Screws

5/32 in.

8-32 in.

3/16 in.

8-32 x ⁄ in

8-32 x ⁄ in

8-32 x ⁄ in

16 x4

Parts and Hardware for STEP 1 Continued

002750.eps

F170 parts

002750.eps

F170 parts

002750.eps

F170 parts

Parts and Hardware for STEP 3

Additional Hardware

Washer

23 x1

21 x2 x1

5/32 in.

8-32 in.

3/16 in.

8-32 x ⁄ in 8-32 x ⁄ in

8-32 x ⁄ in

002980.eps

6801-002082 hardware bag

002980.eps

6801-002082 hardware bag

2726

x1x5

3/16 in. Hex Key

7/32 in. Hex Key

5/32 in.

8-32 in.

3/16 in.

8-32 x ⁄ in 8-32 x ⁄ in

8-32 x ⁄ in

7/32 in.

8-32 in.

3/16 in.

8-32 x ⁄ in 8-32 x ⁄ in

5/16 -18 x 1 in.

7/32 in.

8-32 in.

3/16 in.

8-32 x ⁄ in 8-32 x ⁄ in

5/16 -18 x 1 in.

Cable Tie Holders Cable Ties

7/32 in.

8-32 in.

3/16 in.

8-32 x ⁄ in 8-32 x ⁄ in

5/16 -18 x 1 in.

Wall Plate Screws Locking Screw

Arm Assembly

7/32 in.

8-32 in.

3/16 in.

8-32 x ⁄ in 8-32 x ⁄ in

5/16 -18 x 1 in.

STEP 1 Attach Brackets to TV

FLAT BACK ROUND BACK CABLESINSET HOLES

1-1 Select TV

Screw Diameter

1-2 Select TV

Screw Length

Hand thread screws into the threaded inserts

on the back of your TV to determine which

screw diameter (M5, M6, or M8) to use.

If your TV has a flat back AND you want your TV closer to

the wall, use the shorter screws (a).

Use the spacers and longer screws (b) to accommodate:

●Round/irregular back TVs

●TVs with inset mounting holes

●Extra space needed for cables

Too Short

Too Long

CAUTION:

Verify adequate thread

engagement with the screw or

screw/spacer combination.

- Too short will not hold the TV.

- Too long will damage the TV.

Correct

Standard configurations

are shown. For special

applications, or if you

are uncertain about your

hardware selection,

contact Customer Service

at 1-800-359-5520.

M6M5 M8

1-3 Attach L/R TV Interface Brackets

Ensure that your brackets are centered and level on the back of the TV. Secure brackets using your screw/washer (Flat Back) or screw/washer/

spacer (Round Back / Extra Space) selection.

a Flat Back

b Round Back / Extra Space

002724.eps

F115

002724.eps

F115

03 04

1-4 Attach Horizontal TV Interface Brackets

Ensure horizontal brackets 14 15 are centered and screws 16 are securely fastened.

01 01

02 02

15 15

STEP 2 Attach Wall Plate to Wall Wood Stud

CAUTION: Avoid potential personal injuries and property damage!

●Drywall covering the wall must not exceed 5/8 in. (16 mm)

●Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

●Minimum horizontal space between fasteners: 16 in. (406 mm)

1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.

2. Level the wall plate 17 and mark your hole locations.

Max. 5/8 in.

(16 mm)

16 in.

(406 mm)
