Sanus SA405 Manuel utilisateur

SA405

INSTRUCTION MANUAL

If you have any questions along the way, just give us a call:

1-800-359-5520 We’re ready to help!

We’ll Make It Stress-Free

Please verify the following items:

Your TV, soundbar, soundbar mount, and any accessories you

plan to install DO NOT EXCEED the speciﬁed weight limit of

your TV wall mount.

You read and understand these directions.

You refer to the documentation that came with your sound bar,

your TV and your TV wall mount for additional guidance.

You have the tools needed for installation.

You CAN NOT use this product if your TV mount’s interface bracket:

includes built-in/integrated spacers (see Figure 1), or

the mounting holes/slots are greater than 11mm [.43 in.] (see Figure 2).

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Before You Begin

Figure 2

Figure 1

WARNING:

• This soundbar mount is only designed for use with TV wall mounts that meet third party

safety certiﬁcations.

• This soundbar mount is ONLY designed to mount BELOW the television (see Figure 3).

• This soundbar mount is designed to be installed and utilized only as speciﬁed in this manual.

The manufacturer is not responsible for improper assembly, use, or handling of this product.

• Your wall must be capable of supporting ﬁve times the weight of your TV, TV mount, and

soundbar combined.

• Failure to follow these instructions could result in an unstable situation that may result

in property damage or personal injury.

Soundbar

Figure 3

If you have any questions,

please contact

Customer Service:

1-800-359-5520

Weight Restrictions

Weight Limit for SA405

Weight Limit for Your TV Mount

DO NOT EXCEED 15 lbs. (6.8 kg)

for this Soundbar Mount

15 lbs.

(6.8 kg)

CAUTION: Avoid potential personal injuries and property damage!

The weight of your TV, PLUS this soundbar mount, your soundbar, and any accessories, MUST BE LOWER

than the maximum weight rating of your TV mount. See your TV mount's manual for maximum weight allowed.

2 lbs.

(0.9 kg)

__ kg

(__ lbs.)

__ kg

(__ lbs.)

__ kg

(__ lbs.)

(plus) (plus) (plus) (equals)

Soundbar

Mount ANY Other

Accessories

Your

Soundbar Your TV

TOTAL

WEIGHT

Maximum for

Your TV Mount

3rd Party Certiﬁed

TV Wall Mount *

*Your TV wall mount may vary from the

illustrations throughout this manual —

note that the procedure to install the

soundbar is the same.

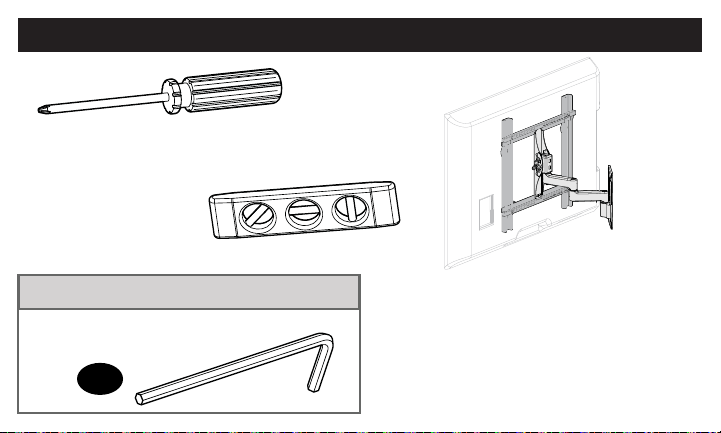

Items Needed

Included in this Kit

Phillips Screwdriver

Level

3/16 in. Hex Key

NOTE: Not all hardware included will be used.

WARNING:

This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged,

do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

Parts and Hardware for STEP 1

01 x 2 x 2

x 2

Soundbar

Bracket

Fender

Washer

Keyhole

Screw

Keyhole Screw

Knob

Supplied Parts and Hardware

x 2

Parts and Hardware for STEP 1 & STEP 3

M4/M5

06 x 4

M4/M5

08 x 4

M6/M8

07 x 8

M6/M8

09 x 4

Mount Spacer

Washer

Large

Washer

Large

Washer

Parts and Hardware for STEP 1 & STEP 3 (continued)

M8 x 20mm

14 x 4

M6 x 25mm

13 x 4

M6 x 16mm

12 x 6

M5 x 16mm

11 x 4

M4 x 16mm

10 x 4

M8 x 40mm

19 x 4

M6 x 50mm

18 x 4

22mm

20 x 4

M6 x 40mm

17 x 4

M5 x 40mm

16 x 4

M4 x 40mm

15 x 4

TV Spacers

Secure the Brackets onto Your Sound Bar

STEP 1

Look at the mounting holes on the

back of your soundbar to determine

your install method A, B or C.

OPTION A: Rivets with a manufacturer’s

supplied hanger bracket

OPTION B: Key hole slots

OPTION C: Threaded inserts
