Sanus F180c Manuel utilisateur

F180c INSTRUCTION MANUAL

Scan for easy install video

san.us/868

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-888-333-9952. We’re ready to help!

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let’s make sure this mount is perfect for you!

—

Perfect!

Yes

—

This mount is NOT compatible. Visit vuepoint.sanus.com or call

1-888-333-9952 to ﬁnd a compatible mount.

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use

of this product, contact Customer Service at 1-888-333-9952.

Do you have

all the tools

needed?

What is your

wall made of?

100 lbs.

(45.4 kg)

Ready to begin?

Does your TV

(including accessories)

weigh more than

100 lbs. (45.4 kg)?

CAUTION:

DO NOT install

into drywall alone

Unsure?

Drywall with

wood studs? Solid concrete or

concrete block?

Call Customer Service:

1-888-333-9952

Perfect! Perfect!

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Wood Stud Install

Concrete Install

Awl

Pencil Level Stud Finder

Screwdriver

Tape

Measure

7/32 in.

(5.5 mm)

Wood

Drill Bit

Electric

Drill Hammer

1/2 in.

(13 mm)

Socket

Wrench Drill Bit

3/8 in.

(10 mm)

Concrete

Texto en español, página 22

Svensk text sida 46

Texte français page 28

日本語は52ページ

Deutscher Text Seiten 34

中文文字说明请参见第 58 页

Nederlandse tekst op pagina 40

Русский текст: стр. 64

15.75

400.0

2.95

75.0

3.94

100.0

23.62

600.0

7.87

200.0

2.95

75.0

3.94

100.0

7.87

200.0

15.75

400.0

11.81

300.0

11.81

300.0

12.00

304.9

12°

11°

2.85

72.4

15.00

381.0

0.38

9.7

OFFSET

3.00 76.1

OFFSET

6.50

165.1

18.00

457.2

8.80

223.5

Dimensions in. [mm]

NOTE: TV shifts 3 in. (76.1 mm) to the right or left when in the home posi-

tion. Consider this when selecting the location of your wall mount.

M5 x 12mm

M6 x 12mm M6 x 35mm

M5 x 35mm

M8 x 16mm

M8 x 12mm

M8 x 35mm

M8 x 20mm

M6 x 25mm

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to

your dealer; contact Customer Service. Never use damaged parts!

Supplied Parts and Hardware

STEP 1 Parts and Hardware

TV Bracket

TV Screws

Washers Spacers

TV Bracket

Extenders

Interface Screws (TV Bracket)

03 x8

04 x4 05 x4

06 x4

07 x4 12 x4

08 x4 10 x4 13 x4

09 x4 11 x4 14 x4

01 x1 02 x4

.695 x .350 x.075 in. Fischer UX 10 x 60R Anchor

5/16 x 2¾ in.

WELCOME AND THANKS FOR CHOOSING SANUS DECORA

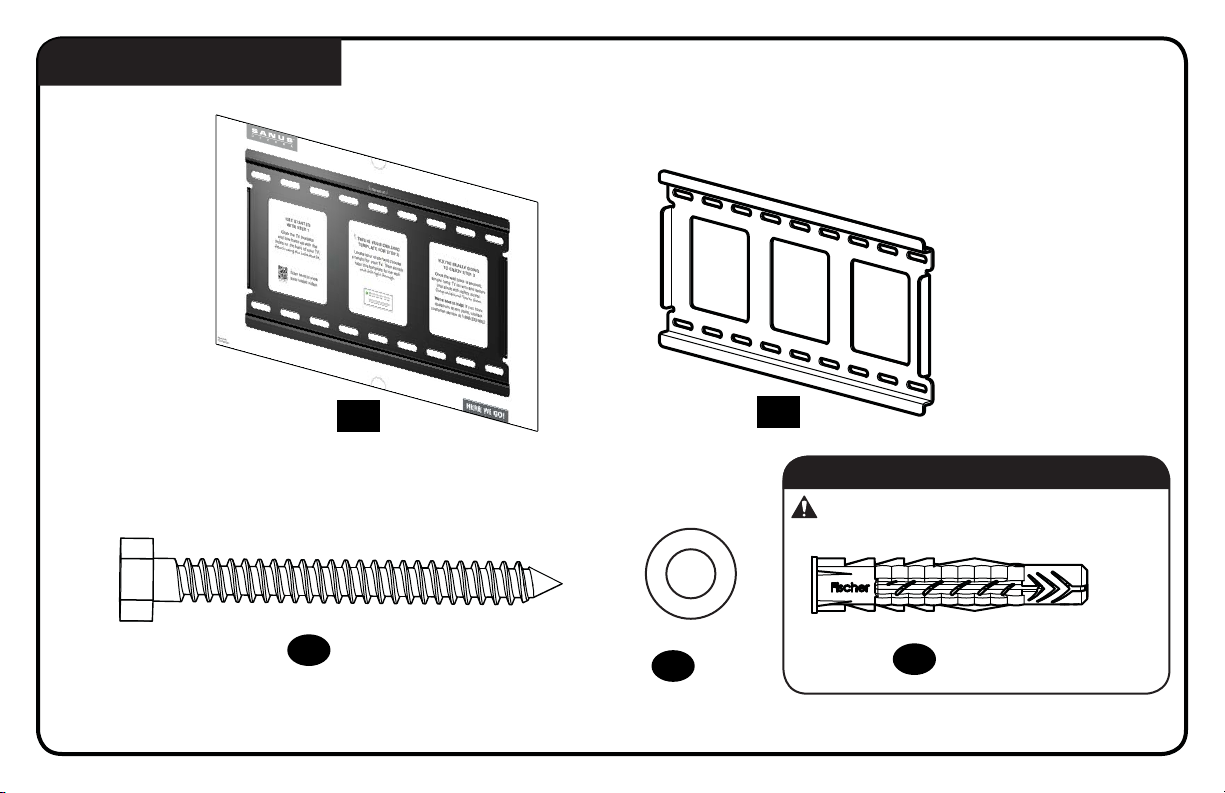

STEP 2 Parts and Hardware

Concrete Anchors

For concrete installations ONLY

CAUTION: Do not use in drywall or wood

Wall Plate

Wall Plate Template

Lag Bolts Lag Bolt Washers

17 x4 18 x4 19 x4

15 x1 16 x1

1/4-20 x 3/4 in.

10-24 x 1 in.

STEP 3 Parts and Hardware

Additional Hardware

Locking Screw

Wall plate screw

Arm Assembly

Cable Ties

21 x2

22 x1

20 x1

23 x5

STEP 1 Attach TV Bracket to TV

1.1 Measure Your TV Hole Pattern

inches

inch dimensions are approximate

Measure the width and height of your TV hole pattern in cm.

Record your measurements:

Width__________cm x Height ________ cm

75 mm =7.5 cm ≈ 3 in.

100 mm = 10 cm ≈ 4 in.

200 mm = 20 cm ≈ 7 7/8 in.

300 mm = 30 cm ≈ 11 3/4 in.

400 mm = 40 cm ≈ 15 3/4 in.

600 mm = 60 cm ≈ 23 5/8 in.

1.2 Assemble Your TV Bracket

Based on your TV hole pattern measurements

from STEP 1.1 (Wcm x Hcm), determine your

TV bracket configuration: A, B, C, D, E or F.

7.87

[20.0]

15.75

[40.0] 15.75

[40.0]

11.81

[30.0]

15.75

[40.0]

2.95

[7.5]

in.

[cm]

in.

[cm] in.

[cm]

30.0 x 30.0 cm

40.0 x 40.0 cm 40.0 x 30.0 cm

B C

These smaller hole patterns only use TV

bracket 01 . Do not use the four TV bracket

extenders 02 and eight screws 03 .

7.5 x 7.5 cm

10.0 x 10.0 cm

20.0 X 20.0 cm

2.95

[7.5]

3.94

[10.0]

7.87

[20.0]

3.94

[10.0]

Assemble TV bracket extenders 02 onto

TV bracket 01 and secure using eight

screws 03 in the corner holes indicated.

Assemble TV bracket extenders 02 onto

TV bracket 01 and secure using eight

screws 03 in the corner holes indicated.

0202

11.81

[30.0]

11.81

[30.0]

in.

[cm] in.

[cm]

60.0 x 40.0 cm

40.0 x 20.0 cm 20.0 x 40.0 cm

E F

03 03

15.75

[40.0]

15.75

[40.0]

7.87

[20.0]

23.62

[60.0]

15.75

[40.0]

7.87

[20.0]

Assemble TV bracket extenders 02 onto

TV bracket 01 and secure using eight

screws 03 in the corner holes indicated.

Assemble TV bracket extenders 02 onto

TV bracket 01 and secure using eight

screws 03 in the corner holes indicated.

Assemble TV bracket extenders 02 onto

TV bracket 01 and secure using eight

screws 03 in the corner holes indicated.

0202

M5 M6 M8

1.3 Select TV Screw Diameter 1.4 Select TV Screw Length

Hand thread screws into the threaded inserts

on the back of your TV to determine which

screw diameter (M5, M6, or M8) to use.

FLAT BACK ROUND BACK CABLESINSET HOLES

If your TV has a flat back AND you want your TV closer to the

wall, use the shorter screws.

Spacers and longer screws are supplied to accommodate:

●Round/irregular back TVs

●TVs with inset mounting holes

●Extra space needed for cables

Too Long

CAUTION:

Verify adequate thread

engagment with the screw or

screw/spacer combination.

-Too short will not hold the TV.

-Too long will damage the TV.

Too Short

Correct

Standard configurations

are shown. For special

applications, or if you

are uncertain about your

hardware selection, contact

Customer Service at

1-888-333-9952.
