VLT16 INSTRUCTION MANUAL

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520. We’re ready to help!

Scan for easy install video

http://san.us/675

Does your TV weigh more than 125 lb (56 kg) including accessories?

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

125 lb

(56 kg)

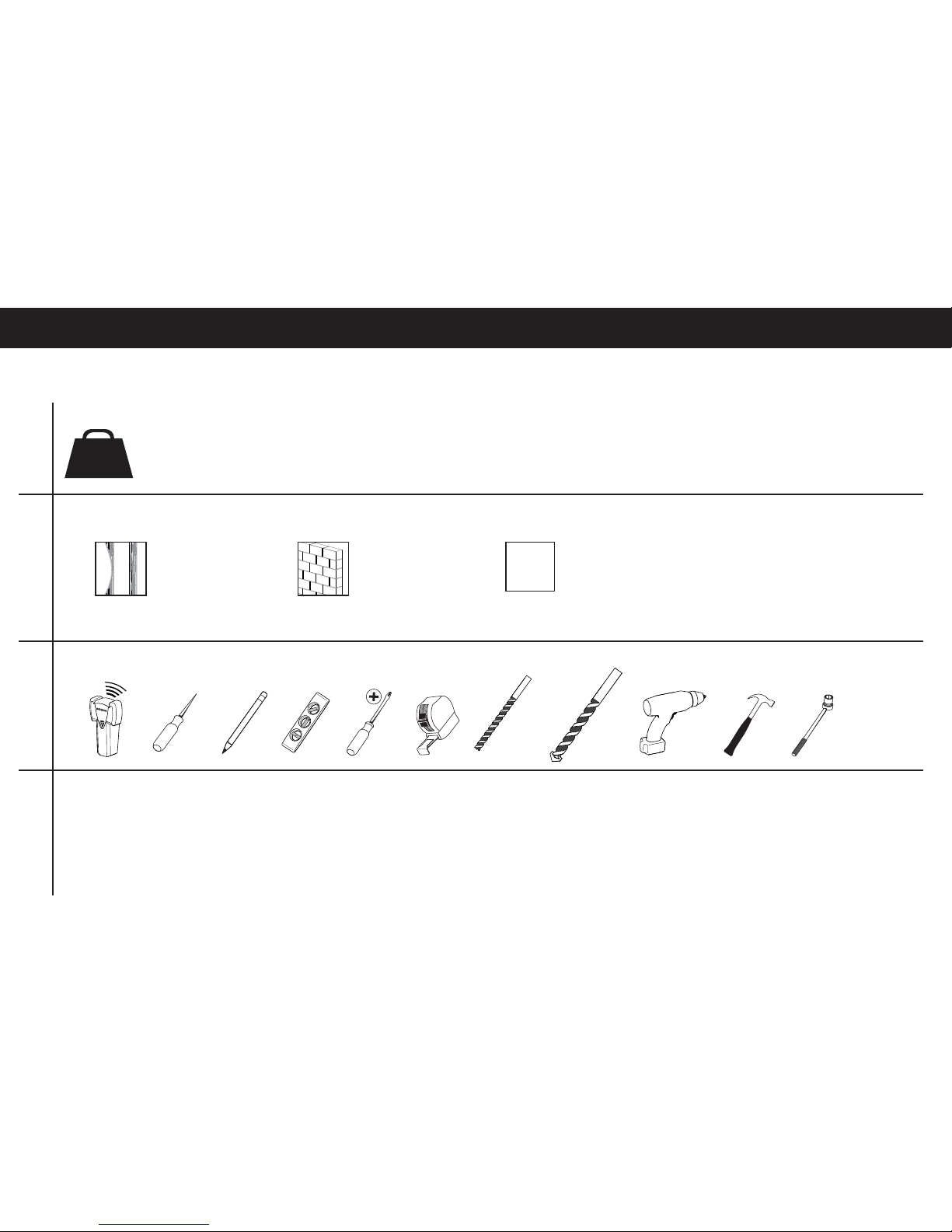

Do you have all of the tools needed?

Before getting started, let’s make sure this mount is perfect for you!

What is your wall made of?

Unsure?

Perfect! Perfect!

Drywall with

wood studs

Solid concrete or

concrete block

Ready to begin?

Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV

owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

Call 1-800-359-5520 (UK: 0800-056-2853)

7/32 in.

(5.5 mm)

Wood

3/8 in.

(10 mm)

Concrete

1/2 in.

(13 mm)

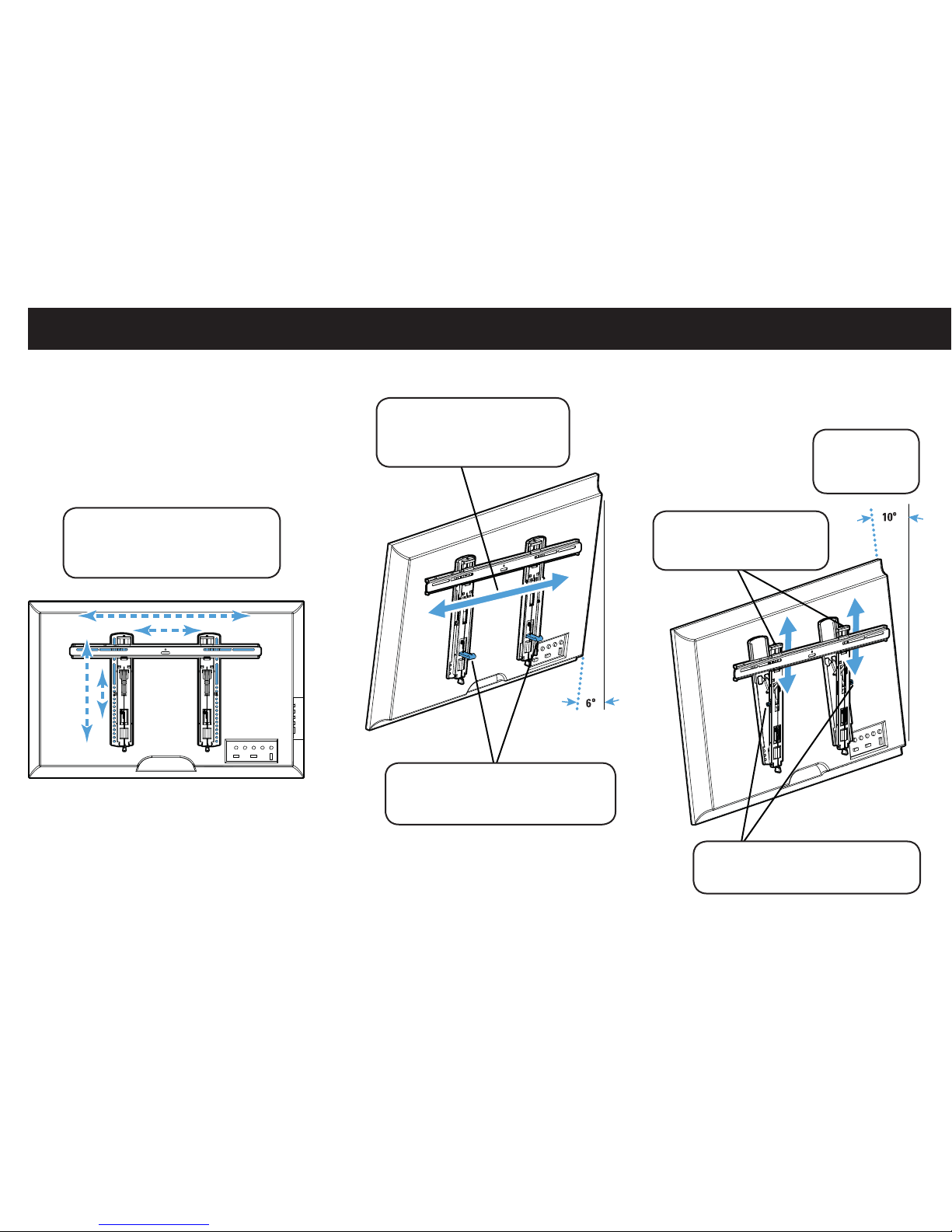

TV tilts for

the perfect

viewing angle

Adjustment knobs allow ﬁngertip

control or to restrict movement

Kick stands hold TV from wall to

create room to attach cables

Brackets adjust side to side

within the wall plate for

optimal positioning

Features

Level adjustments create

a worry-free installation

TV brackets designed to ﬁt TV

hole patterns from 200 x 200 mm

up to 750 x 400 mm

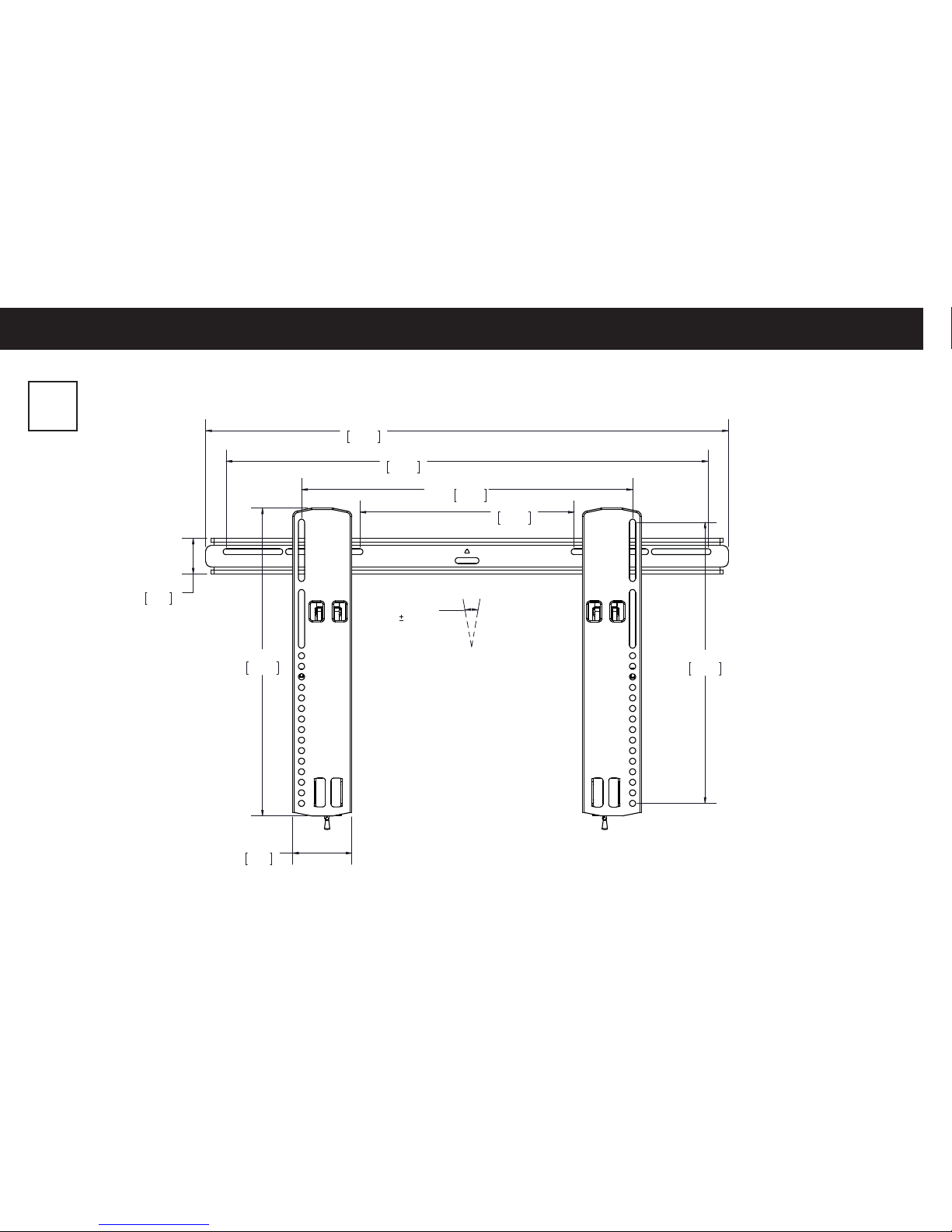

in.

[mm]

UP TO

29.53

750.0

3.31

84.0

29.28

743.8

27.00

685.8

12.00

304.8

15.75

400.0

2.00

50.8

17.25

438.1

LEVEL ADJUST

2°

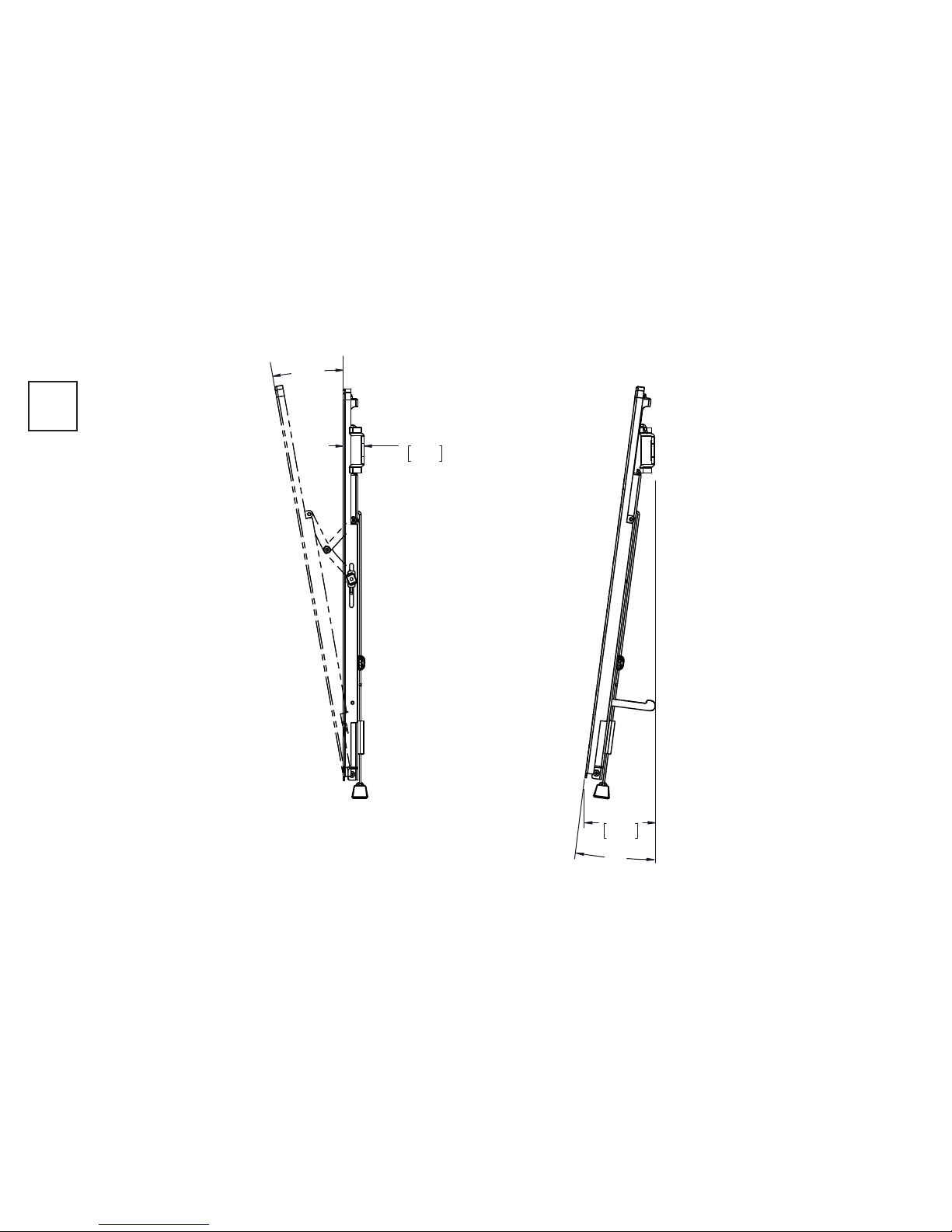

Dimensions

in.

[mm]

0.99

25.1

10°

6°

0.99

25.1

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to

your dealer; contact Customer Service. Never use damaged parts!

TV Bracket

STEP 1 Parts and Hardware

Supplied Parts and Hardware

M4 M6 / M8 Spacer

M8 x 35mm

M6 x 35mm

M6 x 12mm

M6 x 20mm

M4 x 35mm

M4 x 12mm

M8 x 16mm

M8 x 20mm

11 12 13

x4 x4 x4

x1 02

TV Screws

Washers

M4 M6/M8

Spacers

5/16 in.

5⁄16 in. x 2 3⁄4 in.

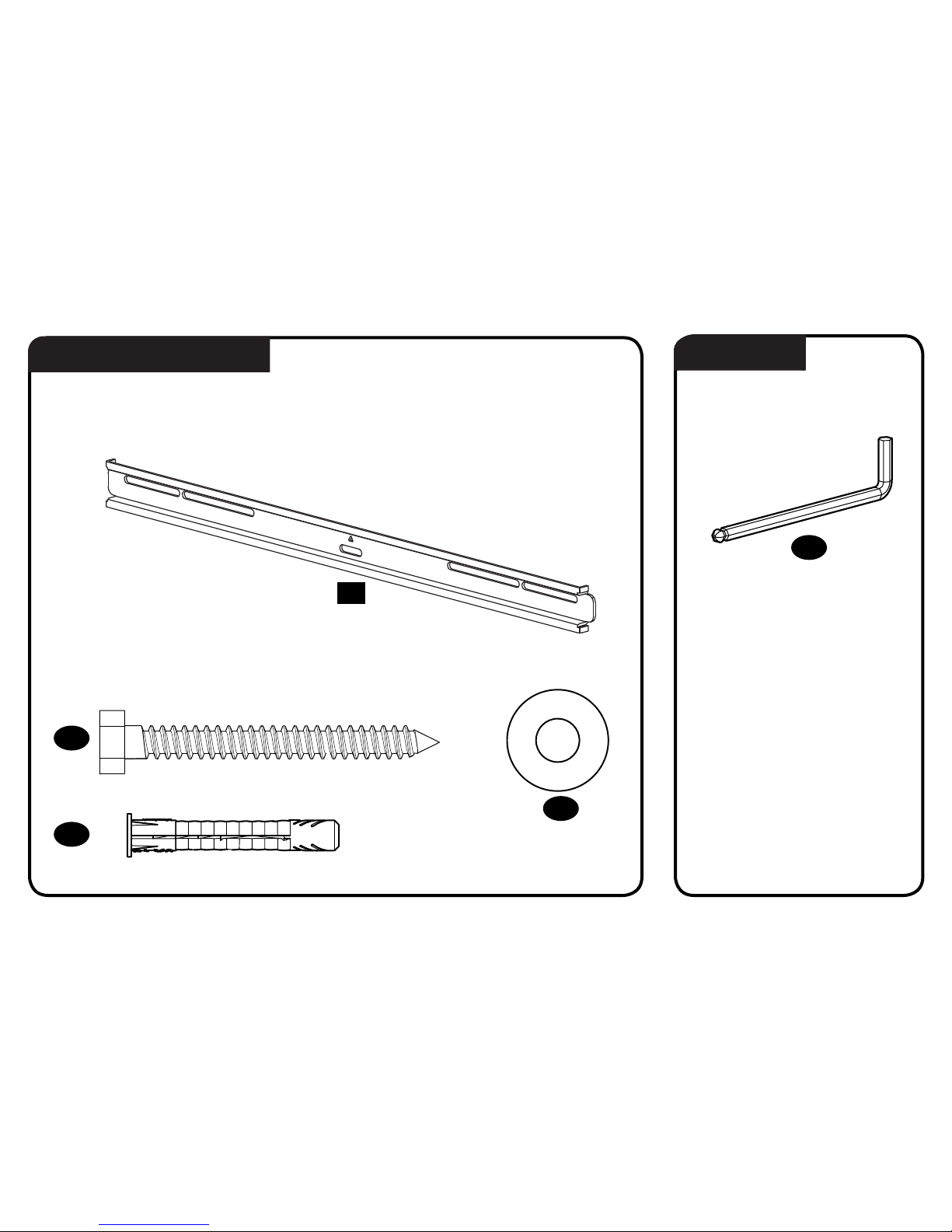

STEP 2 Parts and Hardware Adjustments

Washers

Wall Plate

Lag Bolts

Concrete Anchors

5/16 in.

Allen Key

M6 M8

FLAT BACK ROUND BACK CABLESINSET HOLES

1-1 Select TV

Screw Diameter

1-2 Select TV

Screw Length

If your TV has a flat back, use the shorter screws.

Spacers and longer screws are supplied to accommodate:

●irregular / round back TVs

●TVs with inset mounting holes

●extra space needed for cables

Hand thread screws into the threaded inserts

on the back of your TV to determine which

screw diameter (M4, M6, or M8) to use.

STEP 1 Attach Brackets to TV

Too Short

Correct

Too Long

CAUTION:

Verify adequate thread

engagment with the screw or

screw/spacer combination.

-Too short will not hold the TV.

-Too long will damage the TV.

bSpacer, long screw and washer

aShort screw and washer

1-3 Attach TV Brackets

Center the TV brackets 01 and 02 over your TV hole pattern as shown - making sure the brackets are level.

Install using either the short screw and washer or spacer, long screw and washer combination you selected for your TV.

04 05

CAUTION: Avoid potential personal injuries and property damage!

●Drywall covering the wall must not exceed 16 mm (5/8 in.)

●Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm (1 1/2 x 3 1/2 in.)

●Minimum horizontal space between fasteners: 406 mm (16 in.)

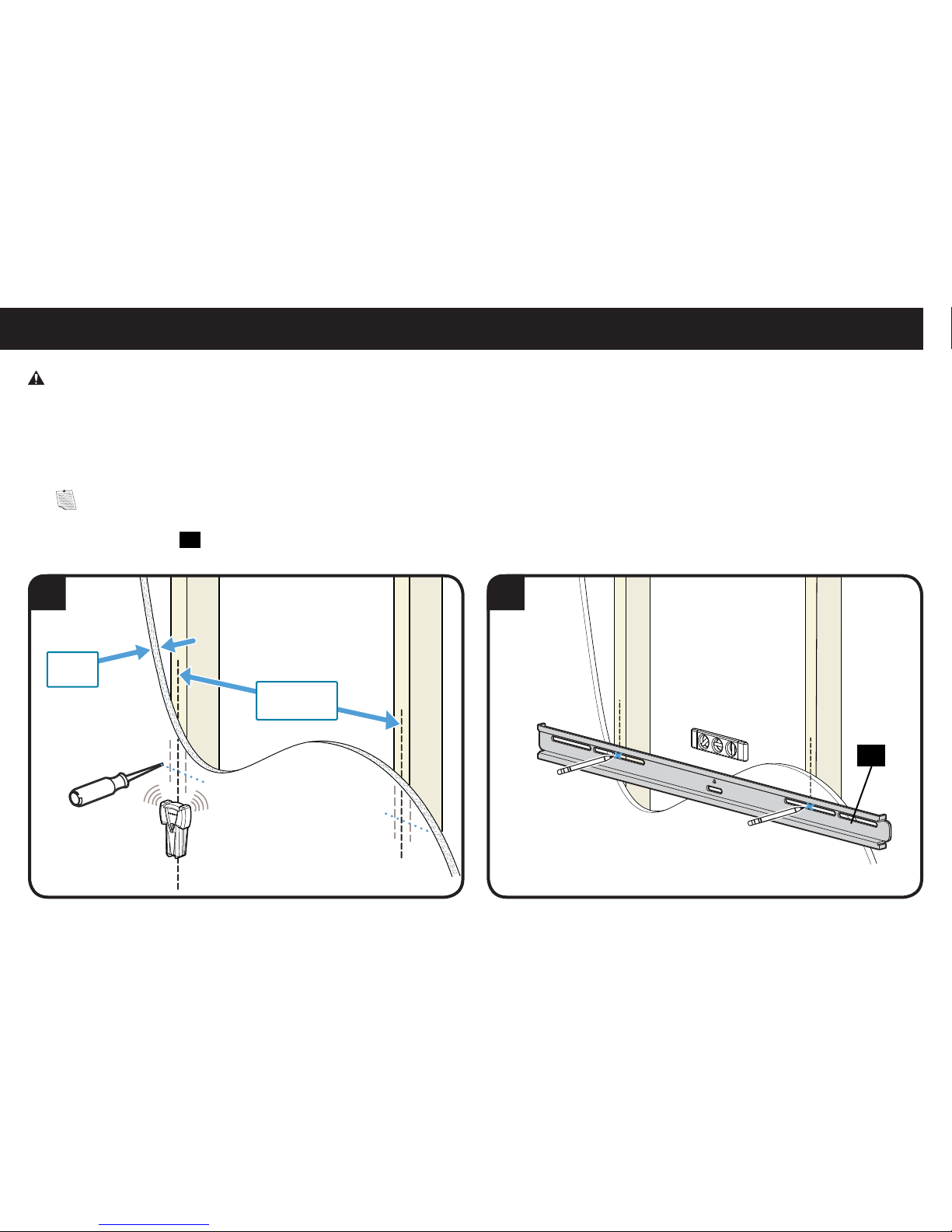

1. Locate studs. Verify the center of the stud(s) using an awl, a thin nail, or an edge to edge stud finder.

NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.

2. Level the wall plate 14 and mark the hole locations in the center of the studs.

STEP 2 Attach Wall Plate - Wood Stud Option

1 2

≤16 mm

(5/8 in.)

406-610 mm

(16-24 in.)
