SA808 INSTRUCTION MANUAL

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520. We’re ready to help!

Scan for more information

san.us/447

Will your accessories weigh more than 10 lb (4.5 kg)?

—

Perfect!

Yes

—

This product is NOT compatible. Visit Sanus.com or call 1-800-359-5520 [UK: 0800 056 2853] to ﬁnd a compatible product.

10 lb

(4.5 kg)

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Ready to begin?

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service at 1-800-359-5520 [UK: 0800 056 2853].

CAUTION: Avoid potential personal injuries and property damage!

ƕDo not use this product outdoors

ƕThis in-wall system is for use with ITE or Audio/Video equipment only

ƕThe maximum speciﬁed ambient temperature of the cabinet system is 40o - 120oF (4o - 49oC)

ƕDo not use this product for any purpose not explicitly speciﬁed by manufacturer

ƕManufacturer is not responsible for damage or injury caused by incorrect assembly or use

Do you have all of the tools needed?

Before getting started, let’s make sure this product is perfect for you!

What is your wall made of?

Unsure? Call 1-800-359-5520 [UK: 0800 056 2853]

Perfect!

Drywall with

wood studs ?

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item

to your dealer; contact Customer Service. Never use damaged parts!

Supplied Parts

Template

Housing

ECO-Mini Bracket

Cable Grommet

Elastic-Velcro Strap

STEP 1 Parts STEP 2 Parts STEP 3 Parts

1 2

≤ 16 mm

(5/8 in.)

STEP 1 Cut Hole for Housing

CAUTION: Avoid potential personal injuries and property damage!

ƕDrywall covering the wall must not exceed 16 mm (5/8 in.).

ƕBox must be mounted between studs that are at least 406 mm (16 in.) apart. After installation there will not be enough space between the

SA808 and the studs for electrical wires/cables, plumbing, ductwork, or insulation. Choose your SA808 location carefully.

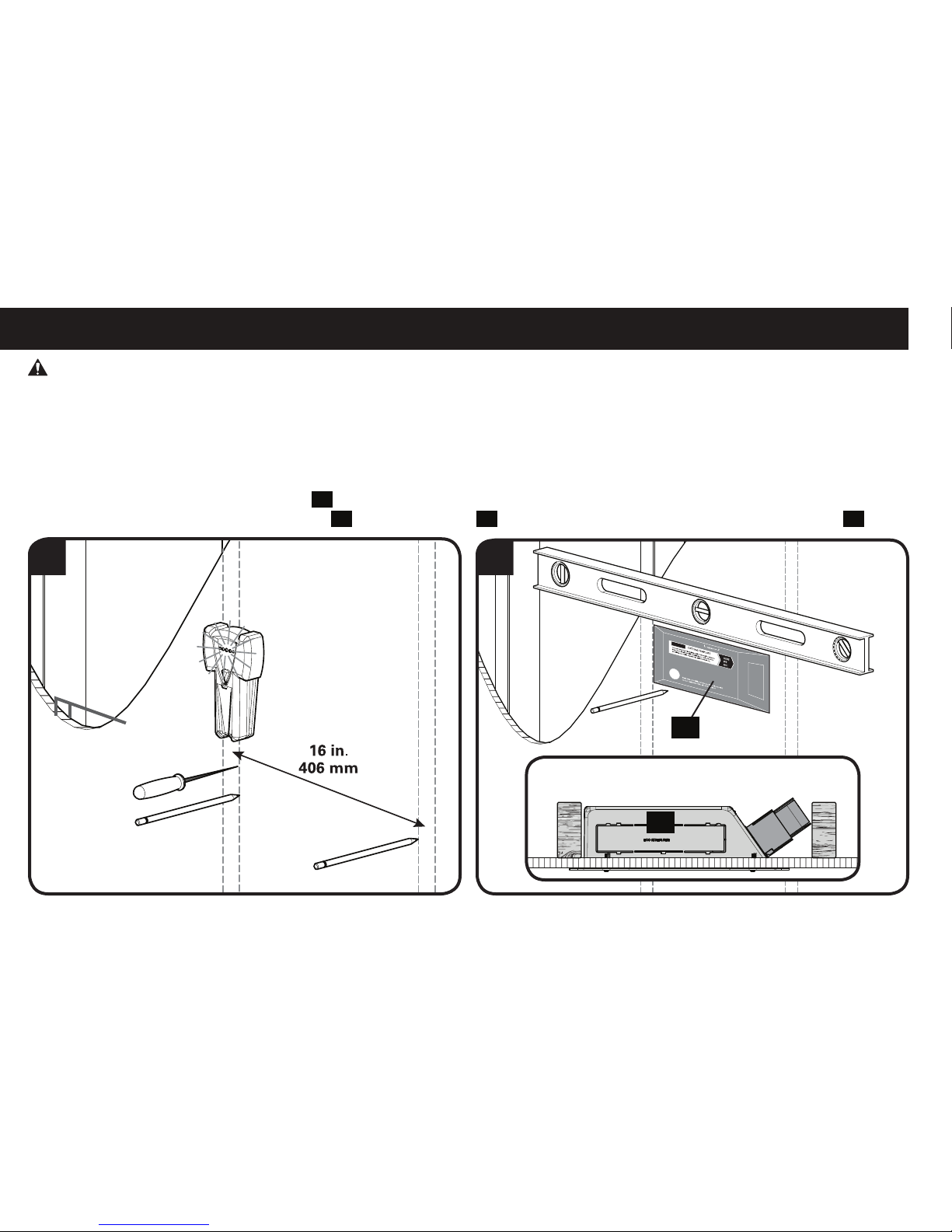

1. Locate the studs using an edge-to-edge stud finder. Verify the edges of the studs using an awl or thin nail. Mark the inner edges of the

studs with pencil.

2. The open area on the left of the template 01 should line up the the inner edge of the left stud. This will allow space for the placement of

a power box on the right side of the housing 02 . Level the template 01 and use a pencil to mark the open area of the template 01 .

Inside Wall - Top View

STEP 1 Cut Hole for Housing cont.

3 4

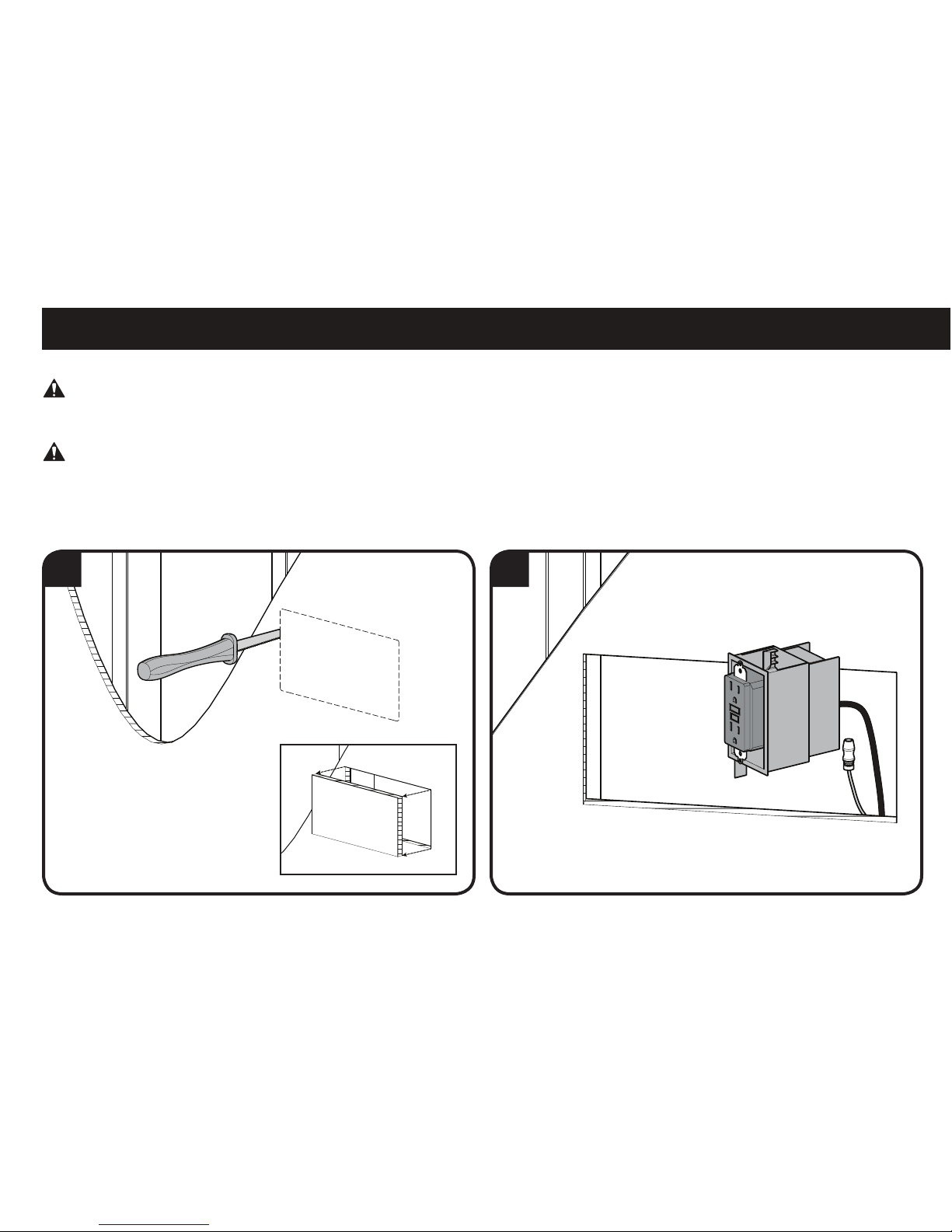

3. Use a drywall saw or similar tool to cut the drywall where marked. Remove cut section of drywall.

WARNING! ELECTRICAL SHOCK HAZARD! CUTTING OR DRILLING INTO ELECTRICAL WIRES OR CABLES CAN CAUSE DEATH OR

SERIOUS PERSONAL INJURY! Always make certain the area behind mounting surfaces is free of electrical wires and cables before cutting,

drilling, or installing fasteners.

WARNING! EXPLOSION AND FIRE HAZARD! CUTTING OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH OR SERIOUS

PERSONAL INJURY! Always make certain the area behind mounting surfaces is free of gas, water, waste, or any other plumbing before

cutting, drilling, or installing fasteners.

4. Install wires and cables.

1 2

STEP 2 Install Housing

1. Break out the sections of the housing 02 that are required to install the power and cable outlets that are needed.

NOTE: Knockouts are provided for ease of installation. Any unused knockouts that have been punched are to be closed up with a metal

plug.

2. Thread the elastic-velcro strap into the housing 02 .

3 4

View Behind the Wall

STEP 2 Install Housing cont.

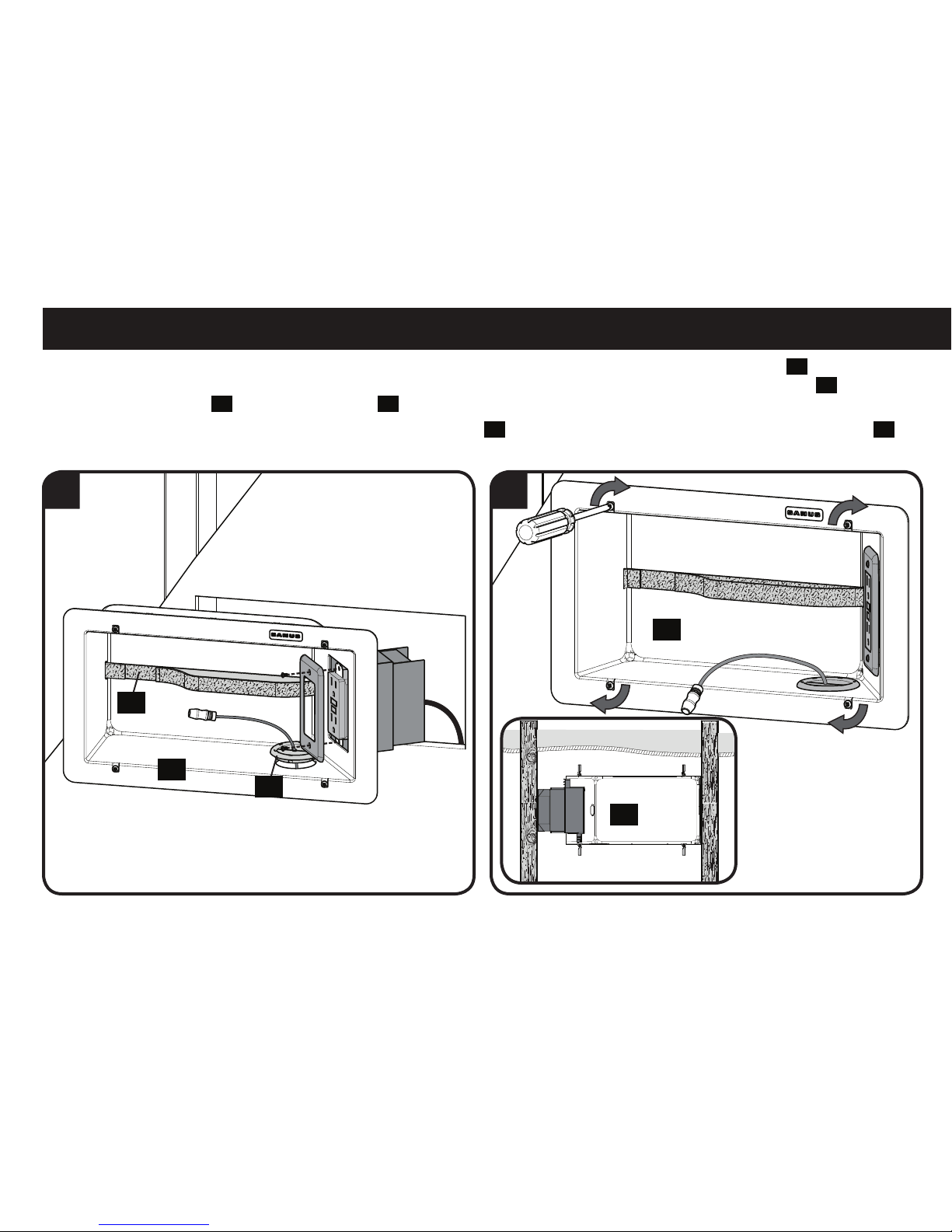

3. Optionally, install a UL Listed 120 VAC electrical outlet box (not included) capable of attaching to the SA808 housing 02 following the

instructions included with the outlet box. Slide cables and additional wires through the hole in the bottom of the housing 02 and the

rubber cable grommet 04 . Fit the cable grommet 04 into the hole.

4. Using a screwdriver, turn the screws in the corners of the housing 02 . These will raise the locking tabs in the rear of the housing 02 to

secure it to the wall. Tighten only until secure. Do not over-tighten screws.

ECO-Mini (purchased separately) with the SA808 - Optional

NOTE: Minimum spacings between the accessories and components and the housing for Information Technology Communication Equipment

shall be maintained for safe operation of the equipment when installed in accordance with the National Electric Code, ANSI/NFPA 70-1999.

Refer to communication equipment manufacturer’s specifications for minimum spacings.

1. To use the ECO-Mini (purchased separately) in the SA808, first remove feet.

2. Fit the ECO-Mini into the ECO-Mini bracket 05 supplied with the SA808.

STEP 3 Install Components

ECO-Mini (purchased separately) with the SA808 - Optional

STEP 3 Install Components cont.

3. Use two of the screws from the feet to secure the ECO-Mini in the bracket 05 .

4. Slide the ECO-Mini and bracket 05 into the top of the housing 02 . Lock the bracket 05 into the housing 02 by sliding it towards the

corner until you feel it catch.

STEP 3 Install Components cont.

5 6

5. Use the elastic-velcro strap 03 to attach components to the housing 02 .

6. Power the ECO-Mini with the power cord supplied with the ECO-Mini.
