INSTRUCTION MANUAL

FULL-MOTION

TV WALL MOUNT

150 lbs.

(68 kg)

IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service: U.S.: 800-359-5520 • EMEA: +31 (0) 495 580 852 •UK: 0800 056 2853

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.

—DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.

●This product is designed for INDOOR USE ONLY.

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined.

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

TV Weight Limit

(including accessories)

DO NOT EXCEED

If your TV (plus accessories) weighs MORE, this

mount is NOT compatible.

Visit SANUS.com or call customer service to ﬁnd a

compatible mount. U.S.: 800-359-5520

• EMEA: +31 (0) 495 580 852 •UK: 0800 056 2853

Texto en español, página 26 Deutscher Text Seiten 34 Svensk text sida 42

中文文字说明请参见第 50 页

Texte français page 30 Nederlandse tekst op pagina 38

Русский текст: стр. 54

日本語は46 ページ

Call Customer Service

U.S.: 800-359-5520

P: +31 (0) 495 580 852

UK: 0800 056 2853

Tools Needed

Wall

Construction

ONLY install on

these acceptable

wall types. Drywall alone will

NOT hold the weight

of your TV.

Unsure

Wood studs Solid concrete or

concrete block

ACCEPTABLE ACCEPTABLE

Wood Stud Install

Concrete Install

Awl

Pencil Level Tape

Stud

Finder

ScrewdriverTape

Measure

7/32 in.

(5.5 mm)

Wood

Drill Bit

Electric

Drill

Hammer

1/2 in.

(13 mm)

Socket

Wrench

Drill Bit

3/8 in.

(10 mm)

Concrete

CAUTION:

DO NOT install

in drywall alone

24.0in

611mm

35deg35deg

SIMULATED 90"

FLAT SCREEN TV

4deg

15deg

DOWN

3.5in

88mm

3.2in

81mm

8.7in

220mm

17.3in

440mm

21.6in

550mm

28.5in

724mm

5deg

ROLL

25.8in

655mm

13.7in

347mm

11.6in

294mm

24.0in

610mm

16.0in

406mm

15.7in

400mm

23.6in

600mm

15.7in

400mm

7.9in

200mm

3.0in

75mm

3.9in

100mm

7.9in

200mm

3.0in

75mm

3.9in

100mm

TV INTERFACE

WALL PLATE

TOP VIEW - EXTENDED

3-D

SIDE VIEW - EXTENDED

SIDE VIEW RETRACTED

TOP VIEW - RETRACTED

FULLY ASSEMBLED MOUNT

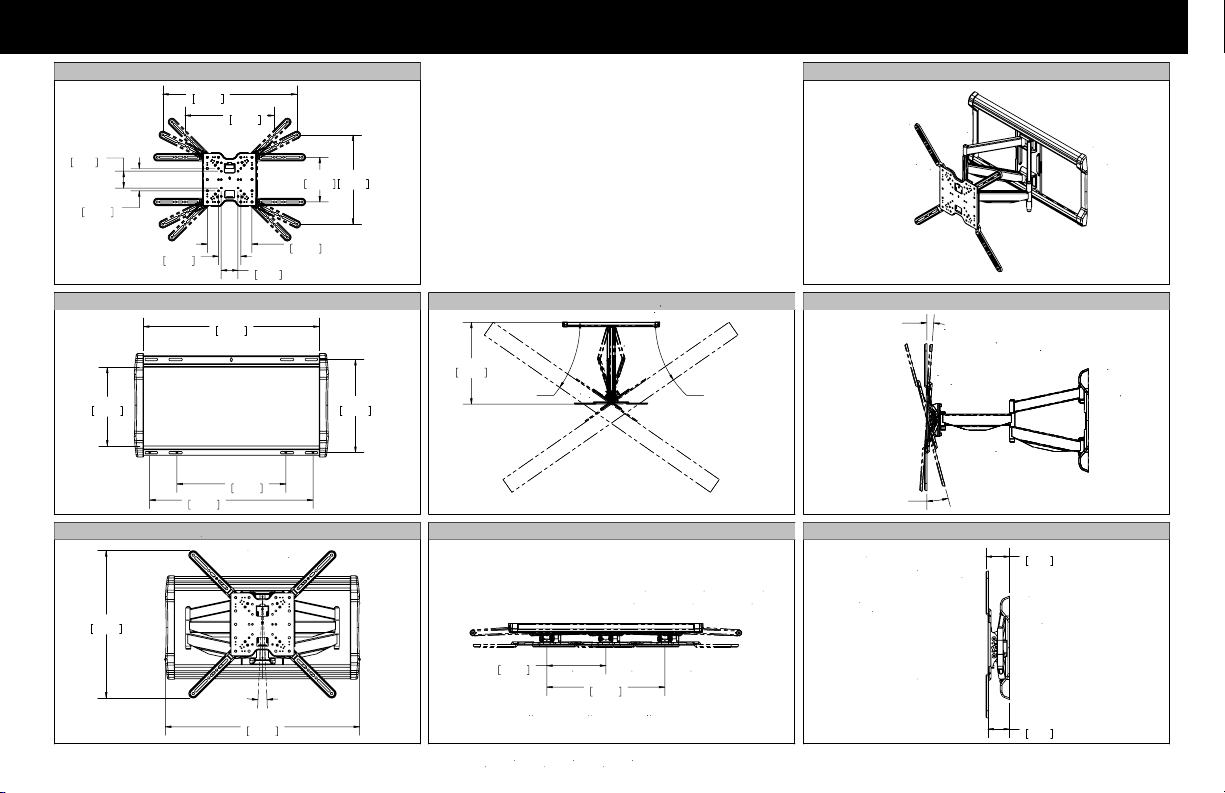

Dimensions

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are

included and undamaged. If any parts are missing or damaged, do not return the damaged item to Amazon; contact Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

STEP 1 Attach Bracket to TV

5/16 x 3 1/2 in.

M8 X 12 mm

5/16 in.

1/4 in.

1/4-20 x 3/8 in.

1/4-20 x 5/8 in.

3/16 in.

M6/M8

2.5mm

5mm

22mm

M8 x 50mm

M6 x 12mm

M6 x 35mmM6 x 20mm

M8 x 20mm M8 x 40mm

M8x30 mm

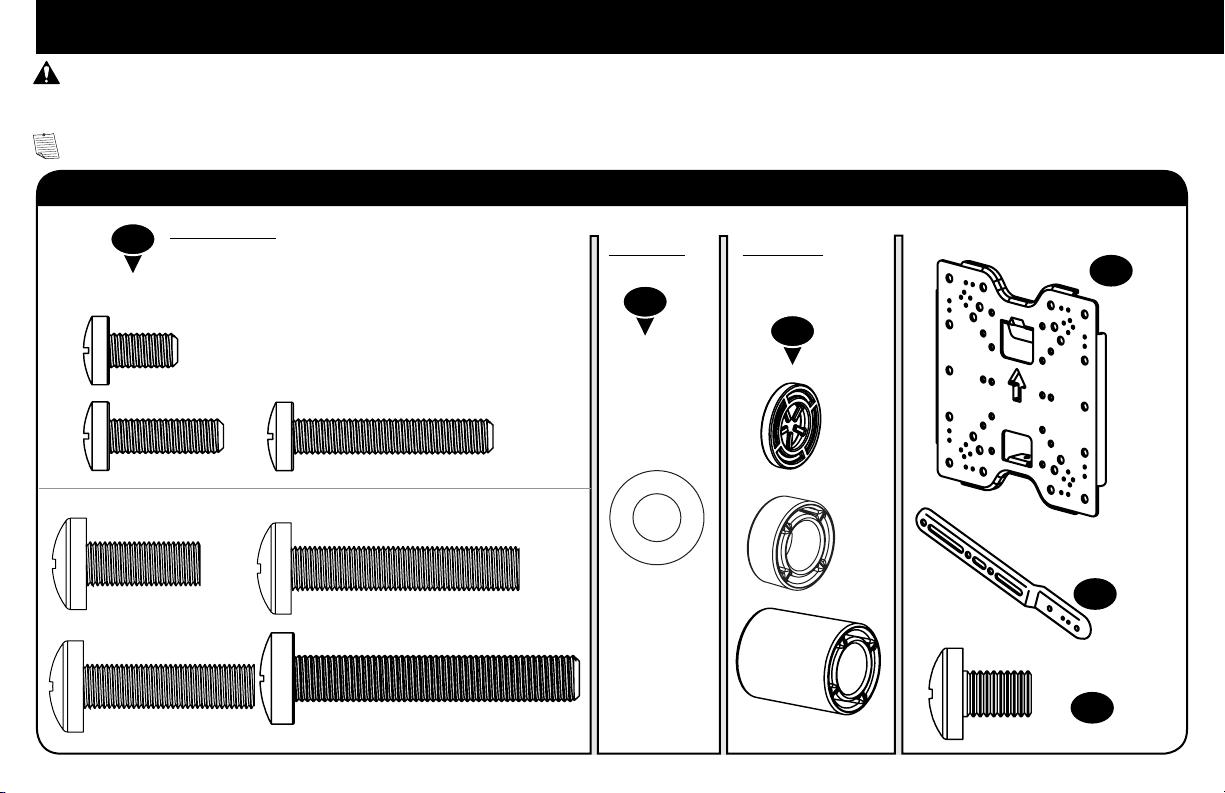

STEP 1 Parts and Hardware

TV Screws

(qty. 4 each)

[Only one size ﬁts your TV]

Washer

(qty. 4 each) Spacers

(qty. 4 each)

[If necessary]

04 qty. 1

qty. 8

05 qty. 4

TV Bracket

Extenders

Interface Screws

(TV Bracket)

1.1 Measure Your TV Hole Pattern

inch dimensions are approximate

75 mm =7.5 cm ≈ 3 in.

100 mm=10 cm ≈ 4 in.

200 mm=20 cm ≈ 7 7/8 in.

300 mm=30 cm ≈ 11 3/4 in.

400 mm=40 cm ≈ 15 3/4 in.

600 mm=60 cm ≈ 23 5/8 in.

Measure the width and height of your TV hole pattern in mm.

Record your measurements for STEP 1.2.

Width _____________ mm X Height _____________ mm

inches

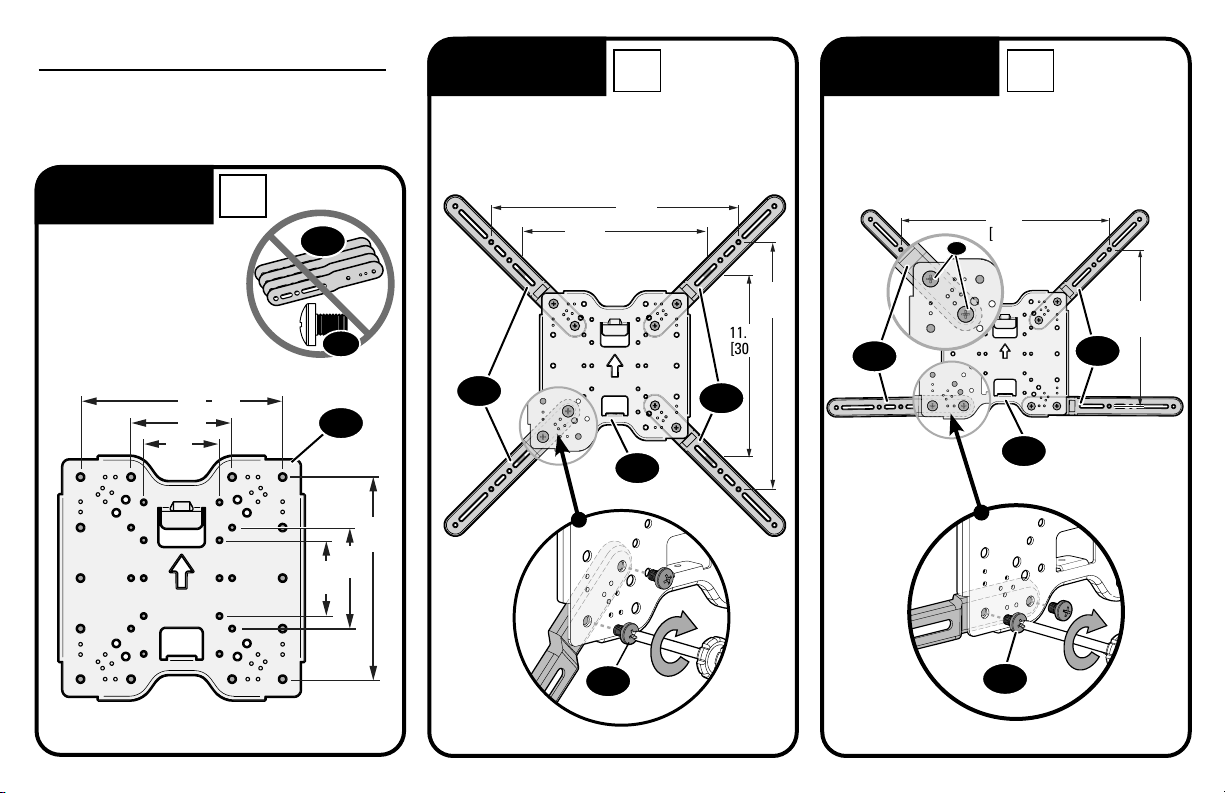

1.2 Assemble Your TV Bracket

Based on your TV hole pattern measurements

from STEP 1.1 (Wmm x Hmm), determine your

TV bracket configuration: A, B, C, D, E or F.

7.87

[200]

15.75

[400] 15.75

[400]

11.81

[300]

11.81

[300]

15.75

[400]

11.81

[300]

2.95

[75]

in.

[mm]

in.

[mm] in.

[mm]

300 x 300 mm

400 x 400 mm 400 x 300 mm

B C

75 x 75 mm

100 x 100 mm

200 X 200 mm

2.95

[75]

3.94

[100]

7.87

[200]

3.94

[100]

06 05

in.

[mm] in.

[mm]

600 x 400 mm

400 x 200 mm 200 x 400 mm

E F

06 06

15.75

[400]

15.75

[400]

7.87

[200]

23.62

[600]

15.75

[400]

7.87

[200]

05 05 05 05

04 04

1.3 TV

Screw Diameter

1.4 TV

Screw Length

Inset Holes Cables Rounded Back

Only one screw size ﬁts your TV.

M6 M8 • Flat Back TV

[TV brackets

lay ﬂat on your TV]

NO SPACER SPACER NEEDED

• Flat Back TV with

Extra Space Needed

[for deep inset holes

or cable interference]

• Rounded or

Irregular Back TV

[TV brackets NOT

resting ﬂat on your TV]

A B

Use short TV screws 01 .

Spacers 03 not needed. Use long TV screws 01 and spacers 03 to

create extra space between the TV and TV bracket.

CAUTION: Verify adequate thread engagement with your

screw 01 , washer 02 , spacer 03 combination AND TV bracket 04 or 05 .

—Too short will not hold your TV. —Too long will damage your TV.

Too Short

Too Long

Correct

Position your TV bracket configuration (A, B, C, D, E or F) onto your TV, making sure the bracket is both centered and level over your TV hole pattern.

IMPORTANT: The hanging tab Hon TV bracket 04 must be oriented toward the top of the TV.

Secure the TV bracket using your selection: Aor B.

CAUTION: Avoid potential personal injuries and property damage! DO NOT use a power screwdriver for this step.

IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.

1.5 Attach TV Bracket

TV Bracket Conﬁguration A

Illustrated (with spacers 18 )

TV Bracket Conﬁguration D

Illustrated (with spacers 03 )

HNO SPACER

SPACER NEEDED
