Sanus SAN10 Manuel utilisateur

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA • accents.sanus.com

Customer Service: 800-359-5520 • 651-484-7988 • inf[email protected]

All other brand names or marks are used for identiﬁcation purposes and are trademarks of their respective owners.

SAN10

(6904-100134 <01>)

Thank you for choosing the Sanus Accents SAN10.The SAN10 is designed to mount VESA 75x75, 100x100 and 200x100

LCD televisions weighing up to 50 pounds onto a vertical wall. It also allows up to ±15° of tilt.

Do not use this product for any purpose not explicitly specied by Sanus Systems. Improper assembly may cause

property damage or personal injury. If you do not understand these directions, or have doubts about the safety

of the assembly, contact Customer Service or call a qualied contractor. Sanus Systems is not responsible for

damage or injury caused by incorrect assembly or use.

CAUTION

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

This product is designed for use in wood stud walls only! The wall must be capable of supporting up to ve times

the weight of the monitor and mount combined. If you have any doubts about the ability of the wall to support

the monitor, contact Customer Service, or a qualied contractor.

CAUTION

6904-100134 <01>

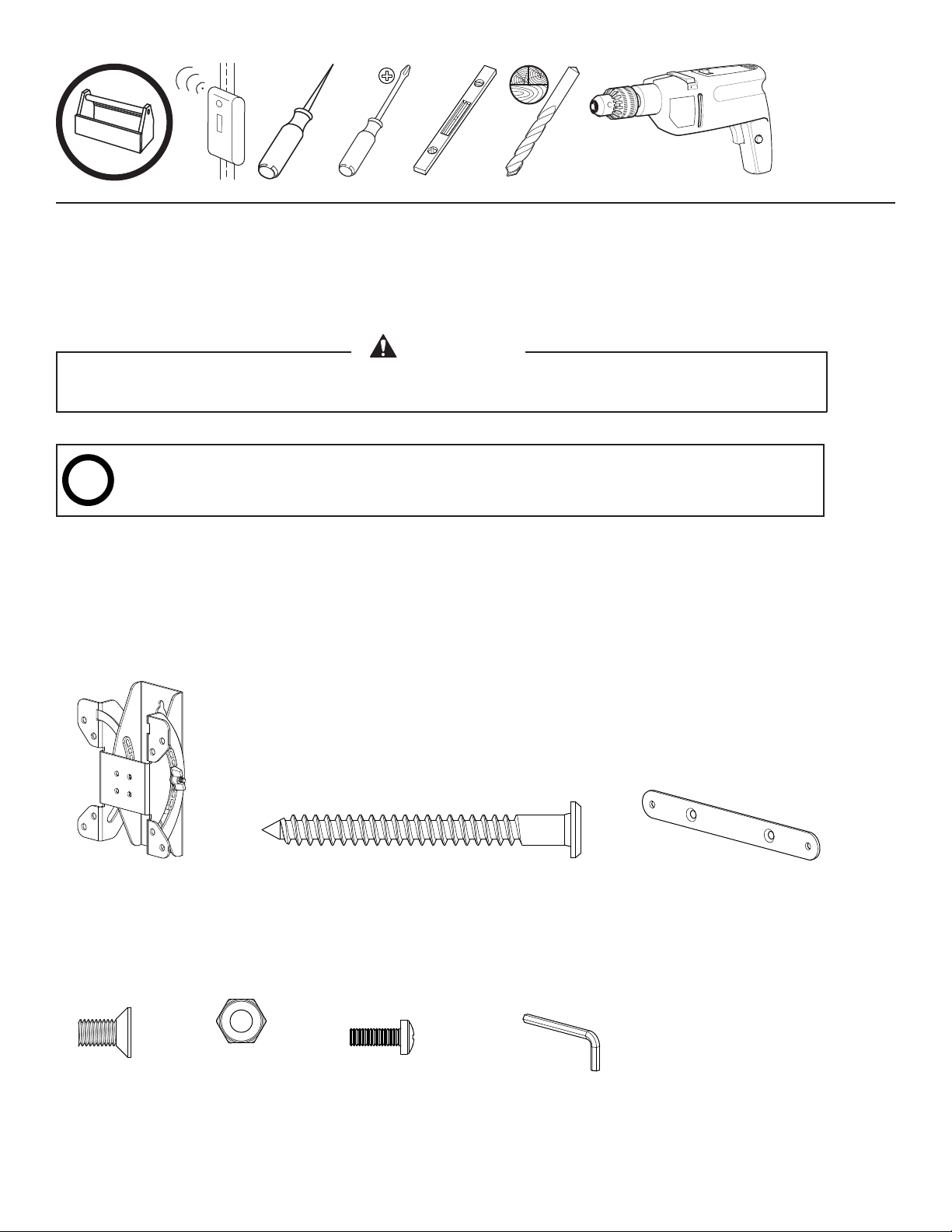

Supplied Parts and Hardware

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item

to your dealer; contact Customer Service. Never use damaged parts!

This product contains small items that could be a choking hazard if swallowed. Keep these items away

from young children!

WARNING

3/16 in.

[01] x 1 [02] x 2

[06] x 4 [07] x 1

[03] x 2

M4x12mm

[04] x 4 [05] x 4

OPT

Hardware and procedures for multiple mounting configurations are included.When you see this symbol,

choose the correct configuration to suit your needs. Not all hardware included will be used.

6904-100134 <01>

[02]

[01]

1/4”

(6.35mm)

[07]

63.5mm

(2.5 in)

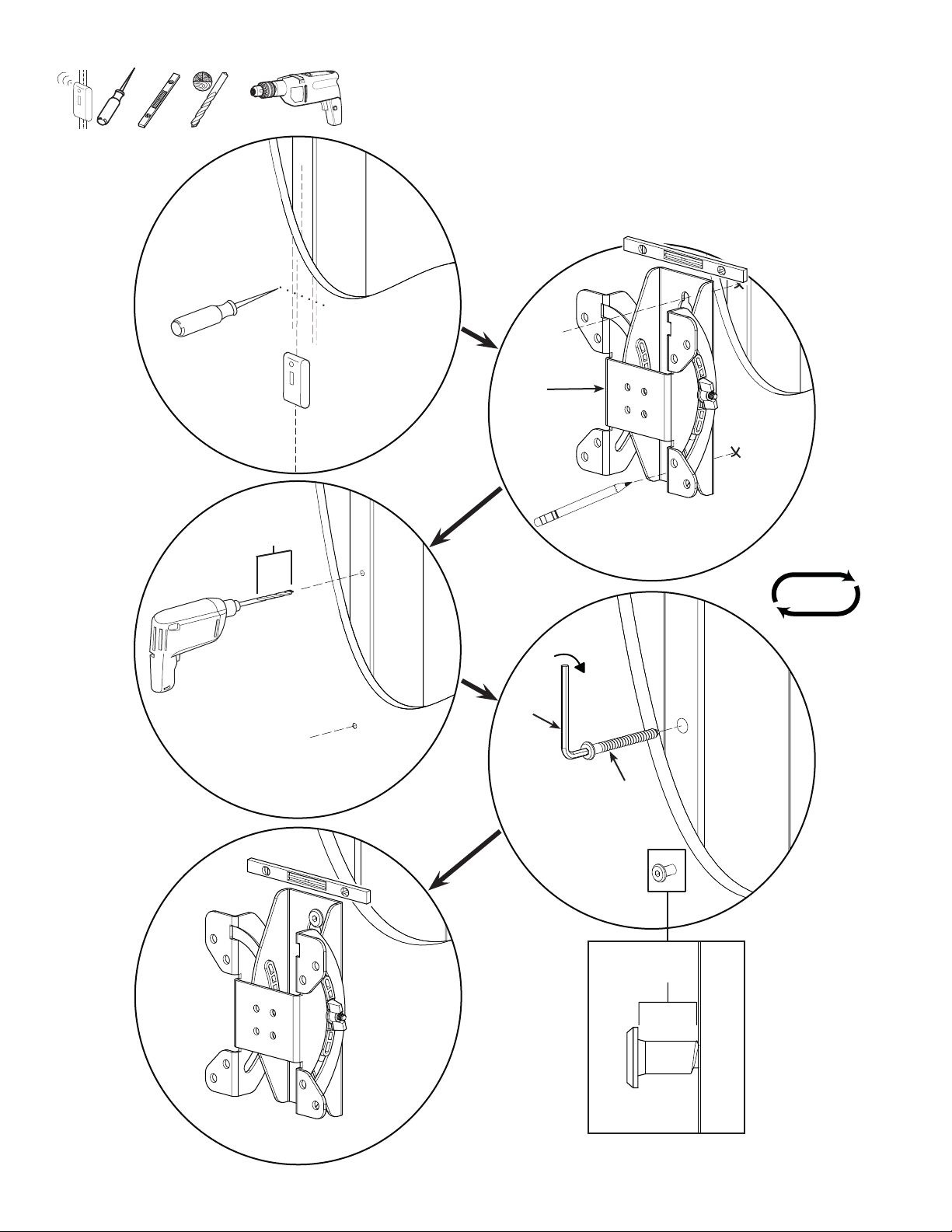

Wood Stud Mounting

3/16 in.

6904-100134 <01>

100mm

(3.5”)

100mm

(3.5”)

200mm

(7.5”)

200mm

(7.5”)

OPT

[05]

[04]

[03]

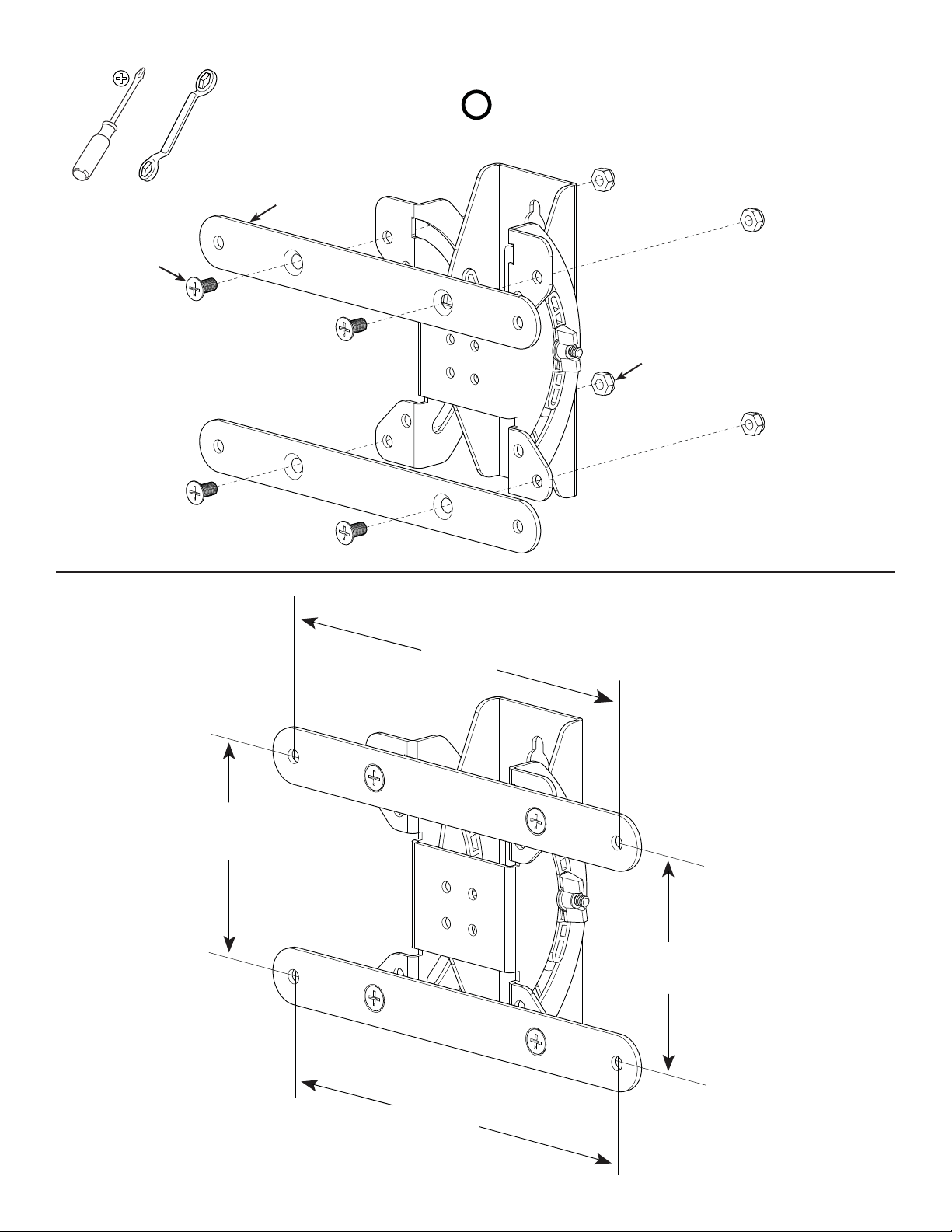

Determine Hole Pattern

6904-100134 <01>

[06]

[01]

Attach Mount to Monitor

6904-100134 <01>

[01]

[02]

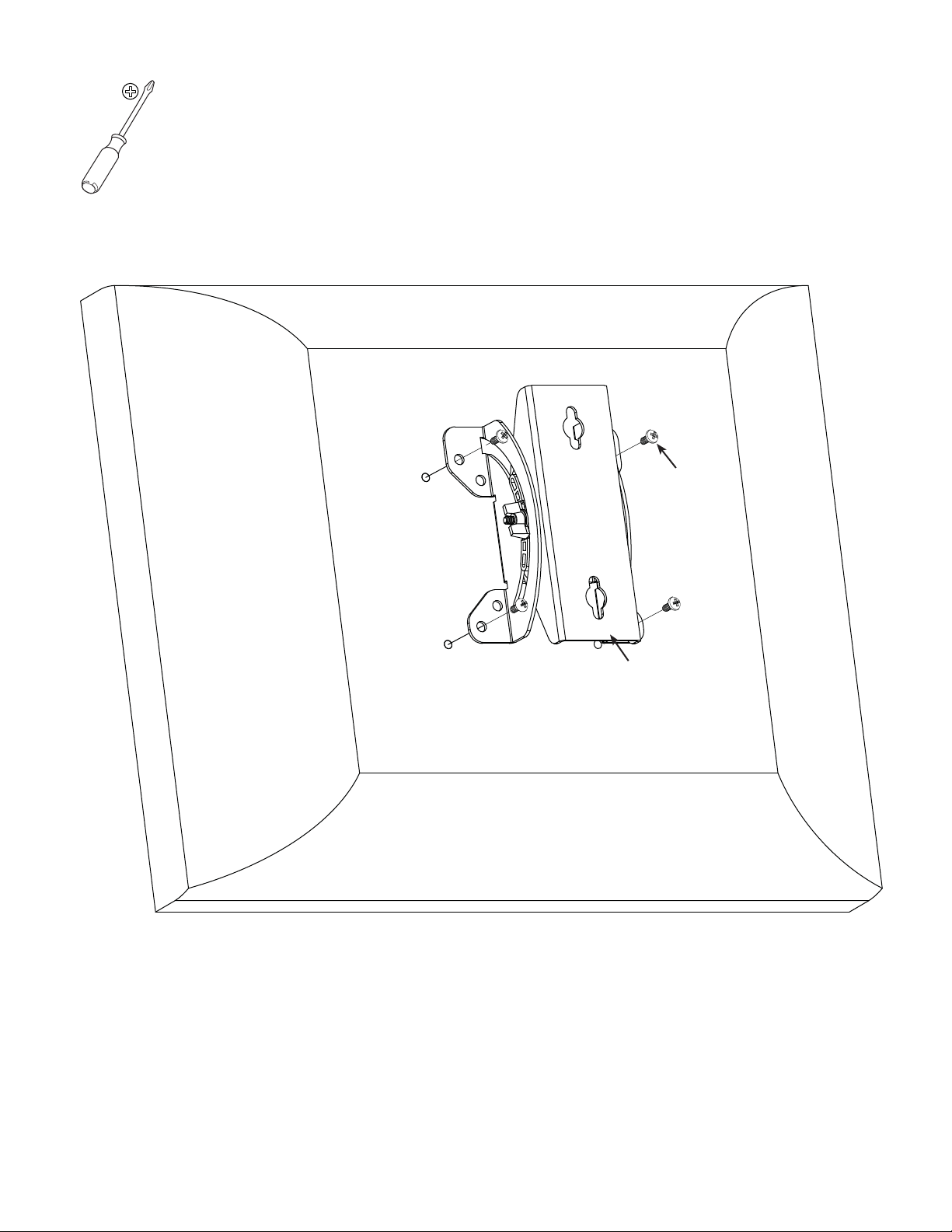

Attach TV to Wall Plate

6904-100134 <01>

[07]

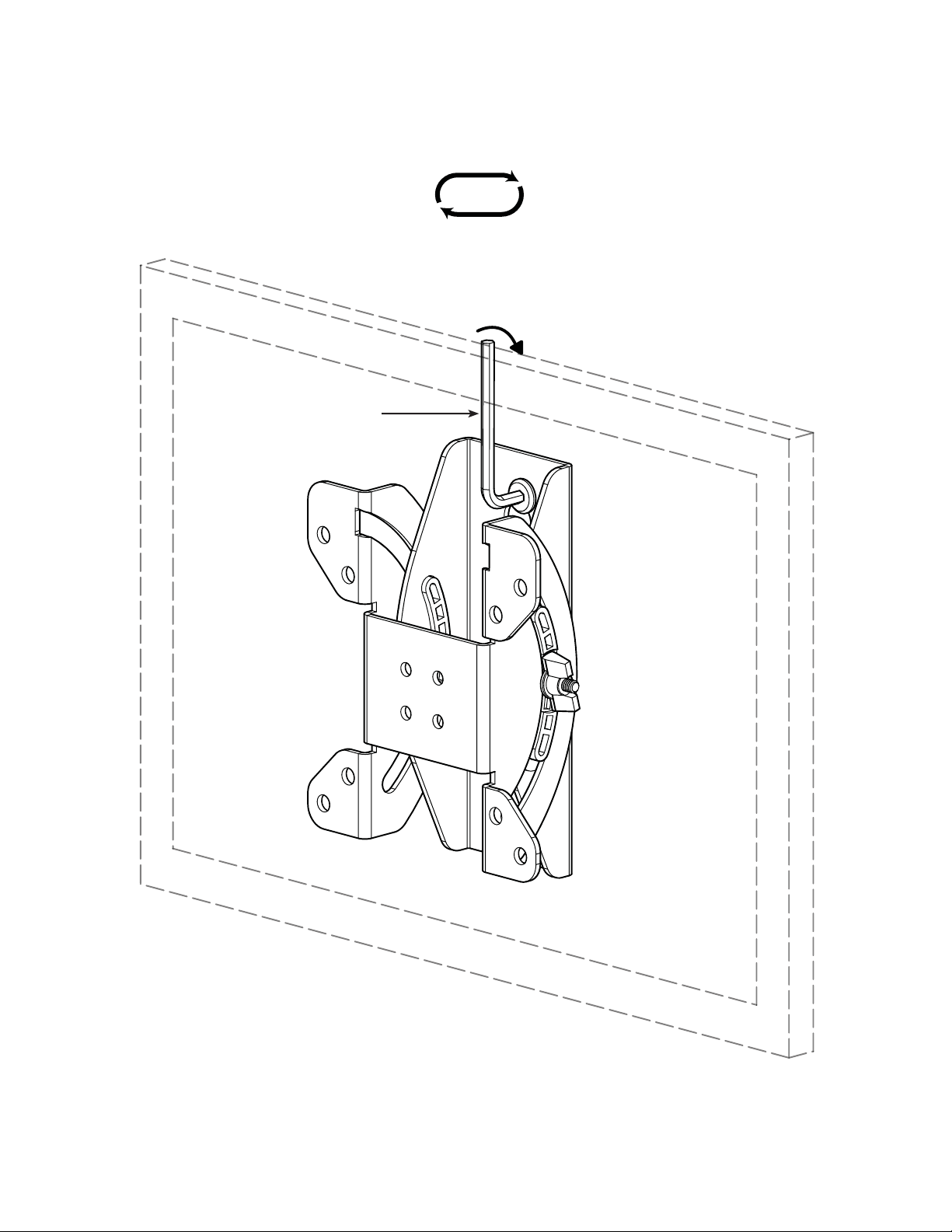

Tighten Bolts

6904-100134 <01>
