Sanus BLF328 Manuel utilisateur

BLF328

INSTRUCTION MANUAL

Texto en español, página 14

GET IT

RIGHT

THE FIRST TIME

Follow this step-by-step

instruction manual to

speed up your installation.

WE’RE HERE TO HELP

Our US-based install experts

are standing by to help.

Call us at:

800-359-5520

Or, chat at:

SANUS.com/chatSP

Get it right the ﬁrst time.

HeightFinder™ shows you

where to drill.

Check it out at:

SANUS.com/1172

Want to watch a video that

shows how easy this DIY

project will be?

Watch it now at:

SANUS.com/2783

125 lbs.

(56.6 kg)

IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUC-

TIONS

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service 1-800-359-5520.

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.

— DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.

●This product is designed for INDOOR USE ONLY.

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined.

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

TV Weight Limit

(including accessories)

DO NOT EXCEED

If your TV (including accessories) exceeds

this weight, this mount is NOT compatible.

Visit SANUS.com or call customer service to

ﬁnd a compatible mount.

1-800-359-5520

Call Customer Service

1-800-359-5520

Tools Needed

Wall

Construction

ONLY install on

these acceptable

wall types. Drywall alone

will NOT hold

the weight of

your TV.

Unsure

wood studs Solid concrete or

concrete block

ACCEPTABLE ACCEPTABLE

Wood Stud Install

Concrete Install

Awl

Pencil Level Tape

Stud

Finder

ScrewdriverTape

Measure

7/32 in.

(5.5 mm)

Wood

Drill Bit

Electric

Drill

Hammer

1/2 in.

(13 mm)

Socket

Wrench

Drill Bit

3/8 in.

(10 mm)

Concrete

CAUTION:

DO NOT install

in drywall alone

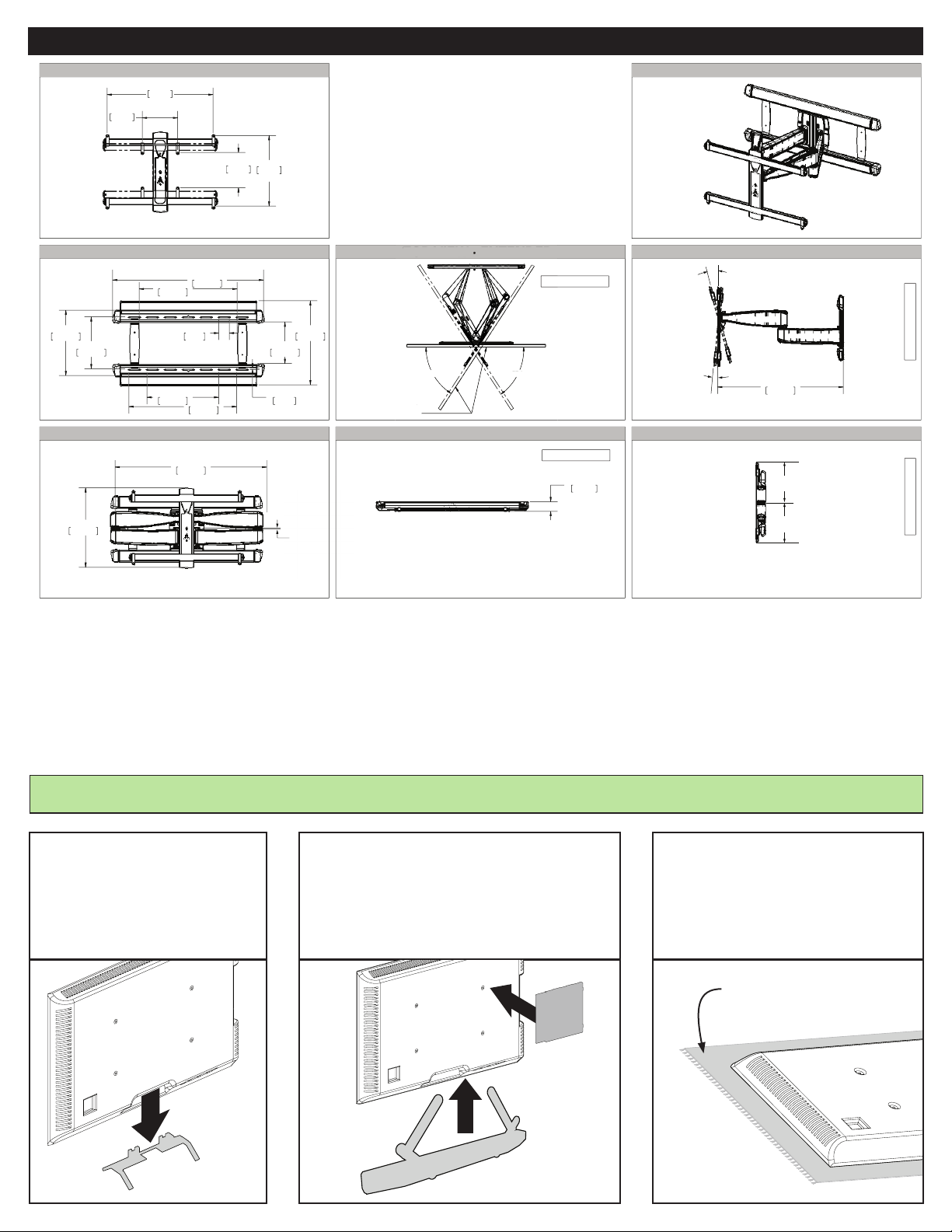

Dimensions

7.87in

200mm

MIN

7.87in

200mm

MIN

15.75in

400mm

MAX

23.62in

600mm

MAX

14.55in

369.6mm

2.36in

60mm

21.83in

554.6mm

16.00in

406.4mm

18.72in

475.6mm

11.57in

293.8mm

9.27in

235.4mm

24.00in

609.6mm

.36in

9.1mm

33.68in

855.6mm

33.80in

858.6mm

17.69in

449.3mm

.22in

[5.6mm]

OFFSET

2.15in

54.6mm

28.00in

711.2mm

5 deg

15 deg

DOWN

9.08in

230.8mm

8.60in

218.6mm

TV INTERFACE

WALL PLATE

TOP VIEW - EXTENDED

3-D

SIDE VIEW - EXTENDED

SIDE VIEW RETRACTED

TOP VIEW - RETRACTED

FULLY ASSEMBLED MOUNT

WALL IS ON RIGHTWALL IS ON RIGHT

57deg

WALL IS ON TOP

57deg

SIMULATED 65"

FLAT SCREEN TV

TOP VIEW - EXTENDED

57deg

57de

TED

65"

REEN T

BEFORE YOU BEGIN

Remove the stand

from your TV — if attached. Install any accessories

you may have purchased, if they

require TV removal prior to assembly.

The TV is removable for future

accessory purchases.

Soft clean surface

Protect the face

of your TV when laying it

down for installation.

02 01

Too Short Too Long Correct

M8 x 35mm

M8 x 16mm

22mm

M6 x 12mm M6 x 35mm

M8 x 50mm

2.5mm

5mm

M8 x 25mm

M5 x 10mm

STEP 1 Parts and Hardware

TV Screws

(qty. 4 each) [Only one size ﬁts your TV] Washers

(qty. 4 each)

Spacers

[If necessary]

(qty. 4 each)

0302

M6/M8 M6/M8

(qty. 1)

(qty. 4)

(qty. 2)

TV Bracket Vertical

Interface Screw

TV Bracket

Horizontal

MOUNTING TABS

(ATTACHED)

MOUNTING TABS

Inset Holes Cables Rounded Back

Only one screw size ﬁts your TV.

M6 M8 • Flat Back TV

[TV brackets

lay ﬂat on your TV]

NO SPACER SPACER NEEDED

• Flat Back TV with

Extra Space Needed

[for deep inset holes

or cable interference]

• Rounded or

Irregular Back TV

[TV brackets NOT

resting ﬂat on your TV]

A B

Use short TV screws 01 .

Spacers 03 not needed. Use long TV screws 01 and spacers 03 to

create extra space between the TV and TV bracket.

1.2 Select TV Screw Length and Spacers1.1 Select TV Screw Diameter

CAUTION: Verify adequate thread

engagement with your screw 01 , washer 02 ,

spacer 03 combination AND TV bracket 06 .

— Too short will not hold your TV.

— Too long will damage your TV.

Attach TV Bracket to TV

STEP 1

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included

and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

RELEASE CORD

(ATTACHED)

RELEASE CORD

(ATTACHED)

NOTE: If your TV

included inset spacers

or adapters, use them

UNDER the mount

hardware.

1.3 Attach TV Brackets to Your TV

Adjust mounting tabs M on TV brackets 06 to match the width W

of your TV's mounting hole pattern.

400 mm position illustrated

2ADJUST TO WIDTH W

Measure the WIDTH and HEIGHT of your TV's mounting hole pattern.

1MEASURE

inch dimensions are approximate

inches cm mm

410 100

7⅞20 200

11 ¾ 30 300

15 ¾ 40 400

19 ¾ 50 500

23 ¾ 60 600

inches

100

For height 300 mm or less For height greater than 300 mm

For hole pattern height H greater than 300 mm, align horizontal TV

brackets 06 with mounting tabs M to the outside.

For hole pattern height H 300 mm and less, align horizontal TV

brackets 06 with mounting tabs M to the inside.

3a ASSEMBLE FOR HEIGHT H3b ASSEMBLE FOR HEIGHT H

≤ 300 mm > 300 mm

06 06

TV bracket 04 must be centered on your TV, but can be offset up or

down to avoid cable interference.

5CENTER

Adjust TV brackets 06 to align with your TV hole pattern. Install using the

screw 01 /washer 02 /spacer 03 combination you selected for your TV.

4LOOSELY ASSEMBLE

02 02

NO SPACER SPACER NEEDED

A B

Secure the TV brackets using four interface screws 05 , starting with

the TOP two screws in the notches shown.

6SECURE ASSEMBLY

0505

Securely tighten the screws from STEP 4 and STEP 6.

7TIGHTEN ALL SCREWS

Fischer UX10 x 60R

5/16 in. x 3½ in.

09 x4

07 x1

08 x1

Parts and Hardware for STEP 2

Lag Bolt

Wall Plate

Template

Concrete Anchor

For concrete installations ONLY

CAUTION: Do not use in drywall or wood

Cover

(Attached)

Attach Wall Plate to Wall

STEP 2

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are

included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

For

CONCRETE

INSTALLATIONS,

For

WOOD STUD

INSTALLATIONS,

follow STEP 2B

on PAGE 9

follow STEP 2A

on PAGE 8

Max. 5/8 in. (1.5 cm)

Min. 16 in. (40.6 cm) Min. 3 ½ in. (8.9 cm)

Min. 1 ½ in. (3.8 cm)

CAUTION: Avoid potential

personal injury or property damage!

●Drywall covering the wall

must not exceed 5/8 in. (1.5 cm)

●Minimum wood stud size:

nominal 2 x 4 in. (5.1 x 10.2 cm)

actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)

●Minimum horizontal space

between fasteners:16 in. (40.6 cm)

●Stud centers must be veriﬁed

1LOCATE 2VERIFY 3MARK

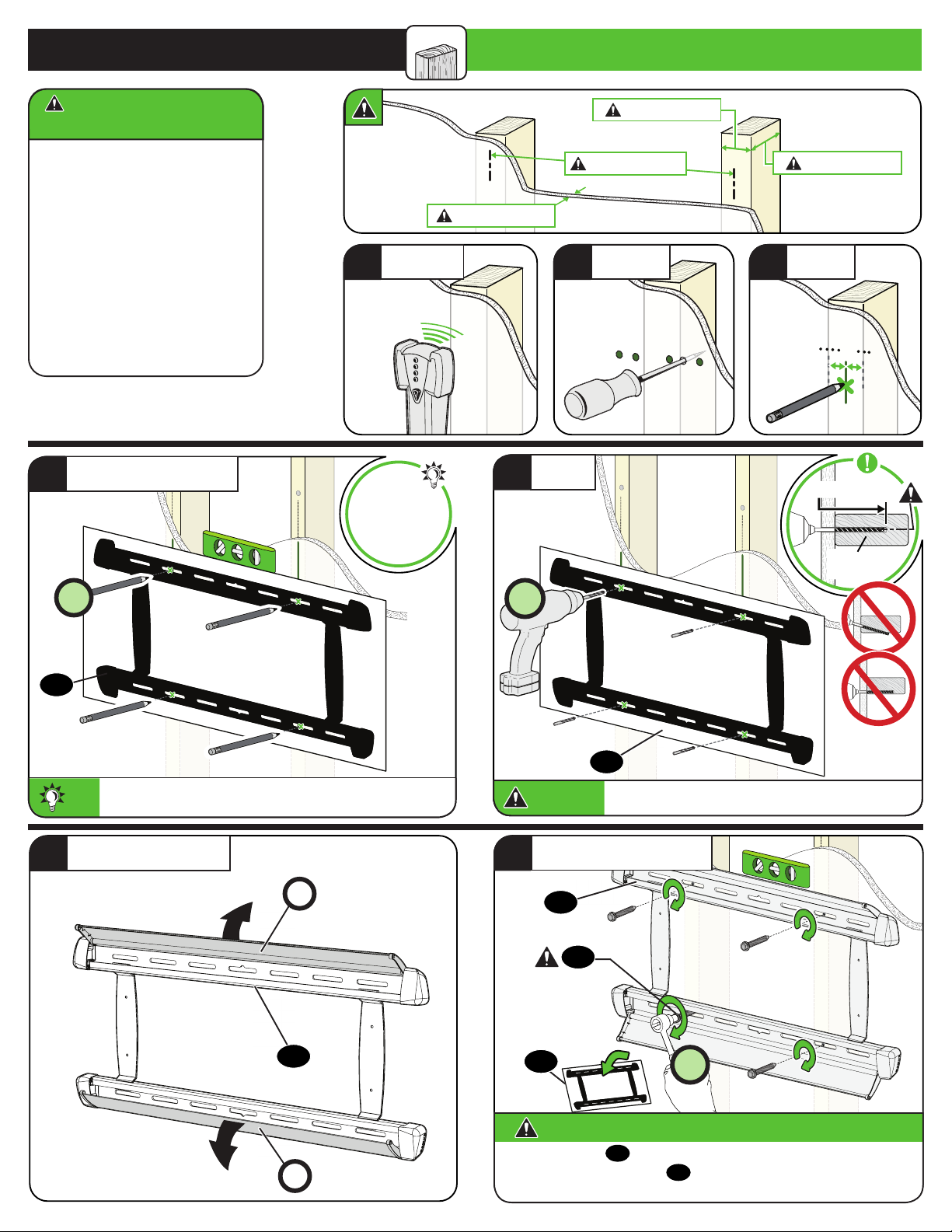

STEP 2A Attach Wall Plate Wood Stud Installation

½ in. (9 cm)

7/32 in.

(5.5 mm)

5DRILL

CAUTION:

Be sure you drill into the CENTER of the stud.

TIP: To calculate your precise wall plate location, check out our

HeightFinder at sanus.com [www.sanus.com/1172].

sanus.com

/1172

HeightFinder™

Visit

4POSITION TEMPLATE

7SECURELY TIGHTEN

6OPEN COVERS

08 07

Go to STEP 3 on PAGE 10.

All four lag bolts 09 MUST BE firmly tightened to prevent unwanted

movement of the wall plate 08 . Ensure the wall plate is securely

fastened to the wall before continuing on to the next step.

CAUTION: Avoid potential personal injury or property damage!

●Mount the wall plate 08 directly onto the concrete surface

●Minimum solid concrete thickness: 8 in. (20.3 cm)

●Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)

●For concrete applications, arm 11 (STEP 3) must remain

centered (horizontally) in wall plate 08 . Keep this in mind

when selecting the wall plate location

CAUTION: Avoid potential personal injury or property damage!

STEP 2B Attach Wall Plate

Solid Concrete or Concrete Block Installation

TIP:

TIP: To calculate your precise wall plate location, check out our

HeightFinder at sanus.com [www.sanus.com/1172].

sanus.com

/1172

HeightFinder™

Visit

#1#2#3

#4 (Center)

#2#6

#1#3#5#7

(Center)

Install lag bolts into

the slots AS SHOWN.

Three (3) lag bolts

at the top.

One (1) lag bolt

at the bottom.

CAUTION:

Be sure the anchors 10 are seated ﬂush with

the concrete surface.

CAUTION:

2DRILL

Never drill into the mortar between blocks.

CAUTION:

Never drill into the mortar between blocks.

CAUTION:

3/8 in.

(10 mm)

3 ¾ in. (9.5 cm)

3INSERT

4OPEN COVERS

All four lag bolts 09 MUST BE firmly tightened to prevent unwanted

movement of the wall plate 08 . Ensure the wall plate is securely

fastened to the wall before continuing on to the next step.

CAUTION: Avoid potential personal injury or property damage!

5SECURELY TIGHTEN

1POSITION TEMPLATE

WARNING: Before starting assembly, verify this part is undamaged. If damaged, do not return the damaged item to your dealer; contact

Customer Service. Never use damaged parts!

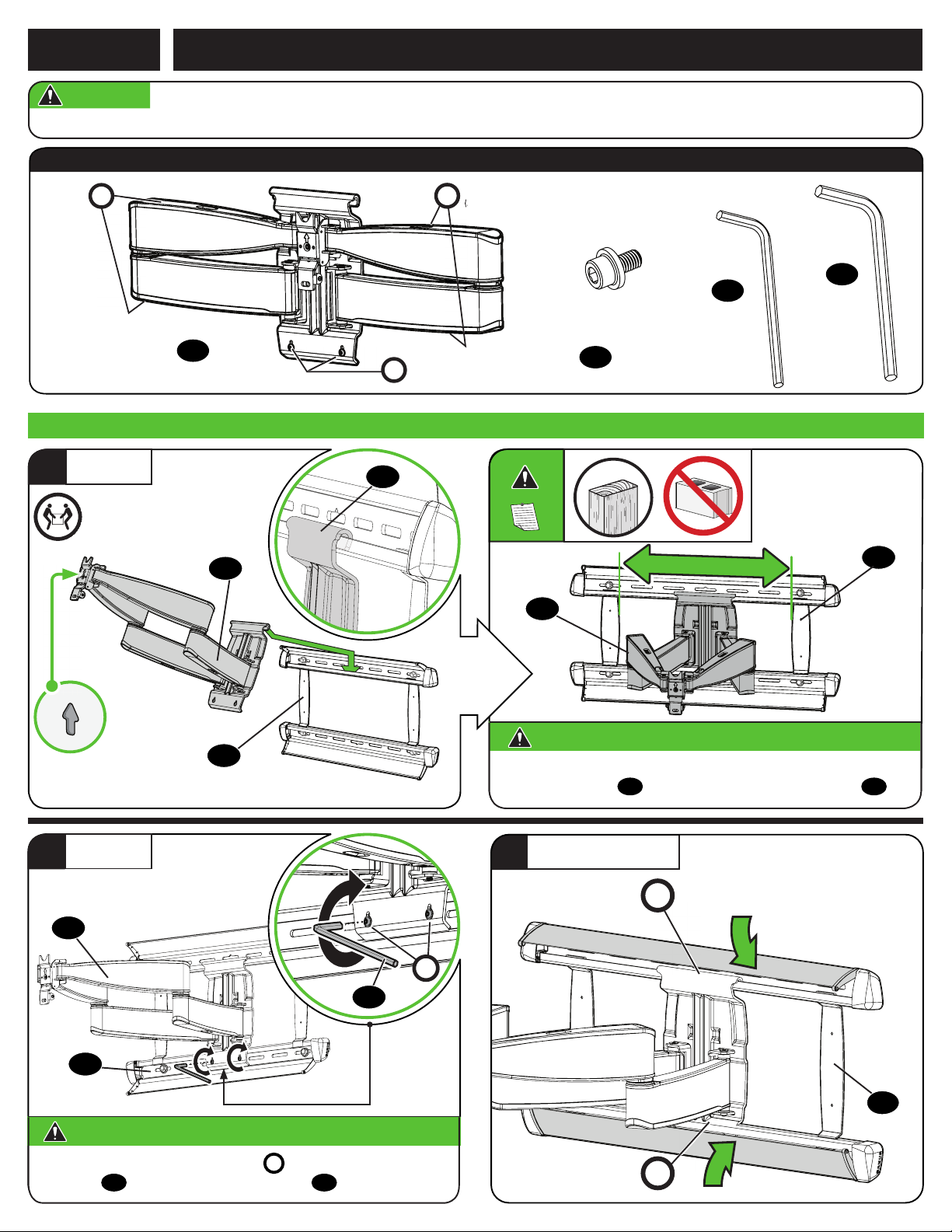

Attach TV to Wall Plate

STEP 3

3/32 in.

5/32 in.

10-32 x 3/8 in.

Parts and Hardware for STEP 3

Arm Assembly

LOCKING SCREWS

(ATTACHED)

CABLE COVERS

(ATTACHED)

CABLE

COVERS

(ATTACHED)

12 x1

11 x1

Securement

Screw

(ATTACHED)

Hex Key Hex Key

1HANG

For CONCRETE APPLICATIONS:

The arm assembly 11 MUST remain centered in wall plate 08 .

CAUTION: Avoid potential personal injury or property damage!

3.1 Attach Arm Assembly to Wall Plate

HEAVY! You may need

assistance with this step.

2SECURE

3CLOSE COVERS

Always make sure both locking screws S are tightened, so the arm

assembly 11 is securely fastened to wall plate 08 .

CAUTION: Avoid potential personal injury or property damage!

Table des matières

Autres manuels Sanus Support et étagère

Sanus

Sanus VMTV Manuel utilisateur

Sanus

Sanus VLT35-B1 Manuel utilisateur

Sanus

Sanus SA808 Manuel utilisateur

Sanus

Sanus Sanus VisionMount ML22 Manuel utilisateur

Sanus

Sanus MST16b Manuel utilisateur

Sanus

Sanus BXF230 Manuel utilisateur

Sanus

Sanus WSS21 Manuel utilisateur

Sanus

Sanus VLF510B1 Manuel utilisateur

Sanus

Sanus VisionMount ML11 Manuel utilisateur

Sanus

Sanus VMA301 Manuel utilisateur

Sanus

Sanus LR1A Manuel utilisateur

Sanus

Sanus VisionMount VLF210 Manuel utilisateur

Sanus

Sanus DLF118 Manuel utilisateur

Sanus

Sanus WMS2 Manuel utilisateur

Sanus

Sanus FSF110 Manuel utilisateur

Sanus

Sanus SAN213 Manuel utilisateur

Sanus

Sanus VMF518 Manuel utilisateur

Sanus

Sanus BMF118 Manuel utilisateur

Sanus

Sanus WSEDH1 Manuel utilisateur

Sanus

Sanus F107 Manuel utilisateur

Sanus

Sanus Secura QLL12 Manuel utilisateur

Sanus

Sanus ALF109 Manuel utilisateur

Sanus

Sanus CFR2100 Series Manuel utilisateur

Sanus

Sanus A701 Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
