Sanus FMF319-B2 Manuel utilisateur

FMF319

INSTRUCTION MANUAL

WE’RE HERE TO HELP

Our US-based install experts

are standing by to help.

Call us at:

US: 800-359-5520

EMEA: +31 (0) 495 580 852

UK: 0800 056 2853

Or, chat at:

SANUS.com/chatSV

Get it right the ﬁrst time.

HeightFinder™ shows you

where to drill.

Check it out at:

SANUS.com/2808

Want to watch a video that

shows how easy this DIY

project will be?

Watch it now at:

SANUS.com/2999

Texto en español, página 12 Deutscher Text Seiten 16 Svensk text sida 20

中文文字说明请参见第 24 页

Texte français page 14 Nederlandse tekst op pagina 18

Русский текст: стр. 22 日本語は 26 ページ

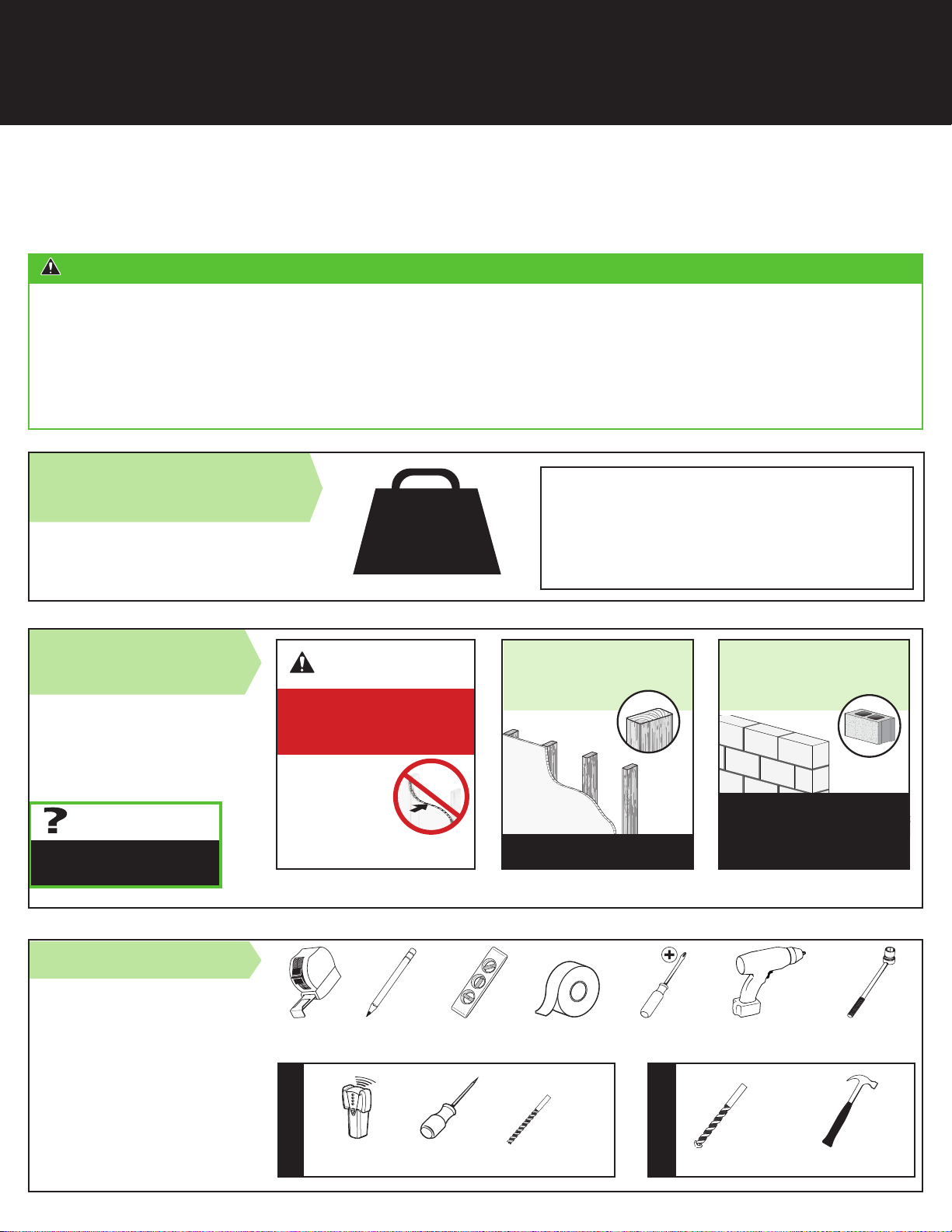

Tools Needed

Call Customer Service

Wall

Construction

ONLY install on

these acceptable

wall types. Drywall alone

will NOT hold the

weight of your TV.

Unsure

wood studs

ACCEPTABLE

CAUTION:

DO NOT install

in drywall alone

55 lbs.

(24.9 kg)

TV Weight Limit

(including accessories)

DO NOT EXCEED

If your TV (plus accessories) weighs MORE, this

mount is NOT compatible.

Visit SANUS.com or call customer service to find a

compatible mount.

Wood Stud Install

Concrete Install

Awl

Pencil Level Tape

Stud

Finder

ScrewdriverTape

Measure

Drill Bit

Electric

Drill

Hammer

Socket

Wrench

Drill Bit

3/8 in.

(10 mm)

Concrete

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service: US: 800-359-5520 •EMEA: +31 (0) 495 580 852 •UK: 0800 056 2853

CAUTION: Avoid potential personal injuries and property damage!

•This product is designed ONLY to be installed into wood stud, solid concrete or concrete block.

—DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.

•This product is designed for INDOOR USE ONLY.

•The wall must be capable of supporting five times the weight of the TV and mount combined.

•Do not use this product for any purpose not explicitly specified by manufacturer.

•Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

7/32 in.

(5.5 mm)

Wood

1/2 in.

(13 mm)

Solid concrete or

concrete block

Concrete kit CMK1 is

Required (not included)

Contact Customer Service to inquire

about the additional hardware.

IMPORTANT SAFETY INSTRUCTIONS

– PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Dimensions

2.95in

75mm

MIN

15.75in

400mm

MAX

15.75in

400mm

MAX

2.95in

75mm

MIN

8.46in

215mm

2.68in

68mm

6.89in

175.1mm

18.02in

457.6mm

18.34in

465.9mm

50deg

2.44in

61.9mm

19.21in

487.9mm

DOWN

SIMULATED 55"

FLAT SCREEN TV

WALL IS ON RIGHT

WALL IS ON TOP

TV INTERFACE

WALL PLATE

TOP VIEW - EXTENDED

3-D

SIDE VIEW - EXTENDED

SIDE VIEW RETRACTED

TOP VIEW - RETRACTED

FULLY ASSEMBLED MOUNT

BEFORE YOU BEGIN

Remove the stand

from your TV —if attached.

Install any accessories

you may have purchased, if they require TV

removal prior to assembly. The TV is removable

for future accessory purchases.

Soft clean surface

Protect the face

of your TV when laying it down for

installation.

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If

any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

Supplied Parts and Hardware

2.5mm

M6 / M8 22mm

M5 x 6mm

M5 x 8.5mm

M8 x 50mm

M8 x 16mm

M6 x 20mm

M6 x 12mm

M4 x 12mm

M6 x 35mm

M4 x 35mm

M8 x 50mm

M8 x 16mm M8 x 20mm

M8x30 mm M8 x 40mm

5mm

M8 x 25mm

M8 x 35mm

5/16 x 2¾in.

5/16 in.

Fischer UX10 x 60R Anchor

STEP 1 Parts and Hardware

TV Bracket Horizontal

TV Bracket

Vertical

TV Bracket

Screw

TV Screws

(qty. 4 each) [Only one size fits your TV] Washers

(qty. 4 each)

Spacers

(qty. 4 each)

[If necessary]

M6/M8

M4/M6/M8

(qty. 1)

(qty. 4)

(qty. 2)

2.5mm

M6 / M8 22mm

M5 x 6mm

M5 x 8.5mm

M8 x 50mm

M8 x 16mm

M6 x 20mm

M6 x 12mm

M4 x 12mm

M6 x 35mm

M4 x 35mm

M8 x 50mm

M8 x 16mm M8 x 20mm

M8x30 mm M8 x 40mm

5mm

M8 x 25mm

M8 x 35mm

5/16 x 2¾in.

5/16 in.

Fischer UX10 x 60R Anchor

Parts and Hardware for STEP 2 Hardware for STEP 3

(qty. 1)

(qty. 2)

(qty. 1)

Locking Screw

Lag Bolt

Washer

(Lag Bolt)

Drilling

Template

Arm Assembly

STEP 2B: Concrete Installation Kit CMK1 [NOT INCLUDED]

Contact Customer Service to inquire about the additional hardware.

Concrete Anchor

(qty. 2)

CAUTION: Do not use in drywall or wood

TYPICAL INSTALLATION ILLUSTRATED.

02 01

ANO SPACER

03 02

BSPACER NEEDED

NOTE: If needed, orient the TV brackets so

they do not interfere or protrude beyondthe

edges of your TV.

400

[

15.7 in.

]

300

[

11.8 in.

]

200

[

7.9 in.

]

100

[

3.9 in.

]

[

3.0 in.

]

Standard TV (VESA) Hole Patterns

STEP 1 Attach TV Bracket to TV

1.3 Attach TV Brackets to Your TV

CAUTION: Avoid potential personal injuries and property damage!

DO NOT use power tools for this step.

Tighten screws 01 only enough to secure the TV brackets 04 to the TV.

Do not overtighten.

CAUTION: Avoid potential personal injuries and property damage!

DO NOT use power tools for this step.

Tighten screws 06 only enough to secure the TV bracket 05 .

Do not overtighten.

• Flat Back TV

[TV brackets lay flat on your TV]

NO SPACER SPACER NEEDED

Only one screw size fits your TV.

M4 M6 M8

Use short TV screws 01 .

Spacers 03 not needed. Use long TV screws 01 and spacers 03 to create

extra space between the TV and TV bracket.

• Flat Back TV with extra space needed

[for deep inset holes or cable interference]

• Rounded or Irregular Back TV

[TV brackets NOT resting flat on your TV]

CAUTION: Verify adequate thread engagement with your screw 01 , washer 02 ,

spacer 03 combination AND TV bracket 04 .

— Too short will not hold your TV. — Too long will damage your TV.

1.2 Select TV Screw Length and Spacers1.1 Select TV Screw Diameter

NOTE: If your TV

included inset spacers or

adapters, use them UNDER

the mount hardware.

07 2 ¾in. (70 mm)

7/32 in.

(5.5 mm)

09 10

STEP 2A Attach Wall Plate Wood Stud Installation

CAUTION: Avoid potential personal injury or property damage!

•Drywall covering the wall must not exceed 5/8 in. (16 mm)

•Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm)

•Stud center must be verified

Max.

5/8 in. (16 mm)

CAUTION: Avoid potential personal injury or property damage!

Improper use could reduce the holding power of the lag bolt 09 .

Tighten the lag bolts 09 only until the washers 10 are pulled FIRMLY against the

wall plate 08 . DO NOT over-tighten the lag bolts 09 .Go to STEP 3 on PAGE 8.

1 2

3/8 in.

(10 mm)

3 in. (76 mm)

002862.eps

CAUTION: Avoid potential personal injury or property damage!

•Mount arm assembly 08 directly onto concrete surface (no wall covering)

•Minimum solid concrete thickness: 8 in. (203 mm)

•Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)

Solid Concrete or Concrete Block Installation

STEP 2B Attach Wall Plate

09 10

Concrete Installation Kit CMK1 is not included

Contact Customer Service to inquire about the

additional hardware.

CAUTION: Avoid potential personal injury or property damage!

Improper use could reduce the holding power of the lag bolt 09 .

Tighten the lag bolts 09 only until the washers 10 are pulled FIRMLY against

the wall plate 08 . DO NOT over-tighten the lag bolts 09 .

Fischer UX10 x 60R C1 - included in the Concrete

Installation Kit CMK1.

Go to STEP 3 on PAGE 8.

CAUTION: Avoid potential personal injury or property damage!

Locking screw 11 must be installed to secure the TV to arm assembly 08 .

3.1 Secure Cover Plate

1 2

3.2 Attach TV to Arm Assembly

STEP 3 Attach TV to Arm Assembly

HEAVY! You may need assistance with this step.

Manage Cables

IMPORTANT: Fully extend arm assembly 08 to ensure enough slack in cables.

TILT ADJUSTMENT

LEVEL ADJUSTMENT

TV Adjustments

Your TV should adjust easily when moved, then stay in place. If your TV is too loose or too tight, adjust the side tension knob T.

NOTE: Once your TV is in place, tighten the side tension knob Tto prevent unwanted movement.

NOTE: Additional tension can be applied using a 3/16 inch hex key (not

supplied).

CAUTION: Avoid potential personal injury or property damage! Locking screw 11 must be installed to secure the TV to the arm assembly 08 .
