VLL
5
INSTRUCTION MANUAL
Scan for easy install video
http://san.us/407
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520. We’re ready to help!
2
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

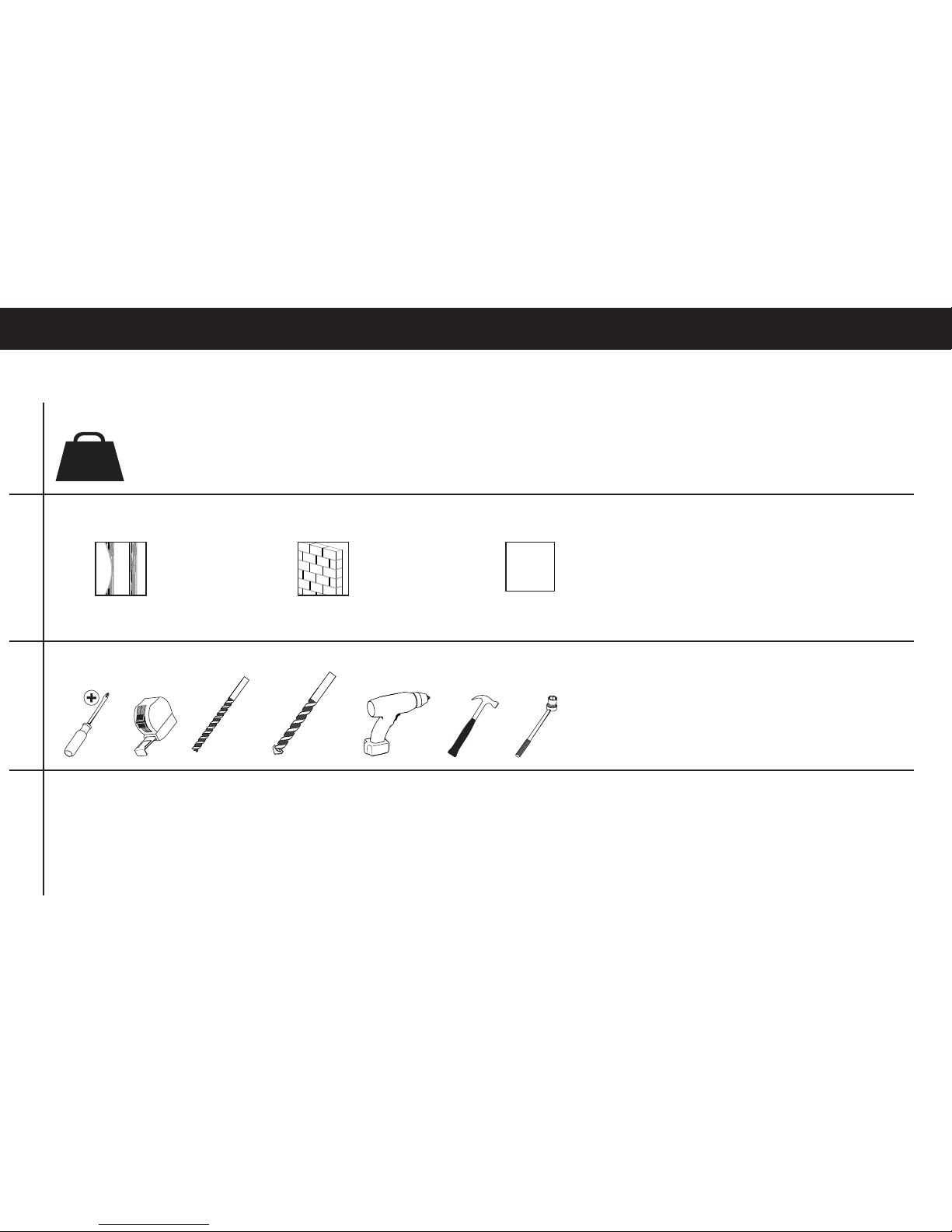

Does your TV weigh more than 125 lb (56 kg) including accessories?
No
—
Perfect!
Yes
—
This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV
owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service at 1-800-359-5520 (UK: 0800-056-2853).
Do you have all of the tools needed?
Before getting started, let’s make sure this mount is perfect for you!
1
2
3
4
What is your wall made of?
Perfect! Perfect! Call 1-800-359-5520 (UK: 0800-056-2853)
Unsure?
?
Drywall with
wood studs
Solid concrete or
concrete block
7/32 in.
(5.5 mm)
Wood
3/8 in.
(10 mm)
Concrete
125 lb
(56 kg)
1/2 in.
(13 mm)
3
Spacer
M4 x 20mm M5 x 20mm
M6 x 25mm M8 x 25mm
STEP 1 Attach Bracket to TV
TV Bracket
03
05
08
x4
x4
x4
02
04
06 07
x4 x4
x4
x4
01 x2
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Parts and Hardware for STEP 1
TV Screws
TV Washers
4
1-1 Select TV Screws
Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M4, M5, M6, or M8) to use.
1-2 Spacers
CAUTION: Verify adequate thread engagment of the screw/
spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
M4 M6 M8
M5
Too Short Correct Too Long
Mount the spacers 08
above the TV bracket,
so the TV bracket sits
close to the TV surface
for Flat Back Panels.
Mount the spacers 08
under the TV bracket to
create extra space needed
for irregular shape TV
backs or large cables.
Spacers and screws are supplied to install your TV bracket.
Determine your preference for spacer configuration when
attaching your TV bracket.
Round Back CablesInset HolesFlat Back
TV Bracket
TV Bracket
08
08
ab
5
1-3 Attach TV Brackets
01
Center the TV brackets 01 over your TV hole pattern as shown. Be sure to use the same holes and that the brackets are level.
NOTE: Loosen the adjustment screws on TV brackets 01 to extend the mounting holes over your TV hole pattern.
Install using the spacer, screw and washer combination you selected for your TV.
IMPORTANT: Tighten the adjustment screws on TV brackets 01 when finished.
01
Adjustment
Screw
Loosen
Tighten
08
aSpacer, screw and washer
bSpacer, screw and washer
08
06
06
07
07
02
02
03
03
04
04
05
05
6
STEP 2 Attach Wall Plate to Wall
5⁄16 in. x 2 3⁄4 in.
Sanus Magnetic Stud Finder
12 x4
09 x1
10 x1
11 x1
13 x4
Parts and Hardware for STEP 2
For wood stud installations, follow STEP 2A on PAGE 7
For concrete installations, follow STEP 2B on PAGE 11
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!
Wall Plate
Wall Plate
Template Lag Bolt
Concrete Anchor
7
STEP 2A Wood Stud Option
1
2
3
CAUTION: Avoid potential personal injuries and
property damage!
●Drywall covering the wall must not exceed
16 mm (5/8 in.)
●Minimum wood stud size: common 51 x 102 mm
(2 x 4 in.) nominal 38 x 89 mm (1½ x 3½ in.)
●Minimum horizontal space between fasteners:
406 mm (16 in.)
●Stud centers must be verified – not all walls have
conventional 406 mm (16 in.) or 610 mm (24 in.)
stud spacing
NOTE: See Introducing Sanus Magnetic Stud
Finder*located in your Welcome folder for more
detailed operation of stud finder.
1. Locate a nail/screw in the studs using the Sanus
magnetic stud finder 11 provided.
2. Find the edges of the studs using the probe
of the stud finder 11 .
3. Mark the centers of the studs with pencil.
*WARNING:This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD)
is in use, magnetic fields may aect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device, keep at
least 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product.
11
Min. 406 mm
(16 in.)
Max. 16 mm
(5/8 in.)
Min. 89 mm
(3 1/2 in.)
Min. 38 mm
(1 1/2 in.)
8
4 5
75 mm
(3 in.)
5.5 mm
(7/32 in.)
4. Place the wall plate template 09 at your desired height and position the slotted holes over your stud center lines. Level the wall plate
template 09 and tape in place.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
IMPORTANT: Be sure you mark and drill into the center of the stud.
5. Drill the four pilot holes using a 5.5 mm (7/32 in.) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.).
09 09
9
6 7
≈ 13 mm
(1/2 in.)
6. Partially install the top two lag bolts 12 ,leaving about 13 mm (1/2 in.) space from the wall.
NOTE: This space allows you to remove the wall plate template 09 and hang the wall plate 10 onto the top lag bolts 12 .
7. Remove the wall plate template 09 .
12
09
09
10
8 9
8. Hang the wall plate 10 on the top lag bolts 12 .
9. Install the bottom two lag bolts 12 . Tighten all four lag bolts 12 only until they are pulled firmly against the wall plate 10 .
NOTE: Hold the wall plate 10 in place when tightening the first lag bolt 12 to keep the plate from shifting out of place.
CAUTION: Improper use could reduce the holding power of the lag bolt 12 . DO NOT over-tighten the lag bolts.
Go to STEP 3 on PAGE 14.
12
10
10
12
