Sanus SSASB2 Manuel utilisateur

SSASB2

WE’RE HERE TO HELP

If you have any questions along the way, just give us a call.

Ph: 1-888-333-1376

UNIVERSAL SOUNDBAR MOUNT

INSTRUCTION MANUAL

Para Español ver página 28

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

■Your TV, soundbar, soundbar mount, and any accessories you plan to install

DO NOT EXCEED the specified weight limit of your TV or TV wall mount.

■Refer to the documentation that came with your sound bar, your TV and

your TV wall mount for additional guidance.

■You CANNOT use this product if your TV mount’s

interface bracket: includes built-in/integrated

spacers (Figure 1), or the mounting holes/slots

are greater than 11mm [.43 in.] (Figure 2).

Figure 2

Figure 1

Before getting started, let’s make sure this product is perfect for you!

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Soundbar

Figure 3

WARNING:

■This soundbar mount is only designed for use with TV wall mounts that meet third party safety

certifications (UL Certified).

■This soundbar mount is ONLY designed to mount below the television (Figure 3).

■This soundbar mount is designed to be installed and utilized only as specified in this manual. The

manufacturer is not responsible for improper assembly, use, or handling of this product.

■For wall mounted TVs: Your wall must be capable of supporting five times the weight of your TV, TV mount,

and soundbar combined.

■Failure to follow these instructions could result in an unstable situation that may result in property

damage or personal injury.

If you have any questions,

please contact our customer service

1-888-333-1376

DO NOT EXCEED 15 lbs. (6.8 kg)

for this Soundbar Mount.

CAUTION: Avoid potential personal injuries and property damage! The weight of your TV/ this soundbar mount/your

soundbar/any accessories, MUST BE LOWER than the maximum weight rating of your TV mount. See your TV mount's manual

for maximum weight allowed.

equals

Soundbar Mount ANY Other AccessoriesYour Soundbar Your TV

Total Maximum

weight for Your TV

Mount/stand

plus

0.9 kg

(2 lbs.)

__ kg

(__ lbs.)

__ kg

(__ lbs.)

__ kg

(__ lbs.)

MAX

TOTAL WEIGHT

TOTAL Weight Limit for Your TV Mount/Stand

Weight Restrictions

Weight Limit for

this

soundbar mount 15 lbs.

(6.8 kg)

plus plus

3rd Party Certified TV stand or Wall Mount*

*The TV mount styles illustrated will vary, though the install

procedures are the same.

4.8 mm

3/16 in.

Hex Key

Tools Needed

Included

Phillips Screwdriver

Level

Supplied Parts and Hardware

Soundbar

Bracket

Soundbar

Support

Fender Washer

Keyhole Screw

Keyhole Nut

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly,

verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your

dealer; contact Customer Service. Never use damaged parts!

qty. 2

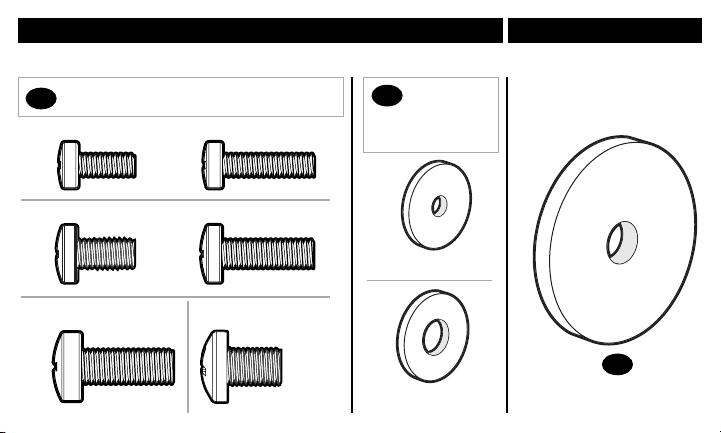

Supplied Parts and Hardware for STEP 1

qty. 2

M4 x 16mm

M5 x 16mm

M4 x 10mm

M5 x 10mm

1/4-20 x 9.53 mm (3/8”)

M6 x 16mm

Mount Spacer

Soundbar Screws

Soundbar Washers

M4 / M5 Washer

qty. 2 of 6

qty. 2 each

06 07

1/4-20M6

M4 x 16mm

M5 x 16mm

M4 x 10mm

M5 x 10mm

1/4-20 x 9.53 mm (3/8”)

M6 x 16mm

M4 x 16mm

M5 x 16mm

M4 x 10mm

M5 x 10mm

1/4-20 x 9.53 mm (3/8”)

M6 x 16mm

M4 x 16mm

M5 x 16mm

M4 x 10mm

M5 x 10mm

1/4-20 x 9.53 mm (3/8”)

M6 x 16mm

qty. 2

Supplied Parts and Hardware for STEP 1 Parts for STEP 3

M6 / M8 Washer

M4 x 16mm

M6 x 16mm

M8 x 20mm

M4 x 40mm

M6 x 40mm

M8 x 40mm

M8 x 55mm

22mm

TV Spacer

2.5mm

5mm

qty. 4

qty. 4 of 6

10 11

Supplied Parts and Hardware for STEP 3

TV Interface Screws qty. 4 each

M4 / M5 Washer

M6 / M8 Washer

M4 x 16mm

M6 x 16mm

M8 x 20mm

M4 x 40mm

M6 x 40mm

M8 x 40mm

M8 x 55mm

22mm

TV Spacer

2.5mm

5mm

M4 x 16mm

M6 x 16mm

M8 x 20mm

M4 x 40mm

M6 x 40mm

M8 x 40mm

M8 x 55mm

22mm

TV Spacer

2.5mm

5mm

Washers Spacers

Look at the mounting holes on the back or bottom

of your soundbar to determine your install method

A, B or C.

OPTION B: Back-mount Holes with KEY HOLE SLOTS

OPTION C: Bottom-mount Holes

(PAGE 12)

OPTION A: Back-mount Holes with THREADED INSERTS (PAGE 10)

(PAGE 14)

A, B

STEP 1 Install Brackets on Soundbar

IMPORTANT: If soundbar brackets 01 do not rest flat on your soundbar surface, use fender washers 03 as shown.

Only one screw size 06 fits your Soundbar.

1/4-20

OPTION A Back-Mount Holes with THREADED INSERTS
