Ruijie RG-AP680-A Access Point

Hardware Installation and Reference Guide V1.0

Ruijie Networks reserves all copyrights of this document.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any

portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited.

Exemption statement

The products, services or features you purchase are subject to commercial contracts and terms. All or part of the

products, services or features described in this document may not be available for purchase or use. Unless otherwise

agreed in the contract, Ruijie Networks makes no express or implied statements or guarantee regarding the contents of

this document.

Due to product version upgrades or other reasons, this document will be updated from time to time. Ruijie Networks

reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any

responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the access point.

This manual describes the functional and physical features and provides the device installation steps, hardware

troubleshooting, technical specifications of modules, and specifications and usage guidelines for cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

The symbols used in this document are described as below:

This symbol brings your attention to some helpful suggestions and references.

This symbol means that you must be extremely careful not to do some things that may damage the device or cause

data loss.

Hardware Installation and Reference Guide Product Overview

1 Product Overview

The RG-AP680-A, adhering to the latest 802.11ax standard, is a wireless access point (AP) designed by Ruijie for

campus scenarios. Featuring two spatial streams each radio, this dual-radio and dual- band AP provides an access rate

up to 575 Mbps at 2.4G and 1,200 Mbps at 5G, totaling 1.775 Gbps (2.4G+5G) or 2.4Gbps (5G+5G). And the

10/100/1000Base-T Ethernet port and SFP port can be used in the meantime.

1.1 Technical Specifications

Table 1-1 RG-AP680-A Technical Specifications

Model

RG-AP680(CD)

Dual radio, dual band

Transmission

Protocol

Support concurrent 802.11ax and 802.11a/b/g/n/ac

Support BLE 5.0 (Support Bluetooth serial port)

BLE

Support

Support Bluetooth Console

Operating

Frequency

802.11b/g/n/ac/ax: 2.4 GHz to 2.483 GHz

802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.725 GHz to 5.850 GHz

(Country-Specific)

Antenna Type

Built-in omnidirectional antenna

Antenna Gain

2.4 GHz: 4 dBi

5 GHz: 6 dBi

Spatial Stream

Support 2.4G/5G 2×2 MU-MIMO

Support 5G 2×2 MU-MIMO

Access Rate

2.4G: Up to 575 Mbps

5G: Up to 1200 Mbps

Total: Up to 1.775Gbps (2.4G+5G) or 2.4Gbps (5G+5G)

Modulation

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and [email protected]/11Mbps

MIMO-OFDM: BPSK, QPSK, 16QAM , 64QAM and 256QAM

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and [email protected]/11Mbps

MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM

Receive Sensitivity

11b: -91dBm(1Mbps), -88dBm(5Mbps), -85dBm(11Mbps)

11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)

11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15

11ac HT20: -83dBm (MCS0), -57dBm (MCS9)

11ac HT40: -79dBm (MCS0), -57dBm (MCS9)

11ac HT80: -76dBm (MCS0), -51dBm (MCS9)

11ax HE80: -76dBm (MCS0), -49dBm (MCS11)

Maximum Transmit

28 dBm (Country-specific)

Hardware Installation and Reference Guide Product Overview

Power

Dimensions

251 mm ×168 mm ×64 mm (Excluding the bracket)

Weight

< 1.5 kg

Ports

One 10/100/1000 Base-T uplink Ethernet port

One SFP port

One port for 48 V DC power supply

Console Port

Support

Reset Button

Support

Power Supply

Adapter: 44 V to 57 V DC

PoE: IEEE 802.3af/at

Power Consumption

< 12.95 W

Temperature

Operating: -40°C to 65°C (-40°F to 149°F)

Storage: -40°C to 85°C (-40°F to 185°F)

Humidity

Operating: 0% to 100% (non-condensing)

Storage: 0% to 100% (non-condensing)

Installation

Ceiling/Horizontal Pole Mounting

IP Rating

IP68

Safety Standards

GB4943, IEC 60950-1

EMC Standards

GB9254, EN301 489, EN55022

Mechanical

Vibration

IEC61373

Radio Standards

EN300 328, EN301 893

Table 1-2 LEDs of RG-AP680-A

LED

State

Meaning

System status

Blinking green

The system is booting.

Solid green

Initialization in progress or proper operation.

Blinking orange

Initialization is complete, but no CAPWAP connection.

Blinking red

The uplink port is disconnected.

WDS RSSI (3 LEDs in

total; available when

bridging is enabled)

1 solid on

< -70dBm

2 solid on

-70 to -50dBm

3 solid on

> -50dBm

Table 1-3 Reset Button of RG-AP680-A

Button

State

Meaning

Reset button

When powered on,

pressed for less than 2s

Resets the AP.

When powered on,

pressed for more than 3s

Restores the factory default settings.

1.2 Product Appearance

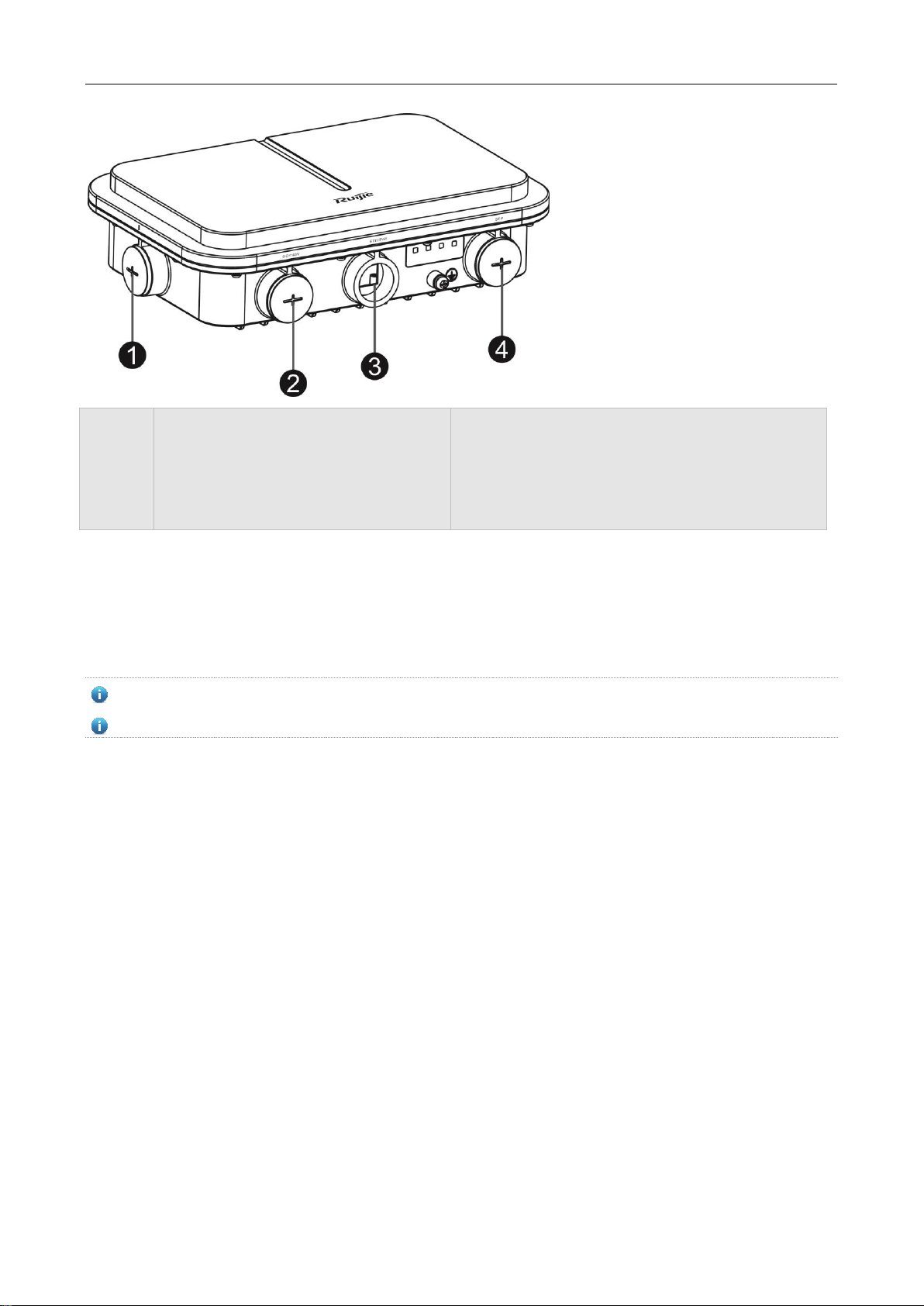

Figure 1-1 Product Appearance of the RG-AP680-A

Hardware Installation and Reference Guide Product Overview

Note:

1. Condole port and reset button

2. Port for 48 V DC power supply

3. 10/100/1000 Base-T auto-sensing Ethernet/PoE port

4. SFP port

1.3 Power Supply

The AP supports 802.3af PoE or 44 - 57 V DC power supply.

When PoE power supply is adopted, please make sure the peer end support 802.3af/802.3at, too.

The lowest current output requirement for a DC power supply is 0.35 A.

Hardware Installation and Reference Guide Preparing for Installation

2 Preparing for Installation

To prevent device damage and physical injury, please read carefully the safety recommendations described in this

chapter.

Recommendations do not cover all possible hazardous situations.

2.1 Grounding and Lightning Protection

Ensure that both the power-receiving end and the power-supplying end are well-grounded.

Keep the grounding connection within 30 m, and use a 40mm x 4mm or 50mm x 5mm ground bar of hot-dip

zinc-coated flat steel sheet.

When the connection cable between the main grounding conductor and local equipotential earthing terminal board

(LEB) on each floor is shorter than 2 meters, use a stranded copper wire with a sectional area not less than 1.318

mm2 (16 AWG) for the connection cable.

Use a shielded network cable if possible, ensure that devices connected to both ends of the shielded network cable

are reliably grounded, and make sure that the sheath of the shielded network cable is also grounded if possible. If no

shielded network cable is available, wire the network cable through a steel pipe and bury the steel pipe for lead-in,

and properly ground both ends of the steel pipe.

No additional lightning protector is required as a high-profile lightning protector is built in the AP680-A, and the power

port support 6kV lightning protection. If a lightning protector of a higher profile is available, configure the lightning

protector optionally. Before the configuration, connect the lightning protector to the ground cable.

Use a power cable with the PE end to ground the power supply (AC). Ensure that the PE end is properly grounded,

with a ground resistance less than 5 ohms. Do not use a two-wire power cable with only the live (L) wire and naught

(N) wire. Do not connect the N wire to the protection ground cable of other communication devices, and ensure that

the L wire and N wire are properly connected.

Ensure that the ground resistance is less than 5 ohms. In areas with high soil resistivity, reduce the soil resistivity via

measures such as spreading resistivity reduction mixture around the grounding conductor.

2.2 Preparing the Installation Site

Do not expose the AP to high temperature, dust, or harmful gases.

Do not install the AP in an area prone to fire or explosions.

Keep the AP away from EMI sources such as large radar stations, radio stations, and substations.

Do not subject the AP to unstable voltage, vibration, and noises.

Keep the AP at least 500 meters away from the ocean and do not face it towards the sea breeze.

The installation site should be protected from water and flooding, seepage, dripping, or condensation.

The installation site should be selected according to network planning, communications equipment features and

considerations such as climate, hydrology, geology, earthquake, electric power, and transportation.

Hardware Installation and Reference Guide Preparing for Installation

2.2.1 Temperature and Humidity

Table 2-1 Required Temperature and Humidity for the RG-AP680-A

Operating Temperature

-40°C to 65°C (-40°F to 149°F)

Operating Humidity

0% to 100% (non-condensing)

2.2.2 Outdoor Installation

The AP can be mounted on a ceiling tile or a horizontal pole.

2.2.3 Waterproof

Use a seal plug to seal the unused ports.

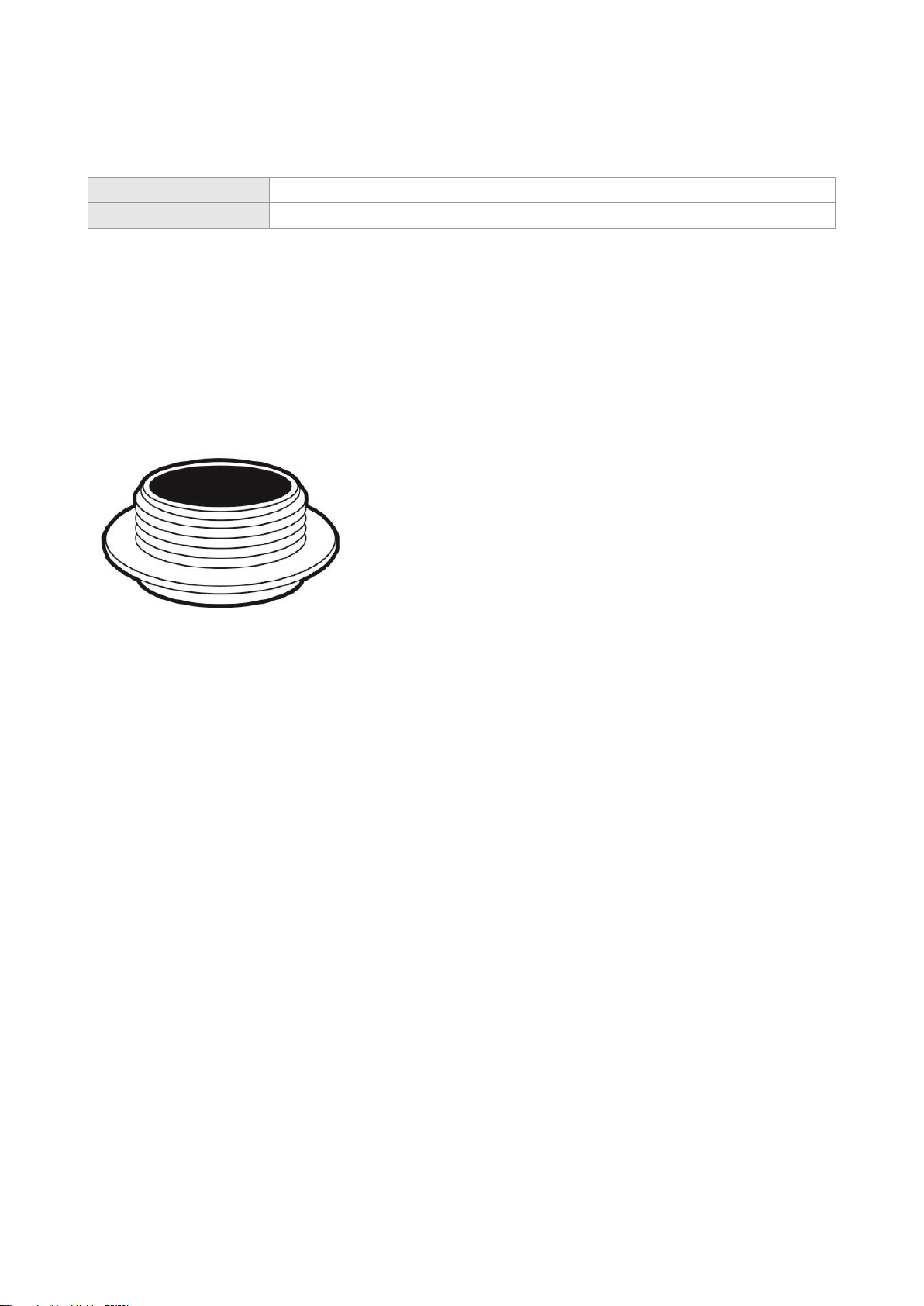

Figure 2-1 Seal Plug

Use a watertight adapter to connect cables to the AP. For details, see Chapter 3 “Installing the Access Point”.

2.2.4 EMI

All interference sources (from outside or inside of the device or application system) affect the device by capacitive

coupling, inductive coupling, or electromagnetic waves.

Electromagnetic interference (EMI) occurs due to electromagnetic radiation or conduction, depending on the transmission

path.

Radiation interference occurs when energy (usually radio frequency energy) is emitted from a device and propagated

through space to disrupt other devices. The interference source can be part of disrupted system or a fully electrically

isolated unit. Conduction interference occurs when interference is transferred from one unit to another through cables,

which are usually electromagnetic wires or signal cables connected between the source and the device(s) experiencing

interference. Conduction interference often affects the power supply of the device. It is eliminated by using filters.

Radiation interference can influence the path of any signal from the device and is difficult to shield.

Take effective measures against interference from the power grid.

Keep the AP far away from the grounding or lightning protection devices for power equipment.

Keep the AP away from high-power radio stations, radar stations, and high-frequency high-current devices.

Take electrostatic shielding measures.

Hardware Installation and Reference Guide Preparing for Installation

2.3 Fiber Connection

Before connecting fiber cables, make sure the model of the optical transceiver and fiber type match the optical port. The

transmit port on the local device should be connected to the receive port on the peer device and vice versa.

2.4 Installation Tools

Table 2-2 Installation Tools

Tools

Marker, Phillips (crosshead) screwdriver, slotted screwdriver, drill, paper knife, crimping pliers,

diagonal pliers, wire stripper, network cable tester, related power and fiber cables, wrench,

hammer, cable ties, ESD tools, multimeter, waterproof duct tape, waterproof plaster

The tool kit and cables are customer supplied.

2.5 Checking before Installation

Please check your materials carefully against the package contents. If there are any errors, please contact your distributor.

Hardware Installation and Reference Guide Installing theAccess Point

3 Installing the Access Point

Before installing the AP, make sure you have carefully read the requirements described in Chapter 2.

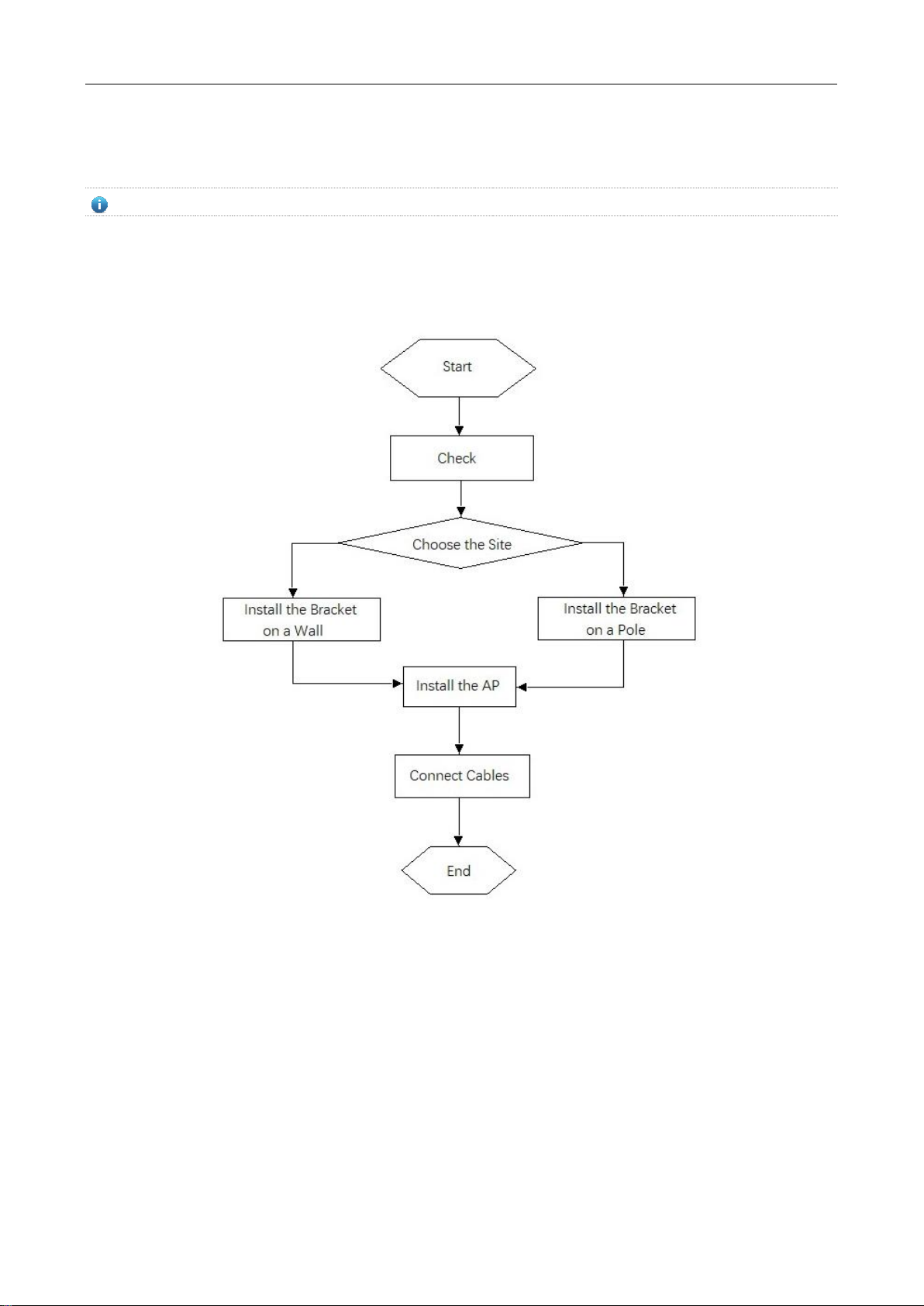

3.1 Installation Flowchart

3.2 Before You Begin

Before you install the AP, verify that all the parts in the package contents are there and make sure that:

The installation site meets temperature and humidity requirements.

The installation site is equipped with a proper power supply.

Network cables are in place.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Point d'accès sans fil

Ruijie

Ruijie RG-AP840-L Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-RAP52-OD Manuel utilisateur

Ruijie

Ruijie RG-AP680-I Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP880-E Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-RAP6202(G) Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP210-L Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AM5532 Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-RAP2260(G) Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-RAP2200 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP110-L Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP180-I Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP220 Series Manuel utilisateur

Ruijie

Ruijie RG-AP130(W2) V2 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP680 CD Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP810-I Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-SAP825-SP Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-RAP Series Manuel utilisateur

Ruijie

Ruijie RG-AP680 CD Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP720-L Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee Series Manuel utilisateur

Ruijie

Ruijie RG-AP630 Directional Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-RAP6260 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP630 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-SAP150-SP-W Manuel d'installation et d'exploitation

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
