Configuration Guide Overview

1 Overview

eWeb is a Web-based network management system that manages or configures devices. You can access eWeb via

browsers such as Google Chrome.

Web-based management involves a Web server and a Web client. The Web server is integrated in a device, and is used to

receive and process requests from the client, and return processing results to the client. The Web client usually refers to a

browser, such as Google Chrome IE, or Firefox.

1.1 Conventions

In this document, texts in bold are names of buttons (for example, OK) or other graphical user interface (GUI) elements (for

example, ARP List).

Configuration Guide Configuration Guide

2 Configuration Guide

2.1 Preparation

Scenario

As shown in the figure below, an administrator can access the device from a browser and configure the device through the

eWeb management system.

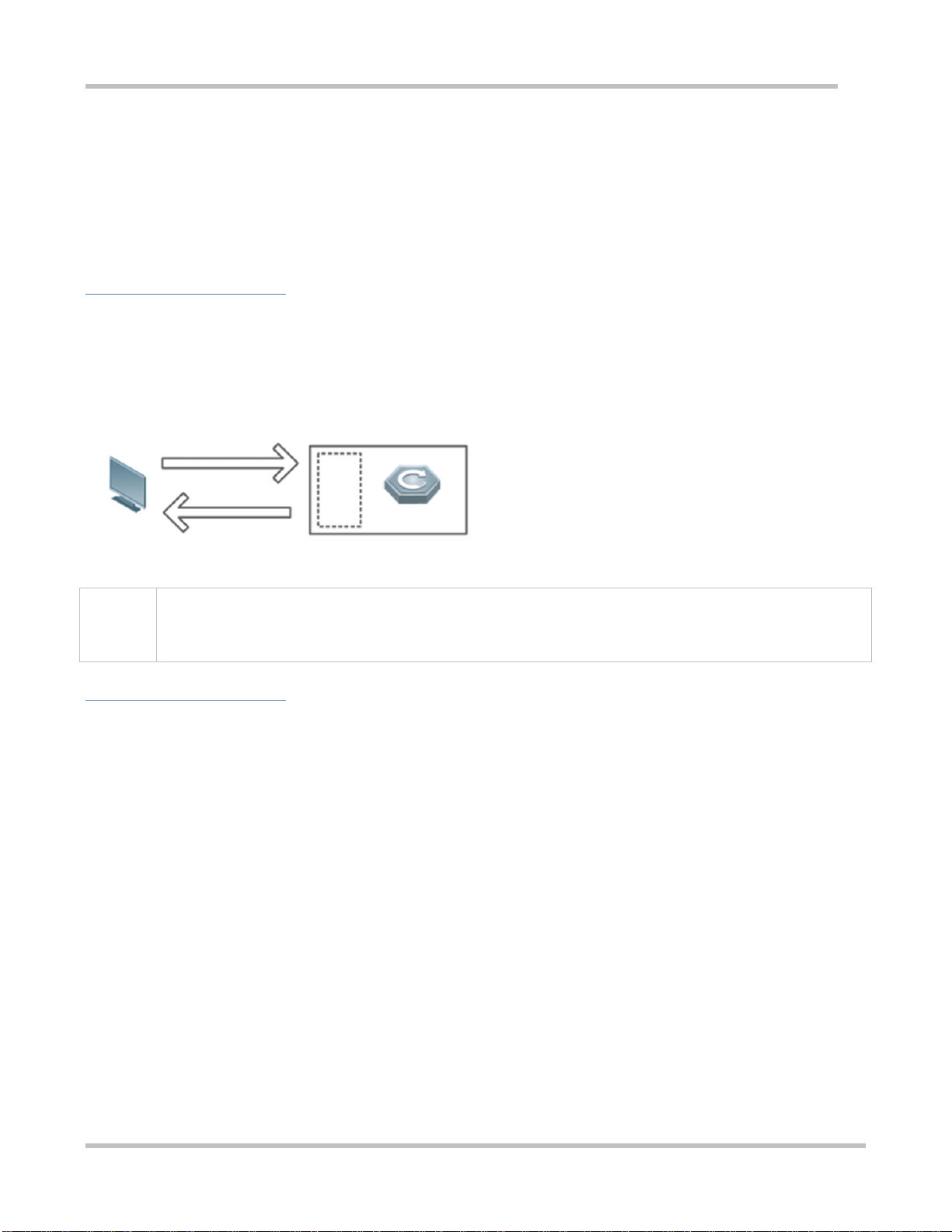

Figure 2-1-1 Data Exchange Principle

Deliver or request

commands

through AJAX.

Administrator Return data

Web

service

Device

Remarks

The eWeb management system combines various device commands and then delivers them to the device

through AJAX requests. The device then returns data based on the commands. A Web service is available on the

device to process basic HTTP protocol requests.

Deployment

Configuration Environment Requirements

Client requirements:

An administrator can log into the eWeb management system from a Web browser to manage devices. The client refers

to a PC or some other mobile endpoints such as laptops or tablets.

Google Chrome, Firefox, IE10.0 and later versions, and some Chromium-based browsers (such as 360 Extreme

Explorer) are supported. Exceptions such as garble or format error may occur if an unsupported browser is used.

1024 x 768 or a higher resolution is recommended. If other resolutions are used, the page fonts and formats may not be

aligned and the GUI is less artistic, or other exceptions may occur.

The client IP address is set in the same LAN network as the device IP address, such as 192.168.110.X. The subnet

mask is 255.255.255.0. Alternatively, you can set the IP assignment mode to Obtain an IP address automatically or

enter ruiyi.cn into the address bar of the browser to access eWeb. The default gateway is device management address

192.168.110.1.

Server requirements:

The device is enabled withWeb service (enabled by default).

Configuration Guide Configuration Guide

The device is configured with a management IP address (Default: 192.168.110.1). You can enter http://192.168.110.1

to access the eWebmanagement system.

To log into the eWeb management system, open the Google Chrome browser, and enter http://192.168.110.1 into the

address bar, and press Enter.

Figure 2-1-2 Login Page

Enter the password and click Login.

2.2 Wizard

You will enter the Wizard page without login at initial setup.

Configuration Guide Configuration Guide

2.2.1 Welcome Page

The welcome page will appear when you configure the device for the first time.

Figure 2-2-1 Welcome Page

The network status will be displayed when you configure the device for the second time.

Figure 2-2-2 Wizard Page

Configuration Guide Configuration Guide

If the network are configured with repeaters, their number is displayed. (In the above figure, X32G-PRO is the primary

router.)

2.2.2 Network Settings

When the device is not connected via network cables, the following page is displayed.

Figure 2-2-3 Network Settings

Configuration Guide Configuration Guide

2.2.2.1 Wireless Repeating

To scan nearby Wi-Fi, click Wireless Repeating.

Figure 2-2-7 Wi-Fi List
