Ruijie Reyee RG-RAP6260(G) Access Point

Hardware Installation and Reference Guide

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup,

modification, transmission, translation or commercial use of this document or any portion of this document,

in any form or by any means, without the prior written consent of Ruijie Networks is prohibited.

Exemption statement

This document is provided “as is”. The contents of this document are subject to change without any notice.

Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to

ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to

content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the access point.

Scope

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: service_rj@ruijienetworks.com

Skype: service_rj@ruijienetworks.com

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Documentation Conventions

The symbols used in this document are described as below:

This symbol brings your attention to some helpful suggestions and references.

This symbol means that you must be extremely careful not to do some things that may damage the device or cause

data loss.

1 Product Overview

RG-RAP6260(G) supports 802.11ax and provides dual-radio and dual-band performance speeding up to 575Mbps@2.4G

+ 1200Mbps@5G. The IP68 design adapts to inclement outdoor environments such as the cold and humidity. This

substantially simplifies installation and maintenance. RAP6260(G) supports PoE to take over challenges in a wide variety

of deployment scenarios, including large-scaled campuses, enterprises, hospitals and Wi-Fi hotspots.

1.1 Technical Specifications

Table 1-1 Technical Specifications of RG-RAP6260(G)

Hardware Specifications

Dual-Band Dual-Stream

Transmission

Protocol

Support concurrent 802.11ax, 802.11ac wave2/wave1 and 802.11a/b/g/n

Operating Bands

802.11b/g/n/ax: 2.4 GHz to 2.4835 GHz

802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.725 GHz to 5.850 GHz

Antenna

Antenna array, 2.4G: 4dBi; 5G: 6dBi

Spatial Streams

2.4G: 2x2MIMO

5G: 2x2MIMO

Access Rates

2.4GHz: up to 575Mbps

5GHz: up to 1200Mbps

Modulation

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps, and 64QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and [email protected]/11Mbps

MIMO-OFDM: BPSK, QPSK, 16QAM , 64QAM, 256QAM and 1024QAM

OFDMA

Receive Sensitivity

11b: -96dBm(1Mbps), -93dBm(5Mbps), -89dBm(11Mbps)

11a/g: -91dBm(6Mbps), -85dBm(24Mbps), -80dBm(36Mbps), -74dBm(54Mbps)

11n: -90dBm(MCS0), -70dBm(MCS7), -89dBm(MCS8), -68dBm(MCS15)

11ac: 20MHz: -88dBm(MCS0), -63dBm(MCS9)

11ac: 40MHz: -85dBm(MCS0), -60dBm(MCS9)

11ac: 80MHz: -85dBm(MCS0), -60dBm(MCS9)

11ax: 80MHz: -82dBm(MCS0), -57dBm(MCS9), -52dBm(MCS11)

Maximum Transmit

Power

≤250mw (24dBm) (Country-specific)

Transmit Power

Adjustment

1dBm

Dimensions

(W x D x H)

298 mm×298 mm×65 mm (11.7in x 11.7in x 2.6in) (excluding bracket)

Weight

≤1.35kg

Service Ports

One 10/100/1000Base-T Ethernet port (Support PoE)

One 1000Base-X SFP port (optional)

Management Ports

N/A

LED

One LED (blue)

Power Supply

PoE: IEEE 802.3at (PoE+)

Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie

POE+ switch

Power Consumption

Maximum: 17W

Temperature

Operating: -40℃to 65℃(-40℉to 149℉)

Storage: -40℃to 85℃(-40℉to 185℉)

Humidity

Operating: 0% to 100% (non-condensing)

Storage: 0% to 100% (non-condensing/condensing)

Installation

Wall/Pole mount

Safety Standards

GB4943

IEC 60950-1

EMC Standards

GB9254

EN301 489

EN50155

EN50121

Vibration Standards

IEC61373

Radio

China Radio Transmission Equipment Type Approval Certificate

EN300 328

EN301 893

MTBF

>400,000H

The weight refers to the weight of host and bracket.

1.2 Product Image

The RG-RAP6260(G) provides one 10/100/1000Base-T Ethernet port (Support PoE) and one 1000Base-X SFP port

(optional).

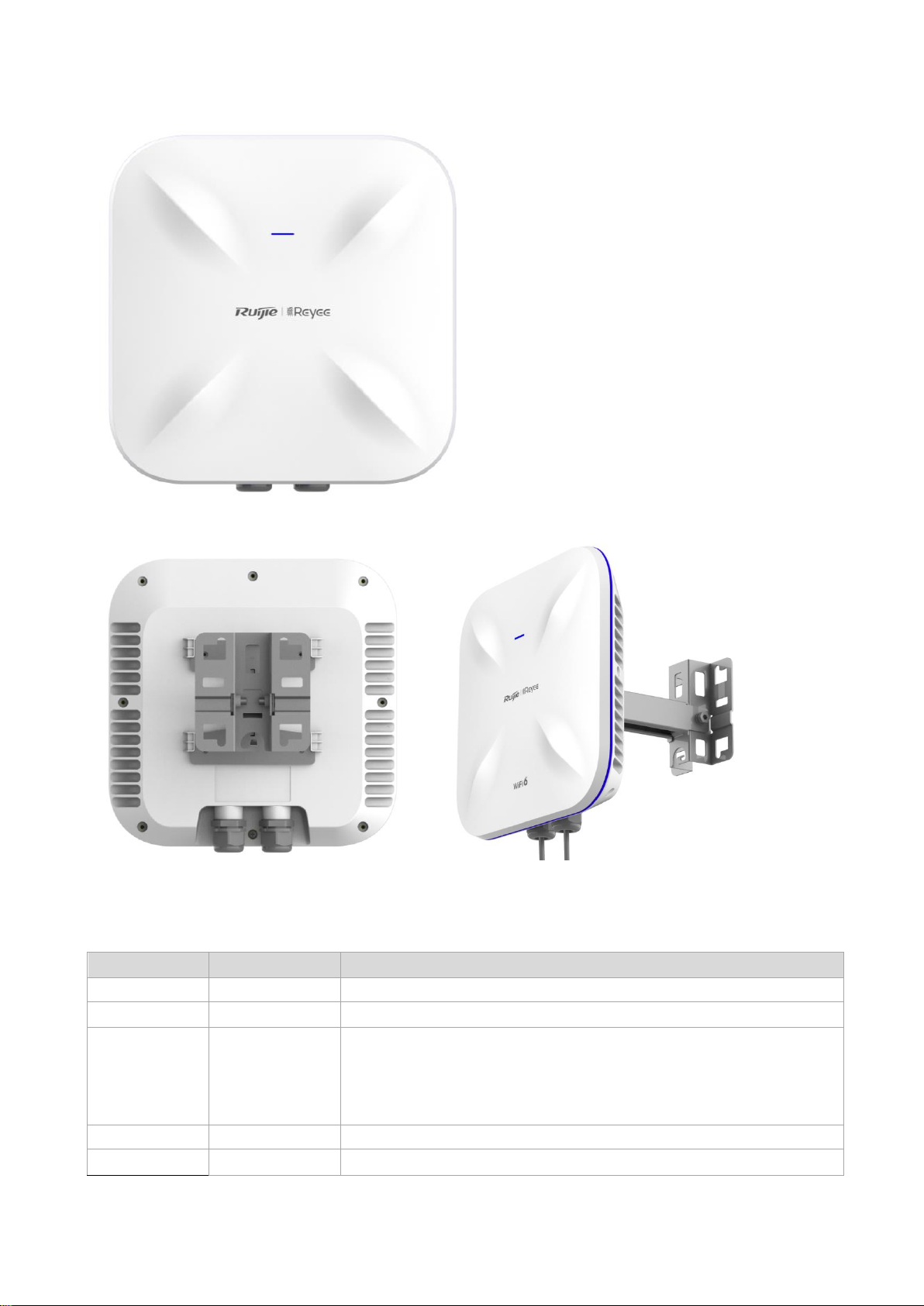

Figure 1-1 Appearance of RG-RAP6260(G)

1.3 LED Indicators

State

Frequency

Meaning

Off

N/A

The AP is NOT receiving power.

Slow Blinking

0.5Hz

Normal operation, but the device is not connected to Ruijie Cloud.

Fast Blinking

10Hz

1. Restoring the factory settings.

2. Upgrading the firmware.

3. Restoring the image file.

4. Initializing the device.

Solid Blue

Normal operation.

Reset Button

Press for less than

Restart the device.

Press for more

than 5s

Restore the factory settings.

Power Source

The RG-RAP6260(G) is powered through Power over Ethernet (PoE).

To use a PoE device, make sure it supports the IEEE 802.3at standard.

Reset

The RG-RAP6260(G) supports Cloud management. To reset the device, you can bring the device online and reset it on

Ruijie Cloud.

If the device can not access the Internet, power on the device, press the reset button with a thin rod (as shown in the

figure) for more than 5 seconds, and the device will restore the factory settings.

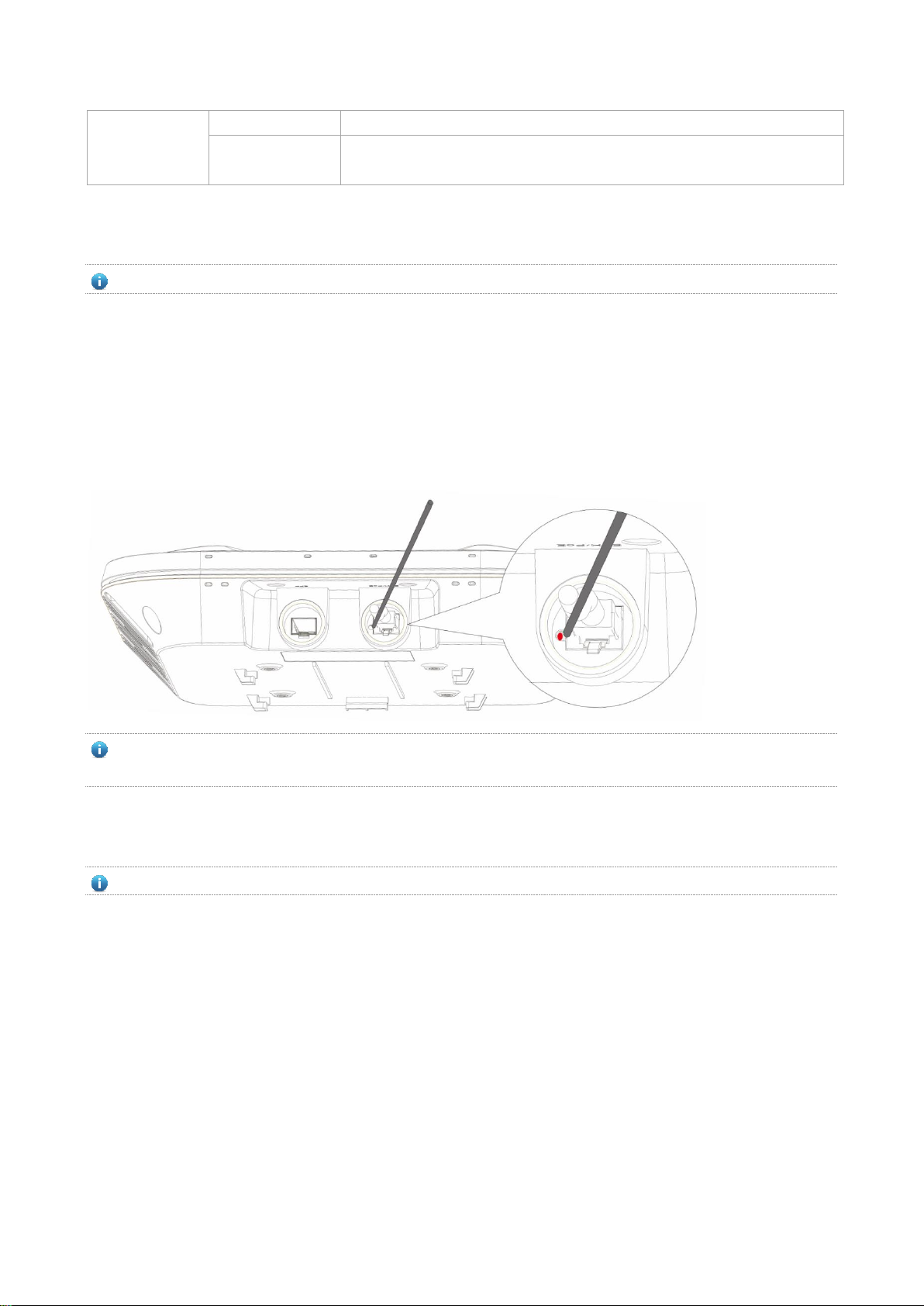

Figure 1-2 Reset the Device

Before pressing the reset button, please remove the waterproof joint first. Refer to the Chapter 3.5 Connecting

Cables for more information.

Cooling Solution

The AP adopts fanless design.

Leave sufficient space at the surrounding of the AP when place the AP to permit airflow for proper ventilation.

2 Preparing for Installation

To prevent device damage and bodily injury, please read carefully the safety recommendations described in this

chapter.

The recommendations do not cover all possible hazardous situations.

2.1 Installation

The AP must be installed indoors. To ensure its normal operation, the installation site must meet the following

requirements.

Install the AP in a well-ventilated environment. If it is installed in a closed room, make sure there is a good cooling

system.

Make sure the site is sturdy enough to support the AP and its accessories.

Make sure the site has enough space for installing the AP and leave sufficient room around the AP for ventilation.

Do not expose the AP to high temperature, dusts, or harmful gases.

Do not install the AP in an inflammable or explosive environment.

Keep the AP away from EMI sources such as large radar stations, radio stations, and substations.

Do not subject the AP to unstable voltage, vibration, and noises.

Keep the AP at least 500meters away from the seaside and do not face it toward the wind from the sea.

The installation site should be free from water flooding, seepage, dripping, or condensation.

The installation site shall be selected according to network planning and features of communications equipment, and

considerations such as climate, hydrology, geology, earthquake, electric power, and transportation.

Please follow the correct method described in the installation guide to install and remove the device.

2.2 Movement

Avoid moving the device frequently.

Turn off all power supplies and unplug all power cables before you move the device.

2.3 EMI

Please observe local regulations and specifications when performing electrical operations. Relevant operators must

be qualified.

Please carefully check for any potential danger in the working area, for example, damp/wet ground or floor.

Find out the location of the emergency power supply switch in the room before installation. First cut off the power

supply in case of an accident.

Be sure to make a careful check before you shut down the power supply.

Do not place the device in a damp/wet location. Do not let any liquid enter the chassis

Keep the AP far away from the grounding or lightning protection devices of power equipment.

Keep the AP away from radio stations, radar stations, high-frequency high-current devices, and microwave ovens.

Any nonstandard and inaccurate electrical operation can cause an accident such as fire or electric shock, thus

causing severe even fatal damages to human bodies and device.

Direct or indirect touch through a wet object on high voltage and power line can bring a fatal danger.

2.4 Ventilation

For proper ventilation, leave sufficient space around the AP.

2.5 Temperature and Humidity

To ensure normal operation and service life of the device, maintain appropriate temperature and humidity levels in your

equipment room. See Table 2-1. Improper room temperature and humidity can cause damages to the device.

Relatively high humidity may affect insulation materials, resulting in poor insulation and even electrical leakage, and

sometimes may lead to change of mechanical properties of materials and corrosion ofmetal parts.

Relatively low humidity may dryand shrink insulation sheets and cause static electricity that can damage the circuitry

inside the device.

High temperature greatly reduces reliability of the device and shortens its service life.

When the SFP module is used for data transmission, ensure its operating temperature matches the actual operating

environment.

Table 2-1 Required Temperature and Humidity for the RG-RAP6260(G)

Temperature

Relative Humidity

-40℃to 65℃(-40℉to 149℉)

0% to 100%

2.6 Waterproof

Use a seal plug to seal the unused ports.

Use a waterproof plug to connect cables to the AP. For details, see Chapter 3 “Installing the Access Point”.

2.7 Power Supply

PoE injector: IEEE 802.3at compliant

The input power should be greater than the power actually consumed by the system. The input power for the

RG-RAP6260(G) should be greater than 18W.

Please use Ruijie certified PoE injectors.

2.8 Installation Tools

Common Tools

Phillips screwdriver, related copper and fiber cables, bolts, diagonal pliers, cable ties

Special Tools

Wire stripper, crimping pliers, RJ-45 crimping pliers, punch down tool

Meter

Multimeter, bit error rate tester (BERT)

The listed tools are customer supplied.

2.9 Unpacking the Access Point

Package Contents

Items

Verify that all parts are installed and debugged.

Screws

Mounting brackets

Product quick installation guide

Packing list

The above listed items are for general situations, which may vary in the actual shipment. The purchase order shall

prevail in any case. Please check each item carefully according to the packing list or purchase order. If any item is

damaged or missing, notify the sales person.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Point d'accès sans fil

Ruijie

Ruijie RG-AP180-I Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RAP6260-D Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP820-L(V2) Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-RAP Series Manuel utilisateur

Ruijie

Ruijie RG-AP630 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP680-A Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP680-AR Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-MAP852-SF-M Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP680 CD Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP840-L Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-MAP852V3 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP840-I Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP680-L Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-RAP6202(G) Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee Series Manuel utilisateur

Ruijie

Ruijie Reyee RG-RAP6262 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-SAP825-SP Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-SAP885-SP Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP180 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP630 Directional Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP730-L Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-AP680 CD Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-RAP2260(G) Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-WLAN Series Manuel d'installation

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
