Ruijie RG-AP110-L Manuel d'installation et d'exploitation

Ruijie RG-AP110-L Access Points

Hardware Installation and Reference Guide V1.0

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup,

modification, transmission, translation or commercial use of this document or any portion of this document,

in any form or by any means, without the prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice.

Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to

ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to

content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps, hardware

troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

Means reader take note. Notes contain helpful suggestions or references.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of

data.

Hardware Installation and Reference Guide Product Overview

1Product Overview

RG-AP110-L, which features a simple design and is easy to deploy, is designed for SMB scenarios. This 802.11n-based

AP can be installed on an 86-type faceplate mounting box without damaging interior trim, which makes it an ideal choice

for SMBs like hotels.

1.1 Technical Specifications

Table 1-1 Technical Specifications of RG-AP110-L

Hardware Specifications

Hardware Version

V1.00

Operating Bands

802.11b/g/n: 2.4 GHz to 2.4835 GHz

Spatial Streams

2 streams, 2x2 MIMO

Max Throughput

Up to 300Mbps

Max Transmit Power

<100mw (20dBm, RF card transmit power only)

(Depending on the country of use, laws and regulations.)

Dimensions

(W x D x H)

86 mm x 86 mm x 31 mm

Weight

0.1 kg

Service Ports

One 10/100Base-T WAN port

One 10/100Base-T LAN port

Reset Button

Support

LED Indicator

Support

Power Supply

Support 802.3af and 802.3at PoE power supply

Not support local power supply

Antenna

Built-in omnidirectional antenna (Base gain 2 dBi)

Power Consumption

< 5W

IP Rating

IP41

Operating: 0°C to 40°C (32°F to 104°F)

Temperature

Storage: -40°C to 70°C (-40°F to 158°F)

Operating: 5% to 95% RH (non-condensing)

Humidity

Storage: 5% to 95% RH (non-condensing)

MTBF

>250,000H

RG-AP101-L is a class A product. In a domestic environment, this product may cause radio interference, in which

case the user may be required to take adequate measures.

1.2 Product Image

The AP provides two service ports: one 10/100Base-T LAN port on the front panel, and one 10/100Base-T WAN port on

the rear panel.

Hardware Installation and Reference Guide Product Overview

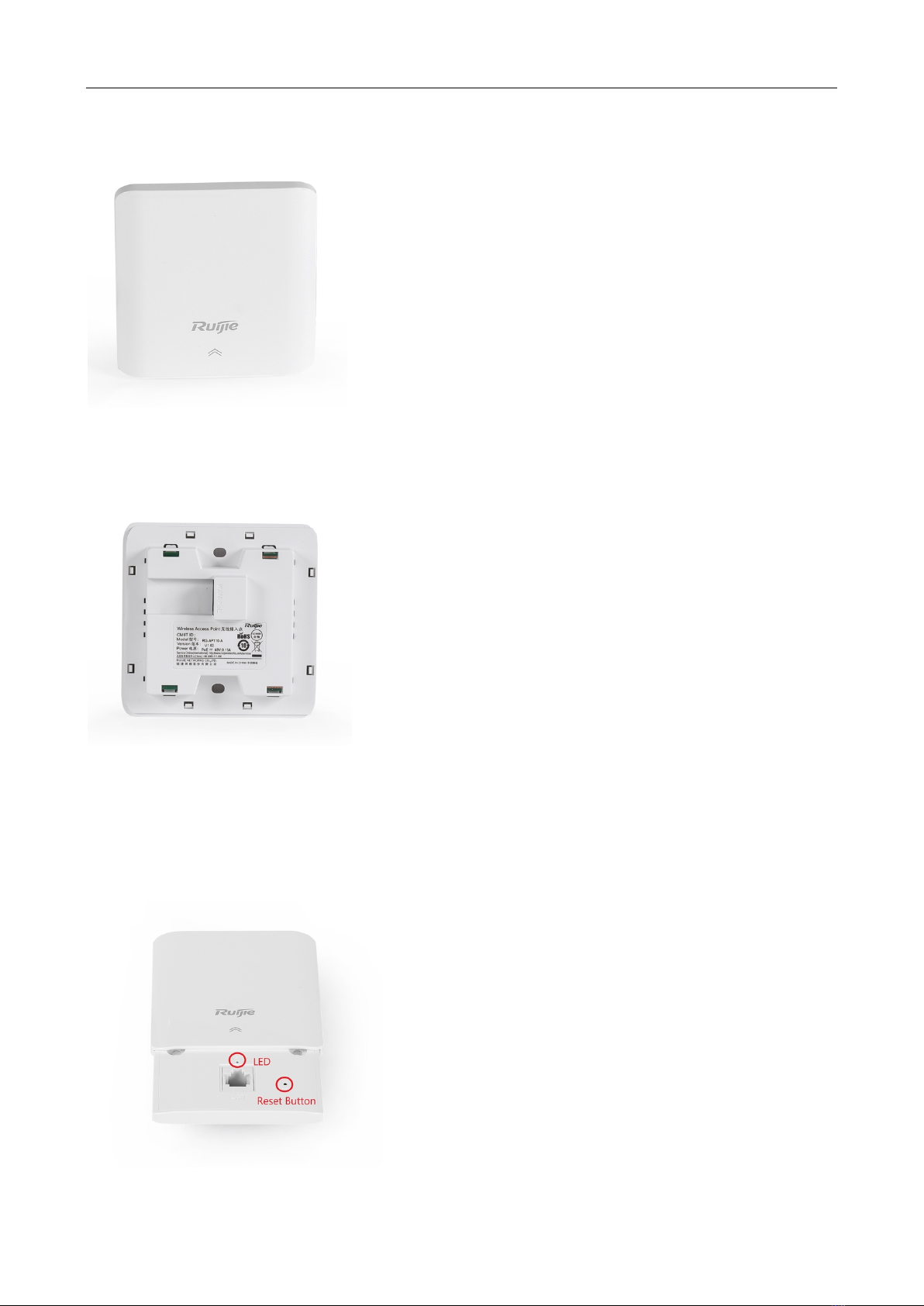

Figure 1-1 Front View of RG-AP110-L

Figure 1-2 Rear View of RG-AP110-L

1.3 LED Indicator and Reset Button

Figure 1-3 Indicator and Reset Button on the AP

Hardware Installation and Reference Guide Product Overview

LED/Button

Frequency

Meaning

Fast blinking

(2.5Hz)

Initialization is in progress.

Solid

AP is operational and CAPWAP connection is established. No STA is

associated.

Double blinking

(1Hz)

Ethernet link is down.

Single blinking

(1Hz)

Ethernet link is up. No CAPWAP connection is established.

System

(Blue)

Slow blinking

(0.4Hz )

AP is operational and CAPWAP connection is established. At least one

STA is associated.

Pressed for less

than 1s

Restarts the device.

Reset

Button

Pressed for more

than 5s

Restores all default settings.

Hardware Installation and Reference Guide Preparing for Installation

2Preparing for Installation

2.1 Safety Suggestions

To ensure normal operation and a prolonged useful life of the equipment, the installation site must meet the following

requirements.

To prevent device damage and bodily injury, please read carefully the safety recommendations described in this chapter.

Keep the device away from liquid.

Keep the device away from any heat source.

Wear antistatic wrist strap when installing the device.

Do not wear loose clothes or accessories that may be hooked or caught by the device during installation and

maintenance.

Do not place the equipment in a walking area.

UPS is recommended to prevent power failure and power interference.

The recommendations do not cover all possible hazardous situations.

Use Cat 5 or more advanced cables for connection.

2.2 Installation Site Requirements

2.2.1 Temperature and Humidity

Required operating temperature and humidity are as follows:

Temperature: 0°C to 40°C (14°F to 104°F)

Humidity: 5% to 95% (non-condensing)

2.2.2 Cleanness

Dust poses a serious threat to device operation. Dust that falls onto the surface of the device can be absorbed onto metal

contact points by static electricity, resulting in poor contact. Electrostatic absorption of dust occurs more easily when the

relative humidity is low, which may shorten the service life of the device and cause communication failures. Table 2-2

shows the maximum concentration and diameter of dust allowed in the equipment room.

Table 2-1

Maximum diameter (μm)

0.5

Maximum concentration

(Particles/m3)

1.4 x 107

7 x 105

2.4 x 105

1.3 x 105

Hardware Installation and Reference Guide Preparing for Installation

Besides, the contents of salts, acids and sulfides in the air are also strictly limited for the equipment room. These

substances can accelerate metal corrosion and the aging of some parts. Table 2-3 describes the limit of some hazardous

gases such as SO2, H2S, NO2and Cl2 in the equipment room.

Table 2-2

Gas

Average (mg/m3)

Maximum (mg/m3)

SO2

0.2

1.5

H2S

0.006

0.03

NO2

0.04

0.15

NH3

0.05

0.15

Cl2

0.01

0.3

2.2.3 Static Discharge Damage Prevention

To prevent damage from static electricity, pay attention to the following:

Indoor dust prevention

Proper humidity conditions

2.2.4 EMI Consideration

Effective measures should be taken for the power system to prevent the interference from the electric grid.

The working ground of the access point should be properly separated and kept as far as possible from the grounding

device of the power equipment or the anti-lightning grounding device.

Keep the equipment away from high-power radio transmitter, radar transmitting station, and high-frequency

large-current device.

Measures must be taken to isolate static electricity.

2.3 Installation Tools

Installation Tools

Phillips screwdriver, straight screwdriver, wire cutter, cable clamp, cables

The listed tools are customer supplied.

Hardware Installation and Reference Guide Installing the Access Point

3Installing the Access Point

Make sure you have carefully read Chapter 2, and be sure that the requirements set forth in Chapter 2 have been

met.

1. Remove the 86-type faceplate from the wall with a screwdriver.

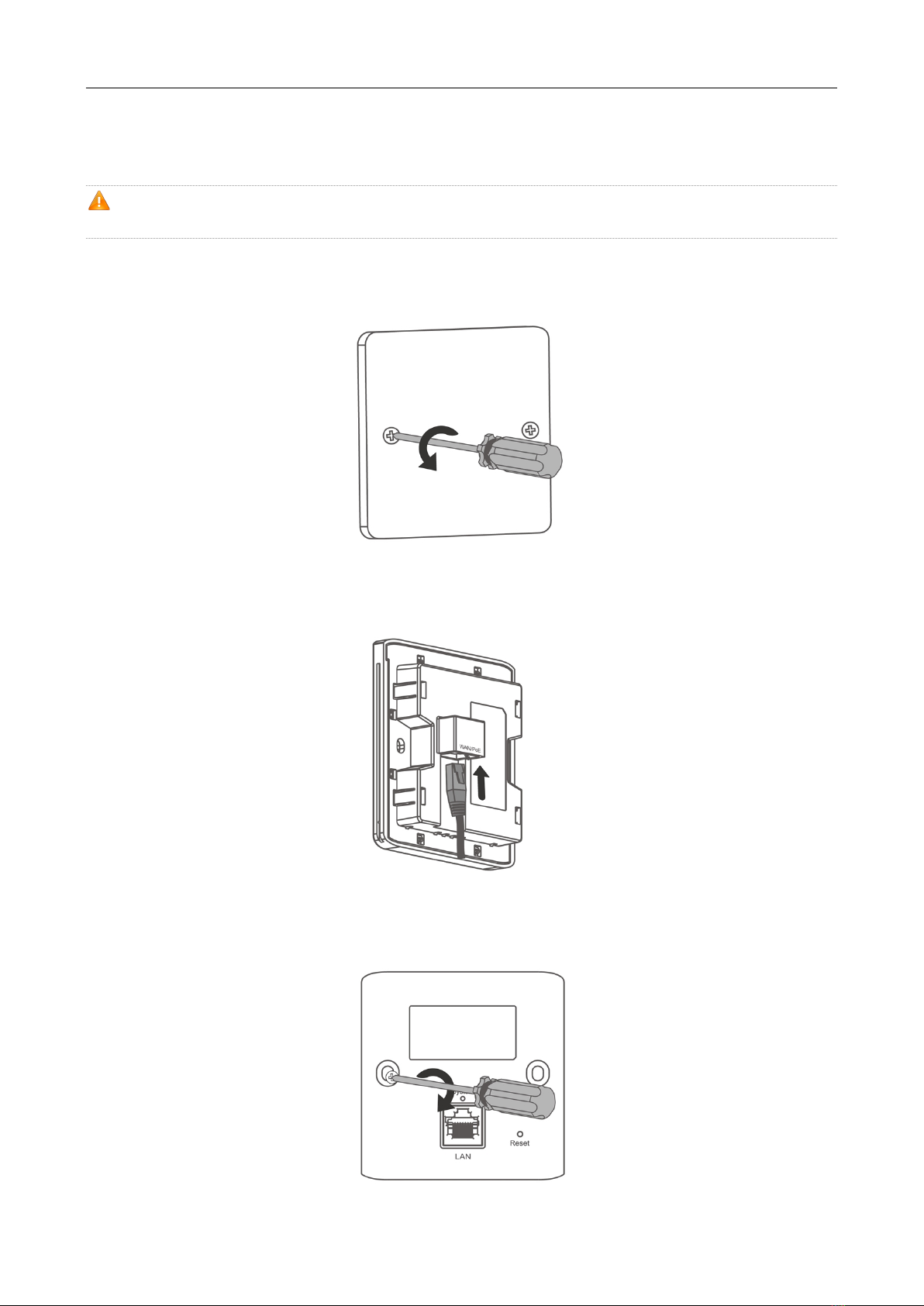

Figure 3-1 Removing the 86-Type Faceplate

2. Connect the Ethernet cable to the WAN port.

Figure 3-2 Connecting the Cable

3. Align the screw holes on both sides of the device over those on the bottom plate.

Figure 3-3 Aligning the Screw Holes

Hardware Installation and Reference Guide Installing the Access Point

4. Attach the faceplate cover onto the access point.

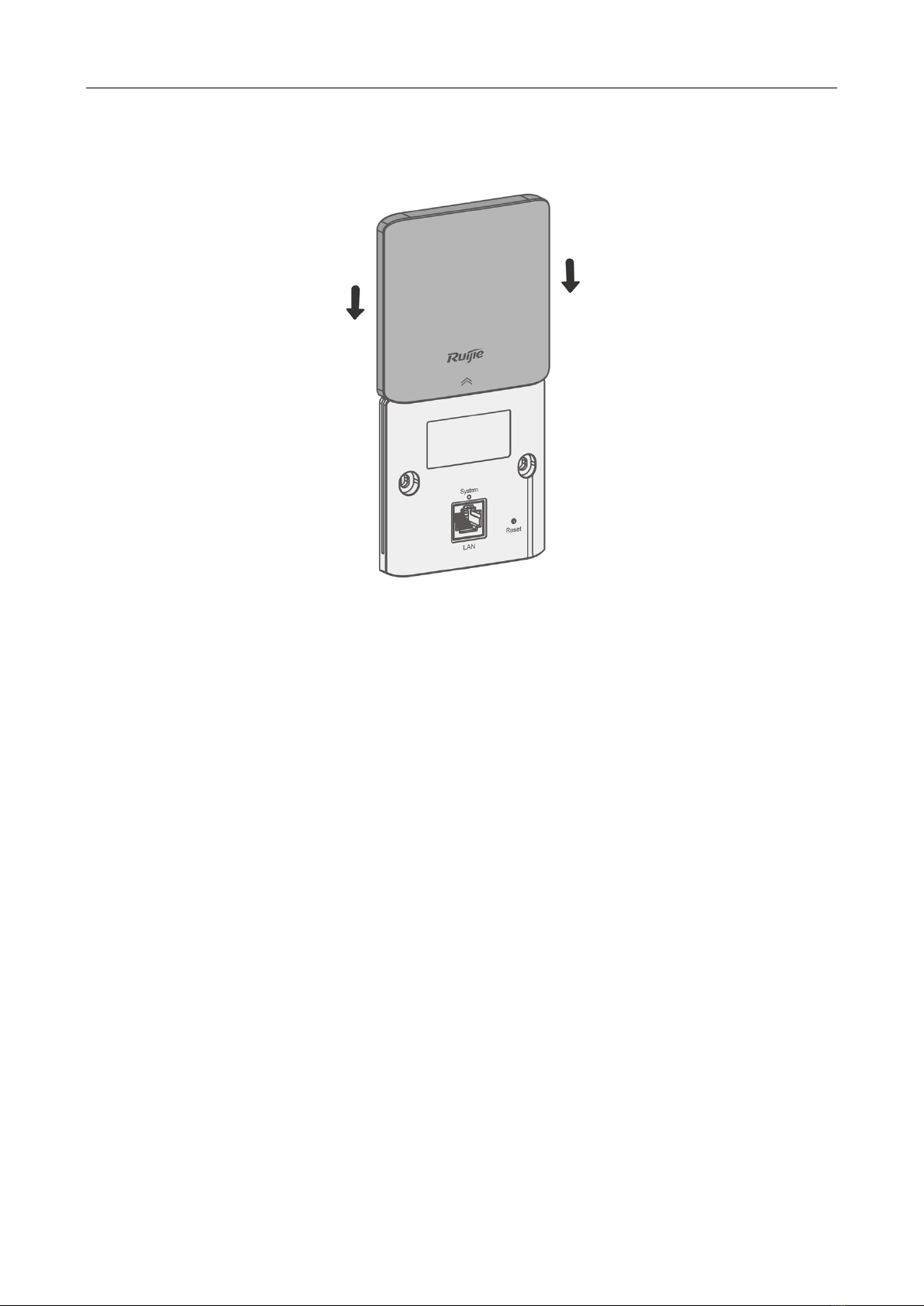

Figure 3-4 Attaching the Cover
