Ruijie RG-AP680-IO Manuel d'installation et d'exploitation

Ruijie RG-AP680-IO Access Point

Hardware Installation and Reference Guide

Document Version: V1.1

Date: August 16, 2023

Networks

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or

commercial use of this document or any portion of this document, in any form or by any

means, without the prior written consent of Ruijie Networks is prohibited.

Trademark and are owned by Ruijie

Networks.

All other trademarks or registered trademarks mentioned in this document are owned by

their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and

terms. Some or all of the products, services or features described in this document may

not be within the scope of your purchase or use. Unless otherwise agreed in the contract,

Ruijie Networks does not make any express or implied statement or guarantee for the

content of this document.

Due to product version upgrades or other reasons, the content of this document will be

updated from time to time. Ruijie Networks reserves the right to modify the content of

the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy

and will not shoulder any responsibility for losses and damages caused due to content

omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: service_rj@ruijienetworks.com

Live Chat: https://www.ruijienetworks.com/rita

Conventions

1. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or

followed can result in data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed

can result in function failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or

followed will not lead to serious consequences.

Specification

An alert that contains a description of product or version support.

2. Note

The manual offers configuration information (including model, port type and command

line interface) for indicative purpose only. In case of any discrepancy or inconsistency

between the manual and the actual version, the actual version prevails.

Contents

Preface.................................................................................................................................................. I

1 Product Introduction....................................................................................................................... 1

1.1 Overview ...................................................................................................................................1

1.2 Product Appearance ................................................................................................................2

1.3 Package Contents.....................................................................................................................4

1.4 Technical Specifications...........................................................................................................5

1.4.1 Dimensions and Weight...............................................................................................5

1.4.2 RF Specifications...........................................................................................................6

1.4.3 Port Specifications........................................................................................................8

1.4.4 Power Supply and Consumption ................................................................................9

1.4.5 Environment and Reliability ......................................................................................10

1.5 LED and Button.......................................................................................................................10

1.6 Optical Module .......................................................................................................................12

2 Preparing for Installation.............................................................................................................. 14

2.1 Safety Precautions..................................................................................................................14

2.1.1 General Safety Precautions .......................................................................................14

2.1.2 Handling Safety ..........................................................................................................14

2.1.3 Electric Safety..............................................................................................................15

2.1.4 Storage Security .........................................................................................................15

2.2 Installation Environment Requirements..............................................................................15

2.2.1 Bearing Requirements...............................................................................................16

2.2.2 Ventilation Requirements..........................................................................................16

2.2.3 Space Requirements ..................................................................................................16

2.2.4 Temperature/Humidity Requirements.....................................................................16

2.2.5 Grounding Requirements..........................................................................................17

2.2.6 Anti-interference Requirements ...............................................................................17

2.2.7 Lightning Protection Requirements .........................................................................18

2.2.8 Waterproof Requirements.........................................................................................18

2.2.9 Other Requirements ..................................................................................................19

2.3 Tools ........................................................................................................................................20

3 Installation ..................................................................................................................................... 21

3.1 Installation Procedure ...........................................................................................................21

3.2 Before You Begin....................................................................................................................22

3.3 Precautions.............................................................................................................................22

3.4 Installing the Device...............................................................................................................23

3.4.1 Installing the Support for Wall-mounted Installation.............................................23

3.4.2 Installing the Support for Pole-mounted Installation.............................................23

3.4.3 Mounting Bracket and Device Installation...............................................................24

3.4.4 Removing the Device .................................................................................................27

3.5 Installing an Optical Module .................................................................................................27

iii

3.6 Connecting Cables .................................................................................................................28

3.6.1 Connecting the Ground Cable...................................................................................28

3.6.2 Connecting the Network Cable .................................................................................29

3.6.3 Connecting the Fiber-Optic Cable.............................................................................30

3.7 Bundling Cables......................................................................................................................31

3.7.1 Precautions .................................................................................................................31

3.7.2 Bundling Description .................................................................................................32

3.8 Installation Verification..........................................................................................................32

3.8.1 Checking the AP..........................................................................................................32

3.8.2 Checking Cable Connections.....................................................................................33

3.8.3 Checking the Power Supply.......................................................................................33

4 Verifying Operating Status ........................................................................................................... 34

4.1 Establishing the Configuration Environment ......................................................................34

4.2 Powering on the AP................................................................................................................34

4.2.1 Checklist Before Power-on ........................................................................................34

4.2.2 Checking the Environment After Power-on .............................................................34

5 Monitoring and Maintenance....................................................................................................... 35

5.1 Monitoring ..............................................................................................................................35

5.1.1 LED...............................................................................................................................35

5.1.2 CLI Commands ...........................................................................................................35

5.2 Remote Maintenance.............................................................................................................35

5.3 Hardware Maintenance .........................................................................................................35

6 Troubleshooting ............................................................................................................................ 36

6.1 General Troubleshooting Procedure....................................................................................36

6.2 Common Troubleshooting Procedures................................................................................36

6.2.1 Ethernet Port Is Not Working After the Ethernet Cable Is Plugged In..................36

6.2.2 LED Is Off for a Long Time.........................................................................................36

6.2.3 LED Is Steady Red.......................................................................................................37

6.2.4 LED Is Steady Green...................................................................................................37

6.2.5 LED Keeps Blinking Blue at an Interval of 0.2s (in Fit Mode)..................................37

6.2.6 LED Does Not Turn Steady Blue or Blinking Blue....................................................37

6.2.7 No Wireless Signal Searched.....................................................................................37

7 Appendix ........................................................................................................................................ 38

7.1 Connectors and Media...........................................................................................................38

7.2 Cabling Recommendations ...................................................................................................41

7.3 Optical Modules and Specifications......................................................................................46

Hardware Installation and Reference Guide Product Introduction

1 Product Introduction

1.1 Overview

The RG-AP680-IO is a Wi-Fi 6, dual-radio, enhanced, and industrial wireless access point

(AP) provided by Ruijie Networks for higher education, wireless city, energy, business

mall, and other scenarios.

The RG-AP680-IO supports the 802.11ax, 802.11ac Wave2, 802.11ac Wave1, and 802.11n

protocols. With hardware-independent quad-band design, the AP can provide up to 5.951

Gbps access rate. The ultra-fast wireless network makes performance no longer a

bottleneck.

Important factors such as the wireless network security, radio control, mobile access,

Quality of Service (QoS), seamless roaming, and expansion of the Internet of Things (IoT)

module are fully taken into account for this product. Therefore, this AP can be used in

combination with Ruijie Access Controllers (ACs) and WIS to implement STA data

forwarding, security, access control, and IoT application extension.

Thanks to its IP68 rated housing, the RG-AP680-IO is suitable for use in extreme

industrial environments and capable of effectively withstanding harsh weather and

environments. It is highly adaptable to colder and wet climates, allowing for easier

installation and maintenance.

The RG-AP680-IO supports power over Ethernet (PoE) and built-in omnidirectional

antennas to meet Wi-Fi network coverage and networking requirements in most

environments.

Hardware Installation and Reference Guide Product Introduction

1.2 Product Appearance

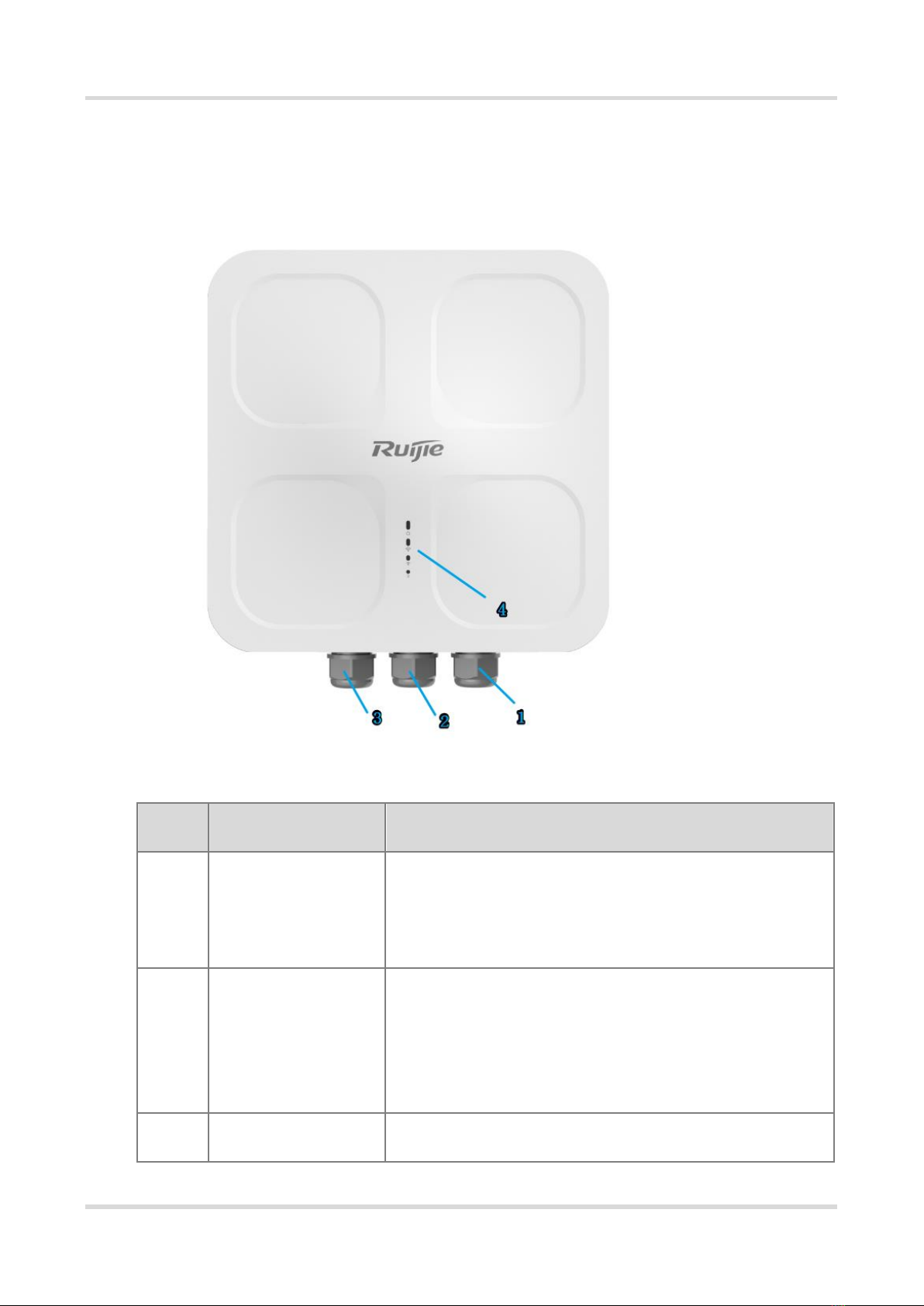

Figure 1-1Front View

Table 1-1 Description of Buttons and Ports on the Front Panel

No.

Item

Description

LAN1/HPoE electrical

port

Uplink service port for data transmission, 5000Base-T

Ethernet port with auto-negotiation

Support IEEE802.3af/802.3at/802.3bt-complaint PoE

LAN2/IoT

Downlink service port for data transmission, 1000Base-T

Ethernet port with auto-negotiation

Support 802.3af-complaint power supply to external

devices

LAN3/SFP+

Uplink service port for data transmission, 10GE SFP port
