Ruijie Reyee RAP6260-D Manuel d'installation et d'exploitation

Ruijie Reyee RG-RAP6260(H)-D Access

Point

Hardware Installation and Reference Guide

Document Version: V1.0

Date: January 30, 2023

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation orcommercial use ofthis document

or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks

is prohibited.

Trademarks including , are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Conventions

1. GUI Symbols

Interface

symbol

Description

Example

Boldface

1. Button names

2. Window names, tab name, field name and

menu items

3. Link

1. Click OK.

2. Select Config Wizard.

3. Click the Download File link.

Multi-level menus items

Select System >Time.

2. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

3. Note

This manual provides the device installation steps, hardware troubleshooting, module technical specifications,

and specifications and usage guidelines for cables and connectors. It is intended for the users who have some

experience in installing and maintaining network hardware. At the same time, it is assumed that the users are

already familiar with the related terms and concepts.

Contents

Preface.................................................................................................................................................. I

1 Product Overview.............................................................................................................................. 1

1.1 About the RG-RAP6260(H)-D Access Point .............................................................................1

1.2 Package Contents......................................................................................................................1

1.3 Hardware Features....................................................................................................................2

Access Point...................................................................................................................2

Ports and LED................................................................................................................3

Reset Hole .....................................................................................................................4

1.4 Technical Specifications............................................................................................................5

1.5 Power Specifications .................................................................................................................7

1.6 Heat Dissipation.........................................................................................................................8

2 Preparing for Installation................................................................................................................... 9

2.1 Safety Precautions.....................................................................................................................9

General Safety Precautions...........................................................................................9

Handling Safety..............................................................................................................9

Electric Safety................................................................................................................9

Laser Safety.................................................................................................................10

2.2 Installation Environment Requirements...................................................................................10

Bearing Requirements.................................................................................................10

Ventilation Requirements.............................................................................................10

Temperature/Humidity Requirements..........................................................................10

Waterproof Requirement..............................................................................................11

Grounding Requirement ..............................................................................................11

Anti-interference Requirements...................................................................................11

2.3 Tools ........................................................................................................................................11

3 Installing theAccess Point.............................................................................................................. 12

3.1 Installation Flowchart...............................................................................................................12

3.2 Before You Begin.....................................................................................................................12

3.3 Precautions..............................................................................................................................13

3.4 Installing the Access Point.......................................................................................................13

Installing the MountingArm .........................................................................................14

Wall Mounting ..............................................................................................................15

Vertical Pole Mounting.................................................................................................16

Horizontal Pole Mounting.............................................................................................17

Adjusting Orientation....................................................................................................18

3.5 Installing the Cable..................................................................................................................20

Installing the Ethernet Cable........................................................................................20

Installing the Grounding Cable....................................................................................20

3.6 Bundling Cables.......................................................................................................................21

Precautions..................................................................................................................21

Steps............................................................................................................................21

3.7 Checklist After Installation .......................................................................................................21

4 Verifying Operating Status .............................................................................................................. 22

4.1 Setting up Configuration Environment.....................................................................................22

4.2 Powering on the Access Point.................................................................................................22

Checklist Before Power-on..........................................................................................22

ChecklistAfter Power-on .............................................................................................22

III

5 Monitoring and Maintenance........................................................................................................... 23

5.1 Monitoring................................................................................................................................23

5.2 Hardware Maintenance............................................................................................................23

6 Common Troubleshooting............................................................................................................... 24

6.1 General Troubleshooting Flowchart ........................................................................................24

6.2 Common Faults........................................................................................................................24

7 Appendix.......................................................................................................................................... 25

7.1 Connectors and Media.............................................................................................................25

2500BASE-T/1000BASE-T/100BASE-TX Port ...........................................................25

Fiber-Optic Cable Connection .....................................................................................26

7.2 Mini-GBIC Modules..................................................................................................................27

7.3 Cabling.....................................................................................................................................29

Hardware Installation and Reference Guide Product Overview

1 Product Overview

1.1 About the RG-RAP6260(H)-D Access Point

The RG-RAP6260(H)-D is a dual-radio access point designed to cover a medium or large outdoor area.

Compliant with the IEEE 802.11a/b/g/n/ac/ax standard, the access point can work at the 2.4 GHz and 5 GHz

bands at the same time and supports quad-stream MU-MIMO. The access point provides a combined data rate

of about 6000 Mbps, with up to 1148 Mbps in the 2.4 GHz band and 4804 Mbps in the 5 GHz band. The access

point provides one 2.5GE electrical port and one 1GE optical port. The electrical port adopts either IEEE 802.3bt

PoE power supply or 48 V DC local power supply.

The enclosure of RG-RAP6260(H)-D meets the IP68 protection grade, which withstands the extreme outdoor

environment and can effectively avoid the influence of bad weather and environment. The mounting method

greatly simplifies the installation and maintenance.

RG-RAP6260(H)-D is PoE-capable and can be applied to a wide variety of outdoor scenarios in the industries

including higher education, government, health care, general education, finance and business.

1.2 Package Contents

Table 1-1 Package Contents

Item

Quantity

RG-RAP6260(H)-D Access Point

Hose Clamp

Mounting Plate Assembly

M8 x 20 mm Screws

M8 x 60 mm Expansion Anchors

User Manual

Warranty Card

Cable Gland for SFP Port

Cable Gland for Ethernet Port (Pre-installed on the

access point)

SFP Port Plug (Pre-installed on the access point)

Mounting Arm

DC Connector Plug (Pre-installed on the access point)

Cable Gland for DC Connector

Hardware Installation and Reference Guide Product Overview

Item

Quantity

Grounding Cable

Note

The package contents generally contain the above items. The actual delivery is subject to the order

contract. And please check your goods carefully against the order contract. If you have any questions,

please contact the distributor.

1.3 Hardware Features

Access Point

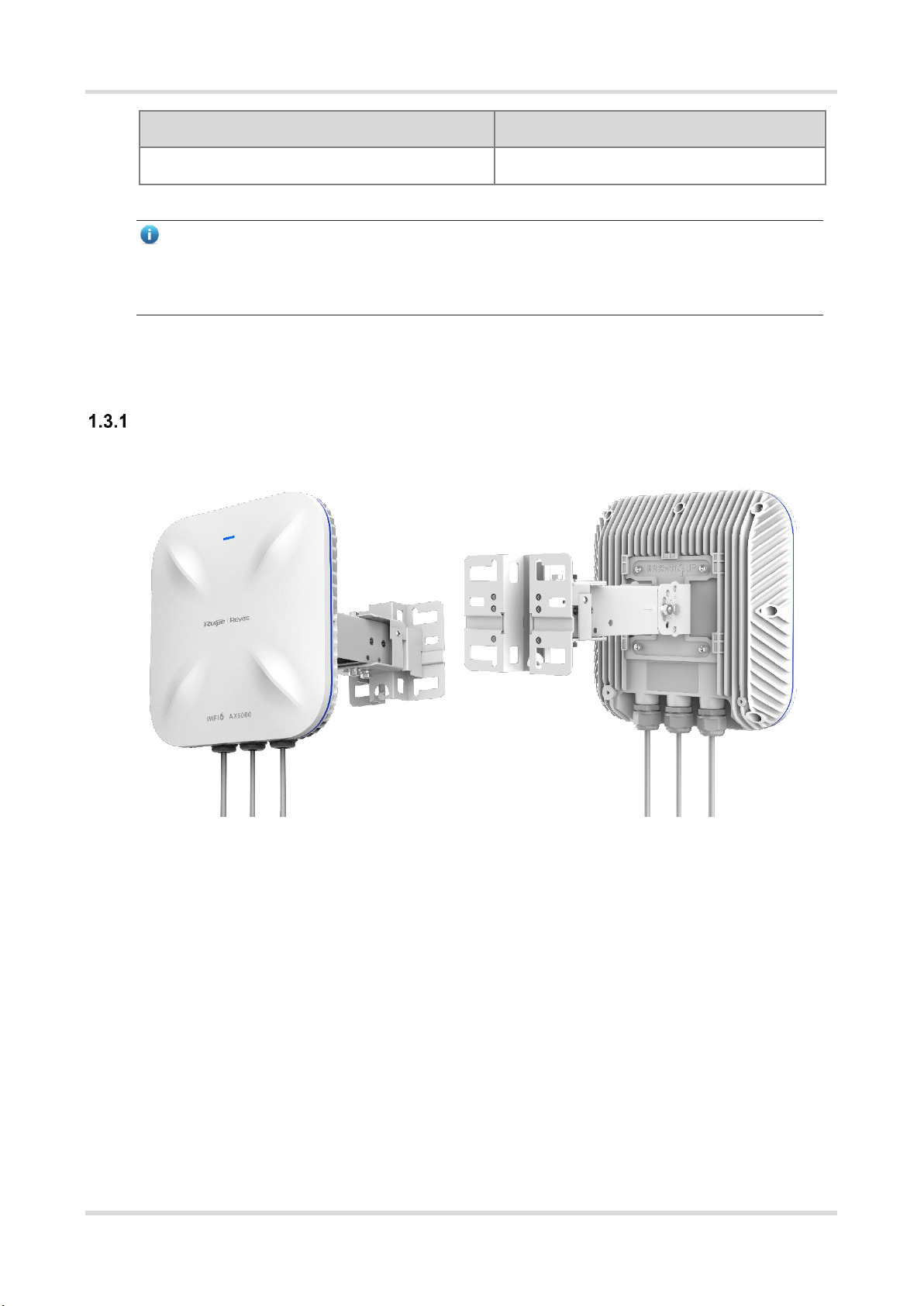

Figure 1-1 Access Point

Hardware Installation and Reference Guide Product Overview

Ports and LED

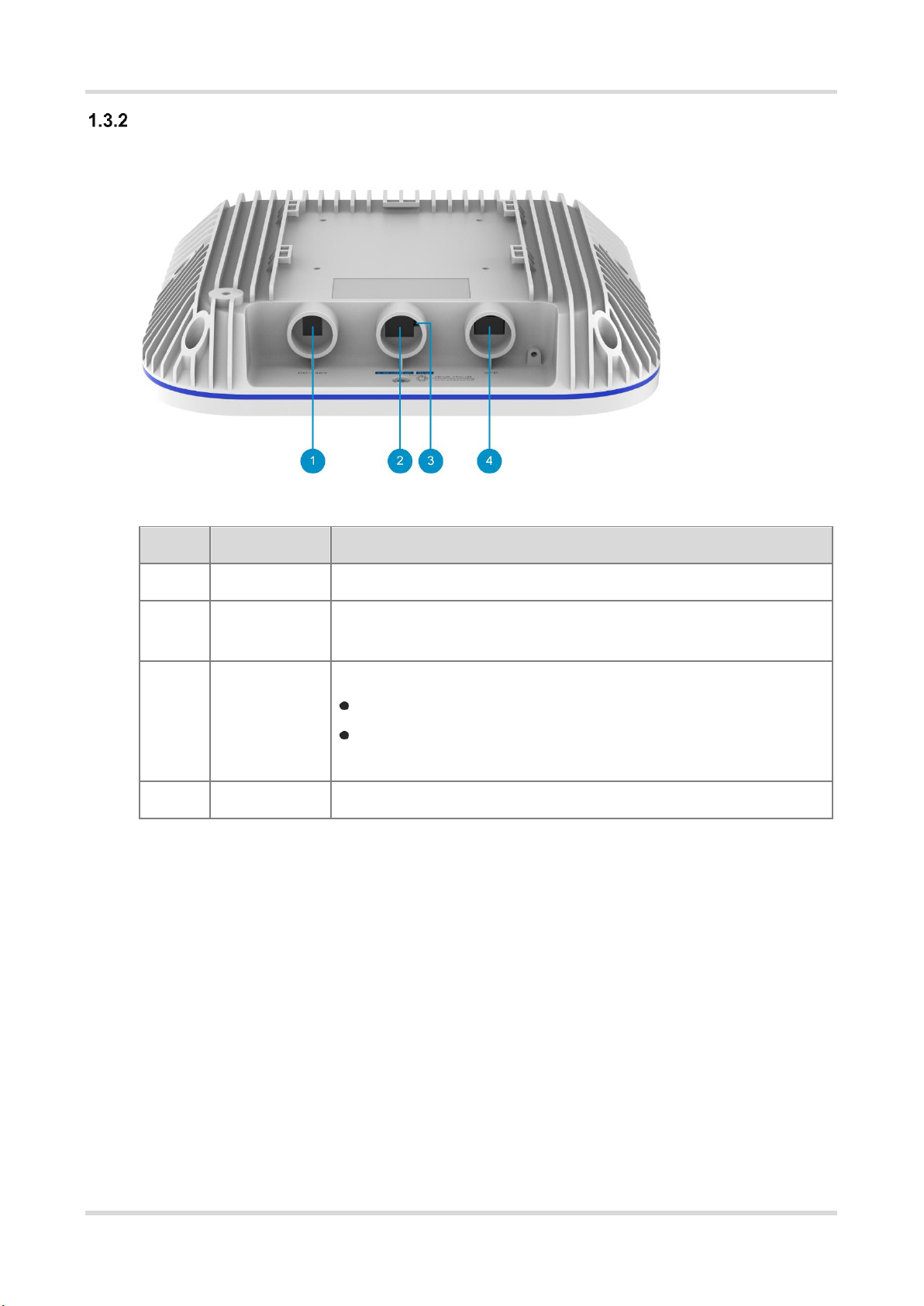

Figure 1-2 Ports

Table 1-2 Ports

No.

Ports

Description

DC Connector

48 V DC/1 A input

Ethernet/PoE

Port

100/1000/2500Base-T Ethernet ports, PoE-capable

Reset Hole

The Reset hole is near the Ethernet/PoE port.

Stick the pin to the Reset hole: Restart the access point.

Press and hold the pin to the Reset hole for more than 5 seconds:

Restore the access point to factory settings.

SFP Port

1000Base-X SFP port (The SFP transceiver is an optional accessory.)
