RG-AP680-O(V3)
Wi-Fi 6 Dual-radio Access Point
-1-

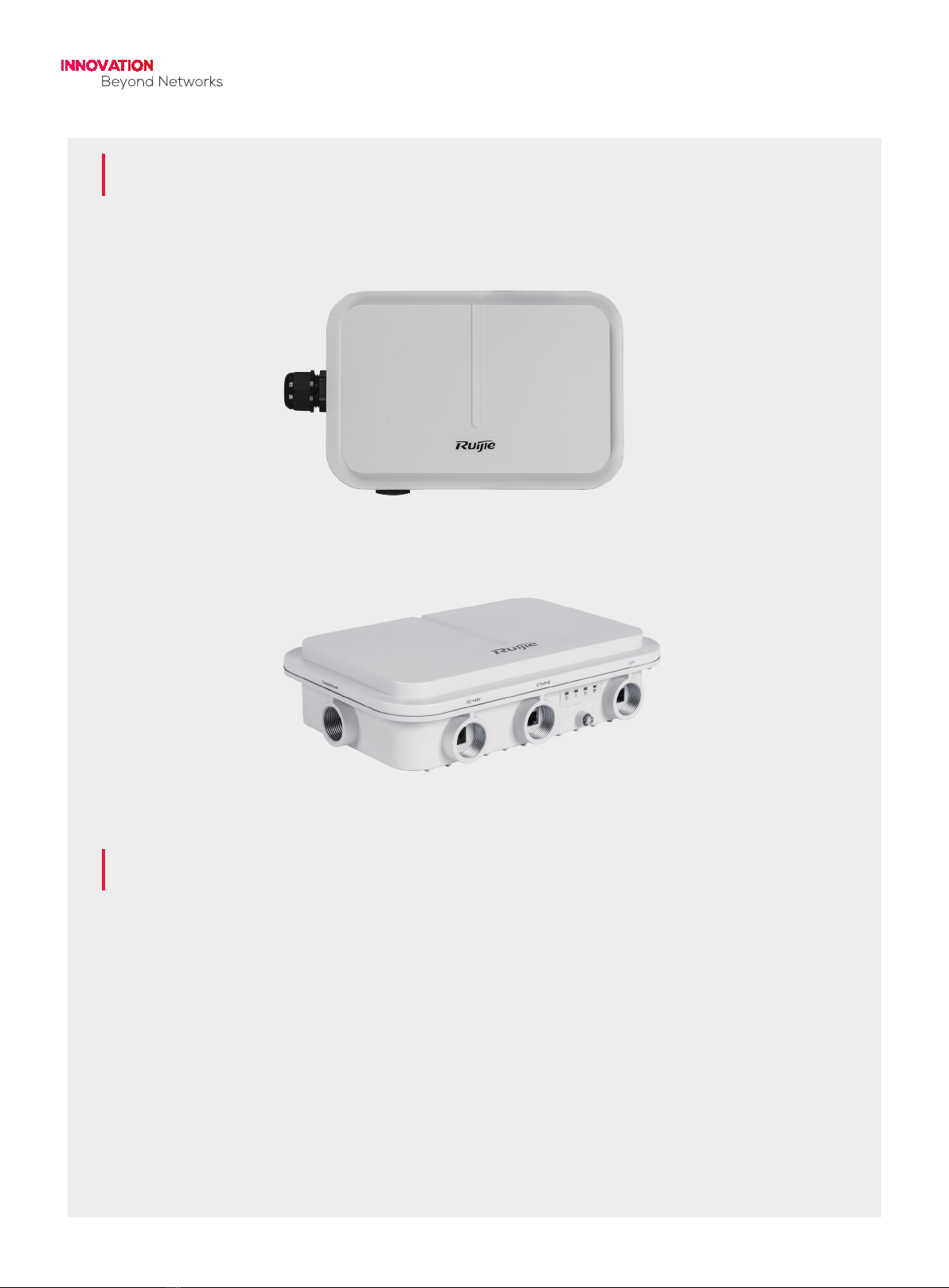

Product Pictures
Product Overview
The RG-AP680-O(V3) is a Wi-Fi 6 wireless access point that delivers dual radios, high performance, and enterprise-
grade encryption. Its hybrid cloud management mode and high-density access design allow the RG-AP680-O(V3) to
be exibly deployed in high-quality outdoor network scenarios, including outdoor hotspots such as parks and streets
in smart cities, sports eld scenarios in the education industry, and scenarios related to energy and rail transportation
industry.
-2-
Product Highlights
Ultra-High
Performance
Flexible
Networking
High Security
and Reliability
Ultra-High Performance
● Dual-band design (2.4 GHz + 5 GHz), four spatial streams,
1024-Quadrature Amplitude Modulation (QAM) high-
speed access, up to 2.976 Gbps peak data rate, and built-
in intelligent omnidirectional antenna, realizing high-speed
wireless access experience
● Orthogonal Frequency-Division Multiple Access (OFDMA),
Multi-User Multiple-Input Multiple-Output (MU-MIMO), and
Wi-Fi Multimedia (WMM), increasing the average rate per
user in high-density deployment environments
● RF power adjustment and intelligent channel allocation to
solve the problems such as co-channel interference and
adjacent channel interference, thereby improving network
transmission efciency and stability
● Packet-based power control technology and high-
performance power design, saving energy while providing
high-speed wireless access service
Flexible Networking
● Local and cloud management modes, and intelligent
wireless network optimization, reducing TCO and
maximizing ROI
● Access through optical and Ethernet cables for flexible
networking and high-speed backhaul over 2.5 Gbps optical
links
● IEEE 802.11k/v/r support and roaming stickiness
optimization, achieving seamless user roaming
● Rich IoT features: Bluetooth 5.1, and wireless locating
High Security and Reliability
● IP68 rated housing, adapting to harsh outdoor
environments
● Encryption and authentication technologies including Wi-
Fi Protected Access 3 (WPA3), enhanced open security,
802.1X, and Private Pre-shared Key (PPSK), enhancing
data security
● Dynamic Frequency Selection (DFS), optimizing the
use of available RF spectrum to prevent radar channel
interference
● Cyclic Delay/Shift Diversity (CDD/CSD), Maximum Ratio
Combining (MRC), Space-Time Block Coding (STBC), and
Low-Density Parity Check (LDPC), improving the signal
quality, signal receiving, and reliability and performance of
data transmission
● Transmit beam-forming (TxBF) expands the signal
coverage and enhances the reliability of specic devices,
thereby improving the data rate
● Intelligent identification and monitoring, multicast-to-
unicast conversion, and other features, enhancing network
security and reliability
-3-
Applicable Scenarios
Smart City
Parks
With Wi-Fi deployed in parks, people can enjoy high-speed
mobile internet access anytime, anywhere. They can exibly
and easily enjoy Internet services, including browsing the web,
watching videos, and engaging in voice and video chats with
friends.
Higher Education
Sports Field
You can cheer and show support for sports events on the
spots eld, and share moments in real time on social media.
High-speed mobile Wi-Fi allows you to leave real-time
memories.
Product Features
Multi-scenario Adaptability
The RG-AP680-O(V3) is a dual-band outdoor wireless
access point designed for outdoor scenarios such as smart
cities, higher education, general education, energy, and rail
transportation. It can be deployed in various scenarios to meet
diverse service requirements.
High-speed Access and Compatibility
The RG-AP680-O(V3) supports various wireless protocols,
such as 802.11ax, 802.11ac Wave2, 802.11ac Wave1, and
802.11n. It features a hardware-independent dual-band
design to deliver a data rate of up to 2.976 Gbps, effectively
eliminating wireless performance bottlenecks. Additionally,
it is compatible with an extensive array of devices,
promoting seamless interconnectivity among employees
and customers.
Security and Scalability
The RG-AP680-O(V3) stands out with its exceptional wireless
network security, RF control, mobile access, QoS guarantee,
and seamless roaming. With Ruijie's wireless access controller
(AC), it enables wireless user data forwarding, security, and
access control to cope with diverse service needs.
Flexible Deployment and Power Supply
The RG-AP680-O(V3) supports both local power supply and
Power over Ethernet (PoE), providing you with the exibility to
choose the power supply mode. In addition, the RG-AP680-
O(V3) can be mounted against a wall or pole, making space
deployment and environmental requirements less challenging.
This makes the RG-AP680-O(V3) particularly suitable for
scenarios such as parks, sports elds, and rail transportation
scenarios.
-4-
Solution Scalability Capabilities
Ruijie WIS Cloud Management Network Solution (WIS for
short) provides full-lifecycle cloud management network
services covering network procurement, planning, deployment,
acceptance, and O&M. When the AP connects to WIS, it can
meet various needs in multiple scenarios including planning,
deployment, acceptance, and operation through cloud
management, cloud O&M, cloud authentication, and other
value-added services provided by WIS.

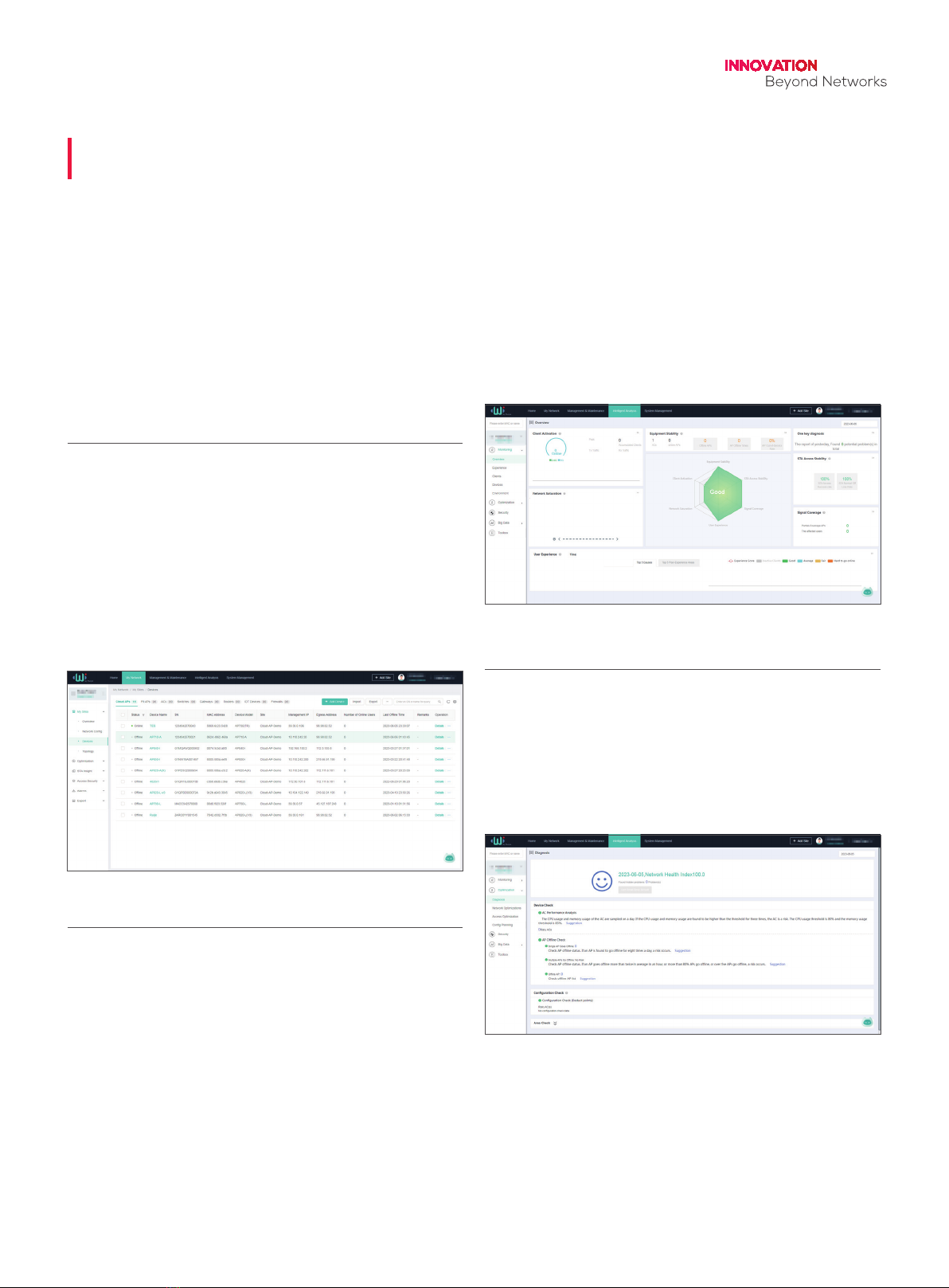

Network-wide Cloud Management
WIS supports integrated management and control of various
types of devices including APs, ACs, switches, gateways, and
routers. It supports remote O&M management operations
such as adding or batch importing of multi-branch network
devices, online status monitoring, configuration delivery,
upgrade, restart, configuration backup, and restoration. It
supports network-wide topology auto-discovery and topology
status monitoring.
Wireless Network Visualization
The overview function module of WIS provides a
comprehensive view of the network running status from the
perspective of overview, experience, users, devices, and
environment. The network running information includes the
Intelligent Network Diagnosis
With WIS, wireless network diagnosis and health index
assessment can be completed in just one click, providing
test results for each item. The health index provided by WIS
enables you to rapidly assess the state of your live network.
WIS can locate faulty areas, APs, and STAs, and provides
potential risks and corresponding optimization suggestions.
following items:
● Network basic information: device stability, device health,
user stability, network signal coverage, and network
association.
● User usage: user activity (network dependency), and user
online experience and analysis
● Network saturation: network capacity usage and channel
usage
-5-
Product Specications
Hardware Specications
Hardware Specications RG-AP680-O(V3)
802.11n
Four spatial streams
● Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams
● Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams
Channels:
● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz
● Radio 2 – 5 GHz: 20 MHz and 40 MHz
Combined peak data rate: 600Mbps
● Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 )
● Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)
Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)
Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Packet aggregation:
● Aggregate MAC Protocol Data Unit (A-MPDU)
● Aggregate MAC Service Data Unit (A-MSDU)
Dynamic Frequency Selection (DFS)
Cyclic Delay/Shift Diversity (CDD/CSD)
Maximum Ratio Combining (MRC)
Space-Time Block Coding (STBC)
Low-Density Parity Check (LDPC)
Transmit beam-forming (TxBF)
802.11ac
Two spatial streams
● Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams
Channels:
● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz
Combined peak data rate: 1.732 Gbps
● Radio 2 – 5 GHz: 6.5 Mbps to 1.732 Gbps (MCS0 to MCS9)
Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)
Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Packet aggregation:
● Aggregate MAC Protocol Data Unit (A-MPDU)
● Aggregate MAC Service Data Unit (A-MSDU)
Dynamic Frequency Selection (DFS)
Cyclic Delay/Shift Diversity (CDD/CSD)
Maximum Ratio Combining (MRC)
Space-Time Block Coding (STBC)
Low-Density Parity Check (LDPC)
Transmit beam-forming (TxBF)
802.11ax
Four spatial streams
● Radio 1 – 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams
● Radio 2 – 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams
Channels:
● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz
● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz
Combined peak data rate: 2.976 Gbps
● Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11)
● Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11)
-6-
Hardware Specications RG-AP680-O(V3)
802.11ax
Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA)
Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Packet aggregation:
● Aggregate MAC Protocol Data Unit (A-MPDU)
● Aggregate MAC Service Data Unit (A-MSDU)
Dynamic Frequency Selection (DFS)
Cyclic Delay/Shift Diversity (CDD/CSD)
Maximum Ratio Combining (MRC)
Space-Time Block Coding (STBC)
Low-Density Parity Check (LDPC)
Transmit beam-forming (TxBF)
WPA3
Antenna
Wi-Fi
● 2.4 GHz: two built-in omnidirectional antennas, the max. antenna gain is 4 dBi.
● 5 GHz: two built-in omnidirectional antennas, the max. antenna gain is 6 dBi.
Bluetooth
● One integrated vertically polarized omnidirectional antenna, the max. antenna gain is 5 dBi.
Port
1 x 100/1000Base-T RJ45 Ethernet port with auto-negotiation
1 x 2.5GE combo SFP port
1 x RJ45 console port (serial console port)
1 x Bluetooth 5.0
Status LED
1 x multi-color system status LED
● AP power-on status
● Software initialization status and upgrade status
● Uplink service interface status
● Wireless user online status
● CAPWAP tunnel timeout
● Specic AP locating
Three single-color signal strength LEDs:
● Whether bridging is enabled
● Whether bridging is successful
● Wireless signal strength after successful bridging
Button
1 x Reset button
● Press the button for shorter than 2 seconds. Then the device restarts.
● Press the button for longer than 5 seconds. Then the device restores to factory settings.
Dimensions (W x D x H) Main unit: 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.)
Shipping: 405 mm x 232 mm x 325 mm (15.94 in. x 9.13 in. x 12.80 in.)
Weight
Main unit: 1.0 kg (2.2 lbs)
Mounting bracket: 0.9 kg (1.98 lbs)
Shipping: 3.15 kg (6.94 lbs)
Mounting Wall or Pole-mounting (a mounting bracket is delivered with the main unit)
Input power supply
The AP supports the following two power supply modes:
● 48 V DC/0.35 A power input over DC connector: The DC connector accepts the center-positive
circular plug with the inner diameter of 2.0 mm (0.08 in.) or outer diameter of 6.3 mm (0.25 in.) and
the length of 9.8 mm (0.39 in.). A DC power supply needs to be purchased independently.
● PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at
standard (PoE/PoE+).
Note: If both DC power and PoE are available, DC power is preferred.
-7-
Hardware Specications RG-AP680-O(V3)
Power consumption
Maximum power consumption: 12.95 W
● DC power: 12.95 W
● 802.3at (PoE+): 12.95 W
● 802.3af (PoE): 12.95 W
● Idle mode: 6.0 W
Environment
Storage temperature: –40°C to +85°C (–40°F to +185°F)
Storage humidity: 0% RH to 100% RH (non-condensing)
Storage altitude: < 5,000 m (16,404.20 ft.) at 25°C (77°F)
Operating temperature: –40°C to +65°C (-40°F to +149°F)
Operating humidity: 0% RH to 100% RH (non-condensing)
Operating altitude: < 5,000 m (16,404.20 ft.) at 55°C (131°F)
At an altitude between 3,000 m (9,842.52 ft.) and 5,000 m (16,404.20 ft.), every time the altitude
increases by 166 m (546 ft.), the maximum temperature decreases by 1°C (1.8°F).
IP Rating IP68
Mean Time
Between Failure (MTBF) 200,000 hours (22 years) at the operating temperature of 25°C (77°F)
System memory 512 MB DRAM, 128 MB ash
Transmit power
2.4 GHz
● Max. transmit power: 28 dBm (630.96 mW)
● Minimum transmit power: 10 dBm (10 mW)
5 GHz
● Max. transmit power: 28 dBm (630.96 mW)
● Minimum transmit power: 10 dBm (10 mW)
Note: The transmit power adjusted in percentage. The transmit power is limited by local regulatory
requirements.
The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates.
It is country-specic, and Ruijie Networks reserves the right of interpretation.
Radio Frequency Performance RG-AP680-O(V3)
Frequency Band and Protocol Data Rate Max. Transmit Power per
Transmit Chain
Max. Receive Sensitivity
per Receive Chain
2.4 GHz, 802.11b
1 Mbps 25 dBm –92 dBm
2 Mbps 25 dBm –82 dBm
5.5 Mbps 25 dBm –84 dBm
11 Mbps 25 dBm –78 dBm
2.4 GHz, 802.11g
6 Mbps 25 dBm –84 dBm
24 Mbps 23 dBm –74 dBm
36 Mbps 23 dBm –72 dBm
-8-
Radio Frequency Performance RG-AP680-O(V3)
Frequency Band and Protocol Data Rate Max. Transmit Power per
Transmit Chain
Max. Receive Sensitivity
per Receive Chain
2.4 GHz, 802.11g 54 Mbps 20 dBm –67 dBm
2.4 GHz, 802.11n (HT20)
MCS0 25 dBm –84 dBm
MCS7 20 dBm –66 dBm
2.4 GHz, 802.11n (HT40)
MCS0 25 dBm –79 dBm
MCS7 20 dBm –63 dBm
2.4 GHz, 802.11ax (HE20)
MCS0 25 dBm –84dBm
MCS11 18 dBm –54 dBm
2.4 GHz, 802.11ax (HE40)
MCS0 25 dBm –80 dBm
MCS11 18 dBm –51 dBm
5 GHz, 802.11a
6 Mbps 25 dBm –84 dBm
24 Mbps 23 dBm –74 dBm
36 Mbps 23 dBm –72 dBm
54 Mbps 20 dBm –67 dBm
5 GHz, 802.11n (HT20)
MCS0 25 dBm –84 dBm
MCS7 20 dBm –66 dBm
5 GHz, 802.11n (HT40)
MCS0 25 dBm –81 dBm
MCS7 20 dBm –63 dBm
5 GHz, 802.11ac (VHT20)
MCS0 25dBm –84 dBm
MCS9 19 dBm –61 dBm
5 GHz, 802.11ac (VHT40)
MCS0 25 dBm –81 dBm
MCS9 19 dBm –56 dBm
5 GHz, 802.11ac (VHT80)
MCS0 25 dBm –78 dBm
MCS9 19 dBm –53 dBm
-9-
Radio Frequency Performance RG-AP680-O(V3)
Frequency Band and Protocol Data Rate Max. Transmit Power per
Transmit Chain
Max. Receive Sensitivity
per Receive Chain
5 GHz, 802.11ax (HE20)
MCS0 25 dBm –84 dBm
MCS11 18 dBm –54 dBm
5 GHz, 802.11ax (HE40)
MCS0 25 dBm –81 dBm
MCS11 18 dBm –51 dBm
5 GHz, 802.11ax (HE80)
MCS0 25 dBm –78 dBm
MCS11 18 dBm –48 dBm
5 GHz, 802.11ax (HE160)
MCS0 25 dBm –73 dBm
MCS11 18 dBm –43 dBm
Software Specications
Software Specications RG-AP680-O(V3)
Basic Functions
Applicable software version RGOS11.9(6)W2B4 or higher
WLAN
Max. number of associated
STAs 1,024 (up to 512 STAs per radio)
Max. number of BSSIDs 32 (up to 16 BSSIDs per radio)
Max. number of WLAN IDs 16
STA management
SSID hiding
Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN
attributes independently.
Remote Intelligent Perception Technology (RIPT)
Intelligent STA identication
Intelligent load balancing based on the STA quantity or trafc
STA limiting SSID-based STA limiting
Radio-based STA limiting
Bandwidth limiting STA/SSID/AP-based rate limiting
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Ruijie Point d'accès sans fil
Ruijie
Ruijie RG-AP710 Series Manuel d'installation et d'exploitation
Ruijie
Ruijie RG-AP740-I Series Manuel d'installation et d'exploitation
Ruijie
Ruijie RG-WLAN Series Manuel utilisateur
Ruijie
Ruijie Reyee RG-RAP1260 Manuel d'installation et d'exploitation
Ruijie
Ruijie Reyee Series Manuel utilisateur
Ruijie
Ruijie Reyee RG-RAP2200 Manuel d'installation et d'exploitation
Ruijie
Ruijie RG-AP110-L Manuel utilisateur
Ruijie
Ruijie RG-AP740-I Series Manuel d'installation et d'exploitation
Ruijie
Ruijie RG-AP180 Series Manuel utilisateur
Ruijie
Ruijie AP630 Series Guide d'installation
Ruijie
Ruijie Reyee RG-RAP73HD Manuel utilisateur
Ruijie
Ruijie RG-AP630 Directional Manuel utilisateur
Ruijie
Ruijie RG-AP180-I Manuel d'installation et d'exploitation
Ruijie
Ruijie RG-MAP852-SF-S Manuel d'installation et d'exploitation
Ruijie
Ruijie RG-AP880-E Manuel d'installation et d'exploitation
Ruijie
Ruijie Reyee RG-RAP2260 Manuel d'installation et d'exploitation
Ruijie
Ruijie RG-SAP825-SP Manuel d'installation et d'exploitation
Ruijie
Ruijie RG-SAP845-SP Manuel d'installation et d'exploitation
Ruijie
Ruijie Reyee RG-RAP52-OD Manuel utilisateur
Ruijie
Ruijie RG-SAP185-SP-W Manuel d'installation et d'exploitation
Manuels Point d'accès sans fil populaires d'autres marques
D-Link
D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur
Ubiquiti
Ubiquiti NanoStation NSM2 Manuel utilisateur
Cisco
Cisco Aironet 1550 Series Manuel utilisateur
Aruba
Aruba IAP-335 Manuel utilisateur
Advantek Networks
Advantek Networks AWN-AP-54MR Manuel utilisateur
IP-COM
IP-COM AP355 Manuel utilisateur
