Rollei 4s Plus Manuel utilisateur
Actioncam
4s Plus USER GUIDE
FOR ENGLISH | GERMAN
FRENCH | SPANISH | ITALIAN
PORTUGUESE | GREEK
DUTCH | CZECH | SLOVAK
HUNGARIAN | SWEDISH
FINNISH | NORWEGIAN
DANISH
www.rollei.de
3
Attention
1. This product is a high-precision product, do not drop or hit it anyhwere.
Please use the underwater case which is included in the delivery to protect
the camera.
2. Do not place the camera near to strong magnetism, such as magnets and
motors. Please avoid to place the product near anything emitting strong
radio waves, a strong magnetic field may cause the product to malfunction or
damage the image and sound.
3. Do not place the camera at high temperatures or direct sunlight.
4. Use brand Micro SD cards as ordinary cards do not guarantee the proper use.
5. Do not use Micro SD cards in or near magnetic places to avoid loss of data.
6. During the charging process, if there is overheating, smoke or odor, please
unplug the power immediately and stop charging to avoid fire.
7. Please keep away the camera and its accessories from children to avoid
choking or electric shocks.
8. Store the product in a cool and dry place.
9. Do not use the camera when it is low power or in charging.
10. Do not attempt to open the case of the camera or modify it in any way, the
warranty will be lost.”
Product Features
1. 4K@30fps (interpolated), 2.7K@30fps, 1080P@60fps, 720p@90fps
2. 2” TFT display screen
3. Waterproof underwater housing to a depth of 40 meters
4. Removable battery for easy replacement
5. Supports Micro SD memory cards up to 64 GB
6. WiFi connection by App to control the camera
4
ENGLISH
Camera Description
Operation
Indicator
Charging
Indicator
Display
Up/WiFi/
Zoom In
Down/Mute/
Zoom Out
Built-In Speaker
Battery Compartment
Cover
Shutter/Select
Button
WiFi
Indicator
Power/Mode
Button
Built-In
Microphone
Micro SD
Slot
Lens
Micro USB
Slot
5
Waterproof Case
Insert Camera into Waterproof Case
1. Ensure the case is dry and clean.
2. Insert the camera and make sure the lens fits neatly in the lens cavity.
3. Close the locking clamps.
4. The camera can be mounted using the accessories provided.
Shutter/Select
Button
Up/WiFi/
Zoom In
Down/Mute/
Zoom Out
Power/Mode
Button
Lens Window
6
ENGLISH
Battery
Before using the device for the first time, you must fully charge
the battery.
Charging the Battery
1. Connect the camera to a computer or USB power supply
(5V/1~2A recommended).
2. The red charging status light remains flashing while the battery is charging.
3. The red charging status light will light continuously when the battery is
fully charged.
Changing the Battery
1. To open the battery compartment, use the recess on the battery compart-
ment cover. Use a fingernail, or a flat object, to lift the lid up.
2. Remove the battery
3. lnsert the battery so the contacts line up with those of the camera.
Getting Started
Turn On
Press and hold the Power/Mode Button for 3 seconds.When the camera is
turned on, the blue Operation Indicator turns on.
Turn Off
Press and hold the Power/Mode Button for 3 seconds.
7

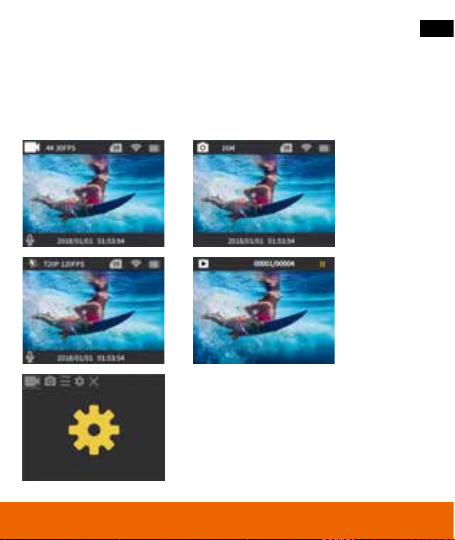

Overview
Turn On
Turn camera on and repeatedly press the Power/Mode Button to cycle
through camera modes and settings.The modes will appear in following
order: Video "Photo "Slow Motion Video "Playback video and photo "
Settings "Video
" "
"
"
"
"
8
ENGLISH
Video/Photo Recording
Video Recording
Press the Shutter/Select Button when power on to start recording. A red
light on the screen will flash while recording. Press Shutter/Select Button again
to stop recording. With the Down Button you can turn on or off the sound.
Note: Video files may be split.This restarts the recording time.
Photo Capturing
Press the Shutter/Select Button to take a single picture. Use the Up Button
to zoom in and the Down Button to zoom out.
Slow Motion Video Recording
Press the Shutter/Select Button when power on to start recording. A red
light on the screen will flash while recording. Press Shutter/Select Button again
to stop recording. With the Down Button you can turn on or off the sound.
Playback/Delete Files
Playback Files on Camera
Make sure the camera is in Video or Photo Playback menu. Press the Up/Down
Button to cycle the videos or photos, then press the Shutter/Select Button
to playback and pause the videos. Press the Power/Mode Button to go back.
Delete Files on Camera
Press and hold the Shutter/Select Button for seconds to delete the optional file.
To exit playback mode, press the Power/Mode Button to the main preview
menu, press the Power/Mode Button again to switch to setting menu.
9
Settings
Repeatedly press the Power/Mode Button to enter the Setting Menu, use
the Up or Down Button to cycle through the various options, and press the
Shutter/Select Button to select selected option.
Video Setting:
Video Resolution:
4K@30
fps (interpolated),
2.7K@30fps, 1080P@60fps, 1080P@30fps,
720P@90fps, 720P@60fps, 720P@30fps
Soundrecording: On/Off
Time-Lapse: Close/0.5sec/1sec/2sec/5sec/
10sec/30 sec/60sec
Loop Recording: Close/2min/3min/5min
Slow Motion: 1080P@60fps/720p@90fps
Photo Setting:
Photo Resolution:
16M (4640x3480) (interpolated)/
12M (4000x3000) (interpolated)/
8M (3264x2448)/5M (2592x1936)/
2M (1600x1200)
Timed: Close/3sec/5sec/10sec/20sec
Auto: Close/3sec/10 sec/15sec/20sec/30sec
Burst: Close/3pic/5pic/10pic
10
ENGLISH
Settings
General Setting:
Exposure: +/–3~0
White Balance: Auto/Sunny/Cloudy/
Incandescent Light/Fluorescent Light
WiFi: On/Off. Press OK to activate the WiFi.
To deactivate the WiFi again, press the Up
Button. With the Up Button you can control
the WiFi function without entering the menu.
Image Rotation: On/Off
Driving Mode: On/Off
Light Source Frequency: Auto/50Hz/60Hz
LED Indicator Light: On/Off
Auto Screensaver: 10sec/20 sec/30sec/close
Auto Shutdown: 1 min/3min/5 min/close
Time Watermark: On/Off
System Setting:
Language: English, French, German,
Italian, Czech, Portuguese, Spanish, Slovak,
Swedish, Danish, Norwegian, Dutch, Finnish,
Greek, Hungarian
Date & Time: YYYY/MM/DD hh:mm:ss
Format Memory Card: Yes/No
Reset: Yes/No
Firmware Version
11
Settings
Exit:
Press the Shutter Button to exit.
Storage/Memory Cards
This camera is compatible with 8 GB, 16 GB, 32 GB and 64 GB capacity
Micro SD and Micro SDXC memory card. You must use a micro SD card with
a CLASS 10 (80M/S) speed rating at least. We recommend using brand-name
memory cards for maximum reliability in high vibration activities.
Tips:
• Memory card is not included in the standard package, you will need to
buy an extra memory card.
• Please format the Micro SD or Micro SDXC memory card on the camera
before using.
• Please restart the camera after formating.
• Please insert the memory card in correct way, otherwise the card slot
maybe damaged.
