Rollei Actioncam 6s Plus Manuel utilisateur

Actioncam 6s Plus

USER GUIDE

FOR ENGLISH | GERMAN | FRENCH

SPANISH | ITALIAN | PORTUGUESE | GREEK

DUTCH | CZECH | SLOVAK | HUNGARIAN

SWEDISH | FINNISH | NORWEGIAN | DANISH

Touch

Display

www.rollei.de

ENGLISH

Attention

1. This product is a high-precision product, do not drop or hit it anywhere.

2. Do not place the camera near to strong magnetism, such as magnets and motors. Please avoid to place

the product near anything emitting strong radio waves, a strong magnetic ﬁeld may cause the product to

malfunction or damage the image and sound.

3. Do not place the camera at high temperatures or direct sunlight.

4. Use brand Micro SD cards as ordinary cards do not guarantee the proper use.

5. Do not use Micro SD cards in or near magnetic places to avoid loss of data.

6. During the charging process, if there is overheating, smoke or odor, please unplug the power immediately

and stop charging to avoid ﬁre.

7. Please keep away the camera and its accessories from children to avoid choking or electric shocks.

8. Store the product in a cool and dry place.

9. Do not use the camera when it is low power or in charging.

10. Do not attempt to open the case of the camera or modify it in any way, the warranty will be lost.

Product Features

1. 4K@30 fps, 2.7K@30 fps, 1080P@120 fps, 720P@240 fps

2. 2” Touch screen

3. Waterproof housing to a depth of 10 meters

4. Replaceable Li-Ion battery

5. Supports Micro SD memory cards up to 64GB

6. WiFi connection by App to control the camera

7. Remote control included

8. Video mode: normal, slow-motion, loop, time-lapse

9. Photo mode: single, time lapse, burst, timer

Camera Description

Lens

Power/Mode Button

Shutter/Select Button

Mode Button

Battery compartment & Micro SD Slot

1/4“ Tripod Connection

Micro HDMI Slot

Micro USB Slot

Built-In Microphone

Built-In Speaker

Charging Indicator

Operation Indicator

Touch Display Screen

ENGLISH

Waterproof Case

• Insert Camera into Waterproof Case

1. Ensure the case is clean.

2. Insert the camera and make sure the lens ﬁts neatly in the lens cavity.

3. Close the locking clamps.

4. The camera can be mounted using the accessories provided.

Battery

Before using the device for the ﬁrst time, you must fully charge the battery.

• Charging the Battery

1. Connect the camera to a computer or USB power supply (5V/2A).

2. The charging status light turns on while the battery is charging.

3. The charging status light turns off when the battery is fully charged.

• Changing the Battery

1. Hold the camera so that you can see the camera display and slide the battery cover to the right to

open the battery compartment.

2. Remove the battery.

3. lnsert the new battery so the contacts line up with those of the camera..

Getting Started

• Turn On: Press and hold the Power/Mode Button for 3 seconds.When the camera is turned on, the

Operation Indicator turns on.

• Turn Off: Press and hold the Power/Mode Button for 3 seconds.

Button Function

Overview Menu

Turn camera on and press the Mode Button to access

the following camera menu and to select the different

modes.To access a mode, brieﬂy press the Shutter/

Select Button:

1. Mode Menu: Video or Photo

2. Playback video and photo

3. System Settings

4. Return to previous screen

To exit the menu, press the Power/Mode Button or press

the Shutter/Select Button in the fourth tab.

1. Mode Menu

Here you can choose the different video (1.1) or

photo (1.2) modes. Use the Mode Button to select

the various options.Access the requested option by

pressing the Shutter/Select Button.To choose bet-

ween video mode and photo mode, press the Power/

Mode Button.

1.2

1.1

ENGLISH

Button Function

1.1 Video Mode:

Press the Shutter/Select Button to start recording.

The camera symbol on the screen gets red while

recording. Press Shutter/Select Button again to stop

recording.

1.2 Photo Mode:

Press the Shutter/Select Button to take a single

picture.

2. Playback Video and Photo

In the playback mode you can preview the videos

and photos taken.

Button Function

Playback Files on Camera

Make sure the camera is in Video or Photo Playback menu. Press the Mode Button to cycle the videos or

photos, then press the Shutter/Select Button to playback and pause the videos. Press the Power/Mode

Button to go back.

Delete Files on Camera

Press and hold the Shutter/Select Button for seconds to delete the optional ﬁle. Switch with the Mode

Button to conﬁrm, then conﬁrm with the Shutter/Select Button.

3. System Settings:

In the System Setting mode you can enter the settings for the system and choose different parameters for

the camera.

4. Return to Previous Screen

Press the Shutter/Select Button to exit the menu or press the Power/Mode Button.

ENGLISH

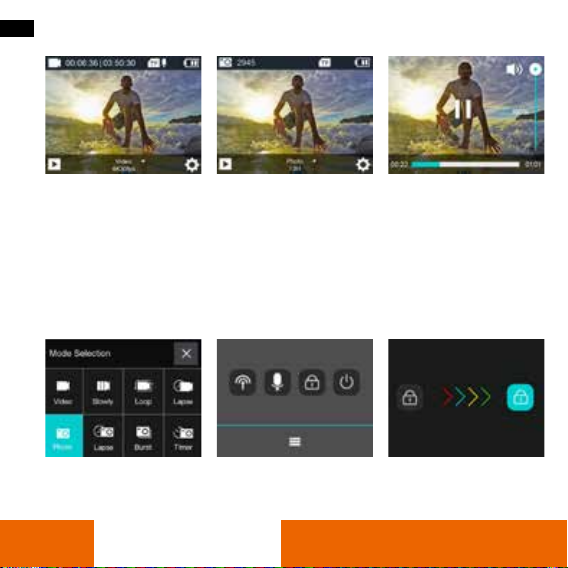

Touch Function

You can use the touch screen to access the functions of the camera.

• Swipe to the left or right to change between the video mode and the photo mode.

• In the video or photo mode you can access the playback mode via the symbol in the left lower corner

and the settings with the symbol in the right lower corner.

• During playback, click to play and pause playback video.The ﬁnger slides up and down to adjust the

volume.

• In playback mode, wipe down to retrieve the ﬁle information.

Touch Function

• Swipe up to access the mode menu of video and photo.

• Swipe down to open shortcuts to WiFi, sound, lock and power off for quick operations. With the lower

symbol you can exit the shortcut menu.

• To unlock touch the display and swipe from left to right, following the arrows or press the Shutter/Select

Button.

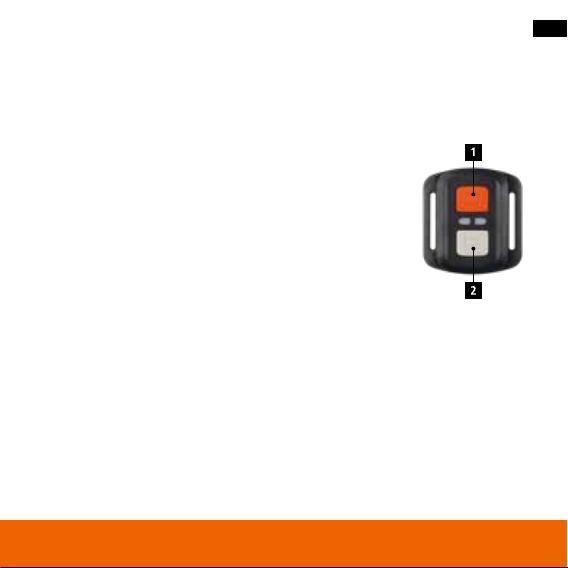

Remote Control

With the included remote control you can operate the action cam from a distance.

There are two shutter buttons, one for the photo mode and one for the video mode,

which take a photo (1) or start and end the recording of a video (2).

Radio frequency of the remote control: 2.412 – 2.472 GHz;

transmitting power: 10 mW

Storage / Micro Cards

This camera is compatible with 8GB, 16GB, 32GB and 64GB capacity Micro SD and Micro SDXC memory card.

You must use a micro SD card with a U3 or V30 speed rating at least.We recommend using brand-name

memory cards for maximum reliability in high vibration activities.

Tips:

• Memory card is not included in the standard package, you will need to buy an extra memory card.

• Please format the Micro SD, Micro SDXC memory card on the camera before using.

• Please restart the camera after formating.

• Please insert the memory card in correct way, otherwise the card slot maybe damaged.

ENGLISH

WiFi Setting

You can connect the camera to your smartphone via the integrated WiFi function. Turn the camera on and

press the Shutter/Select Button for 3 seconds, or wipe down the touchscreen to turn on WiFi via the shortcut,

or open System Preferences to enable WiFi.The camera‘s WiFi is activated, the WiFi indicator lights up, and

the WiFi information (network name and network password „1234567890“) appears on the camera‘s

monitor. Then connect the camera to the smartphone by going to theWiFi settings of your smartphone and

selecting the camera‘s network and connecting it. Download and install to your phone the free app „Rollei

5s/6s Plus“ from Google play or Apple App store. After installing it, open the app and select the camera

network from the list. You will see the camera on the phone‘s screen. To exit WiFi mode press the Shutter/

Select Button shortly.

Frequency: 2.412 – 2.472 GHz; transmitting power: 10 mW

Disposal

Dispose of packaging: For disposal, separate packaging into different types. Cardboard and

board must be disposed of as paper and foil must be recycled.

Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private

households in the European Union.

This symbol on the product or on the packaging indicates that this cannot be disposed of as a

household waste. You must dispose of your waste equipment and/or battery by handling it over

to the applicable take-back scheme for the recycling of electrical and electronic equipment and/or

battery. For more information about recycling of this equipment and/or battery, please contact your

city ofﬁce, the shop where you purchased the equipment or your household waste disposal service.

The recycling of materials will help to conserve natural resources and ensure that it is recycled in a

manner that protects human health and environment.
