Rocktron DEEP BLUE Manuel utilisateur

May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309,

4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617.

Other patents pending. Foreign patents pending.

Deep Blue Chorus Instruction Manual

Your Deep Blue™pedal has been tested and complies with the following

Standards and Directives as set forth by the European Union:

Council Directive(s): 89/336/EEC Electromagnetic Compatibility

Standard(s): EN55013, EN50082-1

This means that this product has been designed to meet stringent guide-

lines on how much RF energy it can emit, and that it should be immune from

other sources of interference when properly used. Improper use of this

equipment could result in increased RF emissions, which may or may not

interfere with other electronic products.

To insure against this possibility, always use good shielded cables for all

audio input and output connections. This will help insure compliance with

the Directive(s).

For more information about other Rocktron products, please see your local

dealer or one of our importers closest to you (listed on the Rocktron website

- www.rocktron.com).

Precautions

Read all instructions contained in this manual.

Keep these instructions

Heed all warnings

Follow all instructions.

Do not use this apparatus near water.

Clean with dry cloth

Do not block any ventilation openings (if applicable). Install in accordance with the

manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including amplifiers) that produce heat.

This product is not equipped with a plug or cable. This pedal runs on a 9 Volt

Battery, if a 9Volt DC adapter is the used please follow adapter manufacturer’s

operation instructions.

Only used attachments/accessories specified by the manufacturer.

Do not use this product with any case, stand tripod, bracket or table that is not

specified by the manufacturer. Insure that the case, stand, tripod, bracket etc. is

properly adjusted and setup (follow all instructions). Extra care and caution should

be taken to avoid tip over and injury.

Unplug this apparatus during lightening storms or when unused during long periods

of time.

Refer all service to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply or plug is damaged,

liquid has been spilled or objects have fallen into the apparatus or if the apparatus

has been exposed to rain or moisture, does not operate normally or has been

dropped.

DO NOTATTEMPTTO SERVICE THIS EQUIPMENT. QUALIFIED PERSON-

NELSHOULD SERVICE THIS EQUIPMENT ONLY. DO NOT MAKEANY

INTERNALADJUSTMENTS OR ADDITIONS TO THIS EQUIPMENTATANY

TIME OR TAMPER WITH INTERNAL ELECTRONIC COMPONENTSATANY

TIME. FAILURE TO FOLLOW THESE INSTRUCTIONS MAYVOID THE

WARRANTY OF THIS EQUIPMENT AS WELLAS CAUSING A SHOCK

HAZARD.

OPERATINGTEMPERATURE

Do not expose this unit to excessive heat. This unit is designed to operate between

32 F and 104 F (0 C and 40 C). This unit may not function properly under extreme

temperatures.

Precautions Continued....

Introduction

Congratulations on your purchase of the Rocktron

Deep Blue Chorus Pedal.

The Deep Blue chorus pedal provides a smooth multi-

voiced chorus, rich in depth and lush in intensity.

Seperate Rate, Depth and Intensity controls allows for a

wide range of chorusing.

The Deep Blue is built into a super tough road worthy

extruded aluminium chassis. This pedal will stand up

to the abuses of time and road wear and tear.

The easy access battery compartment will make chang-

ing batteries during a gig a breeze. We have also

equipped it with a super bright blue LED so you will

know when the pedal is on...it is also just plain cool!

Enjoy

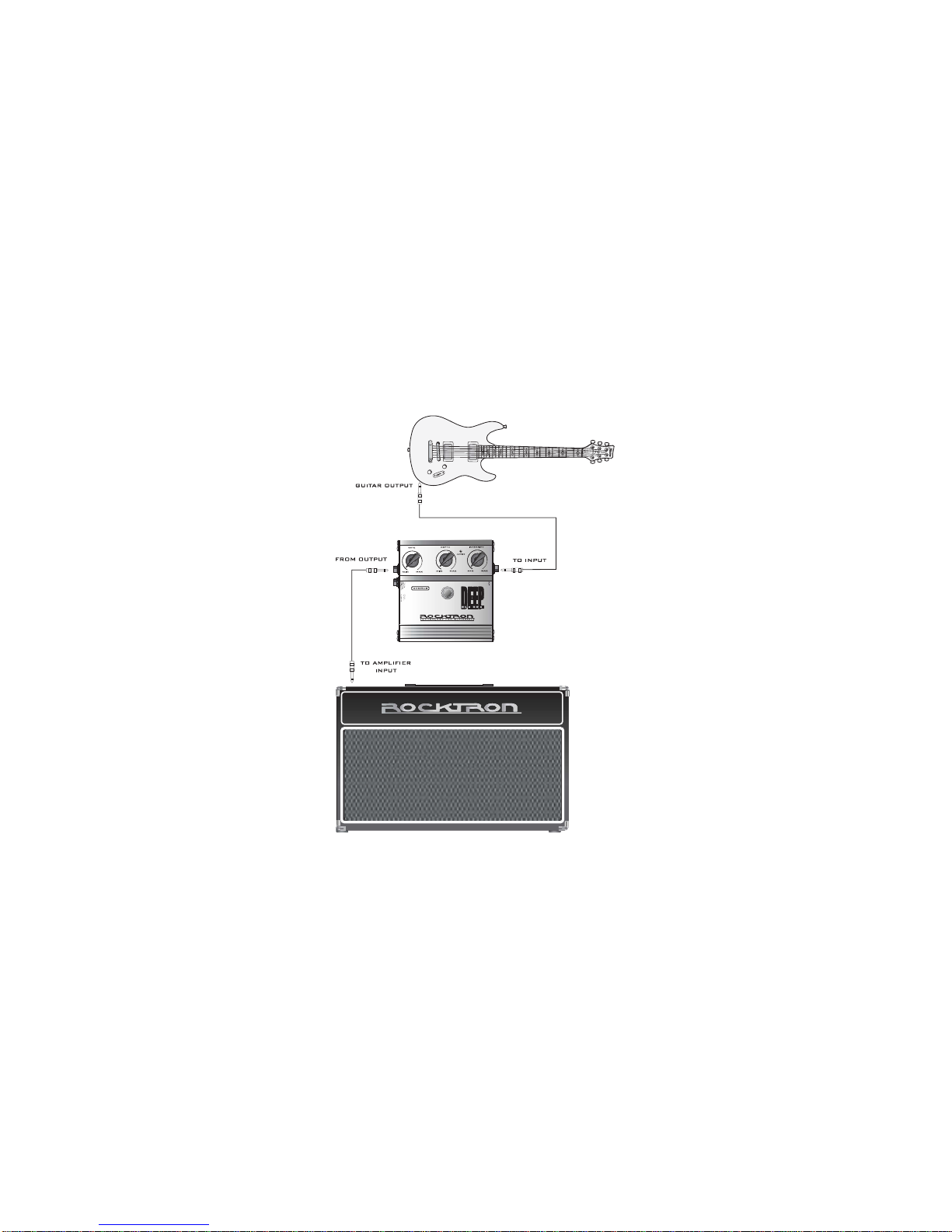

Connection 1

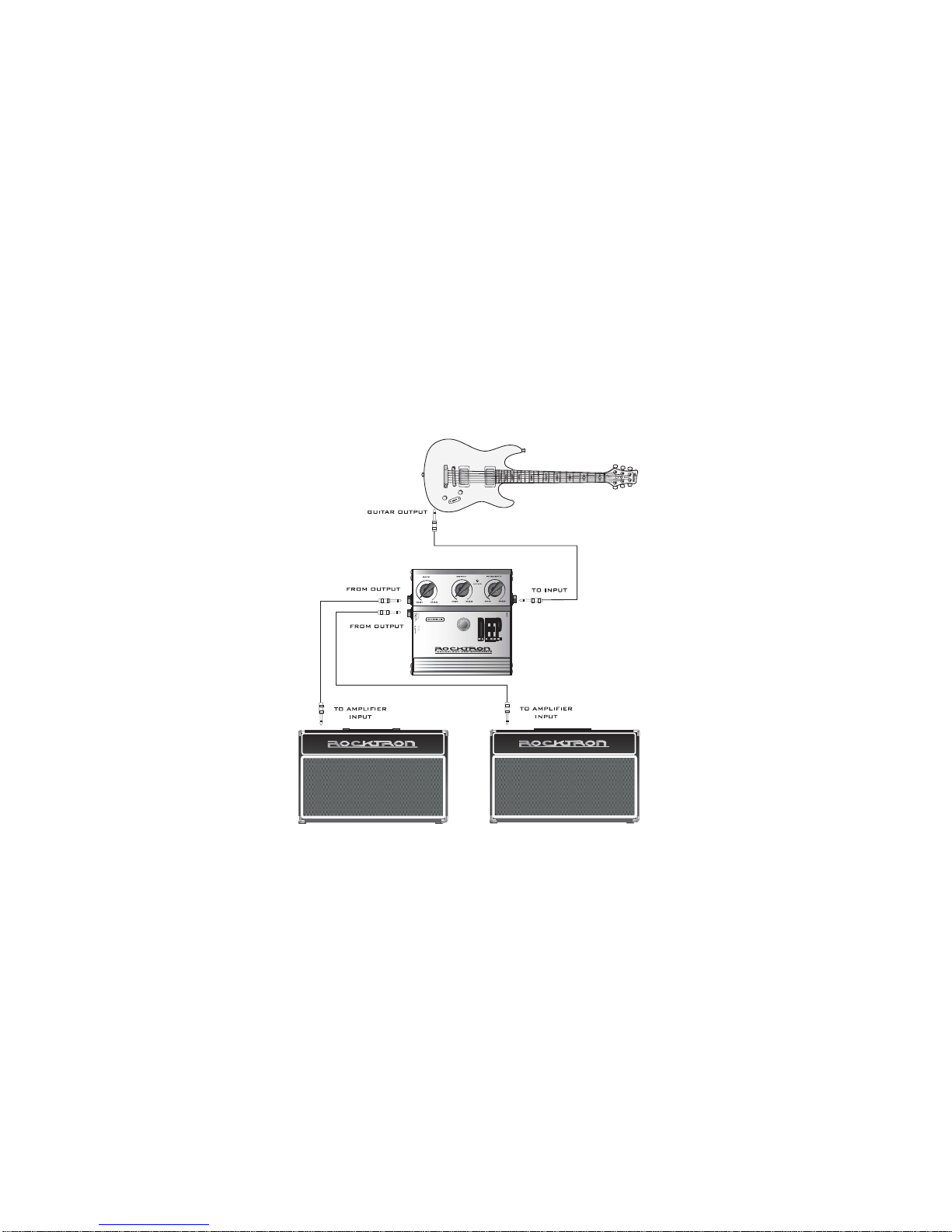

Connection 2

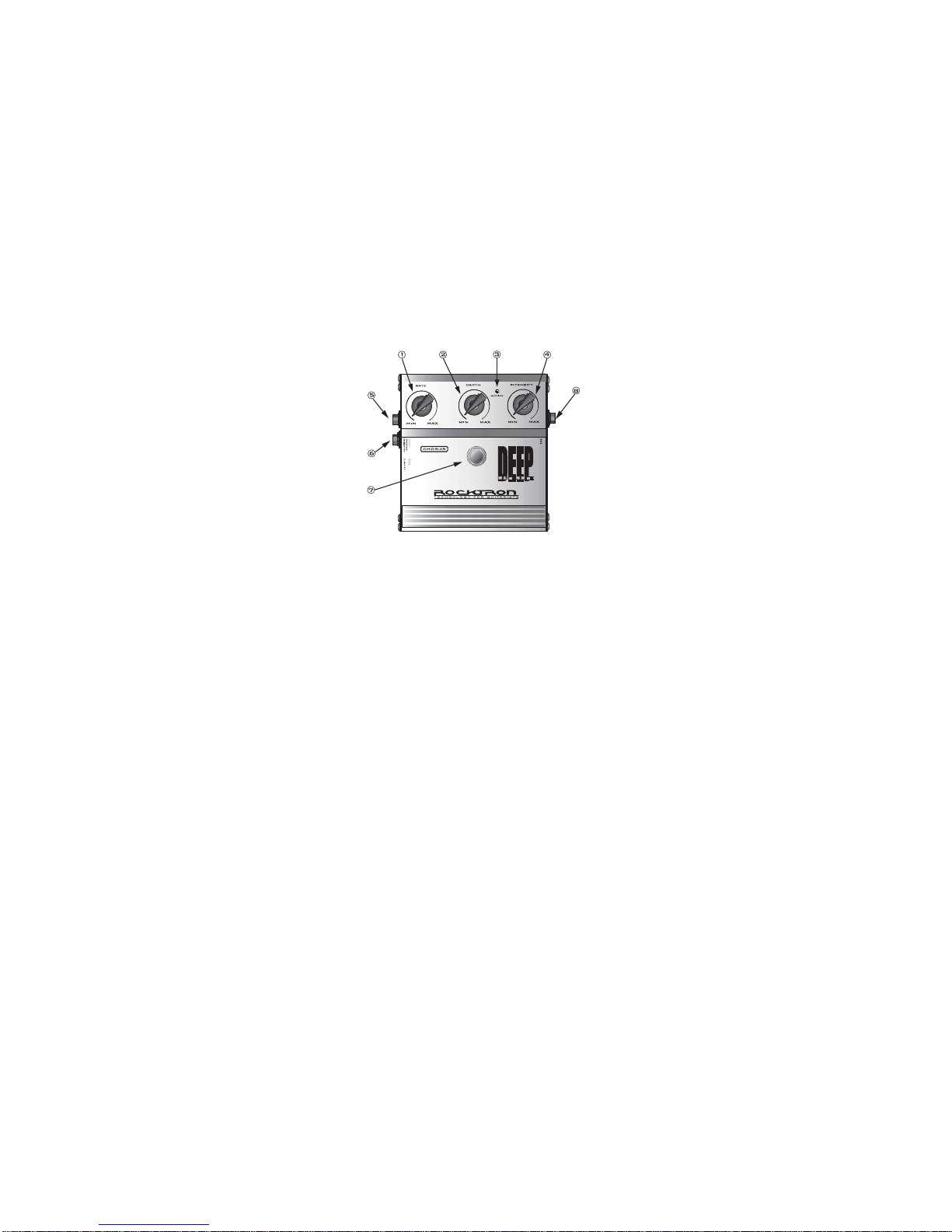

Rate Control - Adjusts the speed of the modulation. Turning

this control clockwise increases the speed. Turning it counter-

clockwise decreases the speed.

Depth Control - Adjusts the amount of modulation. Turning it

clockwise increases the depth of modulation. Turning it

counter-clockwise decreases the depth of modulation

Active LED - When lit the pedal is “active” or “on”

Intensity Control - Adjusts the amount of Chorus effect that is

added to the signal. Turning it clockwise increases the amount

of chorus added. Turning it counter-clockwise decreases the

amount of chorus added.

Output Jack - Using a standard guitar cable with a 1/4” jack,

plug into the input of your guitar amplifier or next stomp box

in the signal chain. When using the Deep Blue in mono

(plugging into only one amplifier) use this output jack. When

using in stereo (plugging into two amplifiers) use this jack for

the right side out.

Output Jack - when using it in stereo (plugging into two

amplifiers) use this output jack for left side out.

On/Off Switch - This switch determines whether the pedal is

“active” or “bypassed” - When “active” the blue LED will be lit.

When bypassed the LED will not be lit.

Input - Using a standard guitar cable with a 1/4” jack, plug your

guitar into this jack.

DC 9V Input - To use external power (not provided) use only a

9-Volt DC adapter

9-Volt Battery Compartment - to access pull on small tab labeled

“OPEN”. Replace with a new 9-Volt battery. Always remember

to unplug your guitar cords from the pedal to conserve battery

life. Some battery drain may take place when unit is plugged in

(even if the unit is bypassed).

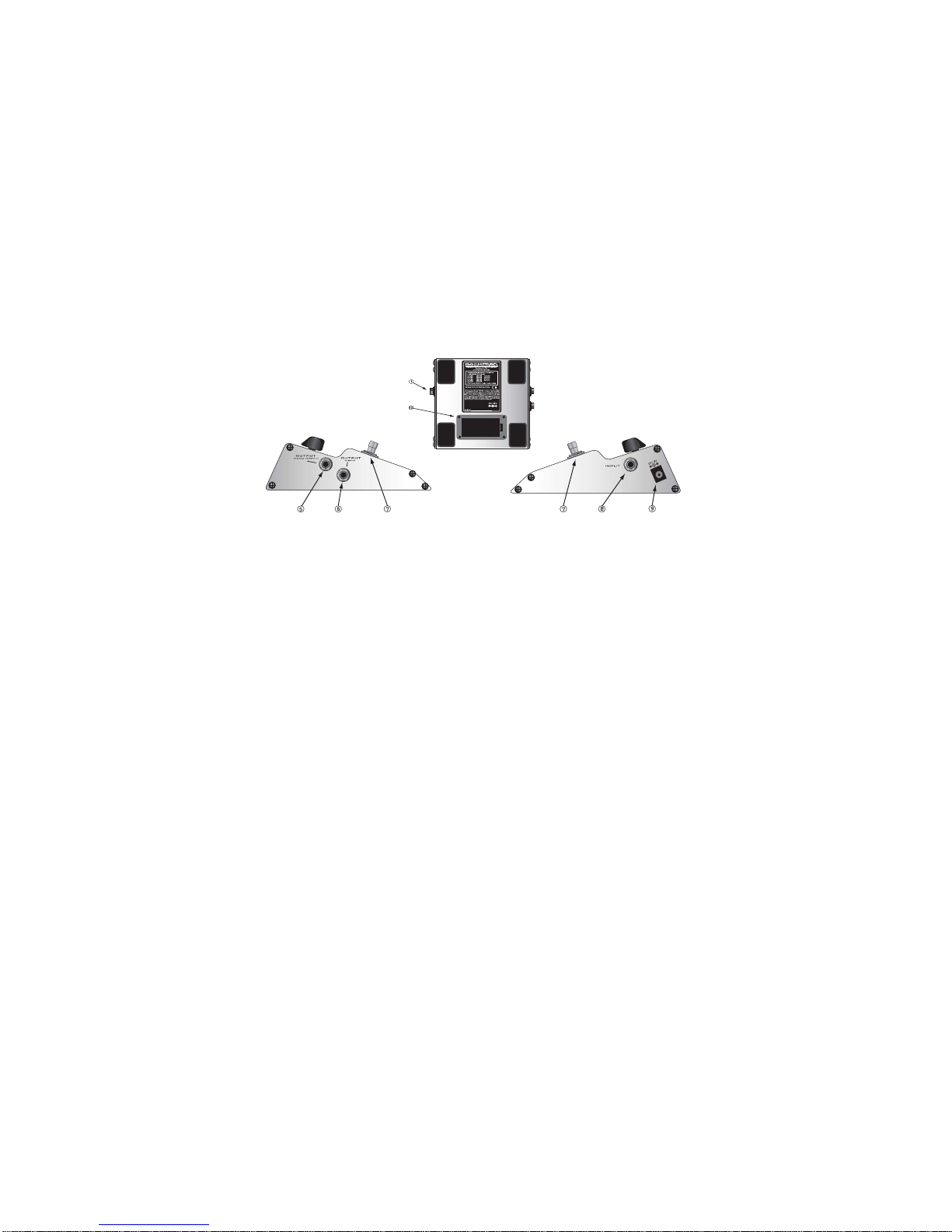

Left Side

Bottom

Right Side

Specifications

Maximum Input

Input Impedance

Current Consumption

Power Requirements

-5dBu

1M ohm

30ma

9VDC <=300ma

* CE Approved *

Hints and Tips:

Chorus pedals usually sound better when placed after distortion in

the signal chain. Thus, if you are using stomp boxes, put the

chorus pedal after the distortion. If using multiple pedals such as

delays and other modulation effects, try the Deep Blue in different

parts of the signal chain until you find the sound you like best.

If you have an effects loop in your amplifier - try putting the

chorus in the effects loop for a different sound (please follow all

instructions in your amplifier manual when connecting to your

effects loop).

Rack Gear:

Gainiac (preamp w/12ax7 tube)

Chameleon2000 (preamp w/multi-effects)

RepliTone MP(modelling preamp w/multi-effects)

Xpression (multi-effects processor)

Blue Thunder (bass preamp w/multi-effects)

Voodu Valve(preamp w/12ax7 tube and multi-effects)

Prophesy (our top of the line preamp with multi-effects)

HUSHSuper C (guitar noise silencing system)

Vendetta VP4 Preamp (All Tube 4-Channel Guitar preamp - 2 Rack Space)

Velocity100 (2x50W Stereo Power Amp for Guitar)

Stomp Boxes:

Rampage Distortion, Tsunami Chorus, Austin Gold Overdrive,

Vertigo Vibe Rotating Vibe Pedal, HUSHThe Pedal,

Sonic Glory Overdrive, Short TimerDigital Delay,

Big Crush Compressor, Metal Planet Distortion

Silver Dragon Tube Distortion Pedal,

Black Cat Moan Wah Wah

Banshee Talk Box
