Rocktron HUSH 2X Manuel utilisateur

HUSH 2X

Instruction Manual

Your HUSH 2X™pedal has been tested and complies with the following Standards and

Directives as set forth by the European Union:

Council Directive(s):

89/336/EEC Electromagnetic

Compatibility

Standard(s): EN55013, EN50082-1

This means that this product has been designed to meet stringent guidelines on how much

RF energy it can emit, and that it should be immune from other sources of interference when

properly used. Improper use of this equipment could result in increased RF emissions, which

may or may not interfere with other electronic products.

To insure against this possibility, always use good shielded cables for all audio input and

output connections. This will help insure compliance with the Directive(s).

For more information about other Rocktron products, please see your local dealer or one of

our importers closest to you (listed on the Rocktron website

(www.rocktron.com).

Read all instructions contained in this manual.

Keep these instructions

Heed all warnings

Follow all instructions.

Do not use this apparatus near water.

Clean with dry cloth

Compliance

Do not block any ventilation openings (if applicable). Install in accordance with the

manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, stoves or other ap-

paratus (including ampliers) that produce heat.

This product is not equipped with a plug or cable. This unit runs on a 9 Volt Battery, if a

9Volt DC adapter is the used please follow adapter manufacturer’s operation instructions.

Only use attachments/accessories specied by the manufacturer.

Do not use this product with any case, stand tripod, bracket or table that is not specied by

the manufacturer. Insure that the case, stand, tripod, bracket etc. is properly adjusted and

setup (follow all instructions). Extra care and caution should be taken to avoid tip over

and injury.

Unplug this apparatus during lightening storms or when unused during long periods of time.

Refer all service to qualied service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power supply or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain

or moisture, does not operate normally or has been dropped.

DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT. QUALIFIED PERSONNEL

SHOULD SERVICE THIS EQUIPMENT ONLY. DO NOT MAKE ANY INTERNAL

ADJUSTMENTS OR ADDITIONS TO THIS EQUIPMENT AT ANY TIME OR TAMPER

WITH INTERNAL ELECTRONIC COMPONENTS AT ANY TIME. FAILURE TO FOL-

LOW THESE INSTRUCTIONS MAY VOID THE WARRANTY OF THIS EQUIPMENT

AS WELL AS CAUSING A SHOCK HAZARD.

OPERATING TEMPERATURE

Do not expose this unit to excessive heat. This unit is designed to operate between 32 F and

104 F (0 C and 40 C). This unit may not function properly under extreme temperatures.

Precautions

Introduction

Got hiss? Get HUSH!

Rocktron provides a new twist on the world famous HUSH

guitar noise reduction with the HUSH 2X. Essentially a

“double HUSH”, the 2X offers two completely separate

channels of HUSH noise reduction in a single small unit

designed to sit right on top of your guitar amp/head or in

a rack drawer, freeing up space on your pedal board. The

HUSH 2X is also TRUE BYPASS.

This unique design allows you to choose if you want to run

HUSH after your pedal board and into the input of your

head with one circuit, and into the effects loop with the

other circuit offering new versatility in a single HUSH unit.

You get total HUSH control both in front, and in the effects

loop, of your amp! The HUSH 2X will also allow you to

use one HUSH circuit before, and another after, a single

pedal or with two different pedal chains on your pedal

board/rack drawer. Selector switches allow you to turn

each HUSH circuit on or off.

The same great HUSH signal cleanup is provided with up to

65dB of effective noise reduction for eliminating hiss, un-

wanted feedback and noise from pickups and stage lighting.

Guitar Player Magazine wrote that a “HUSH” pedal will

work for all guitar-related noise problems: it’s perfect” and

“its potent noise-killing abilities will be fully appreciated.”

For maximum noise reduction results, place the HUSH after

your distortion and modulation effects (chorus, anger,

phaser, etc.) but before any delay or reverb effects. If you

are already comfortable rolling back your guitar’s volume

pot, simply turn your distortion and other effects in the

chain before the HUSH to “ON”, roll back your volume

pot, adjust the HUSH Threshold control to remove any hiss

you hear, and you are ready to go!

Make sure you pay attention to the proper setup by placing

the HUSH AFTER your noisy stomp boxes or in your

amp’s effects loop. The HUSH is NOT designed to take the

input directly from your guitar WITHOUT some process-

ing happening between the guitar and the noise reduction.

When setup correctly, with your signal going from your

preamp and effects, or from your distortion and effects, into

the HUSH, you will love how it cleans up the excess noise,

including pickup buzz! The HUSH can also be used in

your amplier’s effects loop. However, if you are running

multiple effects through this loop, the HUSH should always

be the last dynamic device in the signal chain, but before

digital delays or reverbs.

The HUSH will give you the same great HUSH noise

reduction used by thousands of high prole artists for years!

The switches on the HUSH 2X controls On/Off status of

each channel as shown by the LED indicator. The HUSH

2X runs on a 9V Alkaline battery, or may also be powered

by Rocktron’s DC OnTap Universal Power Supply adaptor.

Introduction continued....

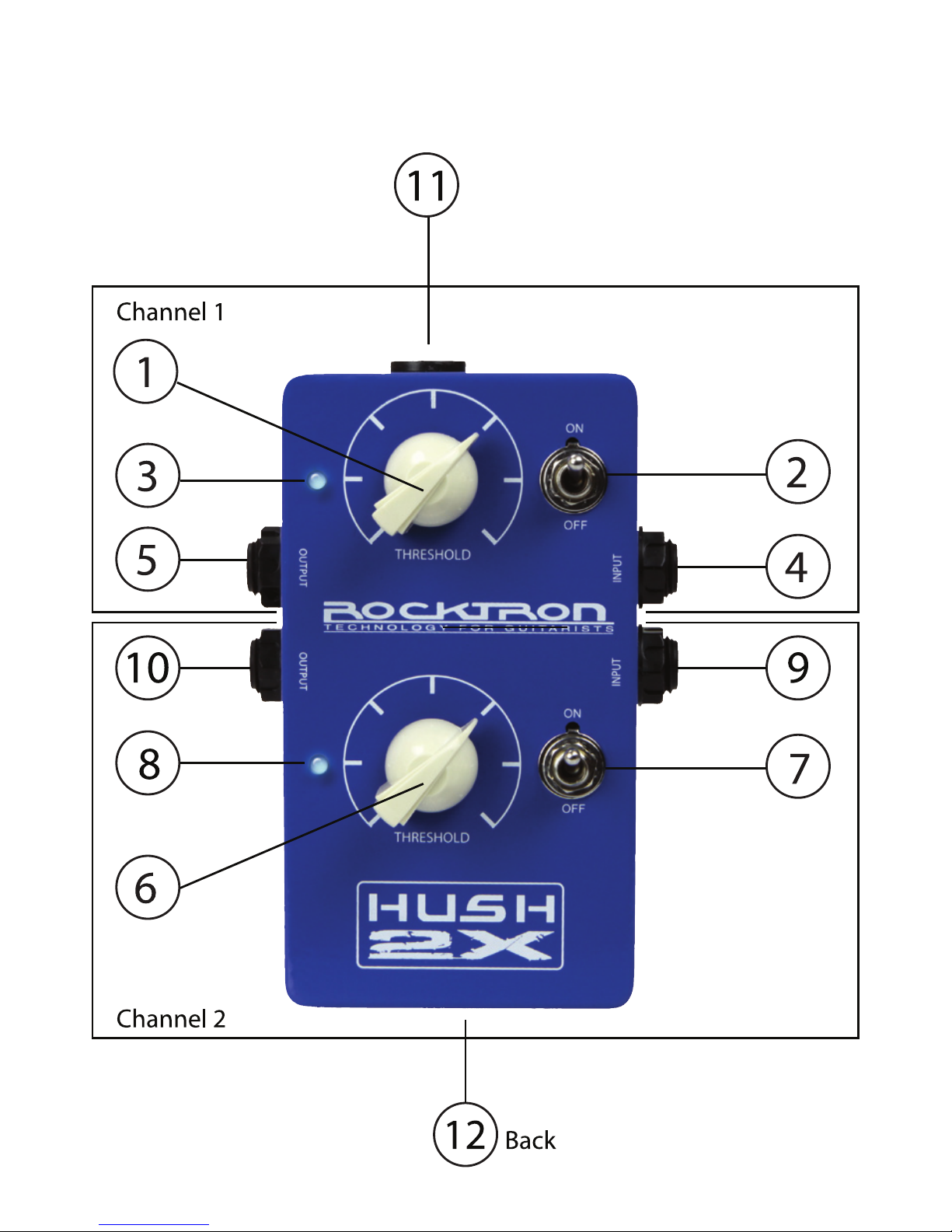

Descriptions

Descriptions continued.........

CHANNEL 1 - THRESHOLD Control determines

the minimum input level at which the HUSH lter

and downward expander will begin to operate.

Setting this control too high will result in a loss of

sustain, as notes will tend to die out much faster

than they should. Conversely, when set too low, the

expander will close too late (if at all) and the noise

oor will remain audible

CHANNEL 1 - SWITCH - This switch allows for the

HUSH to be bypassed when noise reduction is not

required.

CHANNEL 1 - ON/OFF Led - When lit, the LED

indicates that the HUSH is currently active in the

signal path.

CHANNEL 1 - INPUT Jack - Using a standard 1/4”

guitar cable, plug into this jack AFTER any noisy

pedal/effect or from an “effects send”.

CHANNEL 1 - OUTPUT Jack - Using a standard

1/4” guitar cable you can plug in another pedal from

this jack or plug directly into your amplier or to the

“effects return.”

Descriptions continued.........

CHANNEL 2 - THRESHOLD Control determines

the minimum input level at which the HUSH lter

and downward expander will begin to operate.

Setting this control too high will result in a loss of

sustain, as notes will tend to die out much faster

than they should. Conversely, when set too low, the

expander will close too late (if at all) and the noise

oor will remain audible

CHANNEL 2 - SWITCH - This switch allows for the

HUSH to be bypassed when noise reduction is not

required.

CHANNEL 2 - ON/OFF Led - When lit, the LED

indicates that the HUSH is currently active in the

signal path.

CHANNEL 2 - INPUT Jack - Using a standard 1/4”

guitar cable, plug into this jack AFTER any noisy

pedal/effect or from an “effects send”.

CHANNEL 2 - OUTPUT Jack - Using a standard

1/4” guitar cable you can plug in another pedal from

this jack or plug directly into your amplier or to the

“effects return.”

9VDC Input - This input jack requires 9VDC

from the Rocktron DC OnTap power supply (sold

separately).

BATTERY COMPARTMENT (not shown in photo)

- The battery compartment is found on the back/

bottom of the HUSH 2X. Use a 9V battery.

Descriptions continued.........

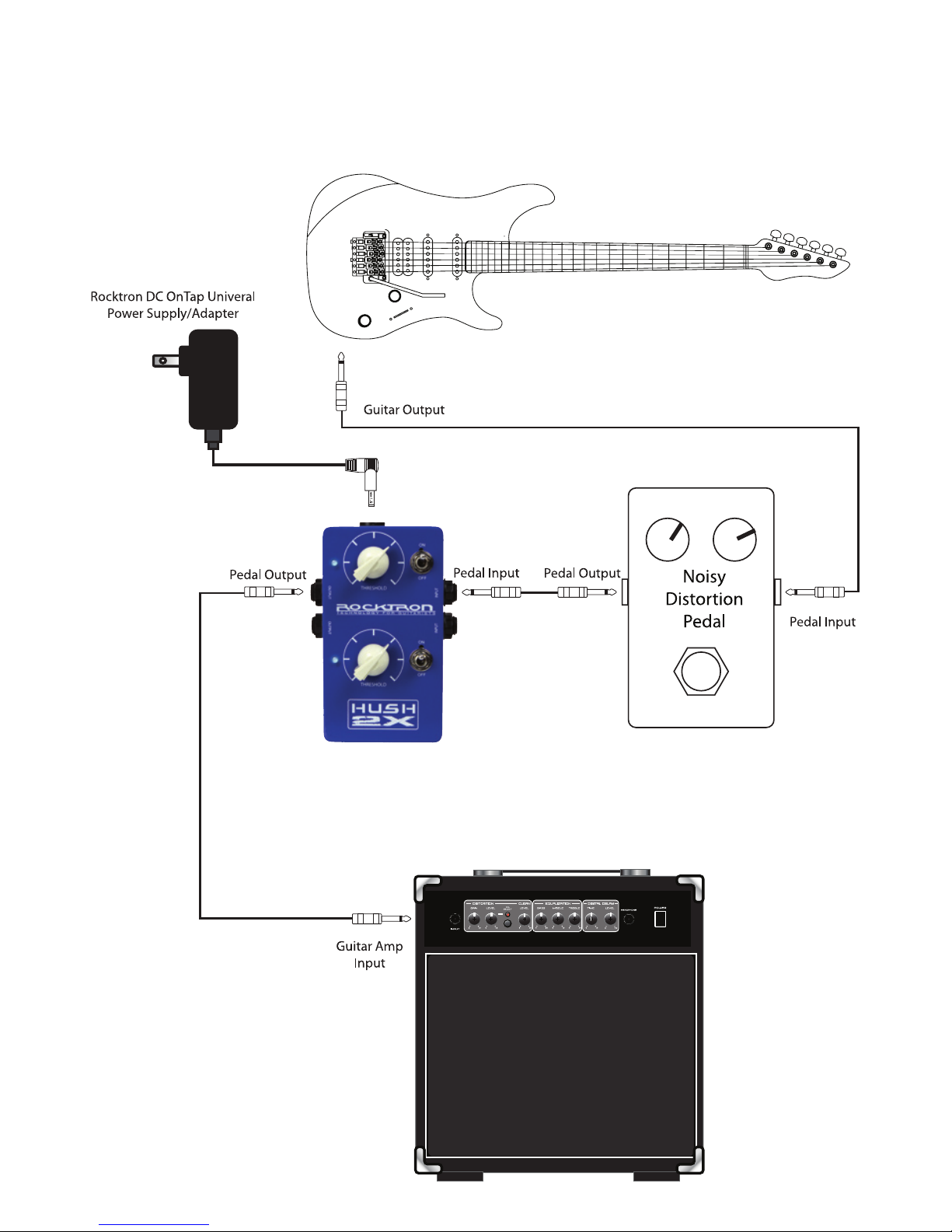

Typical Connection - Noisy Pedal
