Rocktron MicroHUSH Manuel utilisateur

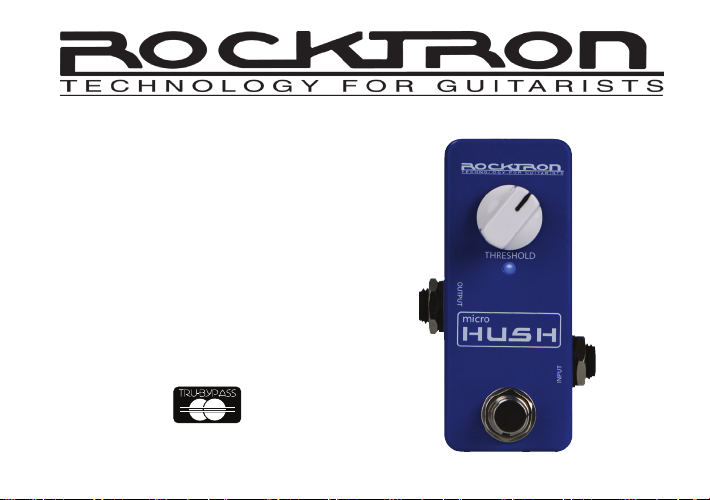

MicroHUSH

Instruction Manual

Your MicroHUSH™pedal has been tested and complies with the following Standards and Directives as set forth by the European Union:

Council Directive(s): 89/336/EEC Electromagnetic Compatibility

Standard(s): EN55013, EN50082-1

This means that this product has been designed to meet stringent guidelines on how much RF energy it can emit, and that it should be

immune from other sources of interference when properly used. Improper use of this equipment could result in increased RF emissions,

which may or may not interfere with other electronic products. To insure against this possibility, always use good shielded cables for all

audio input and output connections. This will help insure compliance with the Directive(s). For more information about other Rocktron

products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website

(www.rocktron.com).

Refer all service to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power

supply or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain or

moisture, does not operate normally or has been dropped. DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT. QUALIFIED PER-

SONNEL SHOULD SERVICE THIS EQUIPMENT ONLY. DO NOT MAKE ANY INTERNAL ADJUSTMENTS OR ADDITIONS

TO THIS EQUIPMENT AT ANY TIME OR TAMPER WITH INTERNAL ELECTRONIC COMPONENTS AT ANY TIME. FAILURE

TO FOLLOW THESE INSTRUCTIONS MAY VOID THE WARRANTY OF THIS EQUIPMENT AS WELL AS CAUSING A SHOCK

HAZARD. OPERATING TEMPERATURE. Do not expose this unit to excessive heat. This unit is designed to operate between 32 F

and 104 F (0 C and 40 C). This unit may not function properly under extreme temperatures. Do not block any ventilation openings (if

applicable). Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat reg-

isters, stoves or other apparatus (including ampliers) that produce heat. This pedal runs on a 9 Volt DC Power Adapter (not included).

Follow adapter manufacturer’s operation instructions. Rocktron is not responsible for misuse of a power supply other than the recom-

mended Rocktron DC OnTap adapters or PowerTap.

Only used attachments/accessories specied by the manufacturer. Do not use this product with any case, stand tripod, bracket or table

that is not specied by the manufacturer. Insure that the case, stand, tripod, bracket etc. is properly adjusted and setup (follow all instruc-

tions). Extra care and caution should be taken to avoid tip over and injury. Unplug this apparatus during lightening storms or when

unused during long periods of time.

Compliance

Precautions

Introduction

Got hiss? Get HUSH! The MicroHUSH is Rocktron’s world famous noise reduc-

tion in a micro chassis that will take up less space on your pedalboard. The Micro-

HUSH will wipe out hiss, unwanted feedback and pickup buzz by providing up to

65dB of signal cleanup, while your music signal integrity remains unaffected. In

other words, get rid of the noise without altering your tone! Guitar Player Maga-

zine wrote that a “HUSH pedal will work for all guitar-related noise problems: it’s

perfect” and “its potent noise-killing abilities will be fully appreciated.”

Rocktron’s MicroHUSH pedals are built into a compact yet a rugged chassis,

minimizing the footprint it has on your pedal board. The MicroHUSH is a TRUE

BYPASS pedal: when you turn it off…it is out of your signal path!

Plug the MicroHUSH in AFTER distortion boxes, wahs, noisy vintage effects,

or other noisy units and turn the THRESHOLD control knob until the noise goes

away. It’s that easy! Unlike noise “gates” that chop off the end of your notes, or

ruin your sustain, the MicroHUSH (and other Rocktron HUSH products) are actu-

ally a form of single-ended noise reduction that tracks your signal all the way and

pushes the noise floor down below the point where your ear can hear the noise.

The MicroHUSH will not alter your sustain or chop the end of your notes. Simply

use the Threshold knob to smooth out your signal while saying goodbye to noise

forever!

The MicroHUSH does not eliminate 60 cycle ground loop hum. If you are expe-

riencing 60 cycle ground loop hum then we recommend the Rocktron Buzz Kill

Audio Isolation transformer (see www.rocktron.com for more information on the

Buzz Kill.)

Here’s more HUSH tips: For maximum noise reduction results, place the Micro-

HUSH after your distortion and modulation effects (chorus, flanger, phaser, etc.) but

before any delay or reverb effects. If you are already comfortable rolling back your

guitar’s volume pot, simply turn your distortion and other effects in the chain before

the HUSH to “ON”, roll back your volume pot, adjust the HUSH Threshold control

to remove any hiss you hear, and you are ready to go!

Make sure you pay attention to the proper setup by placing the MicroHUSH AFTER

your noisy stomp boxes or in your amp’s effects loop. The MicroHUSH is NOT

designed to take the input directly from your guitar WITHOUT some processing hap-

pening between the guitar and the noise reduction. When setup correctly, with your

signal going from your preamp and effects, or from your distortion and effects, into

the MicroHUSH, you will love how it cleans up the excess noise, including pickup

buzz! The MicroHUSH can also be used in your amplifier’s effects loop. However, if

you are running multiple effects through this loop, the HUSH should always be the

last dynamic device in the signal chain, but before digital delays or reverbs.

The MicroHUSH will give you the same great HUSH noise reduction used by thou-

sands of high profile artists for years! Add true bypass and the MicroHUSH becomes

a great addition to any pedal board.

The footswitch on the MicroHUSH controls On/Off status as shown by the LED indi-

cator. The MicroHUSH requires a 9V DC power source (not included). We recom-

mend the Rocktron DC OnTap Universal Power Supply adaptor. More information

on these power supplies can be found at the end of this manual or on our website at:

www.rocktron.com

Introduction continued....

Descriptions

Descriptions continued.........

THRESHOLD Control - This control determines level of attack to cause the HUSH to

activate. Attack is measured in time. Threshold is measured in dB or by the voltage/level of

the signal.

9VDC Power Jack - The MicroHUSH requires 9VDC power to operate (not included/sold

separately). This 2.1mm power jack (Negative Tip/Positive Barrel) provides 9VDC power

to the pedal. We recommend the Rocktron DC OnTap Univeral 9V power supply. More

information on the DC OnTap Line of power supplies at the end of this manual.

ON/OFF Led - This LED shows if the pedal is on or off. When the LED is lit the pedal is

on. When the LED is not lit the pedal is off.

INPUT Jack - Using a standard 1/4” guitar cable, plug the cable from the output of the noisy

pedal into this jack.

FOOTSWITCH - Use this switch to turn on or off the pedal. The On/Off Led will show you

if the pedal is on or off.

OUTPUT Jack - Using a standard 1/4” guitar cable you can plug in another pedal from this

jack or plug directly into your amplier.

Typical Connection

HUSH Information

In most applications, the signal from an instrument being played is much louder than the noise level.

Therefore, much of the noise is not heard when an instrument is being played. However, when

you stop playing or let a note decay, the instrument level drops below the noise level and the noise

becomes much more audible. Setting the THRESHOLD controls just above the level of the noise

causes the MicroHUSH to begin to decrease the output level so that the noise is never heard.

This pedal incorporates the latest advancements in HUSH noise reduction technology. The

MicroHUSH’s discrete threshold control circuit utilizes a voltage-controlled amplier (VCA) as a

downward expander which can control the gain between the input and output of the MicroHUSH from

unity to over 60dB of gain reduction. When the input signal is above the threshold level set by the

THRESHOLD control, the VCA will remain at unity gain (i.e. the output level will remain equal to the

input level). As the amplitude drops below the threshold point, downward expansion will begin.

When downward expansion begins, the VCA acts like an electronic volume control and gradually

begins decreasing the output signal relative to the input signal. For example, if the input signal were

to drop below the threshold point by 10dB, the output would drop approximately 12dB. As the input

signal drops further below the threshold point, downward expansion increases exponentially. This

means that if the input signal dropped 20dB below the threshold point, the output level would drop

approximately 30dB. A 30dB drop below the threshold would result in a drop of 60dB of the output

signal (30dB of gain reduction). The absence of any input signal will result in the expander reducing

the gain so that the noise oor is inaudible.

HUSH Information

The Variable Integrated Release (V.I.R.) technology contained in each HUSH circuit automatically

adjusts the release rate of the expander based on the dynamic decay rate of the incoming signal. If the

input signal stops suddenly, downward expansion will occur rapidly (similar to a gate). If the input

signal decays slowly, expansion will occur slowly without disrupting the dynamic decay of the input

signal.

The THRESHOLD control should be adjusted by listening to the noise oor while not playing. Turn

the THRESHOLD control clockwise to the point where the noise oor becomes inaudible. Turning

too far past this point will cause the downward expander to attenuate the output level too quickly and

not allow the signal to decay as long as it should.

Specications:

Maximum Input

Maximum Output

Input Impedance

Output Impedance

Current Consumption

Power Requirements

Dimensions

Weight

+5dBu

470kΩ

1kΩ

15mA

9V DC Power Supply Rocktron DC OnTap Universal Power

Supply (sold separately) is recommended. 2.1mm Jack Nega-

tive Tip/Positive Barrel

92mm Long x 54mm Wide (jack end to jack end) x 48mm Tall

(from bottom to top of switch)

3 5/8” Long x 2 1/8” Wide (jack end to jack end) x 2” Tall

(from bottom to top of switch

150 grams

5.3 ounces
