Rocktron XCHANGE Manuel utilisateur

Your MIDI XChange™pedal has been tested and complies with the following

Standards and Directives as set forth by the European Union:

Council Directive(s): 89/336/EEC Electromagnetic Compatibility

Standard(s): EN55013, EN50082-1

This means that this product has been designed to meet stringent guide-

lines on how much RF energy it can emit, and that it should be immune from

other sources of interference when properly used. Improper use of this

equipment could result in increased RF emissions, which may or may not

interfere with other electronic products.

To insure against this possibility, always use good shielded cables for all

audio input and output connections. This will help insure compliance with

the Directive(s).

For more information about other Rocktron products, please see your local

dealer or one of our importers closest to you (listed on the Rocktron website

- www.rocktron.com).

Precautions

Read all instructions contained in this manual.

Keep these instructions

Heed all warnings

Follow all instructions.

Do not use this apparatus near water.

Clean with dry cloth

Do not block any ventilation openings (if applicable). Install in accordance with the

manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including amplifiers) that produce heat.

This product is not equipped with a plug or cable. This pedal runs on a 9 Volt

Battery, if a 9Volt DC adapter is the used please follow adapter manufacturer’s

operation instructions.

Only used attachments/accessories specified by the manufacturer.

Do not use this product with any case, stand tripod, bracket or table that is not

specified by the manufacturer. Insure that the case, stand, tripod, bracket etc. is

properly adjusted and setup (follow all instructions). Extra care and caution should

be taken to avoid tip over and injury.

Unplug this apparatus during lightening storms or when unused during long periods

of time.

Refer all service to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply or plug is damaged,

liquid has been spilled or objects have fallen into the apparatus or if the apparatus

has been exposed to rain or moisture, does not operate normally or has been

dropped.

DO NOTATTEMPTTO SERVICE THIS EQUIPMENT. QUALIFIED PERSON-

NELSHOULD SERVICE THIS EQUIPMENT ONLY. DO NOT MAKEANY

INTERNALADJUSTMENTS OR ADDITIONS TO THIS EQUIPMENTATANY

TIME OR TAMPER WITH INTERNAL ELECTRONIC COMPONENTSATANY

TIME. FAILURE TO FOLLOW THESE INSTRUCTIONS MAYVOID THE

WARRANTY OF THIS EQUIPMENT AS WELLAS CAUSING A SHOCK

HAZARD.

OPERATINGTEMPERATURE

Do not expose this unit to excessive heat. This unit is designed to operate between

32 F and 104 F (0 C and 40 C). This unit may not function properly under extreme

temperatures.

Precautions Continued....

Introduction

Congratulations on your purchase of the Rocktron MIDI

XChange. The MIDI XChange is a simple to use, yet

multifunctional MIDI switcher that not only runs MIDI

switchable Rocktron product, but other MIDI switchable

products as well.

Two built-in expression pedal ports allow you plug in up to

two Rocktron HEX expression/volume controllers for

continuous controlling of all sorts of parameters.

A fantastic feature of the MIDI XChange is that it runs on a

9-volt battery as well as external power. Thus, if you are

doing a gig where it is hard to run power out to your floor

pedals - you won’t have any problem with the MIDI

XChange as battery operation will allow you to make the

preset and controller changes you need. And, the MIDI

XChange is also phantom powerable through select Rocktron

processors and amplifiers (see “connection” sections for

more details).

Finally, the MIDI XChange is housed in a rugged

roadworthy extruded aluminum chassis that will stand up to

use and abuse. The easy access battery compartment will

make changing batteries during a gig a breeze.

Basic Connection with an effect processor

Connection using a Rocktron Xpression and Phantom Power

Connection when using a rack system

from midi out

to midi in

from midi out/thru

to midi in of second

effects processor

Connection using a Rocktron Xpression with a Bass amplifier

Connection using a Rocktron HEX Pedal and Xpression Processor

to midi in

back panel of

processor

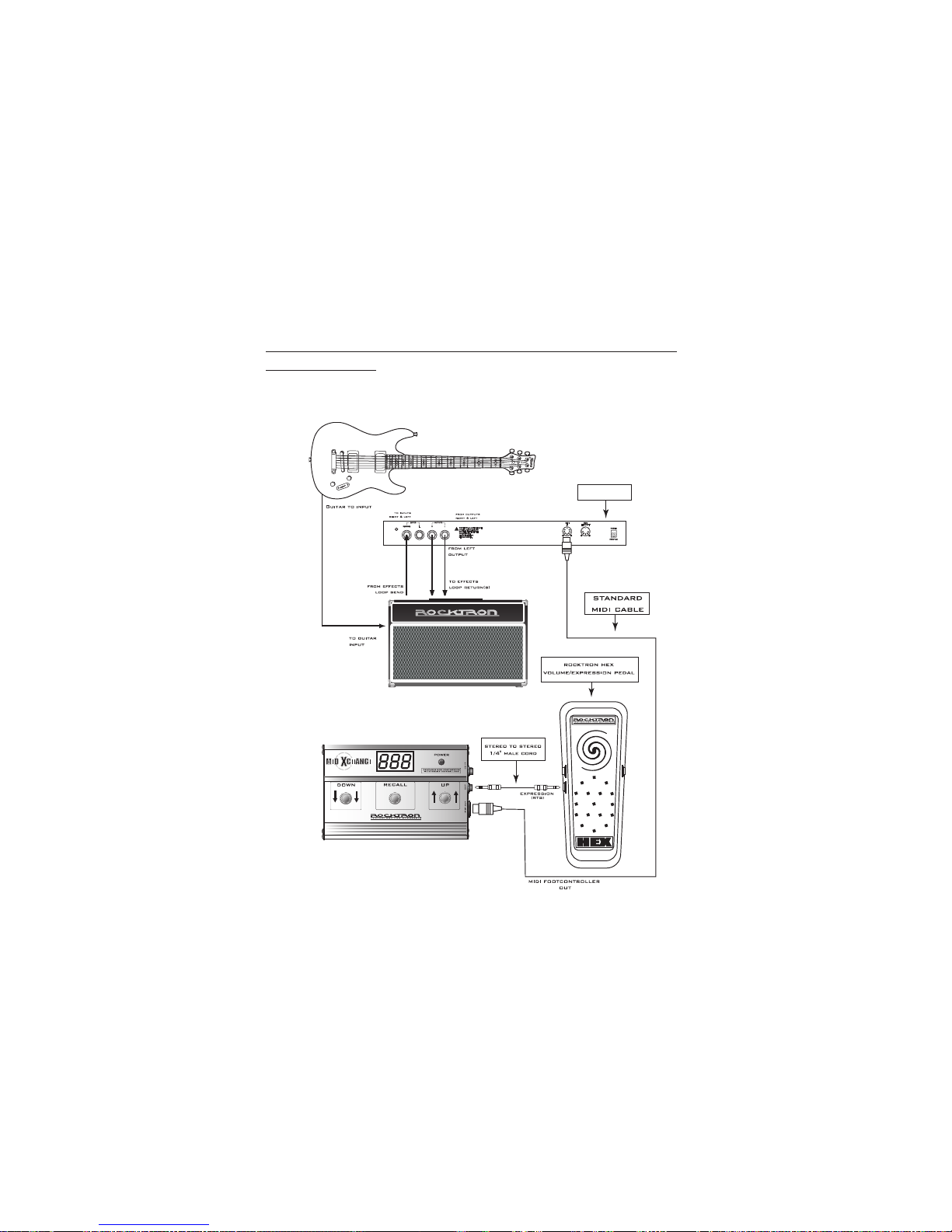

Connection using a Rocktron HEX pedal and a non-Rocktron

effects processor
