Rocktron Reaction Compressor Manuel utilisateur

May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047,

4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617.

Other patents pending. Foreign patents pending.

Reaction Compressor

Instruction Manual

Your Reaction Compressor™pedal has been tested and complies with the following Stan-

dards and Directives as set forth by the European Union:

Council Directive(s): 89/336/EEC Electromagnetic

Compatibility

Standard(s): EN55013, EN50082-1

This means that this product has been designed to meet stringent guidelines on how much

RF energy it can emit, and that it should be immune from other sources of interference when

properly used. Improper use of this equipment could result in increased RF emissions, which

may or may not interfere with other electronic products.

To insure against this possibility, always use good shielded cables for all audio input and

output connections. This will help insure compliance with the Directive(s).

For more information about other Rocktron products, please see your local dealer or one of

our importers closest to you (listed on the Rocktron website

(www.rocktron.com).

Read all instructions contained in this manual.

Keep these instructions

Heed all warnings

Follow all instructions.

Do not use this apparatus near water.

Clean with dry cloth

Compliance

Do not block any ventilation openings (if applicable). Install in accordance with the

manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, stoves or other ap-

paratus (including ampliers) that produce heat.

This product is not equipped with a plug or cable. This pedal runs on a 9 Volt Battery, if a

9Volt DC adapter is the used please follow adapter manufacturer’s operation instructions.

Only used attachments/accessories specied by the manufacturer.

Do not use this product with any case, stand tripod, bracket or table that is not specied by

the manufacturer. Insure that the case, stand, tripod, bracket etc. is properly adjusted and

setup (follow all instructions). Extra care and caution should be taken to avoid tip over

and injury.

Unplug this apparatus during lightening storms or when unused during long periods of time.

Refer all service to qualied service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power supply or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain

or moisture, does not operate normally or has been dropped.

DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT. QUALIFIED PERSONNEL

SHOULD SERVICE THIS EQUIPMENT ONLY. DO NOT MAKE ANY INTERNAL

ADJUSTMENTS OR ADDITIONS TO THIS EQUIPMENT AT ANY TIME OR TAMPER

WITH INTERNAL ELECTRONIC COMPONENTS AT ANY TIME. FAILURE TO FOL-

LOW THESE INSTRUCTIONS MAY VOID THE WARRANTY OF THIS EQUIPMENT

AS WELL AS CAUSING A SHOCK HAZARD.

OPERATING TEMPERATURE

Do not expose this unit to excessive heat. This unit is designed to operate between 32 F and

104 F (0 C and 40 C). This unit may not function properly under extreme temperatures.

Precautions

Introduction

Compressors are one of the best tools in a guitar player’s

tool box, and the Reaction Compressor fullls all the

requirements for outstanding compression. Professional

players use a compressor like a secret weapon to get

accomplish many things, including adding more sustain

to any guitar without adding distortion, dening every

note in a chord while letting it ring out, creating in your

face solos, and much more.

Rocktron’s Reaction Series pedals are built into a rugged

metal slim form factor chassis, taking up as little space as

possible on your pedalboard. The Reaction Compressor

is a TRUE BYPASS pedal: when you turn it off…it is out

of your signal path!

Control knobs for the Reaction Compressor include

SUSTAIN, which controls the amount of Compression

and Release characteristics. ATTACK determines how

fast the compression reacts. LEVEL controls the output

volume.

Most studio compressors are big and bulky and quite

difcult to set. Rocktron comes to the rescue with

the Reaction Compressor. It’s as easy as 1, 2, 3 to

get professional results that will improve your live

performances.

Here’s some tips. Start by setting the ATTACK and

LEVEL controls around the 12::00 o’clock position.

Turn the SUSTAIN from left to right in small increments

while playing until you achieve the texture you are

seeking. After you have found your favorite sweet spot,

Introduction

use the LEVEL control to ne tune your output level.

That’s it! Sound check is done.

Use the Reaction Compressor as a master SOLO switch

to not only dene what you play but also to raise the

volume! The soundman can worry about something

else…you have performance control!.

Typically you want to set the output level after

compression has been applied so that it is the same as

the pedal in True Bypass – this is called “unity gain” (the

same level from pedal on to pedal off). You may want to

apply compression, and then actually add volume using

the LEVEL control. Now you have added more sustain

and drive which can be used before an overdrive pedal, or

direct into your amplier.

Compression helps dene articulation for any instrument

by limiting how loud a note can get. It also makes

lower volume notes louder. The end result is a smoother

and more even sound, and that is what you hear on

professional recordings. It’s also what you will hear live!

The soundman will thank you!

The footswitch on the Reaction Compressor controls

On/Off status as shown by the LED indicator. Reaction

stomp boxes run on a 9V Alkaline battery, or may also

be powered by Rocktron’s DC OnTap Universal Power

Supply adaptor.

Descriptions

Descriptions continued.........

SUSTAIN Control - This control determines the

amount of dynamic range limiting.

ATTACK Control - This control determines

amount of delay before compression occurs.

Turning the knob to the right produces a faster

attack and to the left a slower attack.

9VDC Input - This input jack provides 9VDC

power to the pedal from the Rocktron DC OnTap

9V power supply (sold seperately).

LEVEL Control - This control determines the

controls the amount of effect added to the output.

ON/OFF Leds - These LEDs shows if the pedal

is on or off. When the LED is lit the pedal is on.

When the LED is not lit the pedal is off.

BATTERY COMPARTMENT and COVER - The

9V battery can be found in this compartment.

INPUT Jack - Using a standard 1/4” guitar cable,

plug your guitar into this jack.

Descriptions continued.........

THUMB SCREWS for Battery Compartment.

Unscrew these thumb screws to access the battery

compartment.

FOOTSWITCH - Use this switch to turn on or off

the pedal. The On/Off Led will show you if the

pedal is on or off.

OUTPUT Jack - Using a standard 1/4” guitar

cable you can plug in another pedal from this jack

or plug directly into your amplier.

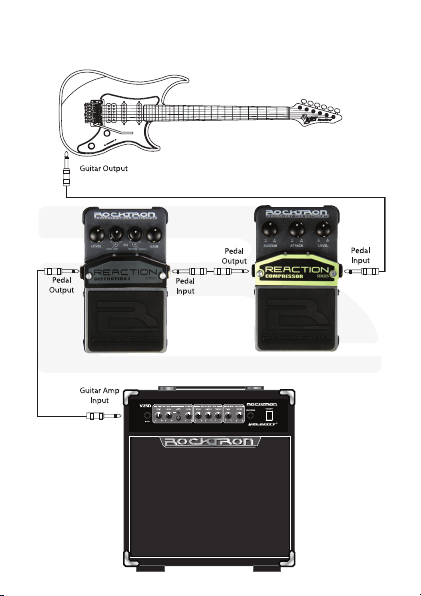

Typical Connection

Specications

Maximum Input

Maximum Output

Imput Impedance

Output Impedance

Current Consumption

Power Requirements

Dimensions

Weight

3dBu

7dBu

2.2MΩ

10KΩ

45mA

9V Alkaline Battery or

Rocktron DC OnTap Uni-

veral Power Supply (sold

seperately). Negative Tip

125mm x 78mm 61mm

5” x 3.25” x 2.5”

0.7kg

1.5lbs
