Rocktron HEX Manuel utilisateur

Copyright © 2003 GHS Corporation

All Rights Reserved.

Your HEX™pedal has been tested and complies with the following Stan-

dards and Directives as set forth by the European Union:

Council Directive(s): 89/336/EEC Electromagnetic Compatibility

Standard(s): EN55013, EN50082-1

This means that this product has been designed to meet stringent guide-

lines on how much RF energy it can emit, and that it should be immune from

other sources of interference when properly used. Improper use of this

equipment could result in increased RF emissions, which may or may not

interfere with other electronic products.

To insure against this possibility, always use good shielded cables for all

audio input and output connections. This will help insure compliance with

the Directive(s).

For more information about other Rocktron products, please see your local

dealer or one of our importers closest to you (listed on the Rocktron website

- www.rocktron.com).

Precautions

Read all instructions contained in this manual.

Keep these instructions

Heed all warnings

Follow all instructions.

Do not use this apparatus near water.

Clean with dry cloth

Do not block any ventilation openings (if applicable). Install in accordance with the

manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including amplifiers) that produce heat.

This product is not equipped with a plug or cable. This pedal runs on a 9 Volt

Battery, if a 9Volt DC adapter is the used please follow adapter manufacturer’s

operation instructions.

Only used attachments/accessories specified by the manufacturer.

Do not use this product with any case, stand tripod, bracket or table that is not

specified by the manufacturer. Insure that the case, stand, tripod, bracket etc. is

properly adjusted and setup (follow all instructions). Extra care and caution should

be taken to avoid tip over and injury.

Unplug this apparatus during lightening storms or when unused during long periods

of time.

Refer all service to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply or plug is damaged,

liquid has been spilled or objects have fallen into the apparatus or if the apparatus

has been exposed to rain or moisture, does not operate normally or has been

dropped.

DO NOTATTEMPTTO SERVICE THIS EQUIPMENT. QUALIFIED PERSON-

NELSHOULD SERVICE THIS EQUIPMENT ONLY. DO NOT MAKEANY

INTERNALADJUSTMENTS OR ADDITIONS TO THIS EQUIPMENTATANY

TIME OR TAMPER WITH INTERNAL ELECTRONIC COMPONENTSATANY

TIME. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY VOID THE

WARRANTY OF THIS EQUIPMENT AS WELLAS CAUSING A SHOCK

HAZARD.

OPERATINGTEMPERATURE

Do not expose this unit to excessive heat. This unit is designed to operate between

32 F and 104 F (0 C and 40 C). This unit may not function properly under extreme

temperatures.

Precautions Continued....

Introduction

Congratulations on your purchase of the Rocktron

HEX Volume/Expression pedal. The HEX is a multi-

function pedal that can be used both as a volume pedal

and as an expression pedal with a large variety of

processors and MIDI controllable equipment.

The design of the pedal allows you to use a simple

stereo to stereo cable for expression connection mini-

mizing cable use on stage.

We have incorporated an adjustable rocker tension

screw that will allow you to adjust the pedal action for

a lighter or heavier “touch”.

Enjoy!!

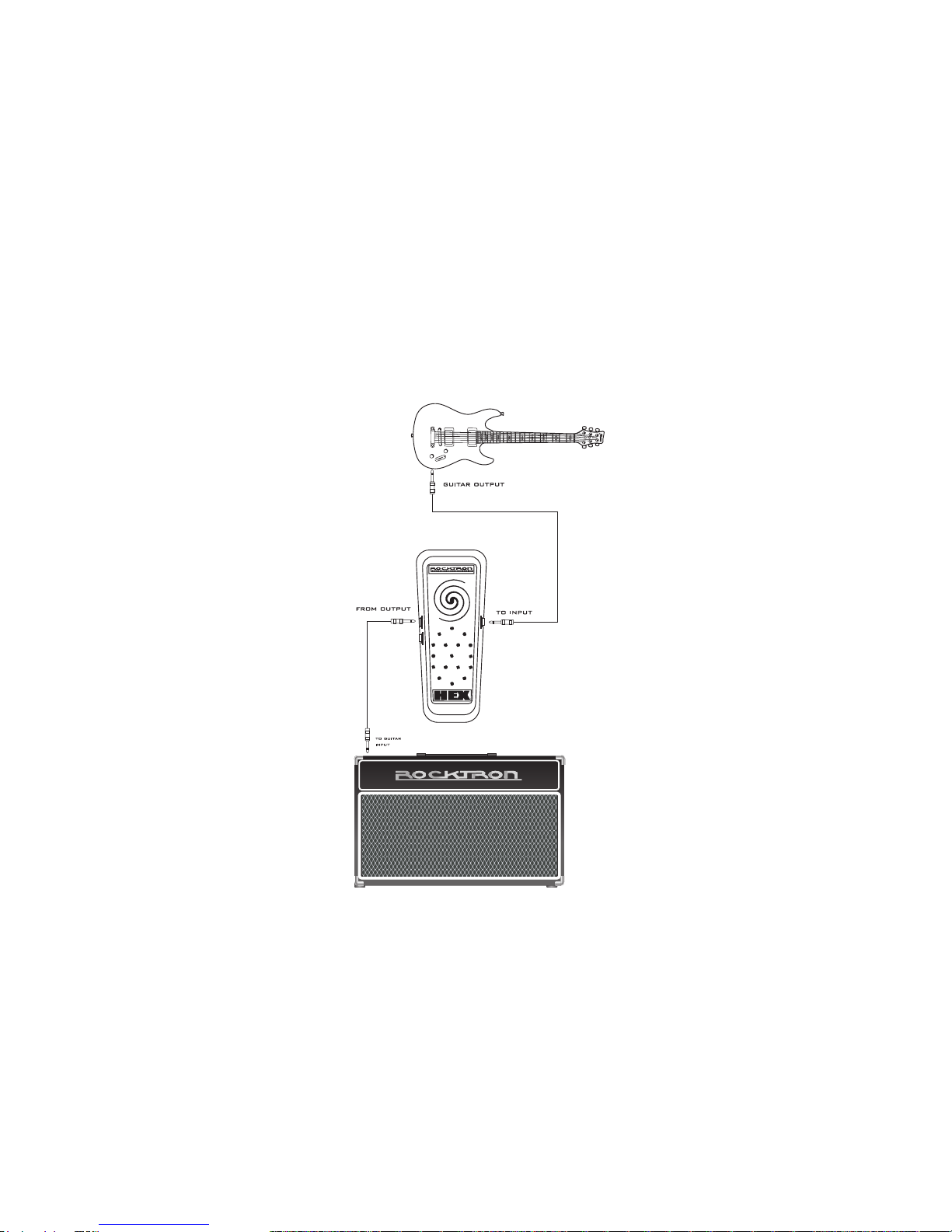

Standard Volume Connection

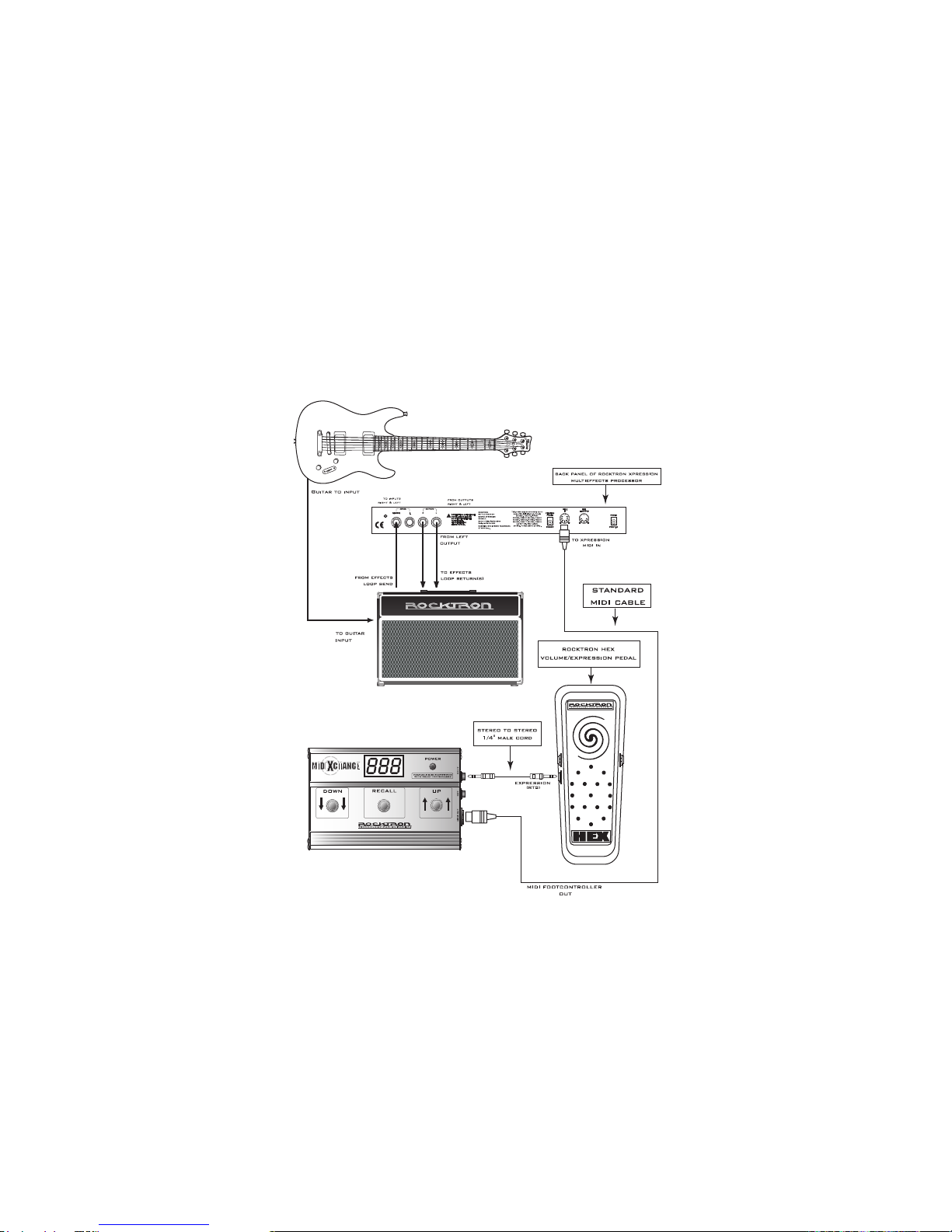

Connection when using the HEX to control the volume of an

effects processor:

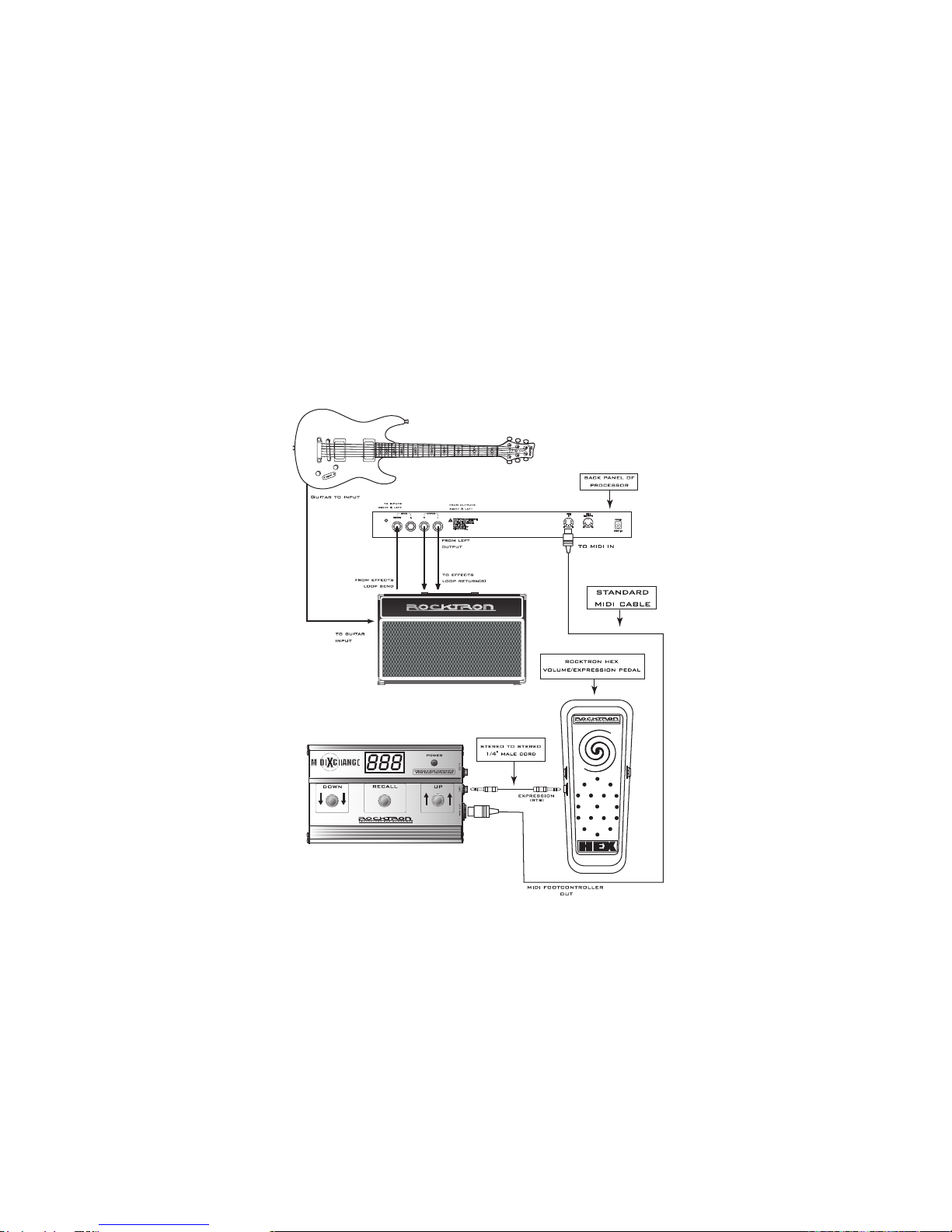

Connection when using the HEX and a Rocktron MIDI

XChange to control the volume via MIDI of a Rocktron

Processor

Connection when using the HEX and a Rocktron MIDI

XChange to control the volume via MIDI of a Non-Rocktron

Processor

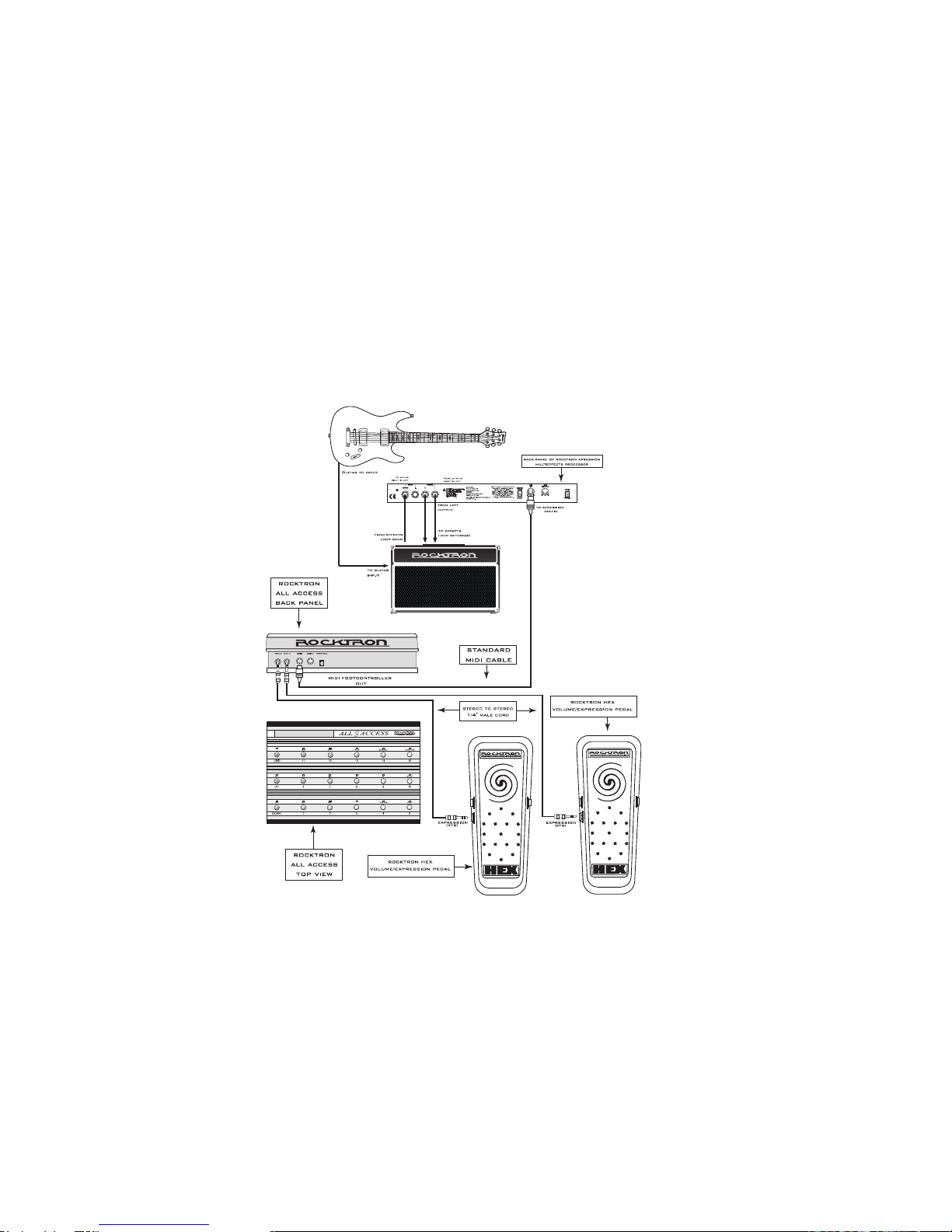

Connection when using one of two HEX pedals as expression

pedals with a RocktronAll Access Footcontroller

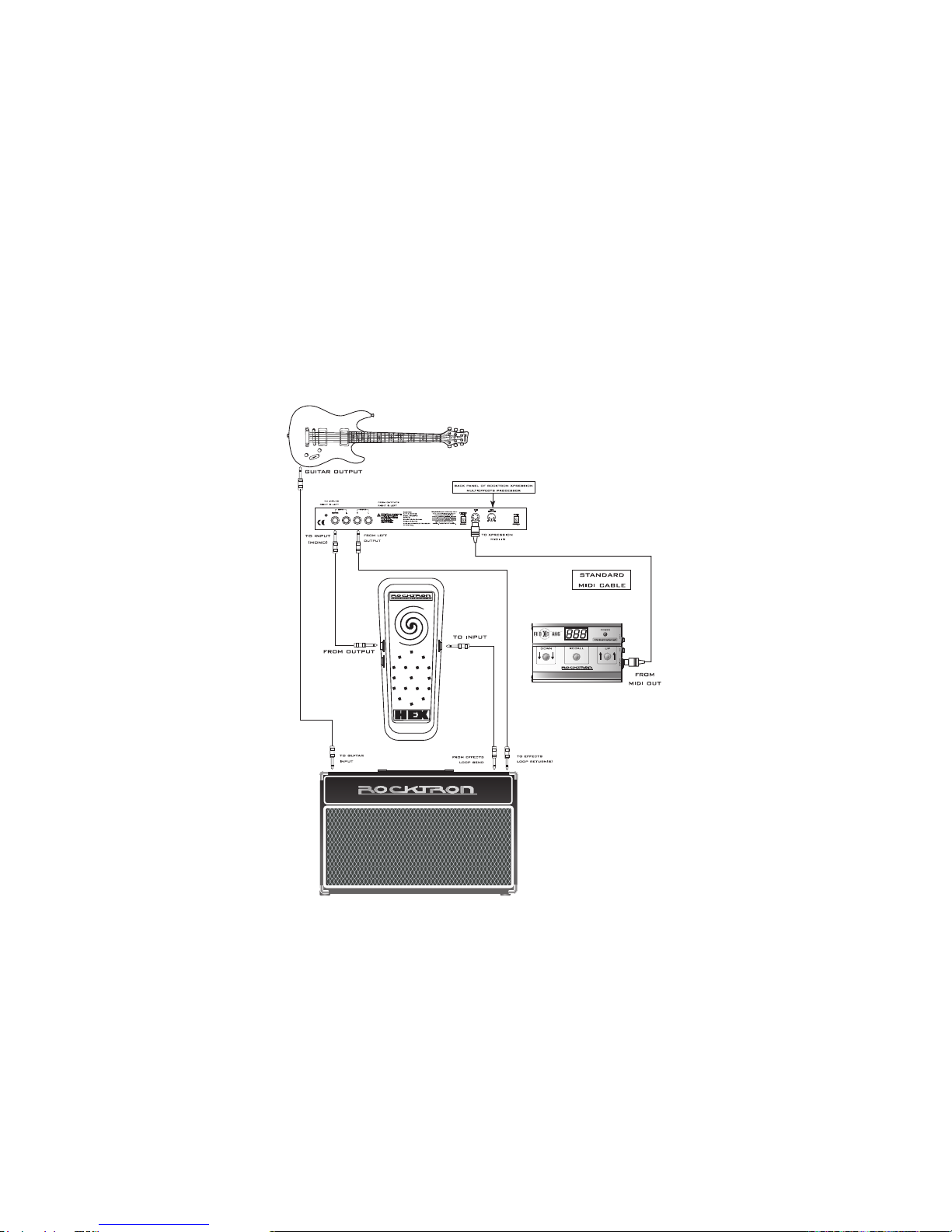

Connection when using the HEX as an expression pedal when

using a Rocktron MIDI Mate Footcontroller:
