Rexing V1P Pro Manuel utilisateur
2
Table of Contents
English
Overview
What’s in the Box
Camera Overview
Installation
Basic Operation
日本語概説本製品の同梱物カメラの概説画面のアイコン基本操作Français
Aperçu
Que contient la Boîte
Aperçu de la Caméra
Installation
Opération de Base
Italiano
Descrizione
Nella Confezione
Descrizione Telecamera
Installazione
Funzionamento Base
page
4
5
6
8
12
18
19
20
22
27
32
33
34
36
41
46
47
48
50
55
3
Español
Visión General
Qué hay en la Caja
Resumen de la Cámara
Instalación
Operación Básica
Deutsch
Übersicht
Verpackungsinhalt
Kamera übersicht
Installation
Grundbedienungen
60
61
62
64
69
74
75
76
78
83
page
4
1. Overview
Thank you for choosing REXING! We hope you love your new
product as much as we do.
If you need assistance, or have any suggestions to improve it,
call us at (203) 800-4466. Our support team will respond you as
soon as possible.
Always a surprise in Rexing. Check us out here.
https://www.facebook.com/rexingusa/
https://www.instagram.com/rexingdashcam/
https://www.rexingusa.com/support/registration/
Facebook Instagram Site
5

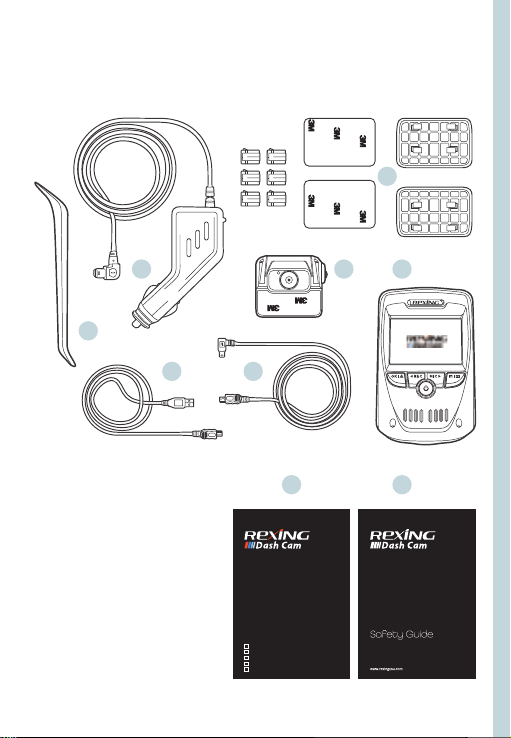

1. Rexing V1P Pro Dashboard
Camera
2. Full HD Rear Camera
3. Rear Camera Cable (20ft)
4. Car Power Connector
(12ft)
5. 3M Adhesive Mount
6. USB Cable
7. User Manual
8. Safety Guide
9. Cable Management Tool
2. What’s in the box
2.
5.
4.
6. 3.
7. 8.
9.
1.
V1P Pro
Quick Start Guide
Guide de démarrage rapide de la V1P Pro
FR
Guida di avvio rapido V1P Pro
IT
V1P Pro Schnellstartanleitung
DE
Guía de inicio rápido V1P Pro
SP
V1P Pro クイックスタートガイドJP
6
3. Camera Overview
1. OK (Conrm) Button / Emergency Lock Button
2. Up Navigation Button / Record Button*
3. Power Button / Screen Toggle Butto
4. Down Navigation Button / Mic Button**
5. Menu Button / Mode Button
6. Micro SD Card Slot
7. Reset Button
8. USB Charging Port
9. Rear Camera Port
10. GPS Logger Port (not used by V1P Pro)
*The camera is recording when the LED is flashing red.
**The device is charging or powered on when the LED is solid white.
2. 4. 5.
3.
1.
9.
10.
6.
8.
7.
7
Screen Icons
Recording (on)
Recording
Standby Status
Exposure Value
Loop Recording
Time
Video Resolution
GPS Signal
(not connected)
Memory Card
(inserted)
Battery Charging
WDR Mode (on)
Time (24h)
Current Date
(DD/MM/YYYY)
Recording Time
(current clip)
MIC (on)
8
4. Installation
Step 1: Install the Dash Cam
Place the 3M tape on the Mount and properly orient the
Mount square to the roof and hood line of the vehicle.
Important! Ensure the T-interlock on the Mount is oriented in
the correct direction.
Firmly press the Mount onto the windshield. Wait at least 20
minutes before mounting the camera.
On the illustration Orient the mount as shown.
Step 2: Insert the Memory Card
The Rexing V1P Pro accepts [Class 10/UHS-1 or higher] Micro
SD memory cards up to 256GB. You will need to insert a
memory card before you can begin recording. Before inserting
or removing a memory card, rst ensure you’ve powered
down the device. Gently push the memory card in until you
hear a click, and allow the pring release to push the card out.
Orient the
mount as shown
Press the Power
button to turn the
power o
9
Step 3: Power the Camera and Format the
Memory Card
Power the camera by connecting the charger to the car
cigarette lighter and camera. To ensure the V1P Pro records
to your memory card properly and without error. Before you
start using a new memory card, you must format the card
within the camera using the format function. Always backup
important data stored on the memory card before formatting.
To format the memory card, make sure you have inserted your
memory card, then turn on the device by connecting to a power
source. Press REC to stop recording. Then press the MENU
button twice to enter the System Setup Menu.
Use the REC and MIC buttons and go to the Format setting.
Press the OK button to conrm the selection.
You may now disconnect from power. The camera will shut
down after 3 seconds. The camera should begin recording
automatically the next time it is powered on.
Press the OK
button to conrm
formatting the
card
Press the Menu
button twice
10
Step 4: Mount the Rear Camera
Mount the rear camera as shown below. Use the provided rear
camera cable to connect the rear camera to the front camera.
Rear Camera
Instalation
Plug the Rear Camera
into the Dashcam
