Rexing V1P Max Manuel utilisateur
2Table of ContentsEnglish
Overview
What’s in the Box
Camera Overview
Installation
Basic Operation
日本語概説本製品の同梱物カメラの概説画面のアイコン基本操作Français
Aperçu
Que contient la Boîte
Aperçu de la Caméra
Installation
Opération de Base
Italiano
Descrizione
Nella Confezione
Descrizione Telecamera
Installazione
Funzionamento Base
page
4
5
6
8
12
18
19
20
22
27
32
33
34
36
41
46
47
48
50
55
3Español
Visión General
Qué hay en la Caja
Resumen de la Cámara
Instalación
Operación Básica
Deutsch
Übersicht
Verpackungsinhalt
Kamera übersicht
Installation
Grundbedienungen
60
61
62
64
69
74
75
76
78
83
page
41.OverviewThank you for choosing REXING! We hope you love your new
product as much as we do.
If you need assistance, or have any suggestions to improve it,
please contact us. You can reach us via [email protected] or
call us at (203) 800-4466. Our support team will respond you as
soon as possible.
Always a surprise in Rexing. Check us out here.
https://www.facebook.com/rexingusa/
https://www.instagram.com/rexingdashcam/
https://www.rexingusa.com/support/registration/
FacebookInstagramSiteProduct Support
51. Overview1. Rexing V1P Max Dashboard
Camera
2. Full HD Rear Camera
3. Rear Camera Cable (20ft)
4. Car Power Connector
(12ft)
5. 3M Adhesive Mount
6. USB Cable
7. User Manual
8. Safety Guide
9. Cable Management Tool
2. What’s in the box2.
5.
4.
6. 3.
7. 8.
9.
1.
V1P MaxQuick Start Guide
FR Guide de démarrage rapide de la V1P MaxIT Guida di avvio rapido V1P MaxDE V1P MaxSchnellstartanleitung
SP Guía de inicio rápido V1P MaxJP V1P Maxクイックスタートガイド
63. Camera Overview1. OK (Confirm) Button / Emergency Lock Button
2. Up Navigation Button / Record Button*
3. Power Button / Screen Toggle Button
4. Down Navigation Button / Mic Button**
5. Menu Button / Mode Button
6. Micro SD Card Slot
7. Reset Button
8. USB Charging Port
9. Rear Camera Port
10. GPS Logger Port (Built-in GPS logger)
*The camera is recording when the LED is flashing red.
**The device is charging or powered on when the LED is solid white.
2. 4. 5.
3.
1.
9.
10.
6.
8.
7.
7Screen IconsRecording (ON) GPS Signal
(Connected)
Wi-Fi
(ON)
MIC(ON)
Current Date
(MM/DD/YYYY)
Time(24h)
Emergency
Lock
GPS Signal
(Not Connect)
MIC (OFF)
84.InstallationStep 1: Install the Dash CamPlace the 3M tape on the Mount and properly orient the
Mount square to the roof and hood line of the vehicle.
Important! Ensure the T-interlock on the Mount is oriented in
the correct direction.
Firmly press the Mount onto the windshield. Wait at least 20
minutes before mounting the camera.
On the illustration Orient the mount as shown.
Step 2: Insert the Memory CardThe Rexing V1P Max accepts [Class 10/UHS-1 or higher]
Micro SD memory cards up to 256GB. You will need to
insert a memory card before you can begin recording. Before
inserting or removing a memory card, first ensure
you’ve powered down the device. Gently push the
memory card in until you hear a click, and allow the spring
release to push the card out.
Orient the
mount as shown
Press the Power
button to turn the
the power off
9Step 3: Power the Camera and Format the Memory CardPower the camera by connecting the charger to the
car cigarette lighter and camera. To ensure the V1P Max
records to your memory card properly and without error.
Before you start using a new memory card, you must
format the card within the camera using the format
function. Always backup important data stored on the
memory card before formatting.
To format the memory card, make sure you have inserted
your memory card, then turn on the device by connecting to a
power source. Press REC to stop recording. Then press
the MENU button twice to enter the System Setup Menu.
Use the REC and MIC buttons and go to the Format
setting. Press the OK button to confirm the selection.
You may now disconnect from power. The camera will shut
down after 3 seconds. The camera should begin
recording automatically the next time it is powered on.
Press the Menu
button
twice
Press the
Confirm button
to confirm
formatting the
card
10Step 4: Mount the Rear CameraMount the rear camera as shown below. Use the provided rear
camera cable to connect the rear camera to the front camera.
Rear Camera
Instalation
Plug the Rear Camera
into the Dashcam
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels Rexing Caméra embarquée
Rexing
Rexing M2 Manuel utilisateur
Rexing

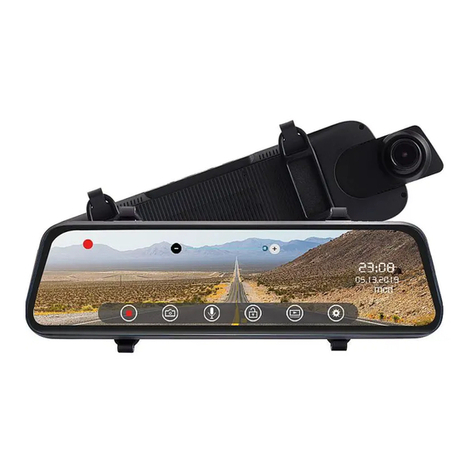

Rexing M1 Manuel utilisateur
