QuantumAtlas™10KIII18GBSCSIHardDiskDriveUser’s Guide
Introduction
Setup
Using the Hard Disk Drive
Troubleshooting
Specifications
Connectors
Jumpers
Regulatory
Information in this document is subject to change without notice.
©2001 Quantum Corporation. All rights reserved.
Trademarks used in this text: Quantum, the Quantum logo, and Airlock are trademarks of Quantum Corporation, registered in the U.S.A. and other countries. Capacity for the
Extraordinary, Quantum Atlas, AutoRead, AutoWrite, DisCache, and WriteCache are trademarks of Quantum Corporation. Dell and the DELL logo are trademarks and
DellWare is a service mark of Dell Computer Corporation; Microsoft, Windows , and Windows NT are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Quantum Corporation
disclaims any proprietary interest in trademarks and trade names other than its own.

Initial release: 2 April 2001

Back to Contents Page

Connectors:QuantumAtlas™10KIII18GBSCSIHardDiskDriveUser’s Guide

Connecting the Drive to the Computer SCSI Interface

Your Quantum Atlas 10K III SCSI hard disk drive will come pre-installed in the Dell system. Figure 1 below is shown for your reference. If you plan to

upgrade your system with an additional drive, please refer to documentation in the customer kit.

Figure 1. Interface connector

Back to Contents Page

Introduction:QuantumAtlas™10KIII18GBSCSIHardDiskDriveUser’s Guide

Overview •General Features •Performance •Reliability •Versatility •Drive Diagram

Overview

Quantum Atlas 10K III SCSI hard disk drives are part of a family of high performance 1-inch high hard disk drives manufactured to meet the highest

product quality standards. The innovative design of the Quantum Atlas 10K III enables Quantum to produce a family of low-cost, high reliability

SCSI hard disk drives. These hard disk drives use non-removable, 3.5-inch hard disks and are available with the following SCSI configurations:

lUltra160, Ultra2, Ultra SCSI 68-pin Wide (16-bit).

lUltra160, Ultra2, Ultra SCSI 80-pin SCA-2 (16-bit).

The Quantum Atlas 10K III SCSI hard disk drives feature an embedded SCSI drive controller that automates significant SCSI commands to

optimize system performance. The drive also manages media defects and error recovery internally, making these operations fully transparent to

the user.

General Features

The Quantum Atlas 10K III 18GB SCSI hard disk drives include the following key features:

lFormatted storage capacity of 18.2GB.

lLow profile, 1-inch height.

lIndustry standard 3.5-inch form factor.

lEmbedded SCSI controller.

lSCSI-2 and SCSI-3 support.

lSCSI bus active negation drivers.

lSCSI bus fairness.

lAutomatic Power Management System with power saving sub-states.

lEmbedded servo system for exceptional head positioning accuracy and long life.

lQuiet Drive Technology (QDT) for lower acoustic noise while seeking.

Performance

lAverage seek time of less than 4.5ms for reads.

l10,000 RPM rotational speed.

lAverage rotational latency of 3.0ms.

l8MB SDRAM buffer. Look-ahead DisCache feature with continuous prefetch and WriteCache write-buffering capabilities.

lRead-on-arrival firmware.

lTagged command queuing with reordering (ORCA).

lECC on-the-fly data correction.

lHighly automated SCSI protocol (including AutoRead and AutoWrite).

l1:1 interleave on read and write operations.

lHigh performance Ultra160 SCSI interface.

lData transfer rates of up to 6.0MB/s asynchronous, 40MB/s Ultra SCSI, 80MB/s Ultra2 SCSI, and 160MB/s Ultra160 SCSI.

Reliability

l1,100,000 hours Mean Time Between Failure (MTBF).

l352-bit interleaved Reed-Solomon Error Correction Code (ECC), with cross checking correction of up to three separate bursts of 32 bits

each totalling up to 96 bits in length.

lSMART 2 (Self-Monitoring, Analysis and Reporting Technology).

lSelf-Diagnostic firmware.

lPatented Airlock automatic shipping lock and dedicated landing zone.

lTransparent media defect mapping.

lReassignment of defective sectors without reformatting.

lShock sensor prevents the drive from writing data to disk when the drive is subjected to excessive external shock.

NOTE: The formatted capacity of your hard disk drive may seem smaller than what you ordered because the operating system reports

drive capacity assuming that 1 megabyte (MB) equals 1,048,576 (220) bytes while drive manufacturers consider 1 MB to equal

1,000,000 (106) bytes.

lThermal sensor monitors the drive temperature to ensure on-going drive reliability.

lShock Protection System II (SPS II) protects the drive against specific types of handling events that could cause damage to the drive.

Versatility

lDownloadable firmware.

lPlug-and-Play SCSI.

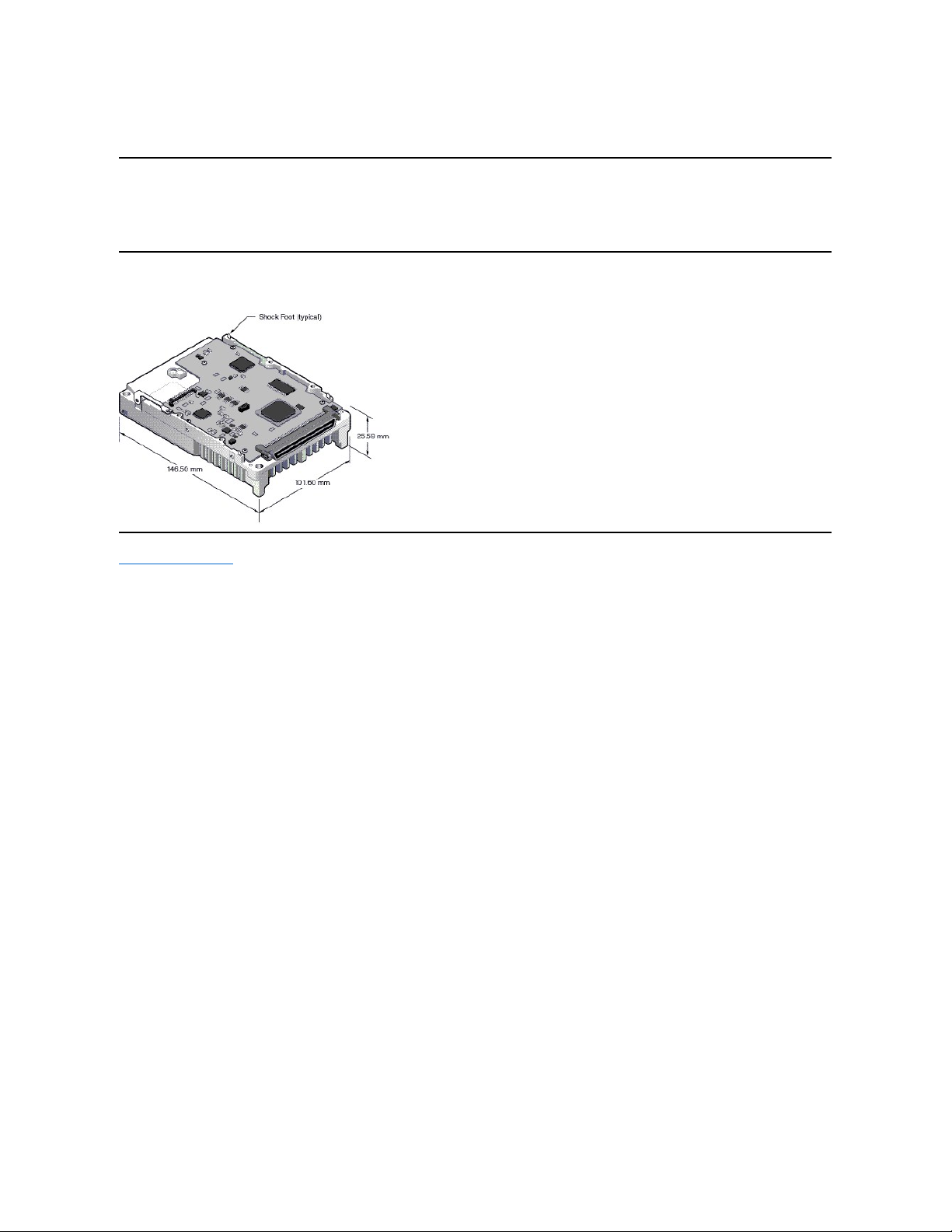

Drive Diagram

Figure 1. Drive Diagram

Back to Contents Page

Jumpers:QuantumAtlas™10KIII18GBSCSIHardDiskDriveUser’s Guide

The Quantum Atlas 10K III SCSI hard disk drive has one jumper connector provided for configuration in a system. The following feature is jumper

selectable:

lForce Single Ended

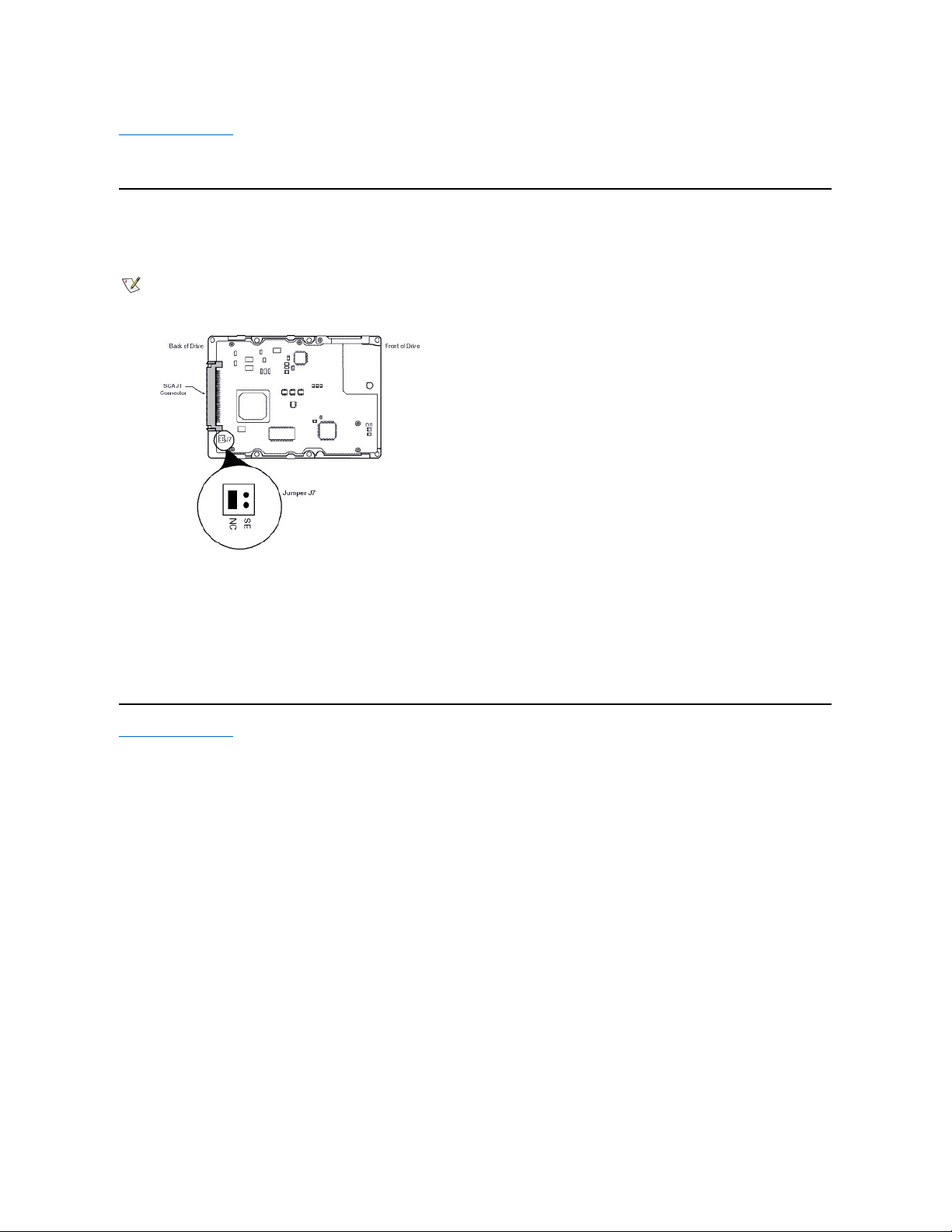

Figure 1. Jumper Location

Force Single Ended

Install a jumper across pin pair SE to operate the disk drive as a single ended device. Remove the jumper for LVD operation and

monitoring of the DIFFSENS signal.

No Connection

The Quantum Atlas 10K III SCSI hard disk drive is shipped with a spare jumper installed on pin pair NC. Functionality of the hard disk

drive is not affected by installing or removing this jumper.

Back to Contents Page

Note: The Atlas 10K III SCSI hard disk drive does not support on-board SCSI termination.

Back to Contents Page

Regulatory:QuantumAtlas™10KIII18GBSCSIHardDiskDriveUser’s Guide

Regulatory •Year 2000 Statement

Regulatory

Quantum Corporation’s disk drive products meet all domestic and international product safety regulatory compliance requirements. Quantum’s

disk drive products conform to the following specifically marked Product Safety Standards:

lUnderwriters Laboratory (UL) Standard 1950. This certificate is a category certification pertaining to all 3.5 inch series drive models.

lCanadian Standards Association (CSA) Standard C22.2 No. 950-M93. This certificate is a category certification pertaining to all 3.5 inch

series drive models.

lTUV Rheinland Standard EN 60 950. This certificate is a category certification pertaining to all 3.5 inch series drive models.

Product EMI/EMS Qualifications

lCE Mark authorization is granted by TUV Rheinland in compliance with our qualifying under EN 55022:1994 and EN 50082-1:1997.

lC-Tick Mark is an Australian authorization mark noted on Quantum’s disk drive products. The mark notes conformity to the regulatory

compliance document AS/NZS 3548:1995 and BS EN 55022:1995.

lQuantum’s disk drives are designed as a separate subassembly that conforms to the FCC Rules for Radiated and Conducted emissions,

Part 15 Subpart J; Class B when installed in a given computer system.

Year 2000 Statement

A Quantum Corporation product, when used in accordance with its associated documentation, is "Year 2000 Capable" when, upon installation, it

accurately stores, displays, processes, provides, and/or receives date data from, into, and between the twentieth and twenty-first centuries,

including leap year calculations, provided that all other technology used in combination with said product properly exchanges date data with it. See

the Quantum Corporation’s World Wide Web site at http://www.quantum.com for more information.

Back to Contents Page

Setup:QuantumAtlas™10KIII18GBSCSIHardDiskDriveUser’s Guide

Dell Installed Drives •Customer Kits

Dell Installed Drives

Dell performs the installation and setup on SCSI hard disk drives that are shipped as part of a system. The default SCSI ID for a boot hard disk

drive installed in a Dell system is SCSI ID 0. After installing the drive, Dell prepares the drive for operation with your operating system. The drive is

ready for use when you receive your system.

Customer Kits

Installation Guidelines

Consult the Dell documentation for your system to determine drive requirements, such as number, type, and physical size of drives

supported.

SCSI ID of the Drive

Default is SCSI ID 0.

Verify that there are no SCSI ID conflicts with other SCSI devices.

SCSI Interface

The SCSI interface is 80-pin SCA-2.

Termination

The Quantum Atlas 10K III SCSI hard disk drive cannot be configured to provide bus termination. Therefore, be sure to properly

terminate the SCSI bus on which this drive is installed.

Installing the Drive

The mounting holes on the Quantum Atlas 10K III SCSI hard disk drive allow the drive to be mounted in any orientation. For mounting,

#6-32 UNC screws are recommended.

Preparing the Drive for Operation

The Quantum Atlas 10K III SCSI hard disk drive is shipped from the manufacturer low-level formatted in 512-byte sectors. Use the

programs provided with the SCSI host adapter card to prepare the drive for operation.

Back to Contents Page

Specifications:QuantumAtlas™10KIII18GBSCSIHardDiskDriveUser’s Guide

General •Performance •Internal Characteristics •Reliability •Electrical •Environmental •Power Dissipation •Mechanical Shock •Physical

Characteristics

General

Manufacturer:

Quantum Corporation

Model number:

Atlas 10K III

Interface:

SCSI Ultra160

Capacity:

Model

Capacity

Total LBAs

Atlas 10K III 18GB SCSI

18.2 GB

35,566,478

NOTE: The formatted capacity of your hard disk drive may seem smaller than what you ordered because the operating system

reports drive capacity assuming that 1 megabyte (MB) equals 1,048,576 (220) bytes while drive manufacturers consider 1 MB to

equal 1,000,000 (106) bytes.

Performance

Rotational Speed:

10,000 RPM

Average Rotational Latency:

3.0 ms

Spin-up time to Ready (typical):

20 seconds

Cache (total):

8 MB

Typical Seek time (without command overhead, including settling):

Activity

Specification

Track-to-Track (reads)

0.3 ms

Average Random Read

4.5 ms

Average Random Write

5.0 ms

Full Stroke

11.0 ms

Interface transfer rate (max.):

160 MB/s burst

Interleave Factor:

1:1

Internal Characteristics

Number of disks/heads:

Model

Disks

Heads

Atlas 10K III 18GB SCSI

Track Density:

~40,000 tracks per inch

Total Sectors:

35,566,478

Bytes per sector:

512

Reliability

Preventative Maintenance:

None Required

Non-recoverable read errors:

1 in 1014 bits read

SMART compliant:

Yes

Electrical

Back to Contents Page

Nominal Voltage:

+5 Vdc / +12 Vdc

Voltage Margin:

+5 Vdc @ +/-5%, +12 Vdc @ +10%/-7%

Environmental

Operating Temperature:

5 to 55 degrees C

Operating Humidity:

5 to 95% RH (non-condensing)

Non-operating Temperature:

-40 to 70 degrees C

Non-operating Humidity:

5 to 95% RH (non-condensing)

Power Dissipation

Operating Mode

Power

(Watts)

Startup (peak)

30.9 Watts*

Idle

10.2 Watts

40% Seek (ECMA)

17 Watts

Standby

2.1 Watts

Read/Write on Track

17 Watts

*NOTE: Start up current is the peak (greater than 10 ms) current required during spindle startup. Current measurements do not

include power required for SCSI termination.

EPA Energy Star Compliant:

Yes

Mechanical Shock

Operating (no data loss):

63G reading, 20G writing @ 2mS (half-sine)

Non-operating (no data loss):

250G @ 2 mS (half-sine)

Physical Characteristics

Height:

1.000" (25.4 mm)

Width:

4.00" (101.6 mm)

Depth:

5.75" (146.1 mm)

Weight:

1.58 lbs. (720 grams)

Back to Contents Page

Troubleshooting:QuantumAtlas™10KIII18GBSCSIHardDiskDriveUser’s Guide

Dell Diagnostics •Additional Help

Dell™Diagnostics

Running the SCSI Devices test group of the Dell Diagnostics

Consult the Dell documentation for your system for additional information on troubleshooting hard disk drive problems.

If problems persist, contact Dell Computer Corporation for technical assistance (refer to the "Getting Help" chapter of your systemReference and

Troubleshooting Guide).

Additional Help

Additional tips and troubleshooting instructions are available on the Quantum Corporation web site at: http://www.quantum.com

Back to Contents Page
