ProLights MINIECLFRFC Manuel utilisateur

EN - IT

USER MANUAL

MANUALE UTENTE

FRESNEL PROIECTOR

MINIECLFRFC

reproduced in any form or by any means for any commercial use.

In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the

characteristics stated in this instruction manual at any time and without prior notice.

All revisions and updates are available in the ‘manuals’ section on site www.musiclights.it

REV.001-09/18

MINIECLFRFC

Packing content • MINIECLFRFC

• Barn doors

• Gel frame

• User manual

TABLE OF CONTENTS Safety

General instructions

Warnings and installation precautions

1 Introduction

1. 1 Technical specications

1. 2 Operating elements and connections

2 Installation

2. 1 Mounting

3 Functions and settings

3. 1 Operation

3. 2 Basic

3. 3 Menu structure

3. 4 DMX mode

3. 5 DMX conguration

3. 6 Screen

3. 7 Dimmer mode

3. 8 White balance

3. 9 Led frequency

3. 10 Factory Reload

3. 11 Fixture Information

3. 12 Maste/Slave

3. 13 Static

3. 14 Connection of the DMX line

3. 15 Construction of the DMX termination

3. 16 Channels DMX

4 Maintenance

4. 1 Maintenance and cleaning the unit

4. 2 Fuse replacement

4. 3 Trouble shooting

MINIECLFRFC

SAFETY

General instruction

• The products referred to in this manual conform to the European Community Directives and are there-

fore marked with .

• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.

Never make any modications on the unit not described in this instruction manual, otherwise you will

risk an electric shock.

• Connection must be made to a power supply system tted with ecient earthing (Class I appliance ac-

cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units

from indirect contact and/or shorting to earth by using appropriately sized residual current devices.

• The connection to the main network of electric distribution must be carried out by a qualied electrical

installer. Check that the main frequency and voltage correspond to those for which the unit is designed

as given on the electrical data label.

• This unit is not for home use, only professional applications.

• Never use the xture under the following conditions:

- in places subject to vibrations or bumps;

- in places with a temperature of over 40 °C.

• Make certain that no inammable liquids, water or metal objects enter the xture.

• Do not dismantle or modify the xture.

• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for

an inspection or contact the manufacturer directly.

• If the unit is to be put out of operation denitively, take it to a local recycling

plant for a disposal which is not harmful to the environment.

Warnings and installation precautions

• If this device will be operated in any way dierent to the one described in this manual, it may suer

damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like

short circuit, burns, electric shock, etc.

• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.

• Always additionally secure the projector with the safety rope.When carrying out any work, always com-

ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country

in which the xture’s being used.

• Install the xture in a well ventilated place.

• Keep any inammable material at a safe distance from the xture.

• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent

that their eectiveness is impaired.

• The lamp (LED) shall be changed if it has become damaged or thermally deformed.

• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may

trigger epileptic seizures in photosensitive persons or persons with epilepsy.

• Do not touch the product’s housing when operating because it may be very hot.

WARNING! Before carrying out any operations with the unit, carefully read this instruction

manual and keep it with cure for future reference. It contains important information about

the installation, usage and maintenance of the unit.

MINIECLFRFC

- 1 - INTRODUCTION

1.1 TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Light source:3 x 3,25W Red, 3 x 4,55W Green, 3 x 4,55W Blue, 6 x 5,25W Lime

• Source:68 W RGB + lime LEDs

• CT:2800 K~8000 K

• CRI:(19°) 72 ~ (74°) 74

• Luminous ux:(19°) 164.63 lm ~ (74°) 705.72 lm

• Lux:(19°) 82.8 lux - (74°) 54.9 lux @3m full

• Lux:(19°) 29.8 lux - (74°) 19.8 lux @5m full

• Source life expectancy: >50.000 h

OPTICS

• Zoom:19°~ 74 ° manual

• Beam angle:19°~ 74 °

• Field angle:36°~106 °

• Lens diameter:3.93’’-100 mm

• Lens type:18° lens on board

• Additional optics:20° lter on board

• Focus: manual

COLOUR SYSTEM

• Colour mixing: RGBL

• White presets:2800-8000 K

• Colour wheel: virtual colour wheel with presets

DYNAMIC EFFECTS

• Static colour mode: selection of static colour

• Manual colour mode: manual adjustment of colour

• Auto mode: built-in programs with execution speed adjustment

BODY

• Hardware on-board: lter frame, 4 doors barndoor, omega bracket spigot

• Body: sturdy die-cast aluminium body conceived for long-time durability

• Body colour: black

CONTROL

• Protocols: DMX512, RDM

• DMX channels:1ch, 2ch, 3ch, 4ch1, 5ch, 9ch1, 14ch, 4ch2, 6ch, 7ch, 9ch2,12 channel

• RDM: RDM ready for xture remote monitor and settings

• Display: black OLED high resolution display

• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

• Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0~100% electronic dimmer

• Dimmer curves:4 dierent dimming curves available

• Strobe / shutter:30 Hz, electronic

MINIECLFRFC

• Operating temperature: -10° ~ +40°

• Flicker: icker free frequency with adjustable PWM

• Selectable PWM: 600/1200/4000/6000/25K Hz

ELECTRICAL

• Power consumption:48W

• Power supply:Input:100-240VAC, (50-60 HZ) Output: DC 48V 1A 100-240V – 50/60Hz

• Power consumption (at 230V):25,1 W

• Power consumption (at 120V):25,9 W

• Power factor:0.58/120V - 0.55/230V

PHYSICAL

• Cooling: heat sink and cooling holes

• Suspension and xing:360° adjustable hanging bracket, hanging system through eye bolt

• Signal connection: DMX 5p IN/OUT

• Power connection: 16A Shuko plug

• IP rating:20

• Dimensions (WxHxD):191x203x279 mm

• Weight:2.52 kg

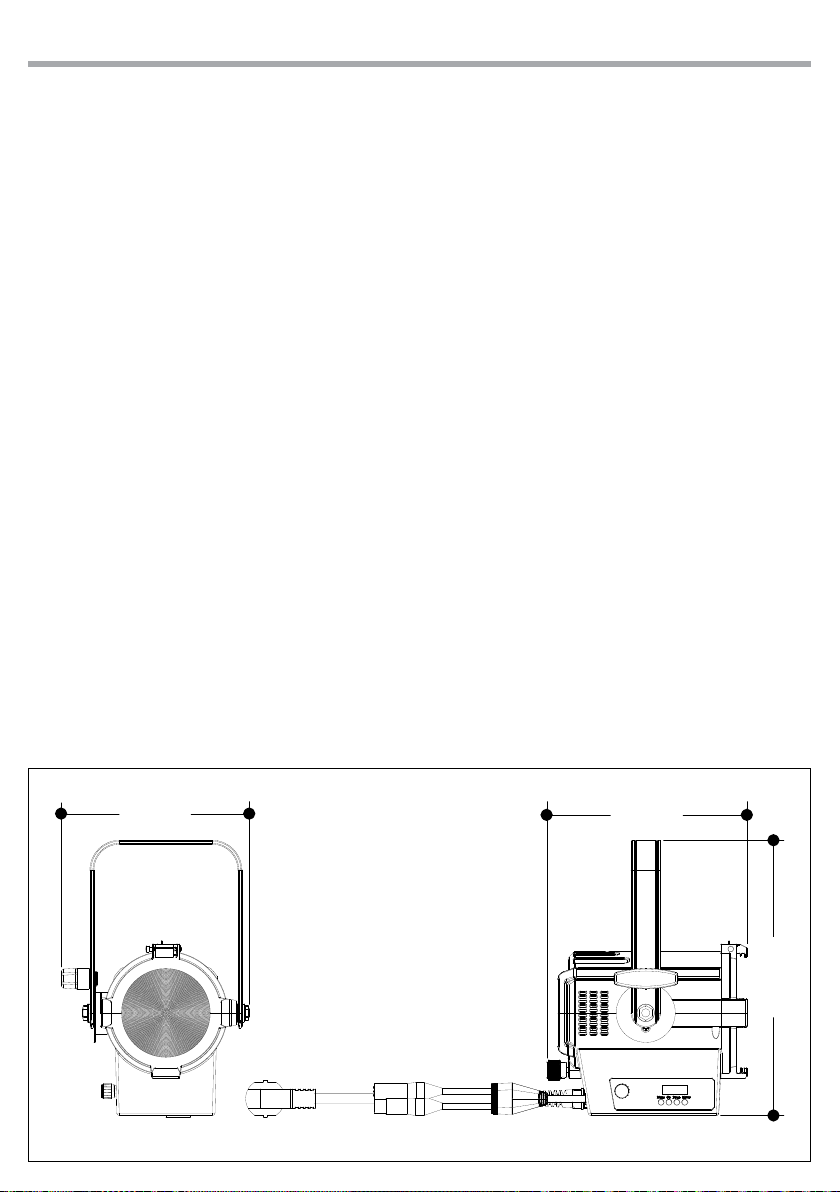

Fig.1 - Technical drawing

191 [7.51 in]

279 [10.98 in]

203 [7.99 in]

Fig.2

679

MINIECLFRFC

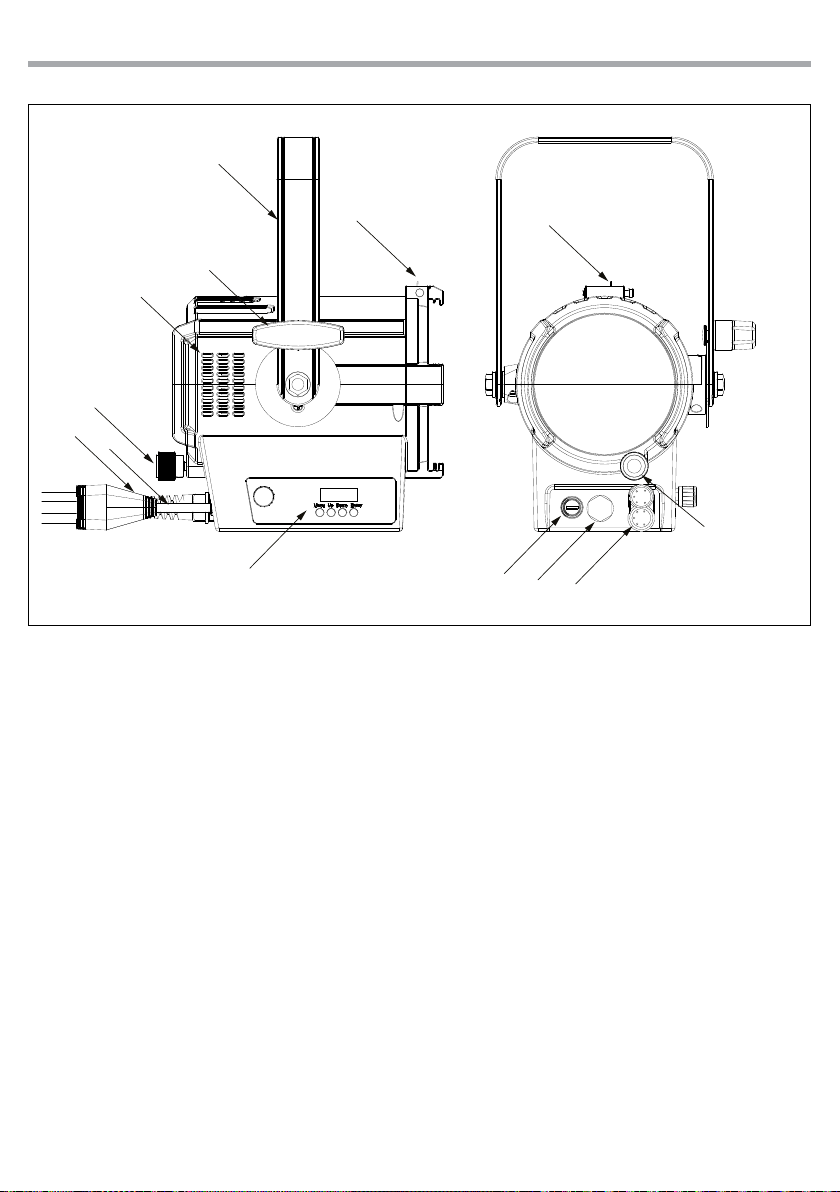

1.2 OPERATING ELEMENTS AND CONNECTIONS

1. AIR OPENING

2. LOCKING KNOB for mounting bracket

3. MOUNTING BRACKET

4. BARN DOOR HOLDER for insertion and lock-

ing barn door

5. Rotary knob for manual focus

6. CONTROL PANEL with display, 4 button and

rotary knob used to access the control panel

functions and manage them

7. MAIN FUSE HOLDER: replace a burnt-out fuse

by one of the same type only

8. Cable exible with 16A Shuko plug for con-

nection to a socket (100-240V~/50-60Hz)

9. Cable exible composed of a DMX IN (5-pole

XLR): 1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C,

5 N/C and DMX OUT (5-pole XLR): 1 = ground,

2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C

Fig.3

MINIECLFRFC

- 2 - INSTALLATION

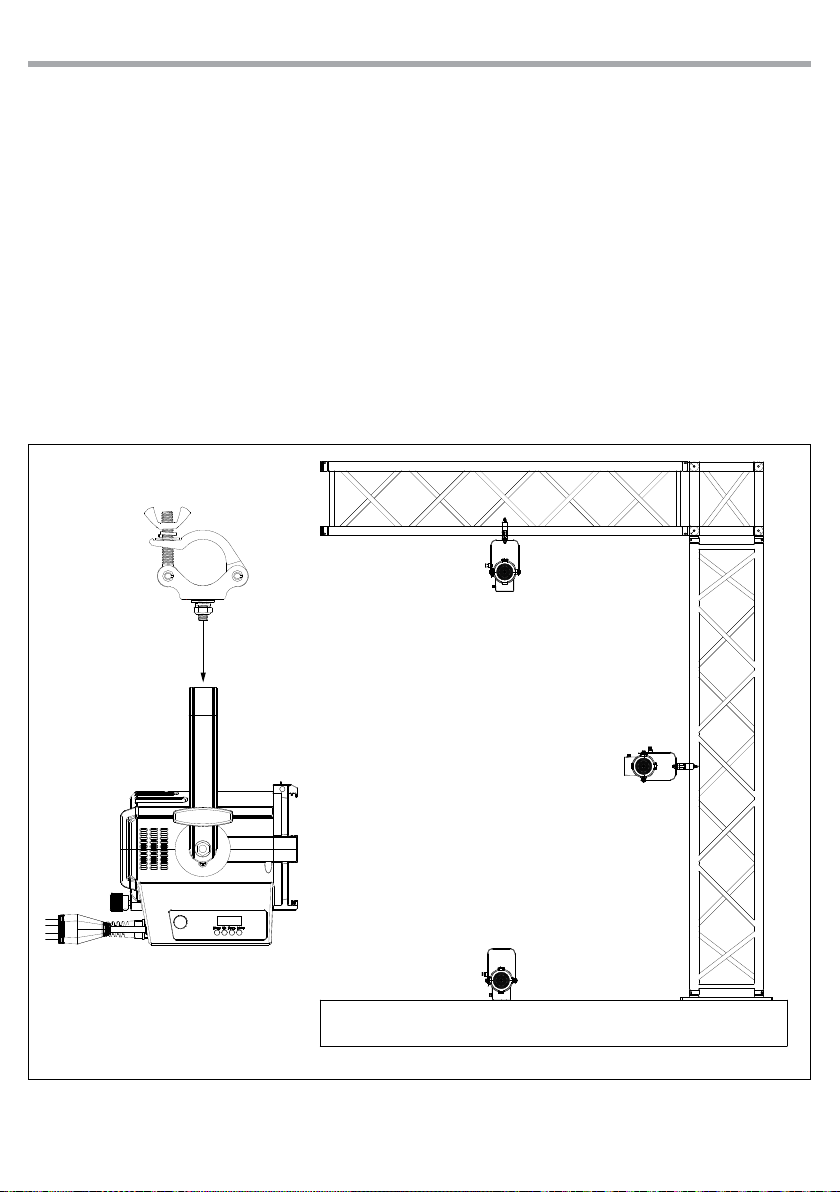

2.1 MOUNTING

MINIECLFRFC is designed for applications in exhibition areas, commercial spaces, museums, restaurant,

churches, and any other installation where size is an important factor. For xing, stable mounting clips are

required. The mounting place must be of sucient stability and be able to support a weight of 10 times

of the unit’s weight.

When carrying out any installation, always comply scrupulously with all the regulations (particularly re-

garding safety) currently in force in the country in which the xture’s being used.

• Install the projector at a suitable location.

• Always additionally secure the projector with the safety rope from falling down. For this purpose, fas-

ten the safety rope at a suitable position so that the maximum fall of the projector will be 20 cm. The

adjust the projector and use the knobs.

NOTE - For installation of the MINIECLFRFC projector, insert the track or a suitable clamp to x it to a sus-

pended system.

MINIECLFRFC

- 3 - FUNCTIONS AND SETTINGS

3.1 OPERATION

To turn on the MINIECLFRFC connect the supplied main cable to a socket (100-240 VAC-50/60 Hz). Then

the unit is ready for operation.

To switch o, disconnect the mains plug from the socket. For a more convenient operation it is recom-

mended to connect the unit to a socket which can be switched on and o via a light switch.

ATTENTION - Mains voltage must be switched o before mounting; maintenance; insert and replace

Adaptors; spots and luminaires.

3.2 BASIC

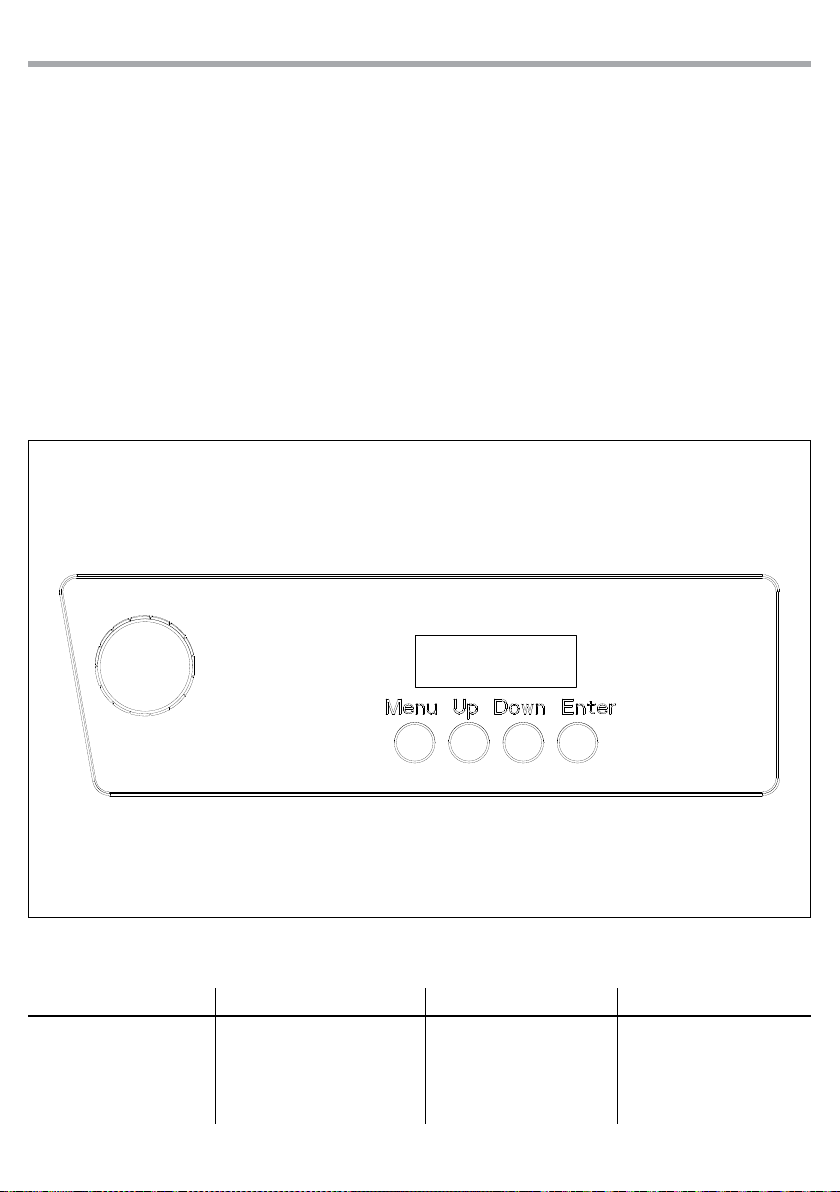

Access control panel functions using the four panel buttons land rotary knob located directly underneath

the LED Display (g.5).

MENU UP DOWN ENTER

Used to access the menu or

to return a previous menu

option

Navigates downwards through

the menu list and increases

the numeric value when in a

function

Navigates upwards through

the menu list and decreases

the numeric value when in

a function

Used to select and store the

current menu or conrm the

current function value or

option within a menu

Fig.4- Functions of the buttons

MINIECLFRFC

3.3 MENU STRUCTURE

1CONNECT ðDMX Address ðValue (001-512)

DMX Mode ð

Theater 1CH

2CH ðAmber Shift on

Color Temperature (2800

- 8000K)

White Calibration

(Red <000-255>,

Green <000-255>,

Blue <000-255>,

Lime <000-255>)

3CH

4CH 1

5CH

9CH 1

14CH

ðTour 4Ch 2

6Ch

7Ch

9Ch 2

12Ch

2SETUP ðScreen ðBack Light

Flip Display

Key Lock

ðOn

10S

20S

30S

NO-Yes

3ADVANCED ðDimmer Mode ðO

Dimmer 1

Dimmer 2

Dimmer 3

White Balance ðO

ðAdjust ðRed <125-255>

Green <125-255>

Blue <125-255>

Lime <125-255>

Led Frequency ð 600Hz

1200 Hz

2000 Hz

4000 Hz

6000Hz

25kHZ

Factory Reload ðNO-Yes

4INFORMATION ðFixture Hours

Version

Temperature

UID

ð0-9999

V1.0

**°C

15D00217****
