ProLights SMARTBATHEX Manuel utilisateur

USER MANUAL

MANUALE UTENTE

SMARTBATHEX

EN - IT

PORTABLE BATTERY-POWERED

UPLIGHTER

reproduced in any form or by any means for any commercial use.

In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the

characteristics stated in this instruction manual at any time and without prior notice.

All revisions and updates are available in the ‘manuals’ section on site www.musiclights.it

SMARTBATHEX

Packing content • SMARTBATHEX

• Power cable

• IR Remote controller

• User manual

TABLE OF CONTENTS Safety

General instructionsGeneral instructions

Warnings and installation precautionsWarnings and installation precautions

General informationGeneral information

1 Introduction

1. 1 Technical drawing1. 1 Technical drawing

1. 2 Operating elements and connections1. 2 Operating elements and connections

2 Installation

2. 1 Mounting2. 1 Mounting

3 Functions and settings

3. 1 Operation3. 1 Operation

3. 2 Basic setup3. 2 Basic setup

3. 3 Recharge3. 3 Recharge

3. 4 Menu structure3. 4 Menu structure

3. 5 Auto Show3. 5 Auto Show

3. 6 Static color3. 6 Static color

3. 7 Sound mode3. 7 Sound mode

3. 8 Manual color3. 8 Manual color

3. 9 Dimmer3. 9 Dimmer

3. 10 Operation through the IRC controller3. 10 Operation through the IRC controller

3. 11 Master/Slave mode with DMX signal cable3. 11 Master/Slave mode with DMX signal cable

3. 12 Master/Slave with wireless signal3. 12 Master/Slave with wireless signal

3. 13 Operation with app SmartColors3. 13 Operation with app SmartColors

3. 14 Operation with WIFIBOX3. 14 Operation with WIFIBOX

3. 15 Limiter option3. 15 Limiter option

3. 16 Linking3. 16 Linking

3. 17 DMX mode3. 17 DMX mode

3. 18 DMX addressing3. 18 DMX addressing

3. 19 Connection of the DMX line3. 19 Connection of the DMX line

3. 20 Construction of the DMX termination3. 20 Construction of the DMX termination

3. 21 DMX control3. 21 DMX control

4 Maintenance

4. 1 Maintenance and cleaning the unit4. 1 Maintenance and cleaning the unit

4. 2 Fuse replacement4. 2 Fuse replacement

4. 3 Troubleshooting4. 3 Troubleshooting

Warranty

SMARTBATHEX

WARNING! Before carrying out any operations with the unit, carefully read this instruction

manual and keep it with cure for future reference. It contains important information about

the installation, usage and maintenance of the unit.

SAFETY

General instruction

• The products referred to in this manual conform to the European Community Directives and are there-

fore marked with .

• Supply voltage of this product is DC24V; never connect directly to AC22V. Leave servicing to skilled

personnel only. Never make any modications on the unit not described in this instruction manual,

otherwise you will risk an electric shock.

• Connection of the power adapter must be made to a power supply system tted with ecient earth-

ing (Class I appliance according to standard EN 6598-1). It is, moreover, recommended to protect the

supply lines of the units from indirect contact and/or shorting to earth by using appropriately sized

residual current devices.

• The connection to the main network of electric distribution must be carried out by a qualied electri-

cal installer. Check that the voltage correspond to those for which the unit is designed as given on the

electrical data label.

• This unit is not for home use, only professional applications.

• Never use the xture under the following conditions:

- in places subject to vibrations or bumps;

- in places subject to excessive humidity.

• Make certain that no inammable liquids, water or metal objects enter the xture.

• Do not dismantle or modify the xture.

• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for

an inspection or contact the manufacturer directly.

• If the unit is to be put out of operation denitively, take it to a local recycling

plant for a disposal which is not harmful to the environment.

Warnings and installation precautions

• If this device will be operated in any way dierent to the one described in this manual, it may suer

damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like

short circuit, burns, electric shock, etc.

• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.

• Always additionally secure the projector with the safety rope.When carrying out any work, always com-

ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country

in which the xture’s being used.

• Install the xture in a well ventilated place.

• Keep any inammable material at a safe distance from the xture.

• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent

that their eectiveness is impaired.

• The lamp (LED) shall be changed if it has become damaged or thermally deformed.

• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may

trigger epileptic seizures in photosensitive persons or persons with epilepsy.

• This product is not intended for permanent installation.

• Do not touch the product’s housing when operating because it may be very hot.

• This product was designed and built strictly for the use indicated in this documentation. Any other use,

not expressly indicated here, could compromise the good condition/operation of the product and/or

be a source of danger.

• We decline any liability deriving from improper use of the product.

SMARTBATHEX

- 1 - INTRODUCTION

1.1 TECHNICAL DRAWING

Fig.1

SMARTBATHEX

1.2 OPERATING ELEMENTS AND CONNECTIONS

Fig.2

Bottom panel

Side panel

1. MICROPHONE to control the show by the

external audio signal.

2. CONTROL PANEL with display and 4 button

used to access the control panel functions

and manage them.

3. AUTO SYNC/ CLEAR button for WiFi mode

4. CHARGE BATTERY LED

5. Adjustable foot support for tilt regulation

6. ON/OFF SWITCH

7. DMX IN (3-pole XLR):

1 = ground, 2 = DMX -, 3 = DMX +

8. POWER IN mains plug for connection to a

socket (100-240V 50/60Hz) via the supplied

mains cable. The support for the mains fuse

is located near the mains plug. Only replace a

blown fuse by one of the same type.

9. DMX OUT (3-pole XLR):

1= ground, 2 = DMX -, 3 = DMX +

10. POWER OUT: connect to supply power to the

next unit.

SMARTBATHEX

- 2 - INSTALLATION

2.1 MOUNTING

SMARTBATHEX may be set up on a solid and even surface. The unit can also be mounted upside down to a

cross arm. For xing, stable mounting clips are required.The mounting place must be of sucient stability

and be able to support a weight of 10 times of the unit’s weight.

When carrying out any installation, always comply scrupulously with all the regulations (particularly re-

garding safety) currently in force in the country in which the xture’s being used.

IMPORTANT

Always additionally secure the projector with the safety rope from falling down. For this purpose, fasten

the safety rope at a suitable position so that the maximum fall of the projector will be 20 cm.

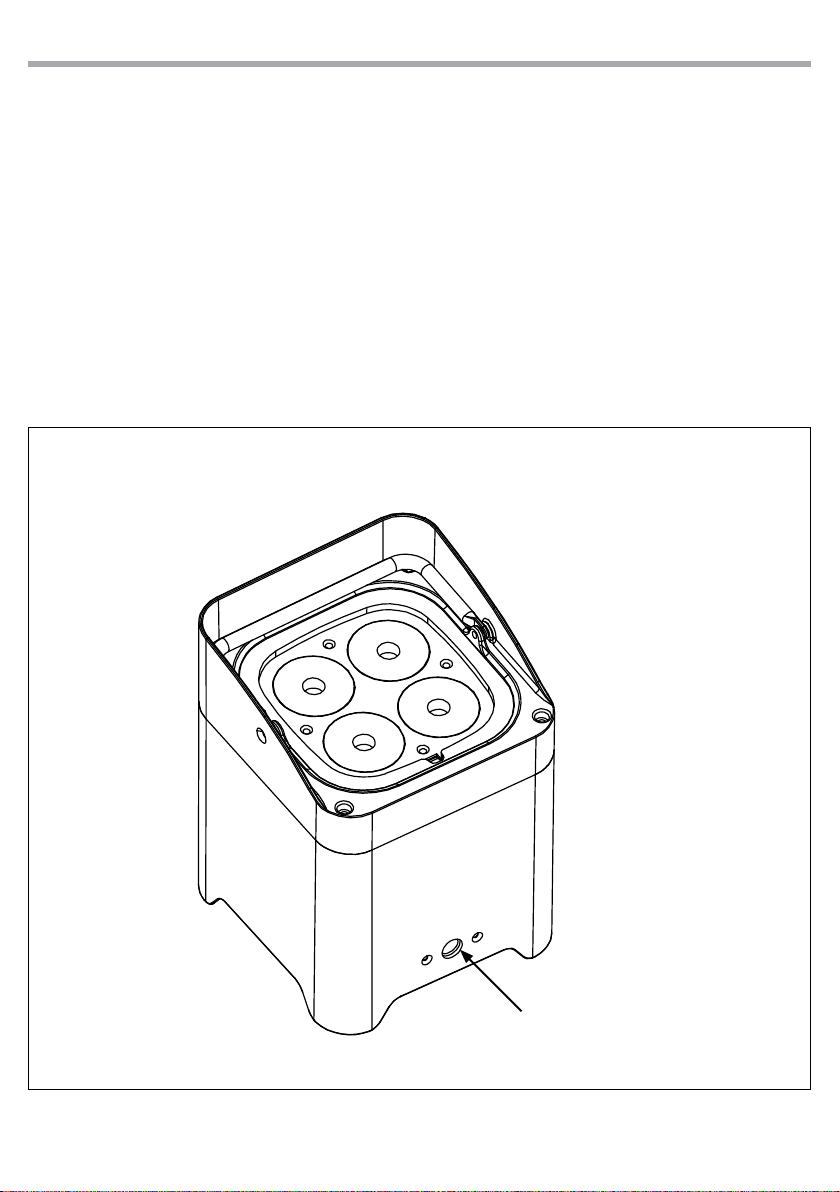

Fig.3

THREADED HOLES M12

SMARTBATHEX

- 3 - FUNCTIONS AND SETTINGS

3.1 OPERATION

Switch on the SMARTBATHEX with the power switch (If the battery charge is very low, connect the sup-

plied main cable to a socket (100-240V~/50-60Hz). The unit is ready for operation and can be operated via

a DMX controller or it independently performs its show program in succession.

After operation, switch o the unit with the power switch.

NOTE - The battery life indicators are the 4 small green LEDs on either side of the“AUTO” button. The indi-

cators show how much battery life remains available.

3.2 BASIC SETUP

The SMARTBATHEX has a LED display and 4 buttons for access to the functions of the control panel (g. 4).

Fig.4 - Functions of the buttons

MENU UP DOWN ENTER

Used to access the menu or

to return a previous menu

option

Scrolls up the list of options or

selects a higher value

Scrolls down the list of

options or selects a lower

value

Activates a menu option or a

selected value

3.3 RECHARGE

To recharge SMARTBATHEX, plug the power cable into a mains socket (100-240V~/50-60Hz). During

charging the LED indicates green to show that the battery is charging.

The charging time are 5 hours and autonomy is 12 hours (color change mode) or 8 hours (permanent

white full-on).

NOTE -The battery charges whenever the product is plugged into a power source. If the product is plugged

in and not in operation, make sure the ON/OFF switch is in the OFF position.

SMARTBATHEX

3.4 MENU STRUCTURE

DMX Personality and

Starting Address

6 CH ðd1 - d512

Selects DMX personality and DMX starting value8 CH ðd1 - d512

12 CH ðd1 - d512

2 Static Colors C-- ðC1 - C63 Selects 1 of 63 static colors

3 Auto Programs P-- ðP1 - P4 Selects 1 of 4 auto programs

4 Programs Speed S-- ðS1 - S100 Sets auto program speed (slow to fast)

5 Sound Active Snd Selects Sound Active mode

6 Sound Sensitivity SenS ðu0 - u100 Sets sound sensitivity (low to high)

7 Custom Color Mixing U-- ðr0 - r255 Red (0-100%)

ðg0 - g255 Green (0-100%)

ðb0 - b255 Blue (0-100%)

ðA0 - A255 Amber (0-100%)

ðW0 - W255 White (0-100%)

ðP0 - P255 UV (0-100%)

8 Dimmer dIM ðOFF OFF: Dimmer speed o

ðdIM1 DIM1: Dimmer speed fast

ðdIM2 DIM2: Dimmer speed middle

ðdIM3 DIM3: Dimmer speed slow

9 Infrared SET ðON Turns infrared on or o

ðOFF

10 2.4GHz WiFi Setting S-tr ðdrAS ðdrAU Automatically select receive frequency

ðdrCH ðdr1 - dr16 Manually select receive frequency

ðdtAS ðdtAU Automatically select transmit frequency

ðdtCH ðdt1 - dt16 Manually select transmit frequency

11 Limiter Limi ðON Turns limiter on, enabling extended battery life

ðOFF Turns limiter o, disabling extended battery life

SMARTBATHEX

3.5 AUTO SHOW

This xture has a built-in automatic program. To access this, please see the below instructions:

• Press the button MENU so many times until shows P-- , then press the button ENTER.

• Using UP/DOWN button, select one of the programs P1 - P4 .

• Press the button ENTER to conrm.

• Press the button MENU until S-- appears on the display.

• Use the button UP/DOWN to select the auto programs speed S001 - S100 (slow-fast).

• Press the button ENTER save the setting.

3.6 STATIC COLOR

This xture has the ability to accept custom static color settings. Access these chases via the control panel

on the back of the xture.

• Press the button MENU so many times until shows C-- , then press the button ENTER.

• Using UP/DOWN button, select one of the programs C1 - C63 .

• Press the button ENTER to conrm.

• Press the MENU button to go back or to meet the waiting time to exit the setup menu.

3.7 SOUND MODE

• Press the button MENU so many times until the display shows Snd .

• Press the button ENTER to conrm.

• You can set the microphone sensitivity pressing the button MENU so many times until the display show

Sens

• Using the button UP/DOWN, select the desired value sensitivity (slow-fast) u0 - u100 .

• Press the button ENTER to conrm.

3.8 MANUAL COLOR

This mode allows to combine the colors red, green, blue amber white and purple (r, g, b, A, W, P).

• Press the button MENU so many times until the display shows U-- , then press the button ENTER.

• Select the color r, g, b, A, W, P through the buttons UP/DOWN.

• Press the button ENTER to conrm.

• Using UP/DOWN button, select the desired color value 000 - 255 .

• Press ENTER button to continue to the next color.

• Continue until the desired mix is obtained.

• Press the MENU button to go back or to meet the waiting time to exit the setup menu.

3.9 DIMMER

• Enter in Dimmer mode to select specic dimming curve, press the button MENU so many times until

shows dIM, and press the button ENTER to conrm.

• Press the button UP/DOWN to select OFF - dIM1 - dIM2 - dIM3.

• Press ENTER button to store.

• Press the MENU button to go back or to meet the waiting time to exit the setup menu.

3.10 OPERATION THROUGH THE IRC CONTROLLER

To control the SMARTBATHEX with the infrared remote control:

Table des matières

Langues :

Autres manuels ProLights Matériel de DJ

ProLights

ProLights RADIONSTR Manuel utilisateur

ProLights

ProLights MINICLIPSEWD Manuel utilisateur

ProLights

ProLights LUMIPAR6UQ Manuel utilisateur

ProLights

ProLights RA3000Profile Manuel utilisateur

ProLights

ProLights LUMIPAR12UAW Manuel utilisateur

ProLights

ProLights ARCPOD27Q Manuel utilisateur

ProLights

ProLights RA2000PROFILEHB Manuel utilisateur

ProLights

ProLights EMERALD Manuel utilisateur

ProLights

ProLights AlphaPIX6T Manuel utilisateur

ProLights

ProLights AIR5FAN Manuel utilisateur

ProLights

ProLights VERSAPAR PARLED ZOOM Manuel utilisateur

ProLights

ProLights STARK1000 Manuel utilisateur

ProLights

ProLights Halupix Manuel utilisateur

ProLights

ProLights EclFresnel JrVW Manuel utilisateur

ProLights

ProLights VIRTUALDRAPE Manuel utilisateur

ProLights

ProLights Tribe LUMIPIX12UQ Manuel utilisateur

ProLights

ProLights Tribe LUMIPIX12UQPRO Manuel utilisateur

ProLights

ProLights DISPLAYCOBTRWDFC Manuel utilisateur

ProLights

ProLights ECLIPSE FRESNEL TU Manuel utilisateur

ProLights

ProLights ARCLED7314HD Manuel utilisateur

ProLights

ProLights RA2000PROFILE Manuel utilisateur

ProLights

ProLights SUNBLAST3000FC Manuel utilisateur

ProLights

ProLights VORTEX VXBUBBLE Manuel utilisateur

ProLights

ProLights SmartBat PlusG2 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
