PowerWalker BP P96T Guide de l'administrateur

S.O.P. - How to assemble BP P96T-16x9Ah

Warning:

Be careful when connect batteries, do not make batteries have short circuit.

1. The receptacle’s wires have been assembled, please

do not dismantle them.

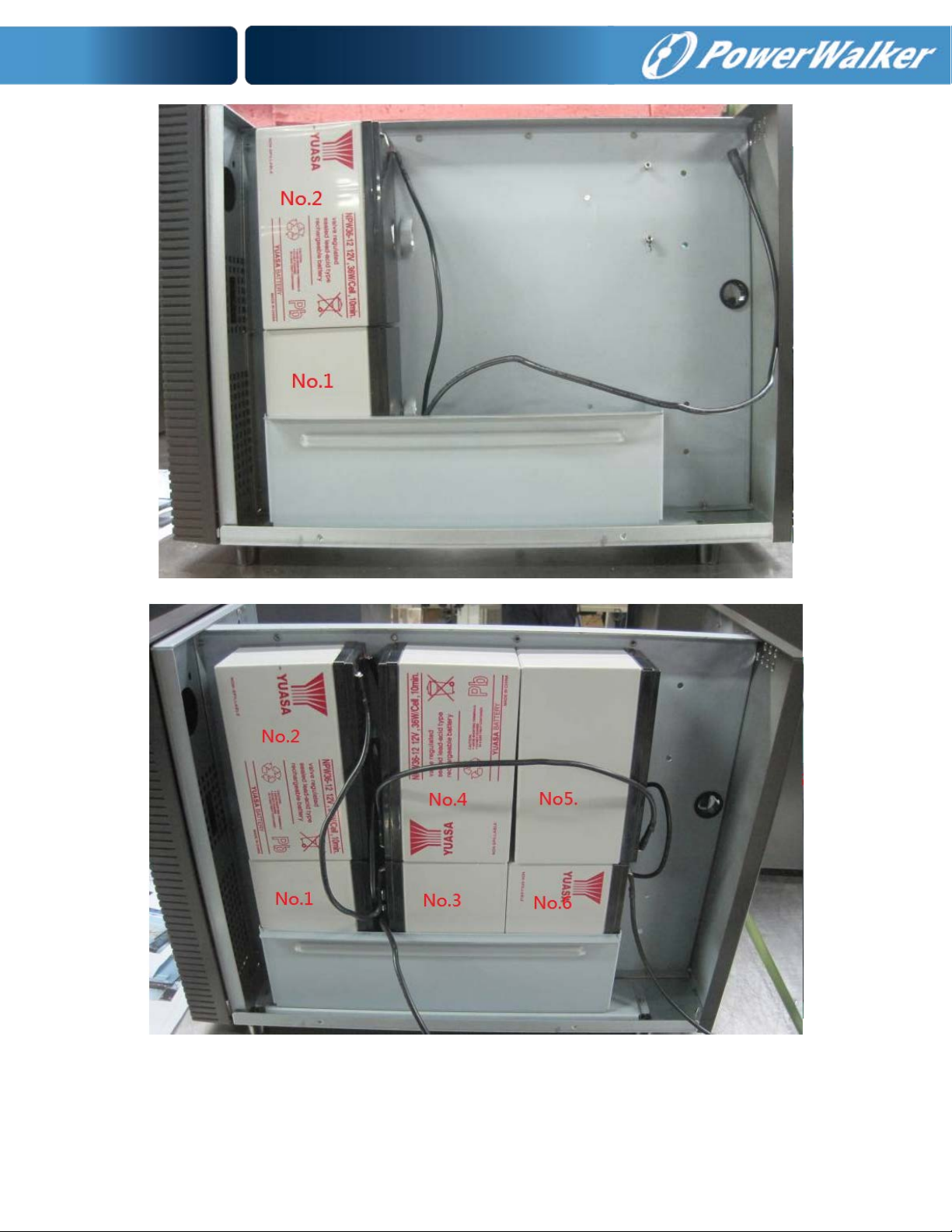

2. Please assemble the 6PCS batteries with black wire and

place 6PCS batteries into the Battery Case as below.

Note:

BAT No.1 (-)



BAT No2. (+)

BAT No.3 (-)



BAT No4. (+)

BAT No.5 (-)



BAT No6. (+)

560mm

300mm

260mm

300mm

200mm

370mm

The connectors should insulate

with thermal tube.

Note:

BAT No.2 (-)



BAT No3. (+)

BAT No.4 (-)



BAT No5. (+)

3. Please fix them and do the opposite side.

4. Please assemble 10pcs batteries into the Battery Case’s left side and assemble with fixing

plates as below.

Tie cables 560mm & 300mm

(No.4 to No.5) together.

Pass through the

cables 560mm &

370mm to the hole

5. Please connect batteries on the left side with wires as below:

Note:

BAT No.9 (-)



BAT No10. (+) ; BAT No.10 (-)



BAT No11. (+)

BAT No.11 (-)



BAT No12. (+) ; BAT No.12 (-)



BAT No13. (+) ;

BAT No.13 (-)



BAT No14. (+) ; BAT No.14 (-)



BAT No15. (+) ;

BAT No.15 (-)



BAT No16. (+)

Ensure voltage over 80V between BAT No.9 (+) and BAT No.16 (-)

Note:

BAT No.6 (-) / cable 370mm



BAT No7. (+)

BAT No.1 (+) / cable 560mm



BAT No8. (-)

Ensure voltage over 80V between BAT No.7 (-) and BAT No.8 (+)

Bat receptacle’s Shorter black wire 3#



BAT No. 7 (-)

Bat receptacle’s Shorter red wire 4#



BAT No. 8 (+)

Bat receptacle’s Longer black wire 3#



BAT No. 16 (-)

Bat receptacle’s Longer red wire 4#



BAT No. 9 (+)

Note: Tie cables together

So you finish assembling batteries and you can fix the cover now.
